Ensuring positional accuracy:
Providing a reference for the installation position of anchor bolts to prevent deviation and make the connection of steel structure frame more accurate and reliable.
Improving installation efficiency:
Construction personnel can quickly determine the position of the anchor bolts, that can save time a lot of time. The standardized design reduces human errors and multiple construction teams can install simultaneously.
Enhancing connection stability:
Making the anchor bolts better combined with concrete, evenly distributing the load and improving the seismic performance and bearing capacity.
Facilitating quality control:
Providing a standard for quality inspection, discovering and correcting problems in time, ensuring project quality and reducing rework and repair.

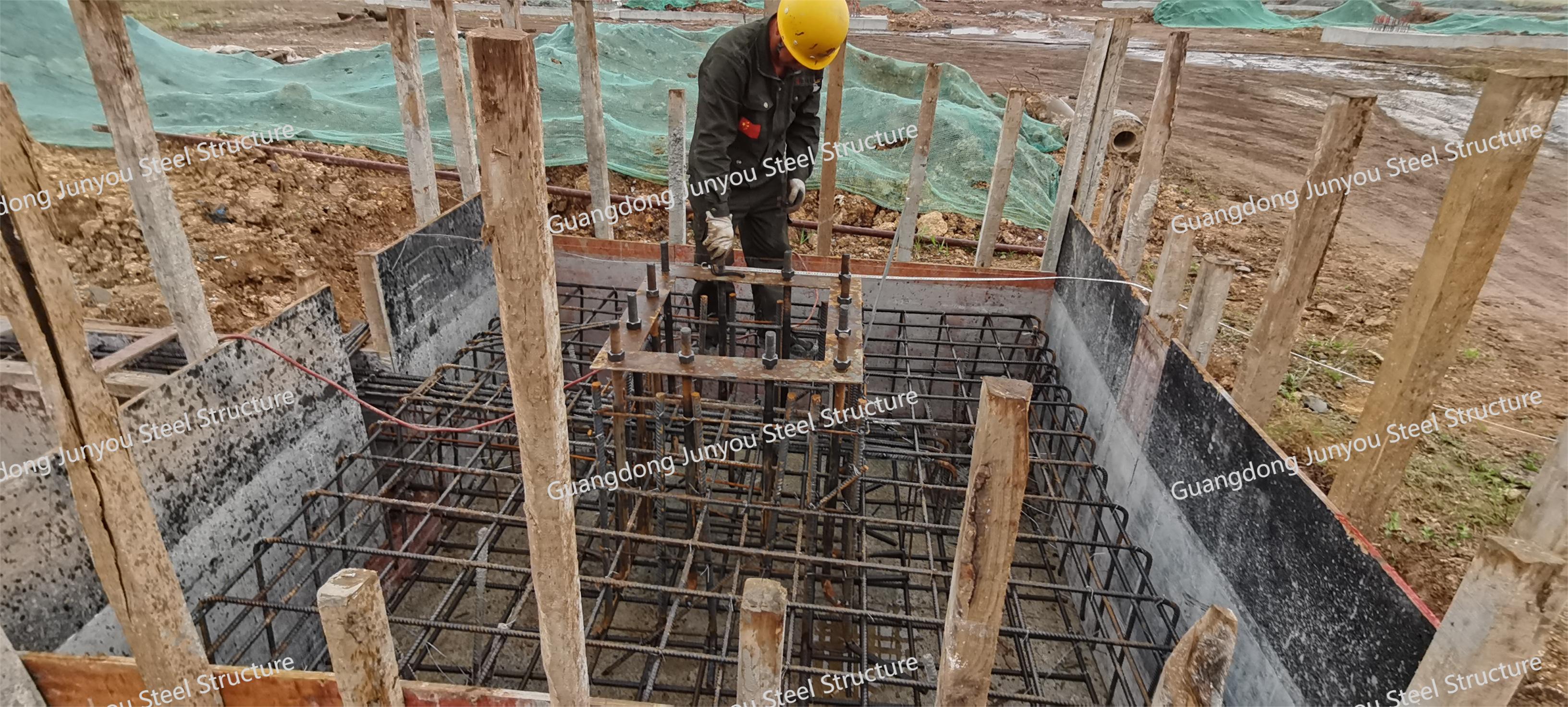

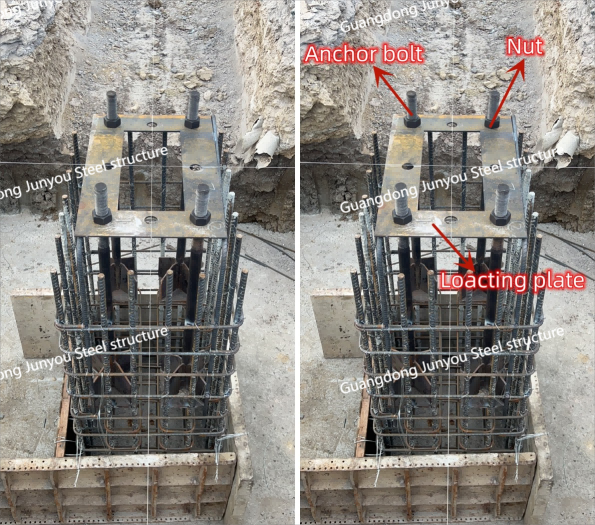

The positioning plate we usually use is the flat-type positioning plate.This is the most common type. It is usually a flat steel or metal plate with corresponding positioning holes or grooves opened according to the shape and size of the anchor bolts.
Flat-type positioning plates are simple to make low in cost, and are suitable for most conventional anchor bolts positioning needs. For example, in some ordinary industrial buildings, steel warehouses, and steel workshops flat-type positioning plates can effectively ensure their accurate position for small-sized and regular-sized anchor bolts(M20-M36).
Anchor bolt positioning plate installation steps
Precise measurement and positioning: Use high-precision measuring tools such as total stations and levels to ensure that the installation position of the positioning plate is accurate without error. Any tiny deviation may have a significant impact on the subsequent installation of the steel structure.
Firm fixation: Whether using bolt fixation or welding fixation, ensure that the positioning plate is firmly installed on the foundation or formwork. Bolts should be tightened in place, and welding should ensure weld quality to avoid loosening or displacement of the positioning plate during the construction process.
Maintain horizontality and verticality: When installing the positioning plate, strictly ensure its horizontality and verticality. A level and plumb line can be used for verification to ensure that the positioning plate is in the correct position state.

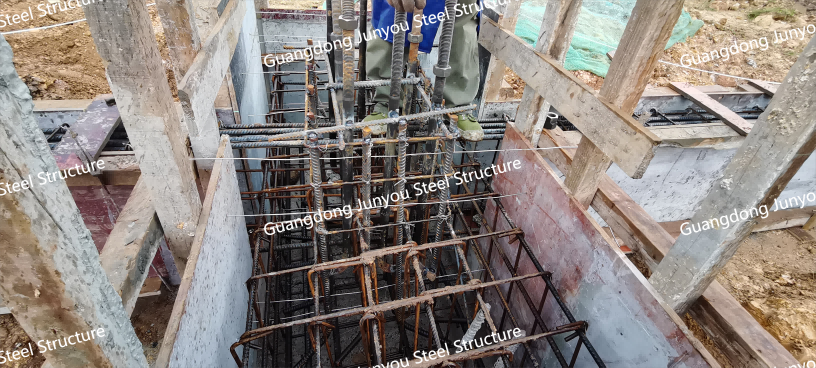

Step 1.

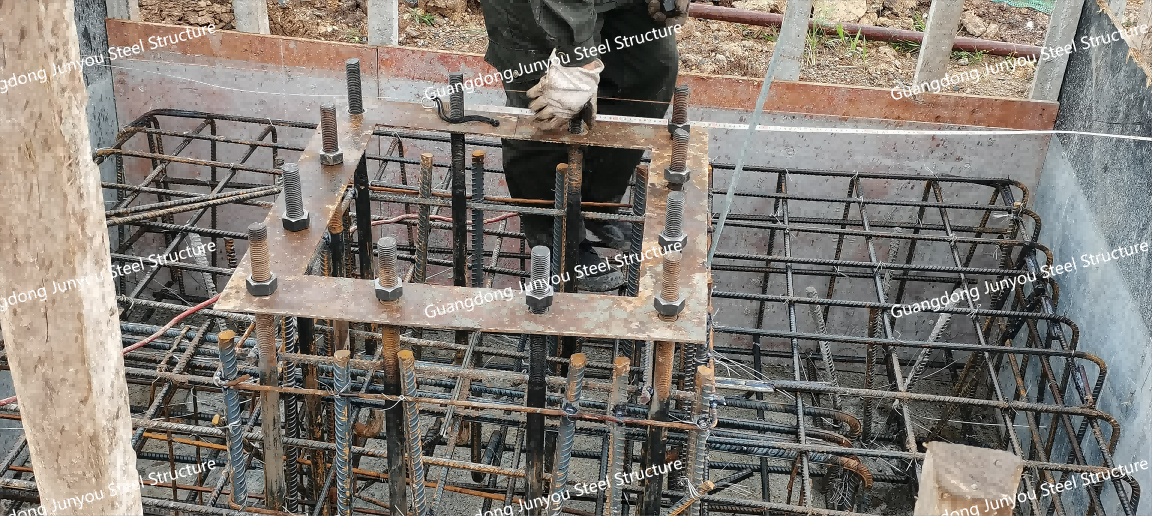

Step 2.

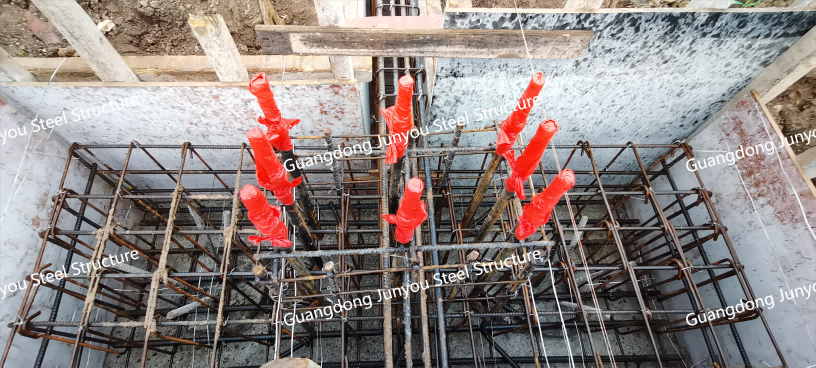

Step 3.

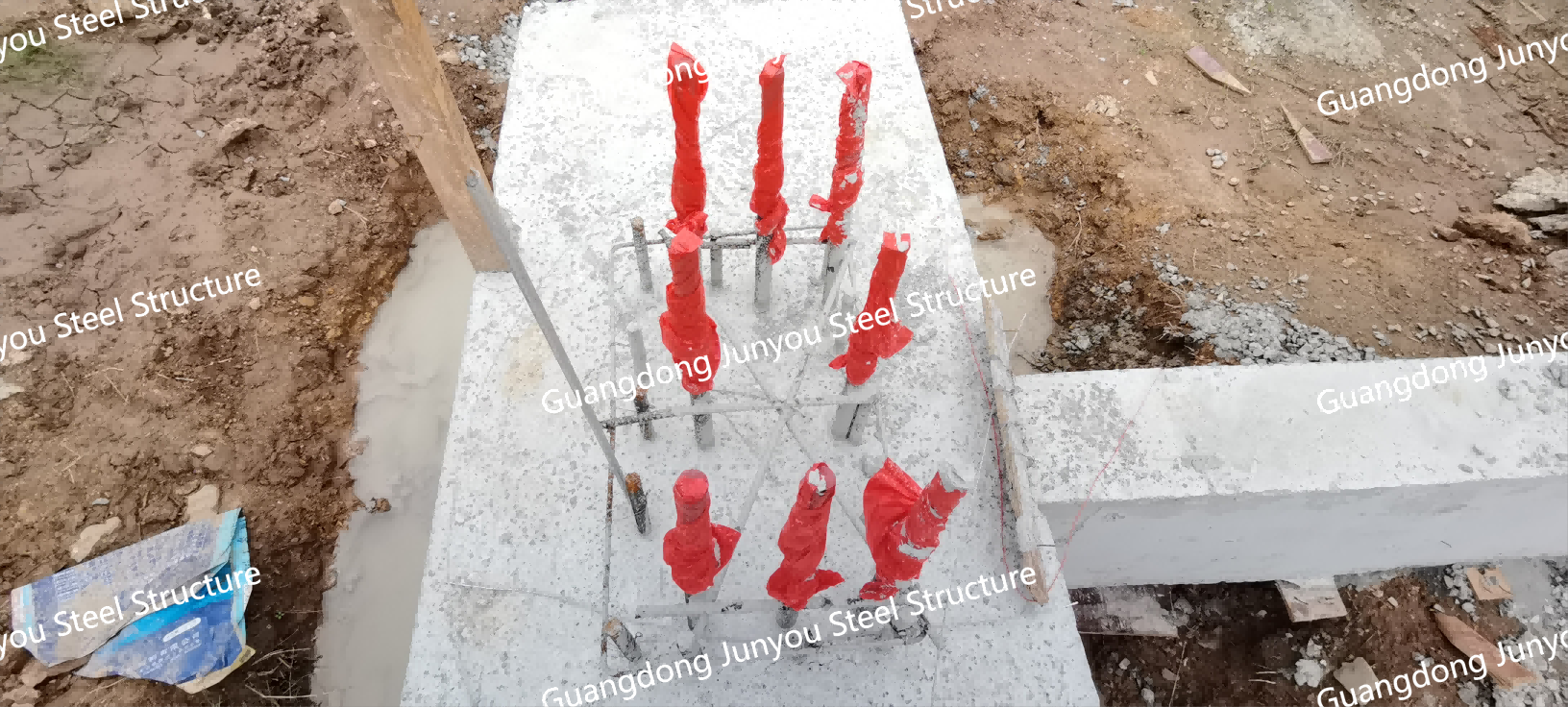

Step 4.
The anchor bolt positioning plate can precisely determine the position of the anchor bolts in the structure, ensuring that the connection points between the steel structure and the foundation or other structures are accurate without any error.
This provides reliable support and fixed points for the steel structure and guarantees a clear and definite force transmission path. When the connection positions are accurate, when the steel structure is subjected to various loads, it can transfer the force evenly to the foundation, avoiding local stress concentration caused by misaligned connections and thus enhancing the overall stability of the steel structure.
In summary, anchor bolt positioning plates play an indispensable role in steel structure projects！
