Container house introduction

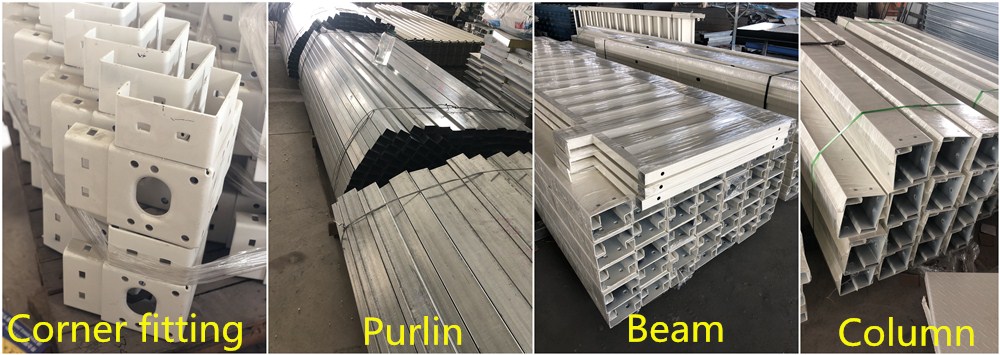

The main structure of the prefab container house unit is a steel frame structure(Corner fittings, Purlin, Beam and column) of Q235 steel components are applied and welded precisely. The surface treatment adopts powder coating achieving good corrosion resistance for the structure.
-
It is a detachable container house, which means every component of the container will be separated for delivery, and installed piece by piece at the construction site. We will offer a detailed installation drawing to guide your assembly work.

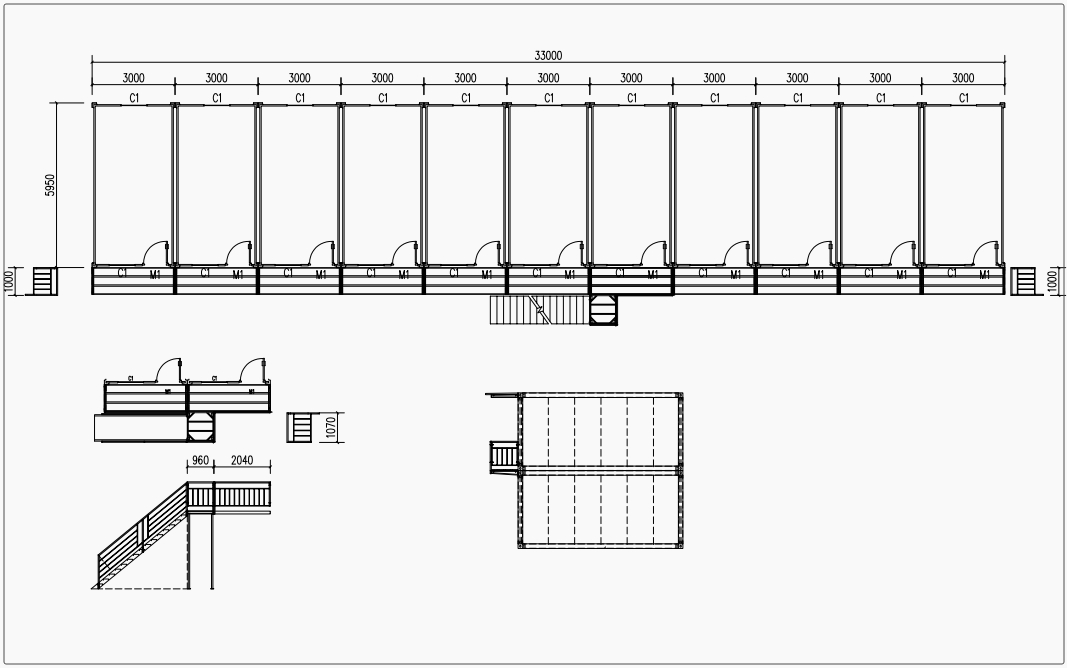

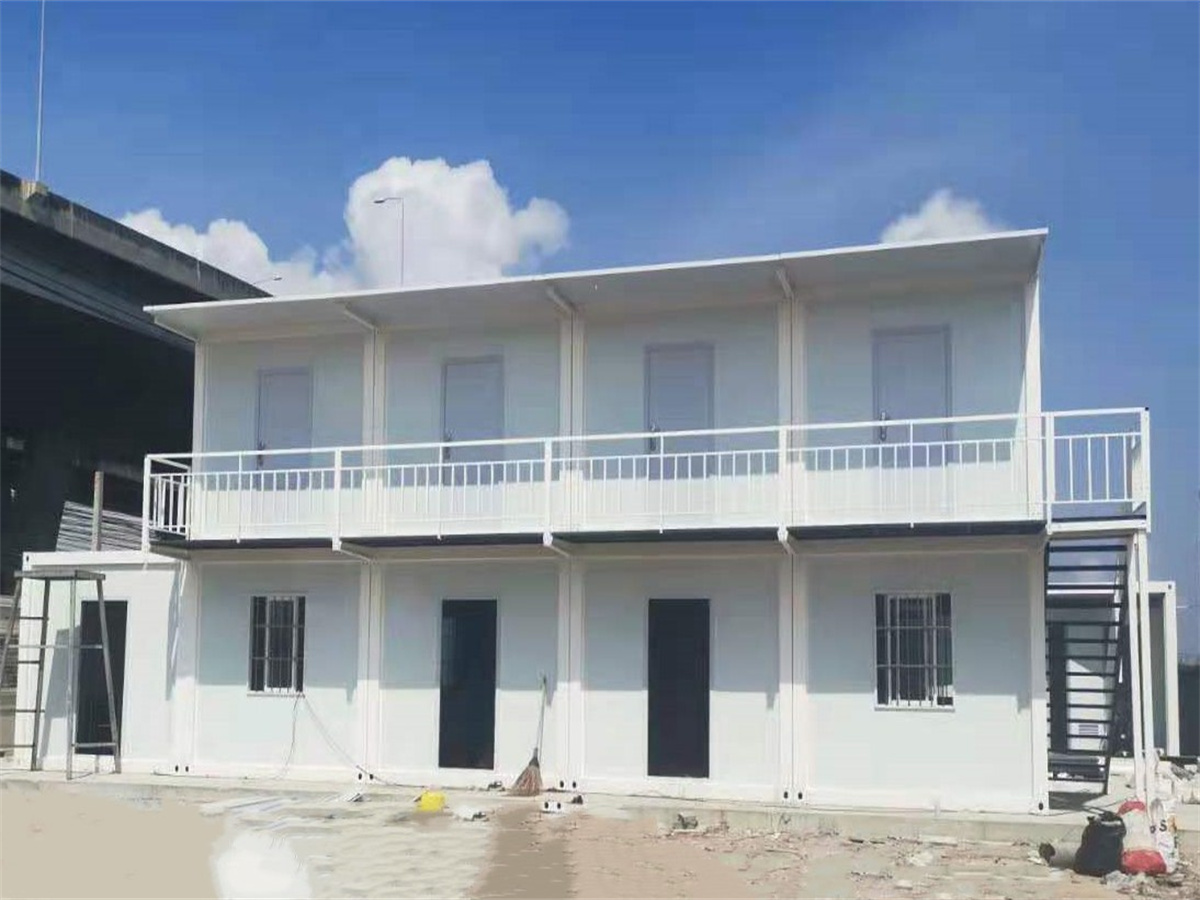

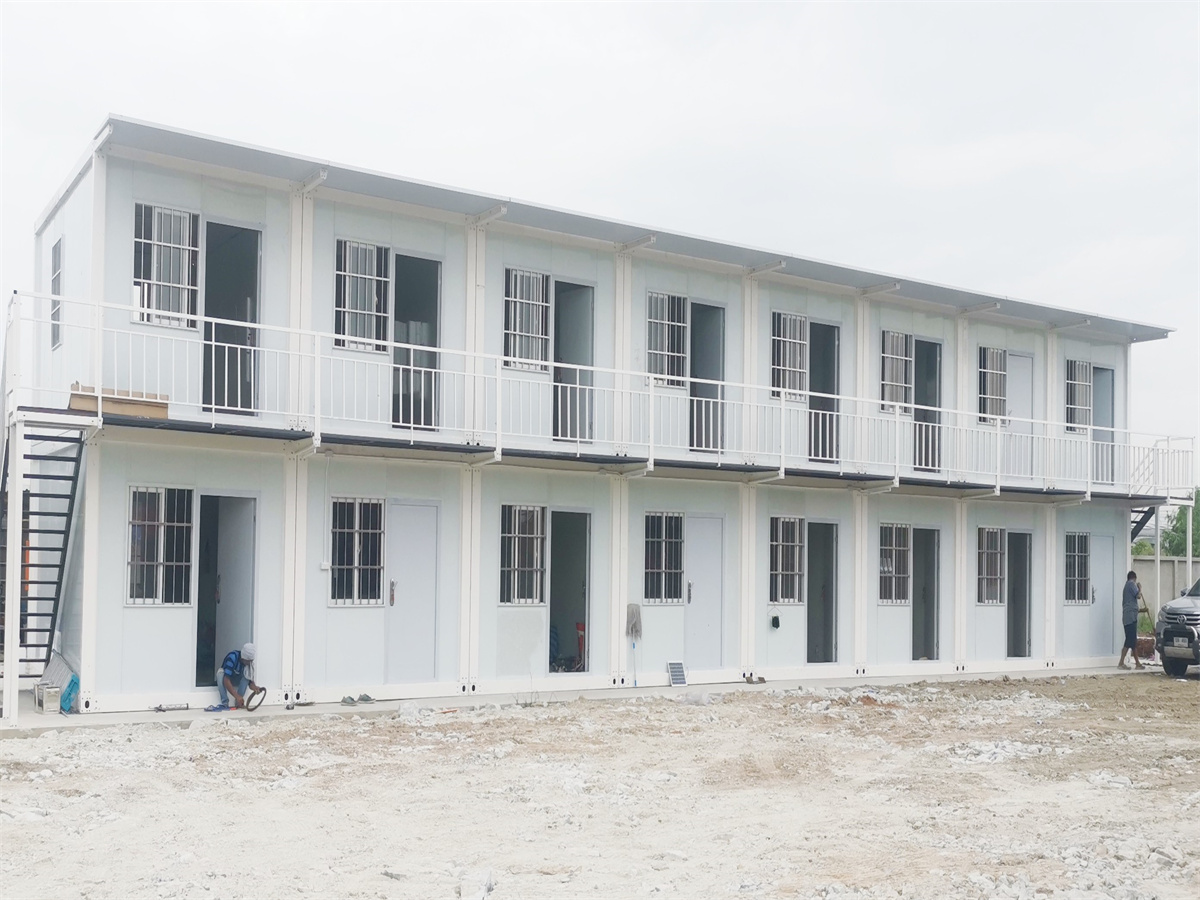

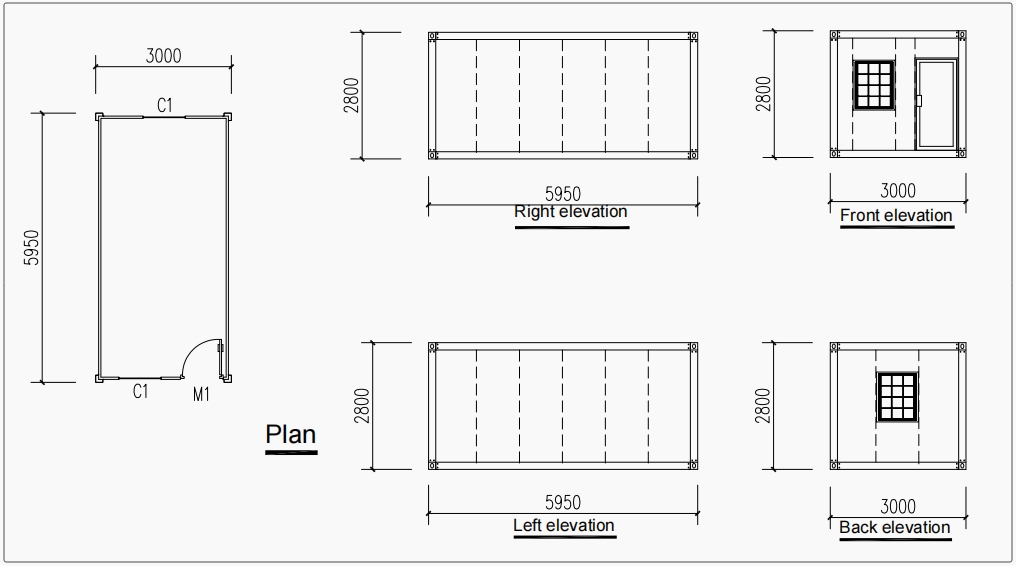

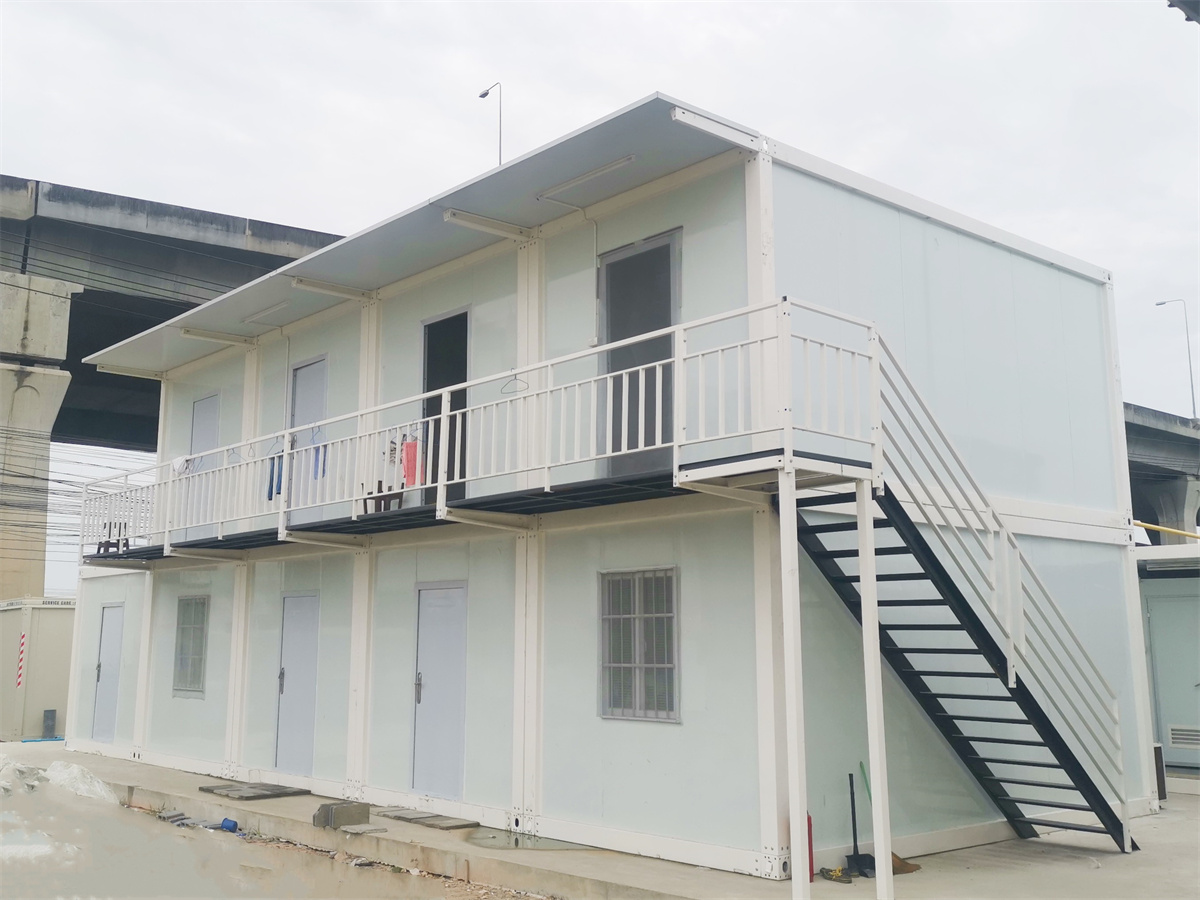

We mainly produce 20ft type of prefab container house, because it is standardized, with short processing and production times, easy transportation, fast installation, and last but not least their affordable prices.The prefabricated 20ft container house we display here is for labor camp or worker dormitory in Philippine. It is usually make 2 floor to save land covered area at construction site.Here below is the floor plan of this project:
Roof system installation detail display:

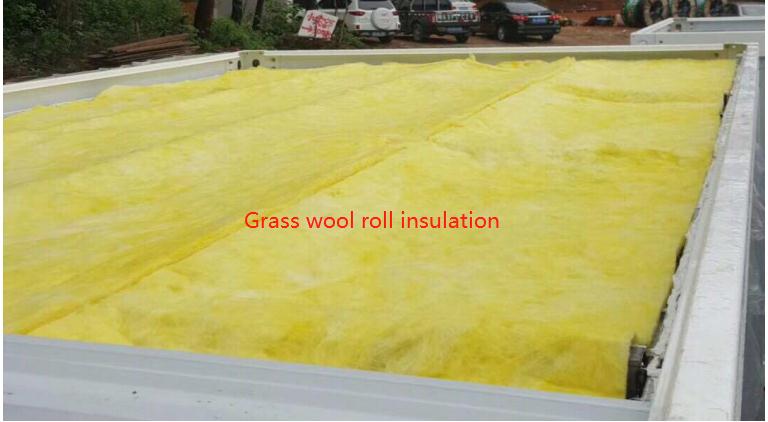

*Glass wool insulation install

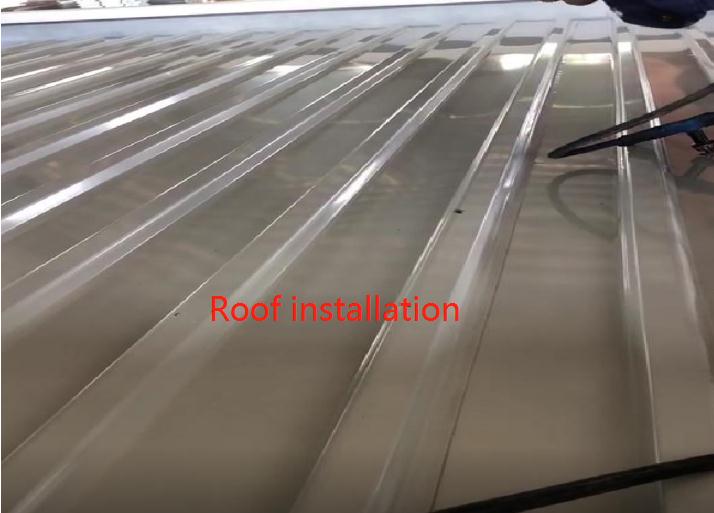

*Steel sheet roofing install

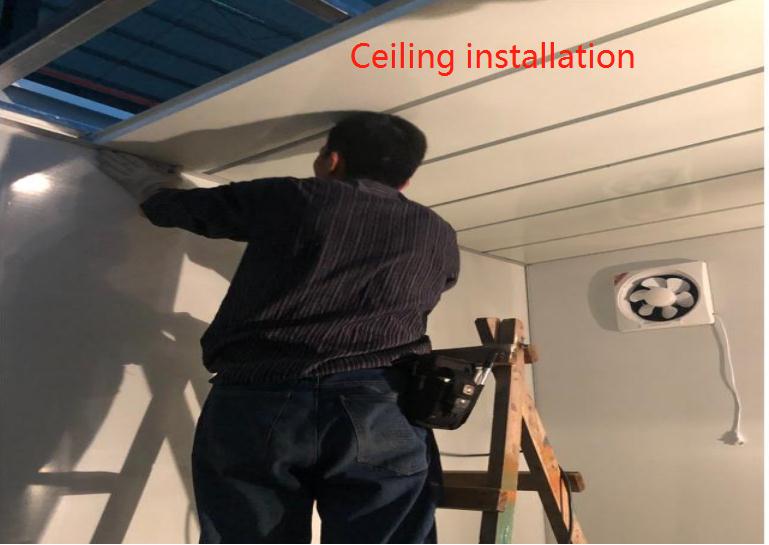

*Indoor ceiling install
Feature:
1. Convenient for moving and transporting.
2. Service life:10 years
3. Good waterproof, sound-insulated, heat preservation, and environmental protection.
4. The layout is a customized design.
5. International standards can be put on standard shipping containers.
6. Beautiful appearance, different colors available.
20ft prefab container house detail material description:
Type | Detachable container house | Material | Galvanized steel frame |
Exterior Size | 5950*3000*2800H mm | Interior Size | 5735*2800*2500H mm |
Color | White | Wall | 50mm EPS sandwich panel |
Roof Tile | 0.476mm steel sheet | Ceiling | 0.426mm steel sheet |
Spray Paint | Double Layer | Flooring | 18mm MGO cement fiberboard |
Door | 2035*950mm steel door | Window | 1100*950mm plastic/aluminum alloy window |
Drain System | Interior | Electrical Appliance | Light, socket, switch, wire, and distribution box |
Application | Residential, office, camp, hotel, villa... | Delivery Time | 5-10 working days. Negotiable |
Foundation | Without foundation needs | Assembly | Rapid assembly. 4 people 2 hours for 1 basic type |
Style | Modern | Custom Made | Available |

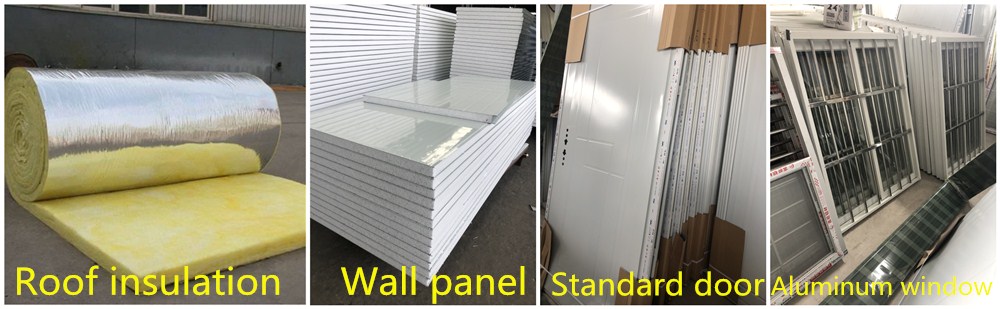

Container house material system display
Packing method:
Option one: 16 units can fit in 40HQ
Option two: 6 units can fit in 20GP
Packing method: Load in bulk to save space to load more building materials.
Advantages of container house:
1. Activity: removable and reusable.
2. Rapid assembly: short manufacturing period and no foundation.
3. Steel-reinforced structure, safety, windproof and shockproof.
4. Durability: the outer wall of the steel plate is corrosion-resistant and acid-resistant and does not rust or crack, and its service life is more than 20 years.
5. Sound and heat insulation: It adopts an air-heat insulation design, with good sound and heat insulation.
6. Aesthetics: It can be designed in various shapes, with many colors on the outer wall, and a bright and beautiful appearance.
7. Low cost, high quality, and low price.
Here are some common applications of container houses:
-Temporary housing: Suitable for construction sites, disaster relief areas, and temporary events.
- Residential buildings: Can be used as low-cost housing or alternative housing solutions.
- Office spaces: Provide flexible and cost-effective office solutions.
- Retail spaces: For small businesses or small stores.
- Accommodation facilities: Such as hotels, guest houses, and campsites.
- Medical facilities: As temporary or portable medical clinics.
- Emergency response centers: For disaster relief and emergencies.
- Storage facilities: To store goods and materials.
- Recreational spaces: Like cafes, restaurants, or bars.
