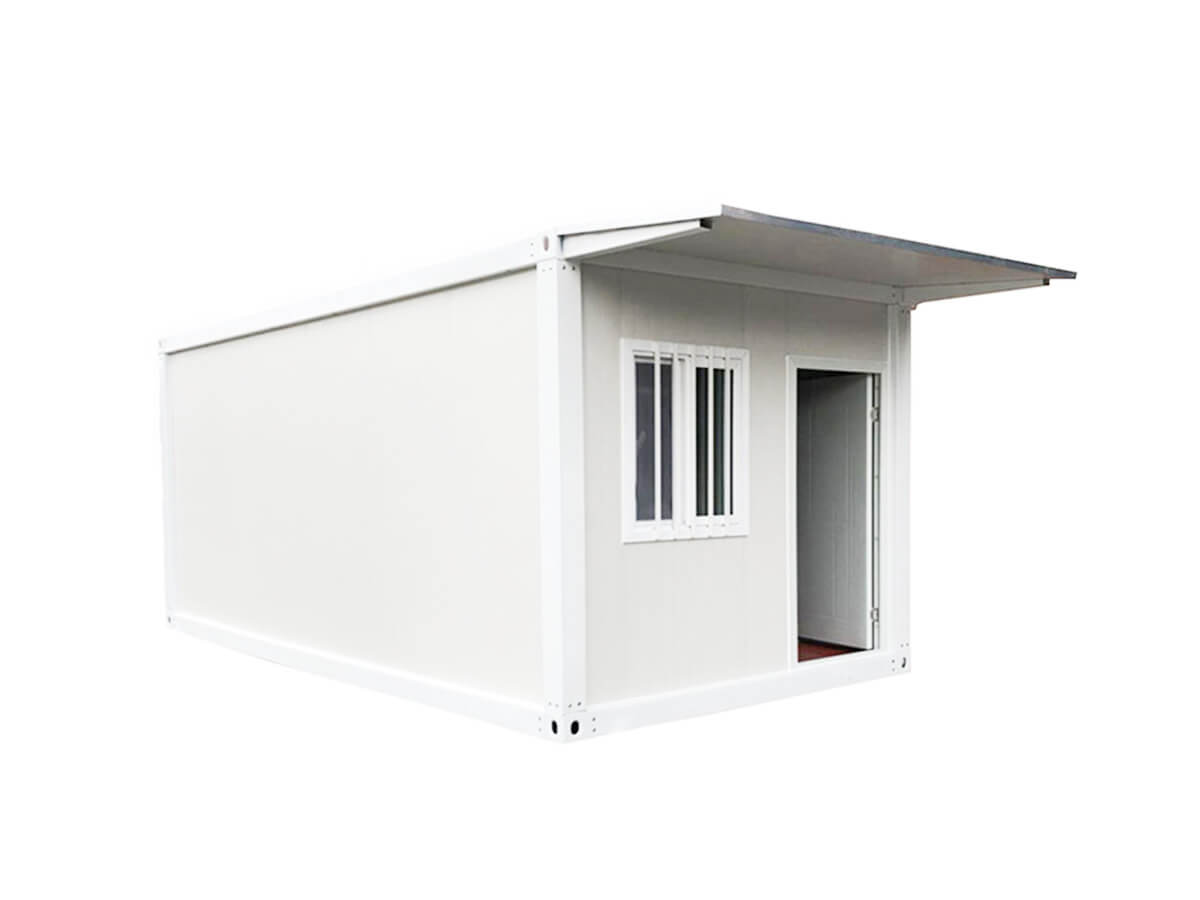

20FT Standard Size Detachable Prefabricated Container House

Product Information

A sandwich panel prefabricated container house is a type of housing constructed using steel plate bending into 4 steel columns and beams as the main structural and square tube for sub-steel frames like purlins. The sandwich panels as the walls. The roof is made of steel sheets with glass wool insulation.

Such houses are often used as temporary or permanent living or storage spaces due to their convenience, affordability, and quick assembly.

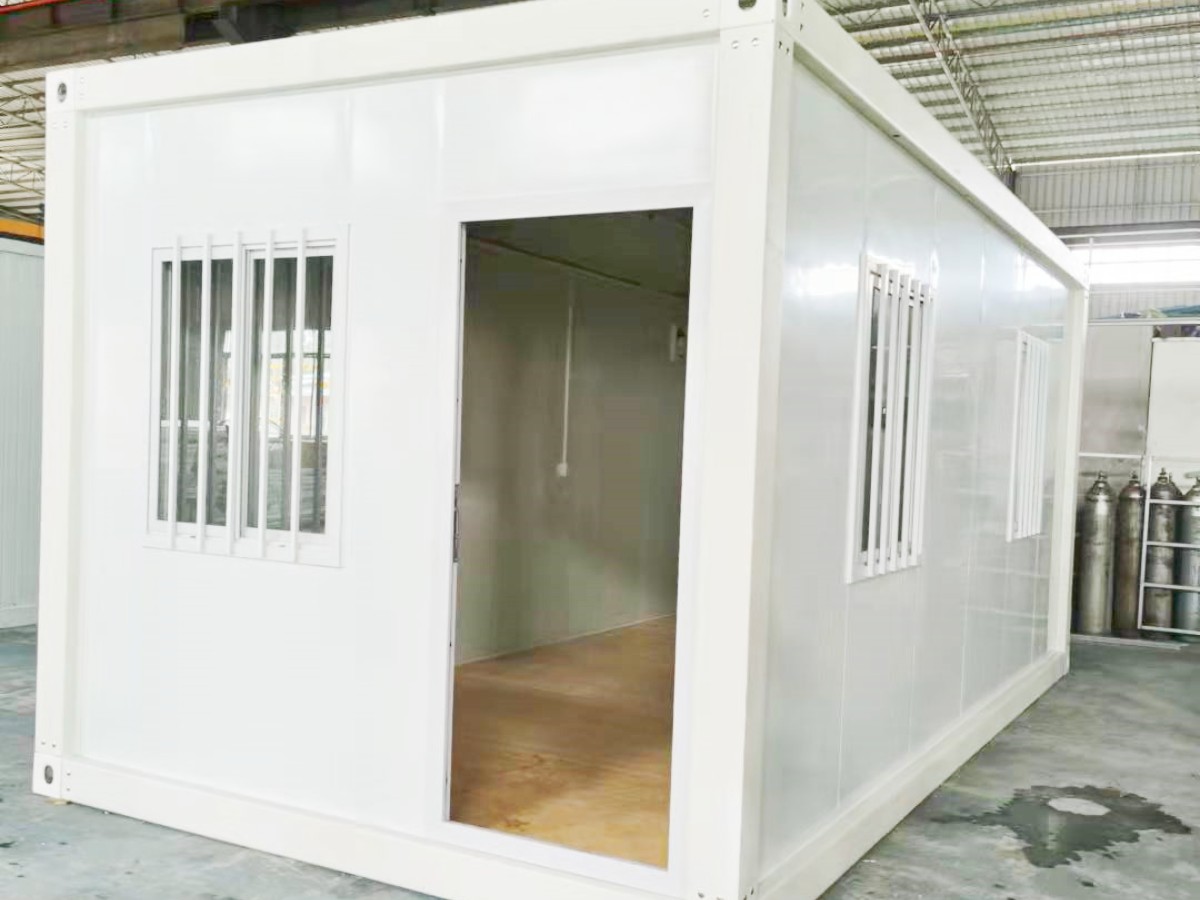

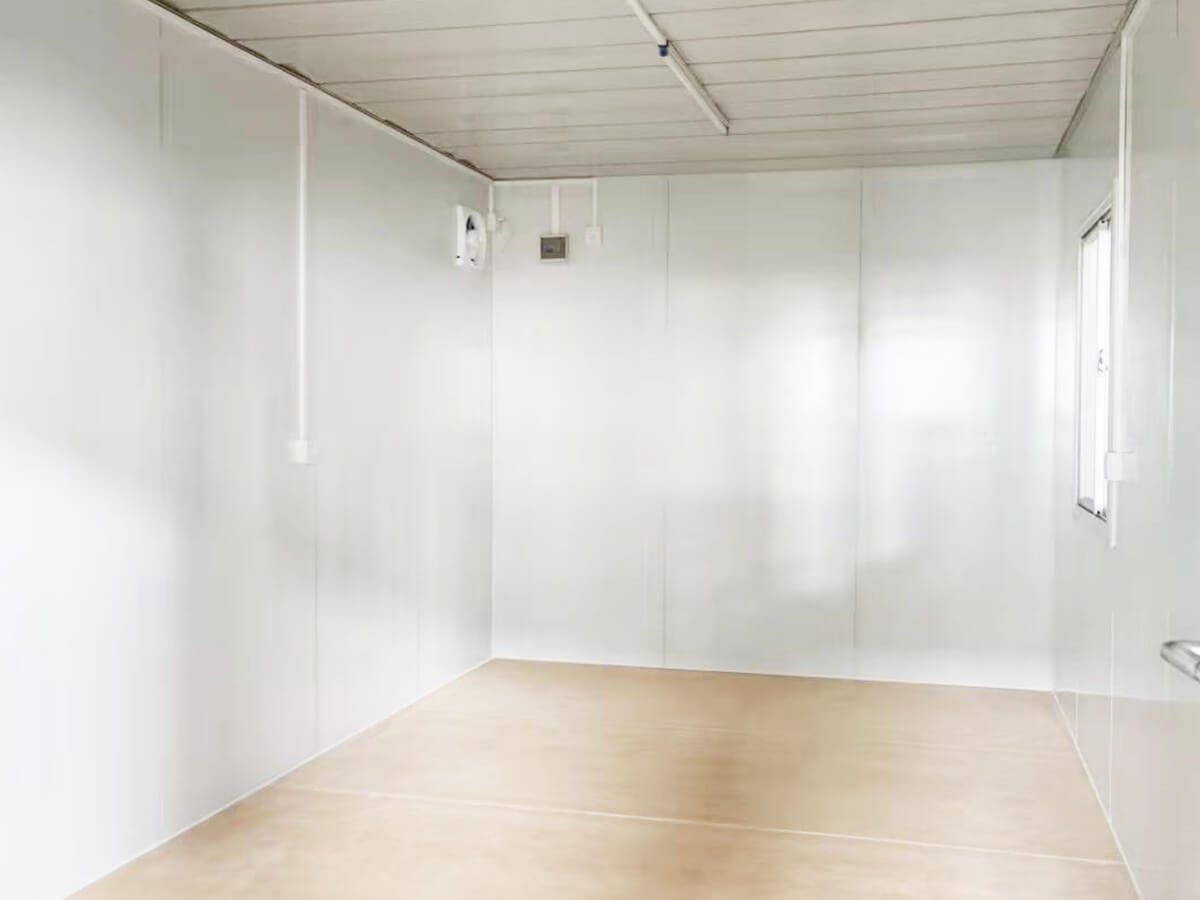

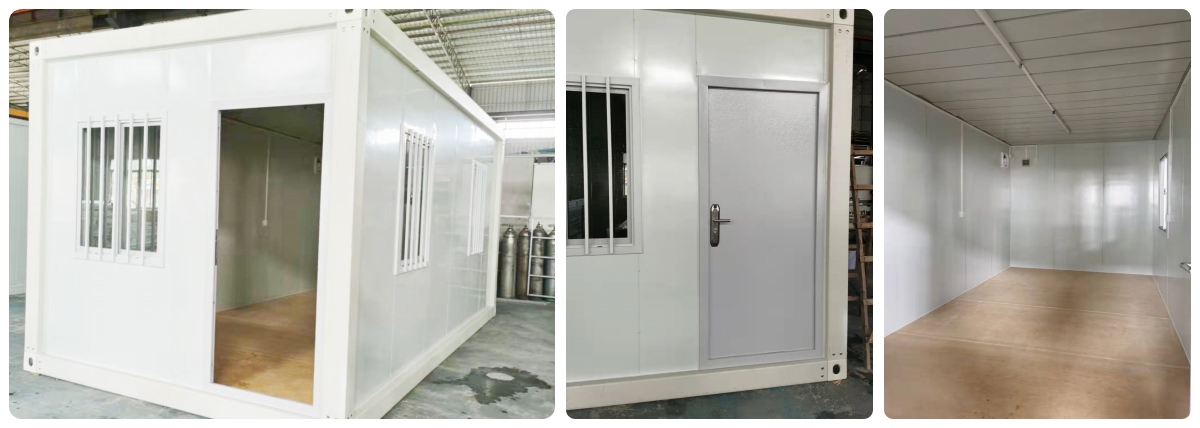

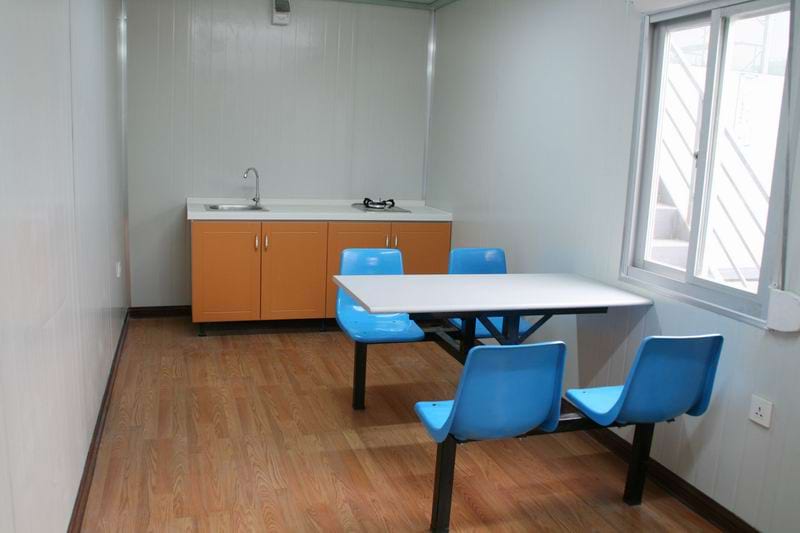

The product we mentioned here is a 20ft standard-size container as a worker dormitory/labor camp. It is empty inside, because like this kind of function the toilet or the bathroom usually separate in another place. Here below are the project pictures:

What kinds of containers do we see most often?

• Shipping container house: This container house is reconstructed by standard shipping containers, it can be customized with windows, doors, insulation, and interior finishes.

• Expandable container house: An expandable container house can provide more living space by its expandable function, they are compacted during transportation and can be easily expanded on-site.

• Prefab container house: It is also called a detachable container house, which means every component of the container will be separated for delivery, and installed piece by piece at the construction site.




We mainly produce the 3rd type of prefab container house, because it is standardized, with short processing and production times, easy transportation, fast installation, and last but not least their affordable prices.

20ft prefab container house material in detailed (size:3mx5.95mx2.8m)

I	Main steel frame
1	Corner fitting(powder coating)	5mm steel sheet bending
2	Beam(powder coating)	2.3mm steel sheet bending
3	Column(powder coating)	2.3mm steel sheet bending
4	Bottom purlin(cold-galvanized)	口80*80*1.3mm
5		口80*40*1.3mm
6	Top purlin(cold-galvanized)	口50*50*1.5mm
7		口40*60*1.3mm
8		口80*40*1.3mm
9	Flashing channel	1.2mm
II	Maintenance
1	Roof tile---Corrugated steel sheet	0.426mm
2	Roof insulation---Glass wool roll	18*1.2m*11kg
3	Ceiling(with corner trimming)	0.326mm steel sheet
4	Floor plate----MgO board	18mm
5	Wall panel--EPS sandwich panel(white color)	50mm,0.326mm steel sheet
5	Glass wall--	6+1.14+6mm double glass
6	Screws	Self-tapping screws, rivets, bolts, glue
III	Door&Window

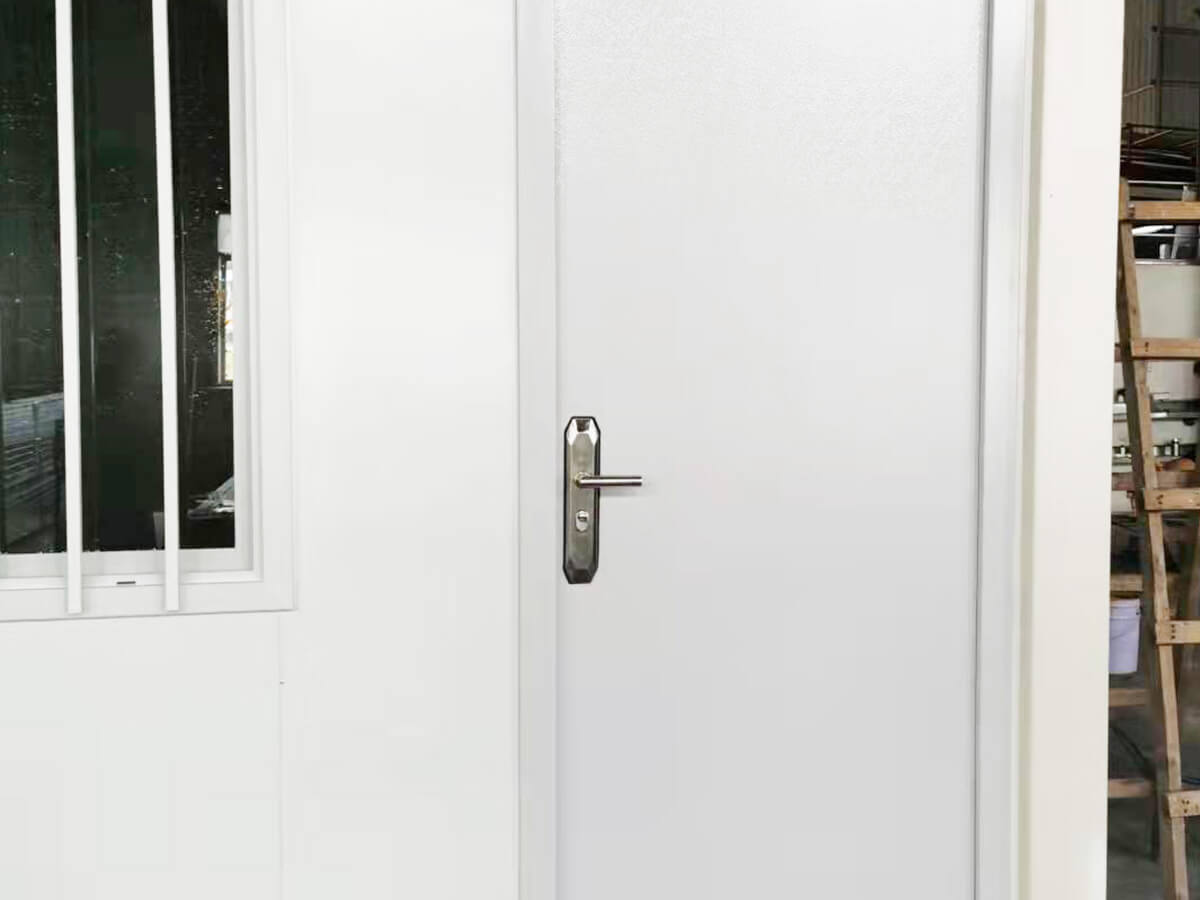

1	Aluminum glass sliding door	white color frame
2	Aluminum sliding window	Double single glass

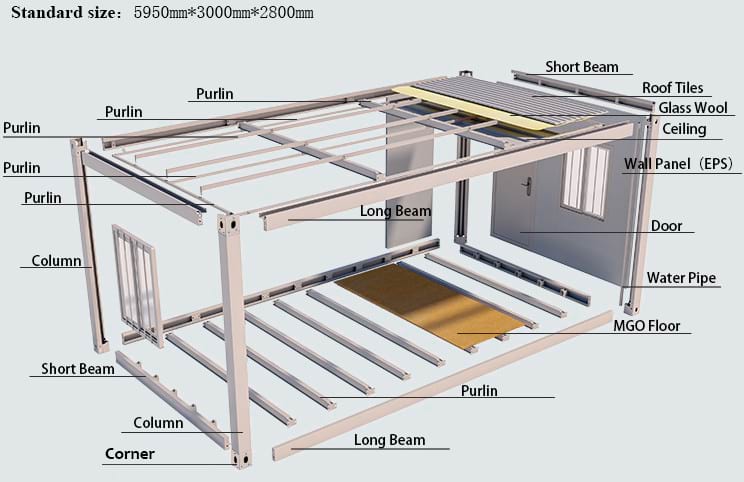

Container house material structural system display

Prefab container house advantages

Strong construction,energy-efficient, reduces construction time,cost-saving, technology building, environmental friendly.

• Time-saving: we produce every part of the container house within the controlled environment of our factory, which greatly reduces the construction time consumed on site.

• Cost Reduction: Unlike traditional house, prefab house technology significantly reduces the on-site workload, saving labor and cost.

• Anti-earthquake Structure: This kind of house is make of light steel structure frame with sandwich panel wall and roof, adding windows and door the building materials are selected to maximize the safety and durability of each house.

• Movable & reusable: The weight of a 20ft container house is about 1.2 tons, and it can be moved to any place you want only condition is need the ground is flat.

• The structure is very flexible: because the house size is standard, you can combine several units together as a whole to make the house bigger, and even you can set up multi-story to reduce the site area.

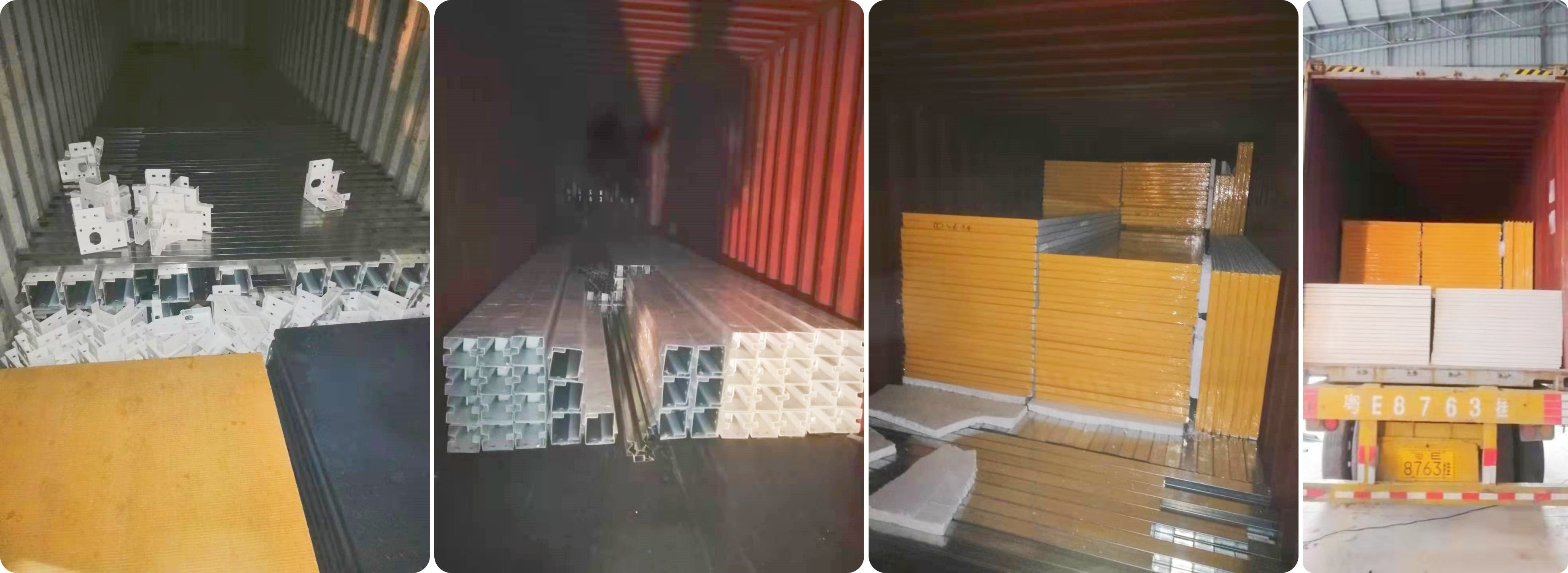

Standard size (without partition wall)20ft Prefab container loading method

Option one: 16 units can fit in 40HQ

Option two: 6 units can fit in 20GP

Packing method: Load in bulk to save space to load more building materials.

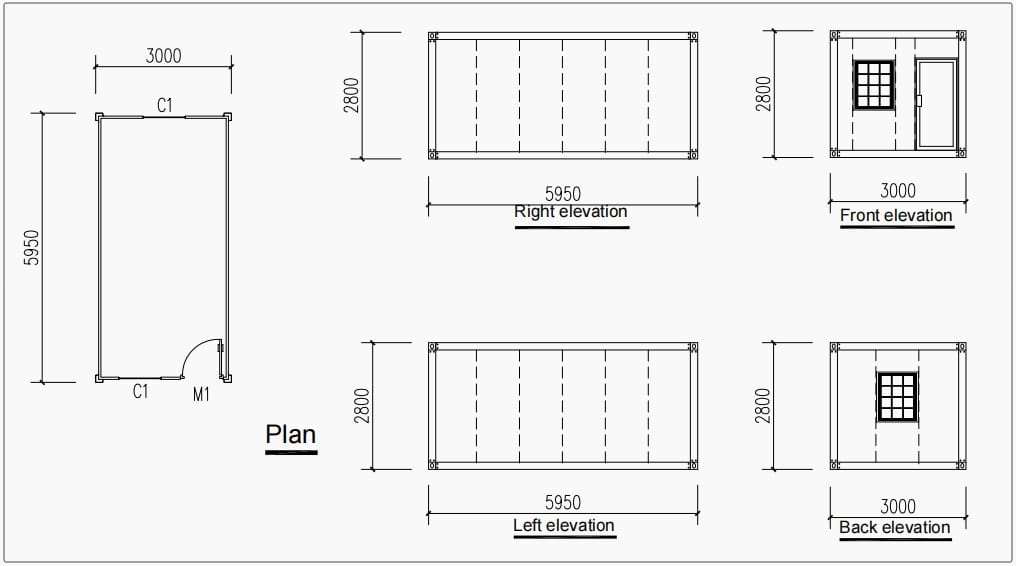

20ft prefabricated container house drawing

Prefab container house application

• Use as temporary homes, providing affordable housing solutions.

• Convert into office spaces, offering a comfortable and functional work environment.

• Used for setting up small shops or pop-up stores, providing a unique and flexible retail space.

• Used for resorts and hotels as accommodation options, offering a unique and sustainable experience for guests.

• Use for quickly deployed for emergency shelter in areas affected by natural disasters.

• Schools and training centers can use as classrooms or administrative buildings.

• These houses can serve as temporary offices or dormitories for construction workers.

• Suitable for remote areas where traditional construction is difficult or costly.
