20FT Tiny Design Prefabricated Container House

Product Information

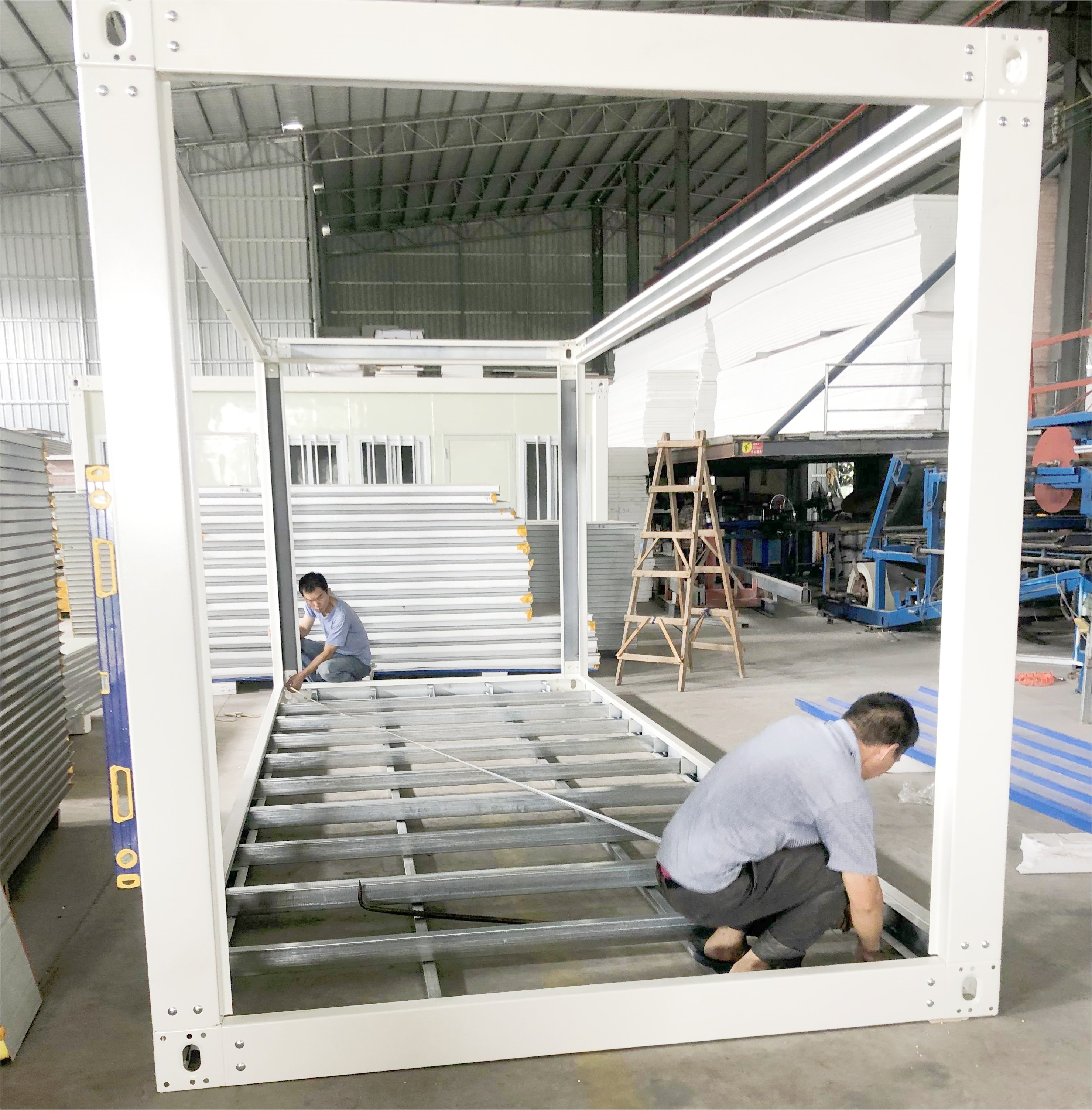

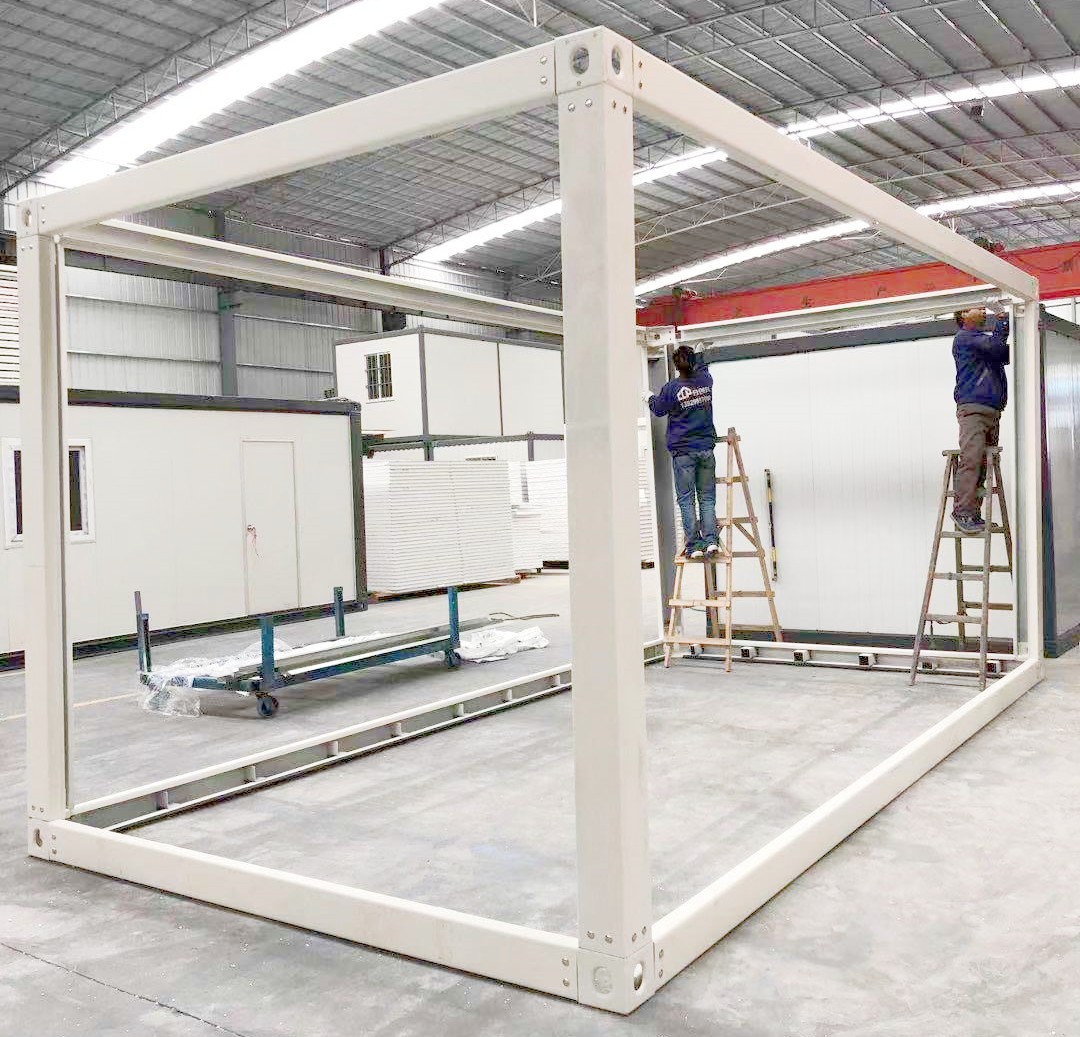

A prefabricated portable sandwich panel container house is a type of container house that is built of 4 columns with top and bottom steel beam framing and covered 4 sides with sandwich panels.The steel frame surface treatment adopts powder coating achieving good corrosion resistance.

Prefabricated container houses can customize the size and functionality according to your requirements. You can choose different sizes and layouts to suit various purposes, whether it's for residential, office space, commercial use, or other purposes.

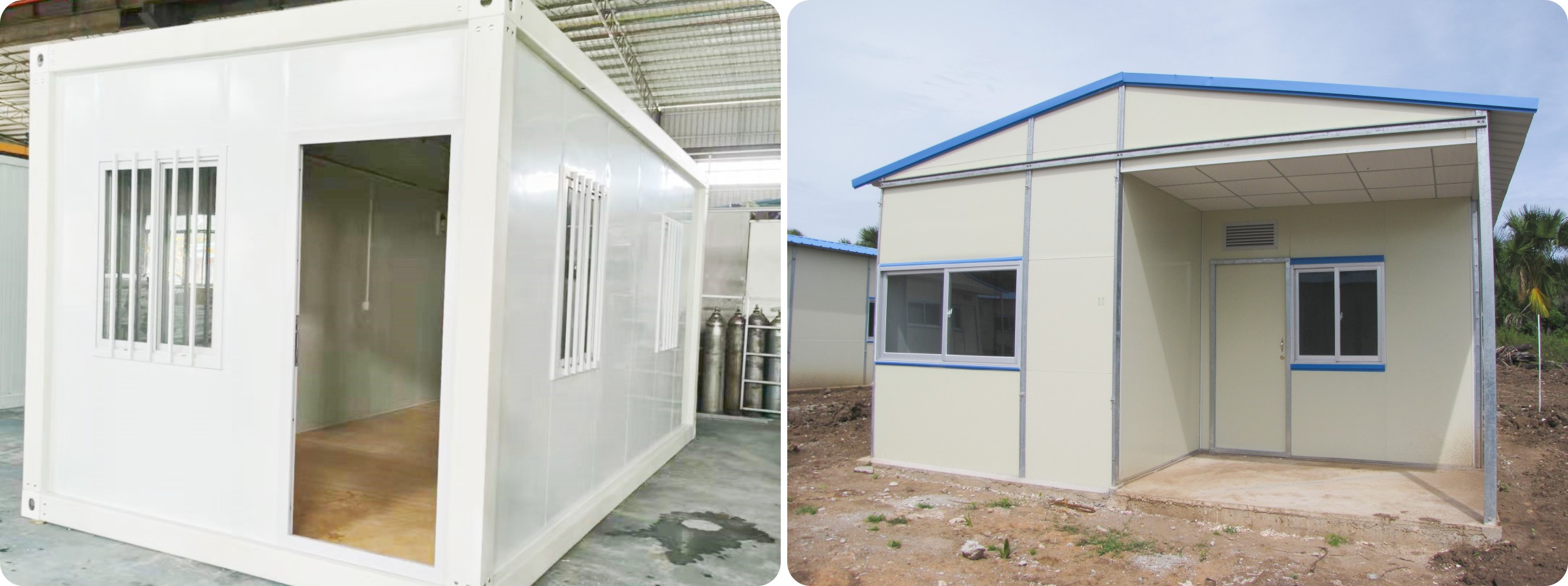

The difference between container house and prefab house:

Prefabricated container houses and prefabricated houses are both widely used in our lives because they have similar features like fast installation and low cost. But still they are a little bit different.What are the main differences between a portable sandwich panel container house and a prefab house? It is easy to tell.

1) Their steel structure system is different, the container house uses a shipping container-like steel frame, while the prefab house structure system can be C-section steel or square tube.

2) The prefab container house is movable as a whole unit, but the prefab houses can not move because their columns are fixed on the ground.

3) In their design and appearance, container houses are shaped but prefab house is a real house shape.

Prefab container house features:

Container houses have high structural strength and can withstand different environmental conditions and load requirements. They are waterproof, fire-resistant, and corrosion-resistant, protecting the interior space from external influences.

Using containers as building materials also offers sustainability advantages as they can be reused and recycled, reducing the demand for traditional construction materials.

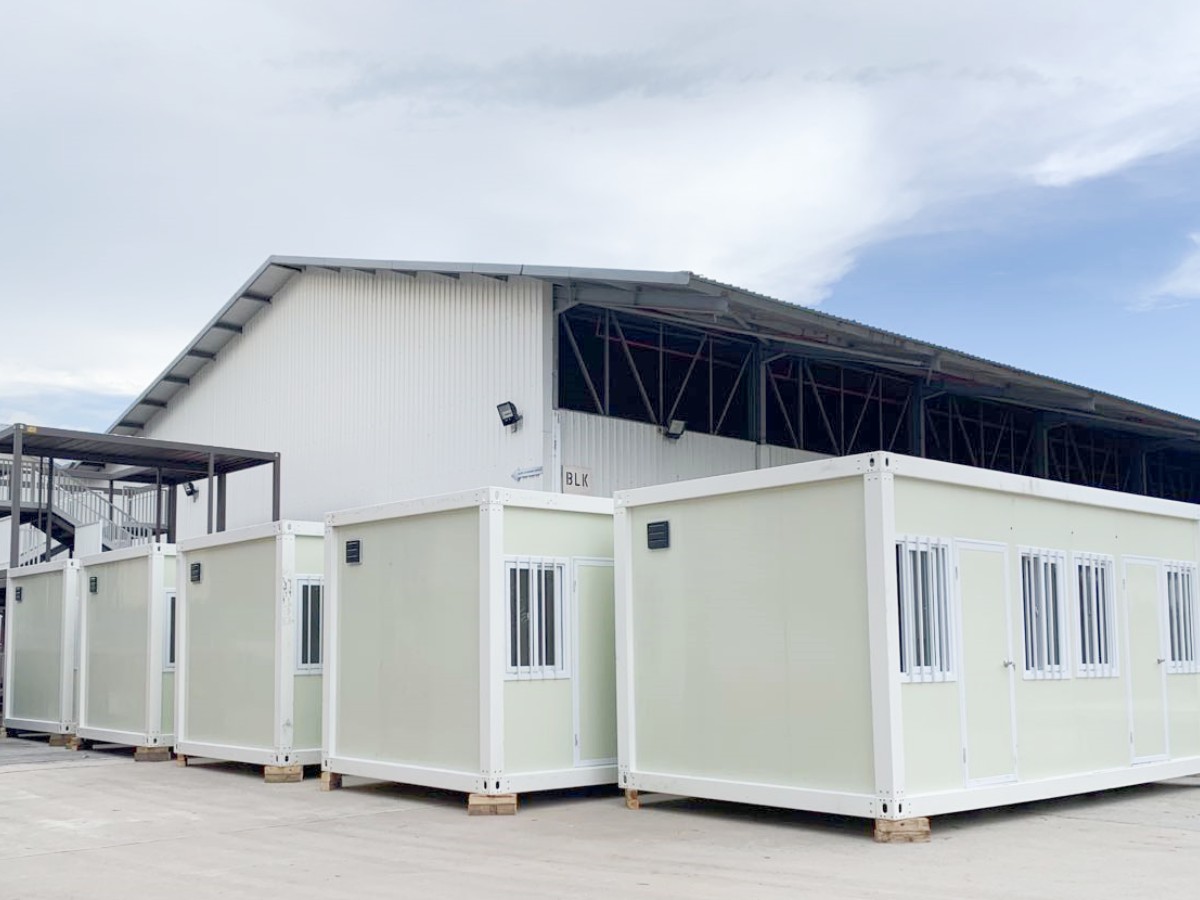

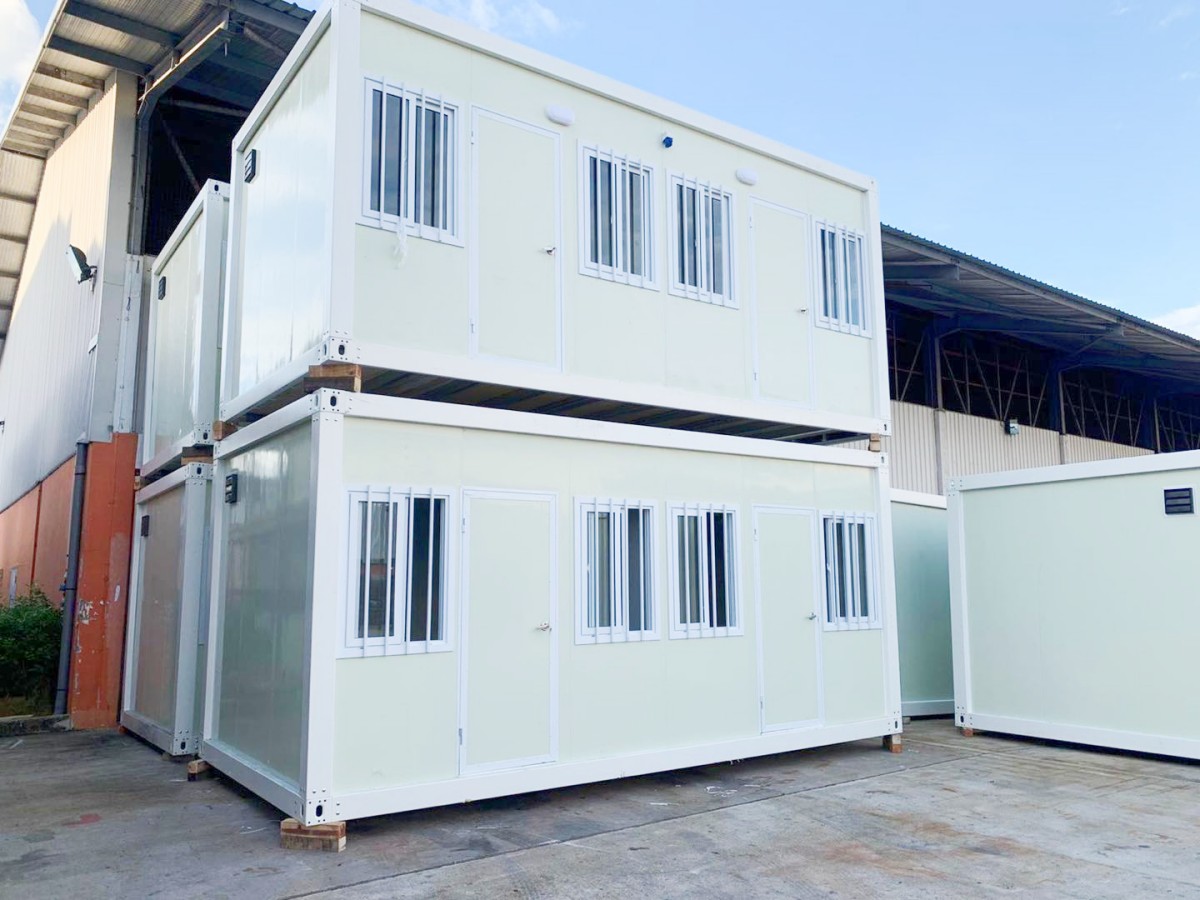

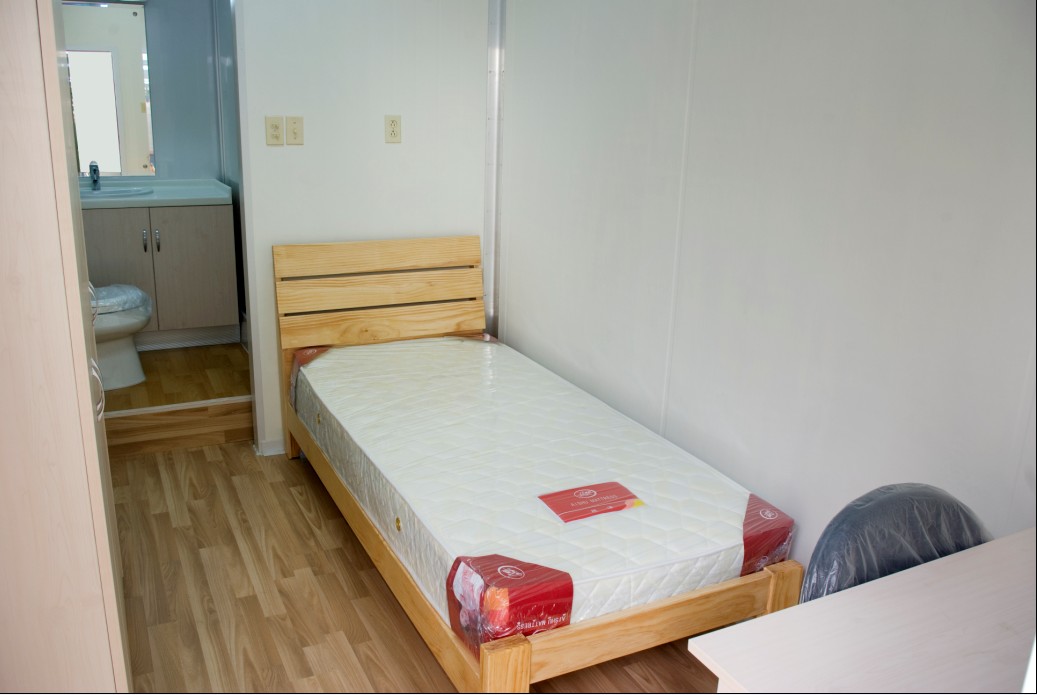

This container house we display here is 20ft container house divide into 2 small units.And this  used as a storage room:

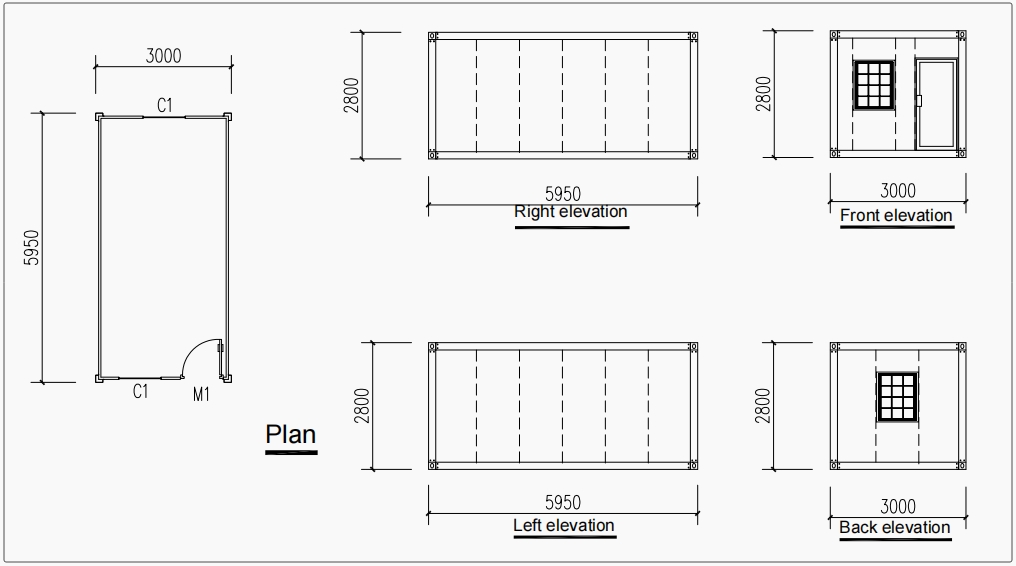

20ft prefab container house material description (size:3mx5.95mx2.8m)

I	Main steel frame
1	Corner fitting(powder coating)	5mm steel sheet bending
2	Beam(powder coating)	2.3mm steel sheet bending
3	Column(powder coating)	2.3mm steel sheet bending

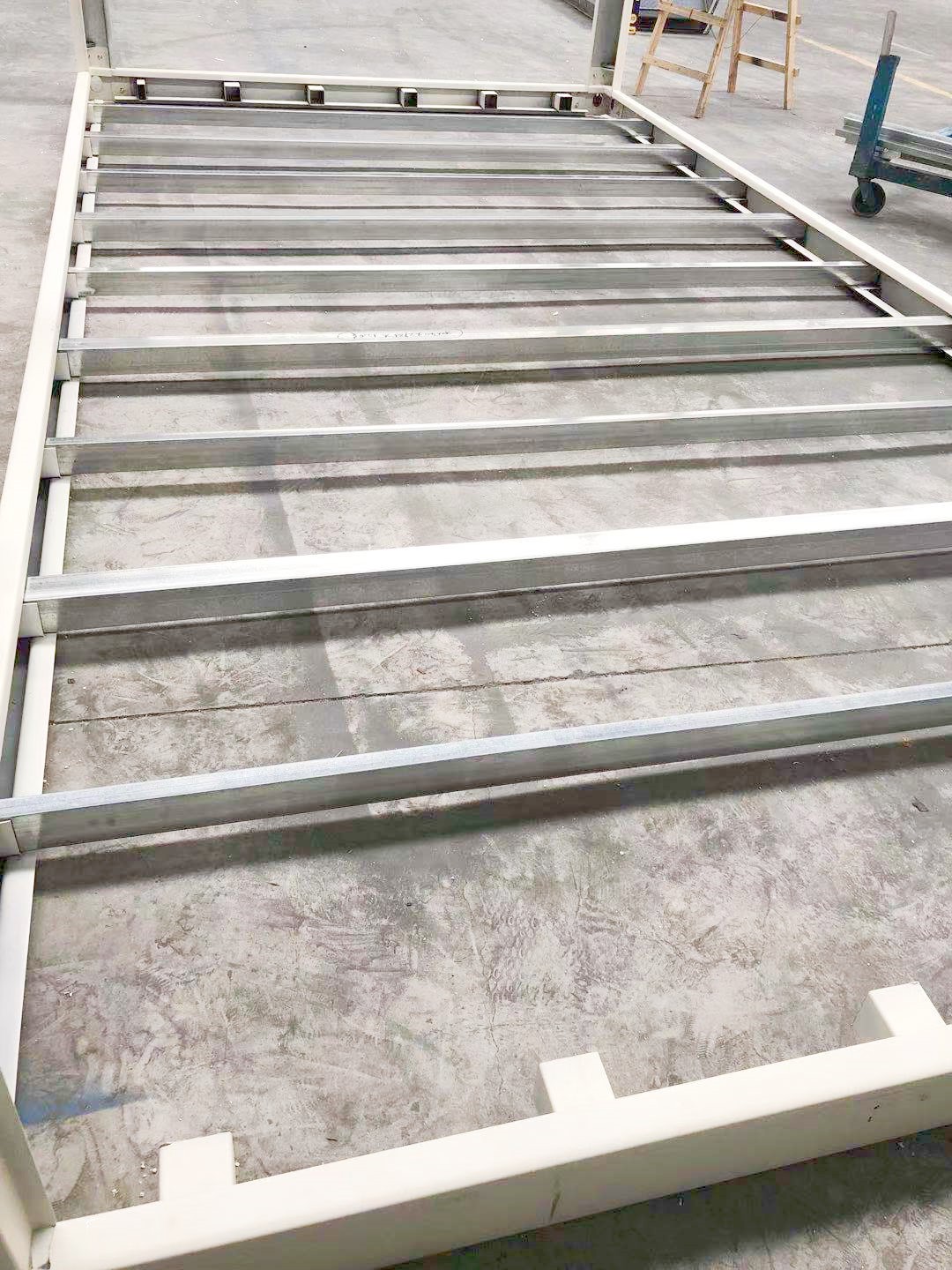

4	Bottom purlin(cold-galvanized)	口80*80*1.3mm
5		口80*40*1.3mm
6	Top purlin(cold-galvanized)	口50*50*1.5mm
7		口40*60*1.3mm
8		口80*40*1.3mm
9	Flashing channel	1.2mm
II	Maintenance
1	Roof tile---Corrugated steel sheet	0.426mm
2	Roof insulation---Glass wool roll	18*1.2m*11kg
3	Ceiling(with corner trimming)	0.326mm steel sheet
4	Floor plate----MgO board	18mm
5	Wall panel--EPS sandwich panel(white color)	50mm,0.326mm steel sheet
5	Glass wall--	6+1.14+6mm double glass
6	Screws	Self-tapping screws, rivets, bolts, glue
III	Door&Window
1	Aluminum glass sliding door	white color frame
2	Aluminum sliding window	Double single glass

Prefab container house application

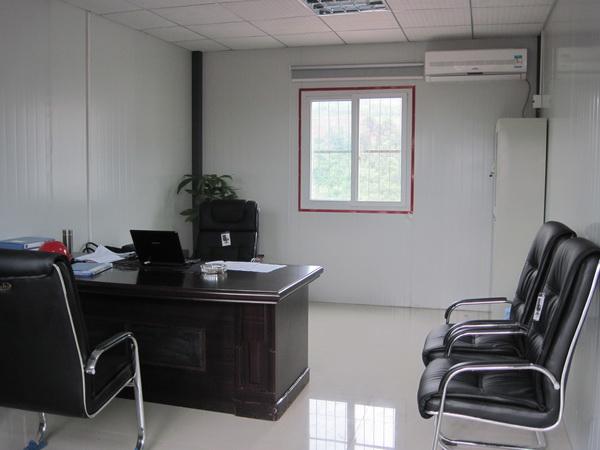

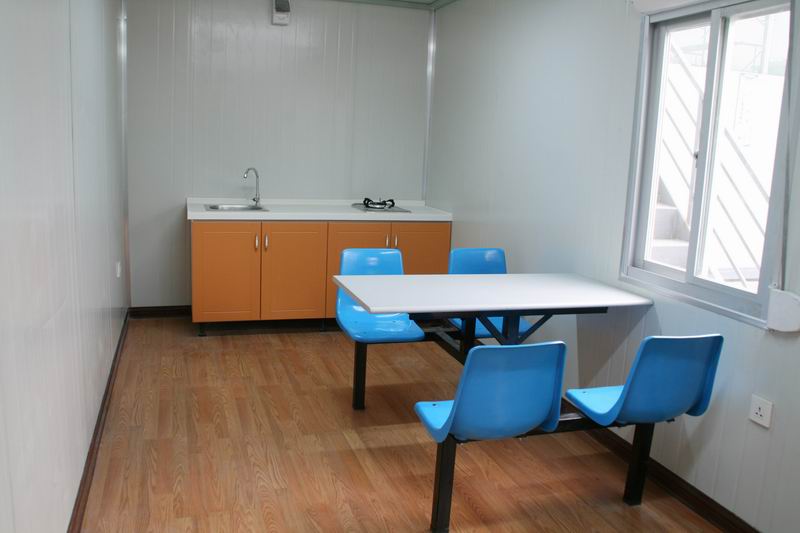

It is heatproof and waterproof. It is widely used as a site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room, and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more several times, and the service life is about 10-15 years.



Advantages of container house:

1. Activity: removable and reusable.

2. Rapid assembly: short manufacturing period and no foundation.

3. Steel-reinforced structure, safety, windproof and shockproof.

4. Durability: the outer wall of the steel plate is corrosion-resistant and acid-resistant and does not rust or crack, and its service life is more than 20 years.

5. Sound and heat insulation: It adopts an air-heat insulation design, with good sound and heat insulation.

6. Aesthetics: It can be designed in various shapes, with many colors on the outer wall, and a bright and beautiful appearance.

7. Low cost, high quality, and low price.

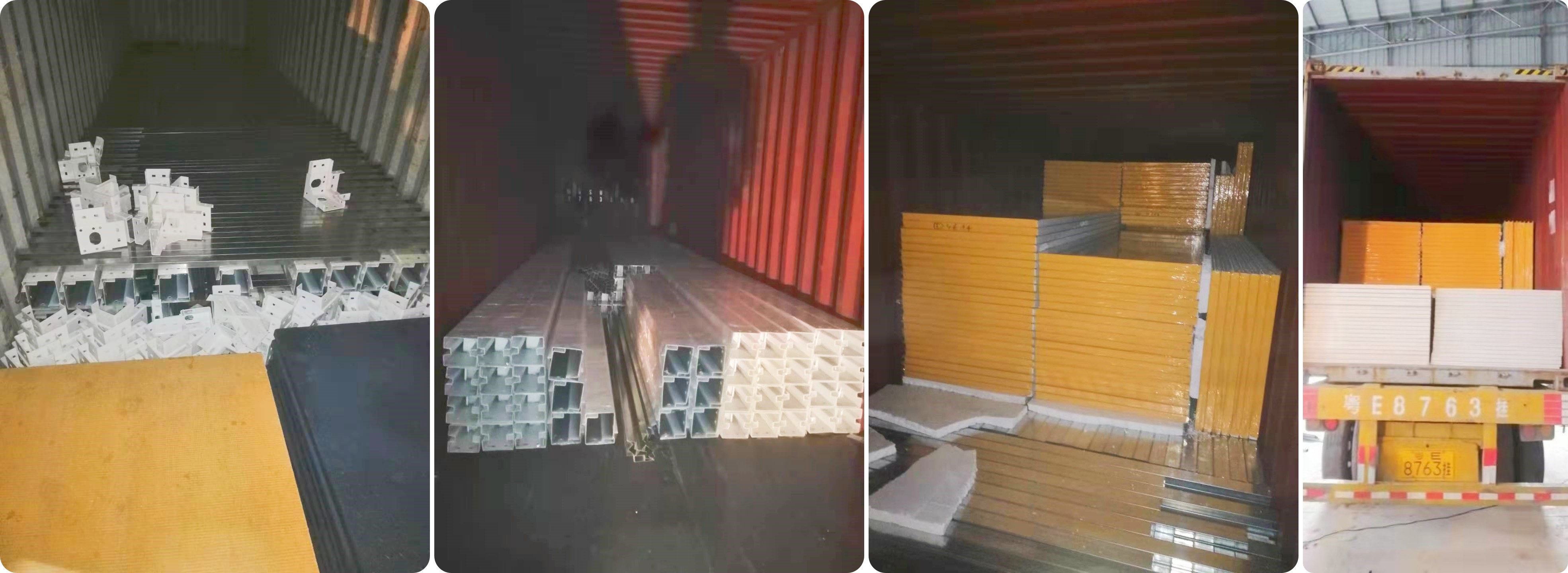

Prefabricated container house container loading method
