Product Information
Prefab container house is also called a detachable container house, which means every container component will be separated for delivery, and installed piece by piece at the construction site. The most outstanding feature of container houses is that they can be moved. People are interested in portable houses now, which can move easily.
We mainly produce 20ft type of prefab container house, because it is standardized, with short processing and production times, easy transportation, fast installation, and last but not least their affordable prices.But we can also make customized sizes, such as 10 feet, 30 feet, and 40 feet to meet the needs of customers in different application scenarios.

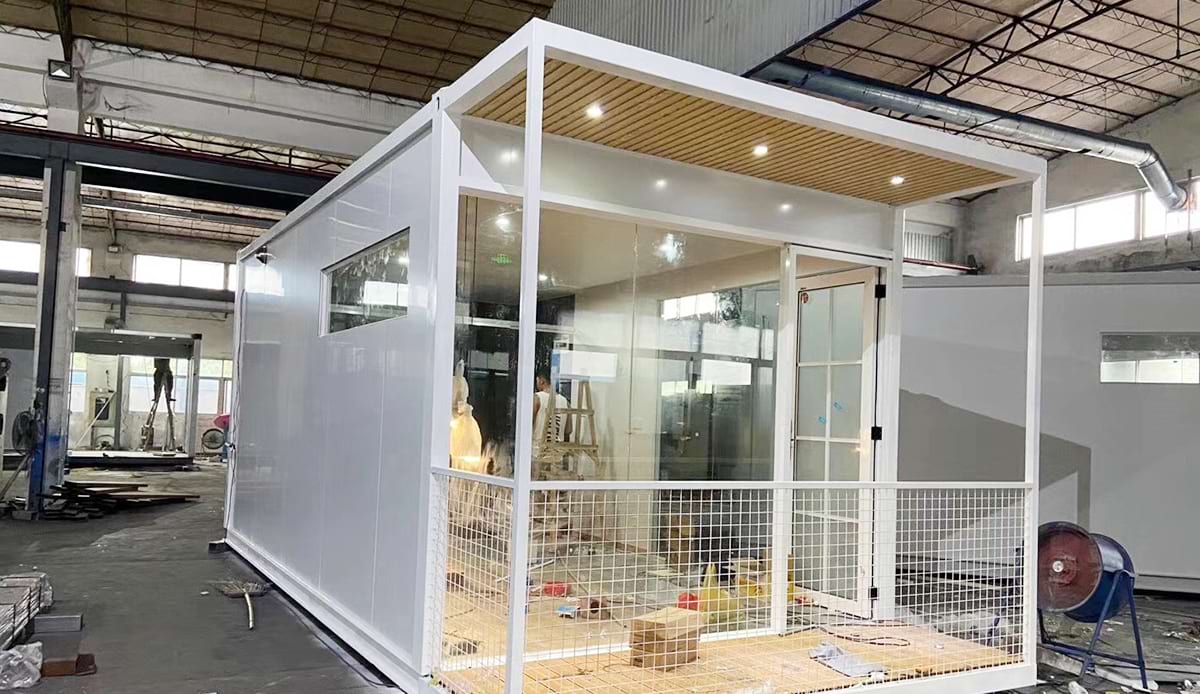

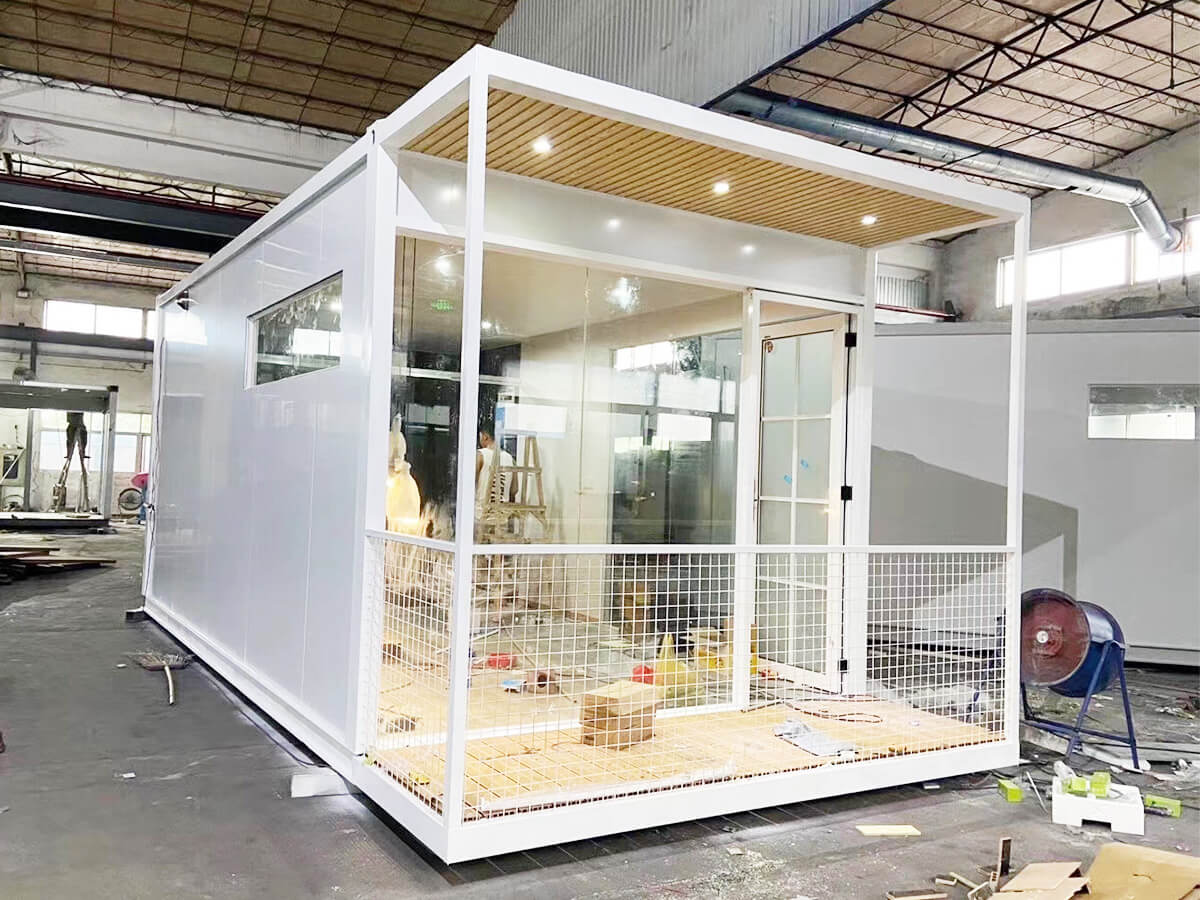

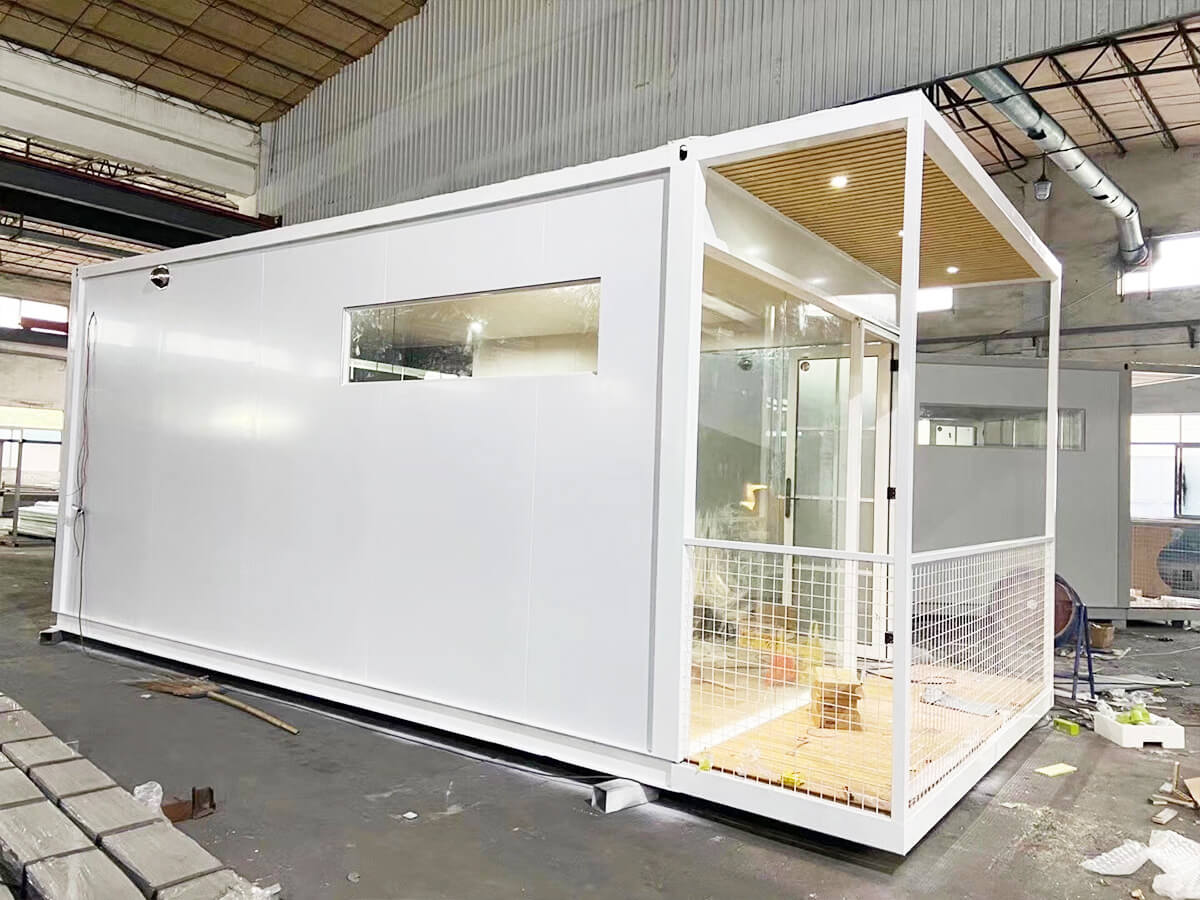

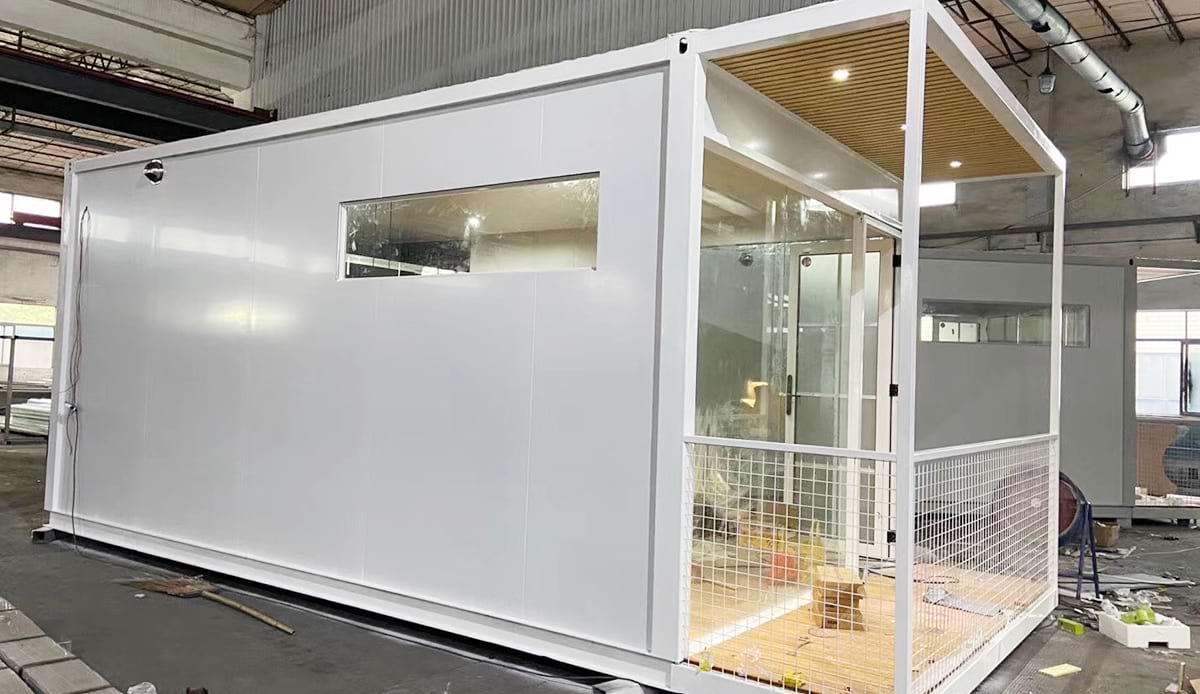

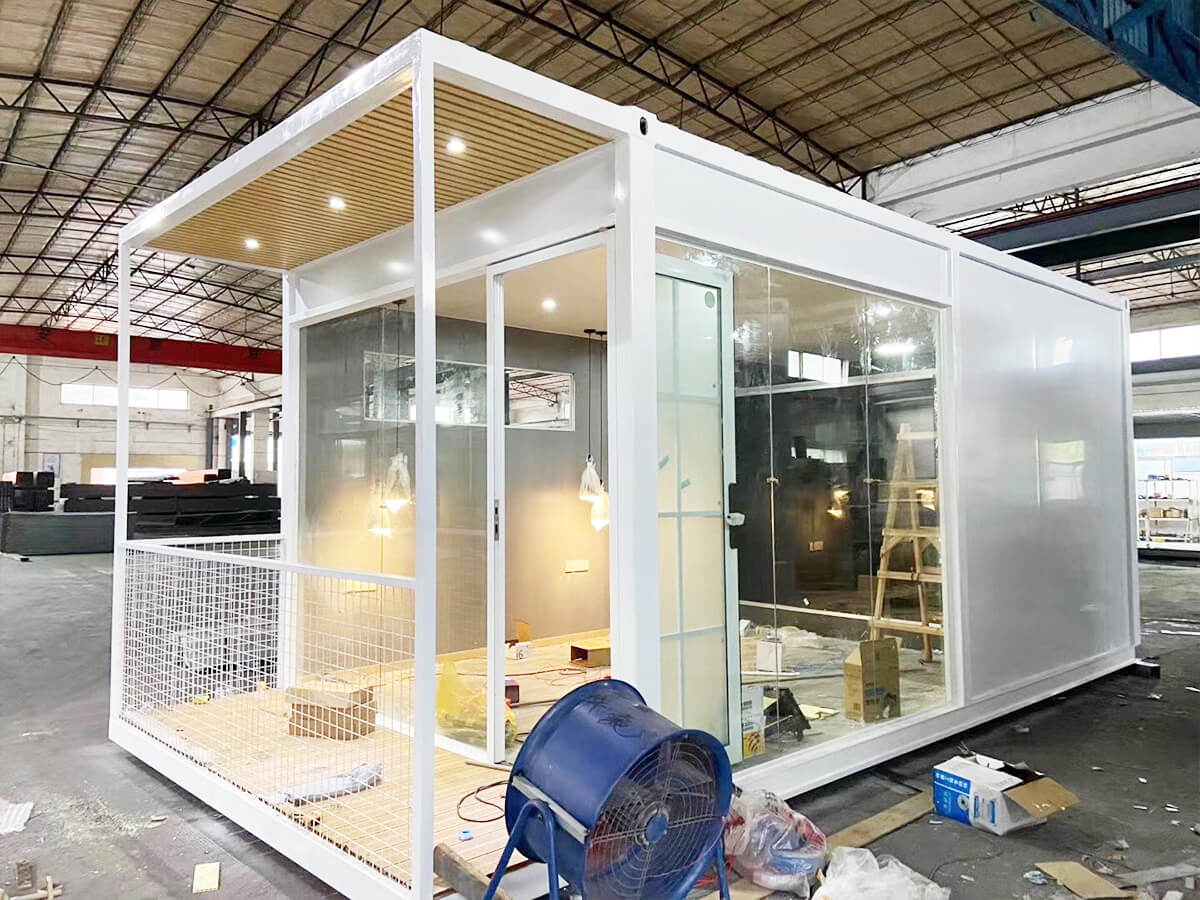

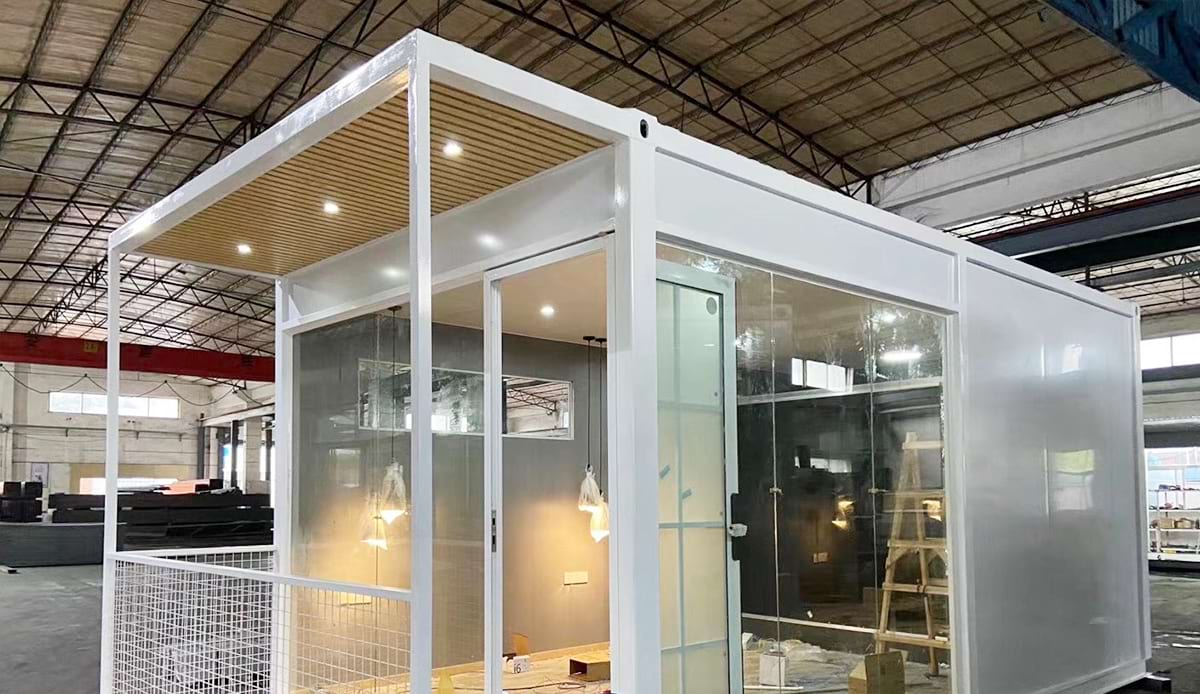

The prefabricated 20ft container house we display here is a little bit different from the standard one because we added the terrace in front of the house, a glass wall mixed with a sandwich panel wall, and the wall becomes an aluminum sliding door.It look nice and suitable for small hotel, small office or a small shop.
Container House Features:
Standard modular specification: Due to the fixed size (5950mm*3000mm), it is easy to design the layout based on the function and capable of mass production.
Flexible combination: The container house can be linked freely at length, width, and height through the linking kits for bigger structures and different layouts.
High integration: All the structural components are standard and prefabricated in a factory with the advantage of assembling and disassembling easily.
Flat package: The prefab container house can be packed in one package or packed in bulk, including roof structure, floor, wall panels, doors, windows, and interior decoration.
Economic transportation: 6 sets of the prefab container house can load in a 20GP shipping container, while 16 units can load in 40HQ, that is to save transport cost and time.
Bodily movement: The forklift pockets in the cabin structure enable forklift capability and the corner casting structure enables lifting capability.
20ft prefab container house material description:
I | Main steel frame | |
1 |
| 5mm steel sheet bending |
2 |
| 2.3mm steel sheet bending |
3 |
| 2.3mm steel sheet bending |
4 |
| 口80*80*1.3mm |
5 | 口80*40*1.3mm | |
6 |
| 口50*50*1.5mm |
7 | 口40*60*1.3mm | |
8 | 口80*40*1.3mm | |
9 |
| 1.2mm |
II | Maintenance | |
1 |
| 0.426mm |
2 |
| 18*1.2m*11kg |
3 |
| 0.326mm steel sheet |
4 |
| 18mm |
5 |
| 50mm,0.326mm steel sheet |
5 | Glass wall-- | 6+1.14+6mm double glass |
6 |
| Self-tapping screws, rivets, bolts, glue |
III | Door&Window | |
1 | Aluminum glass sliding door | white color frame |
2 | Aluminum sliding window | Double single glass |

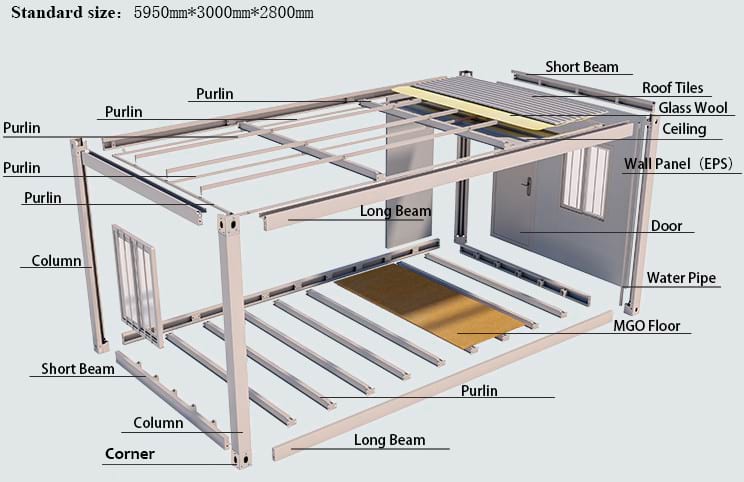

Container house material system display
Container house characteristic

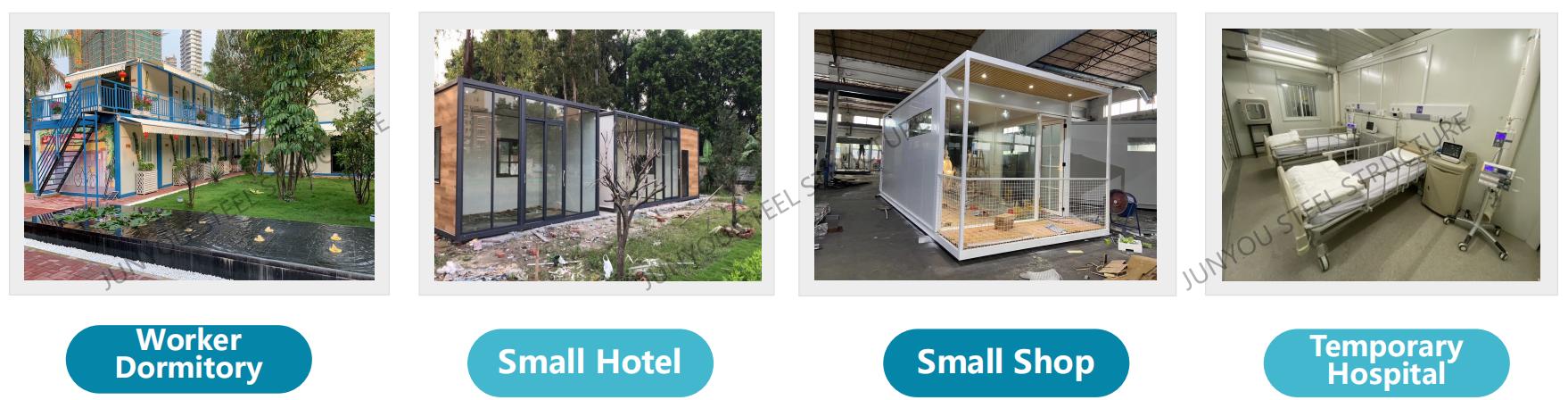

It can be used as dormitory temporary hospital toilet office storage room etc.
It can be installed in a short time and assembled by bolts with a high-intensity
It can be used repeatedly with a life span of more than 15 years
With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti-corrosive
With supporting facilities such as washbasin shower air-conditioner, socket, etc.

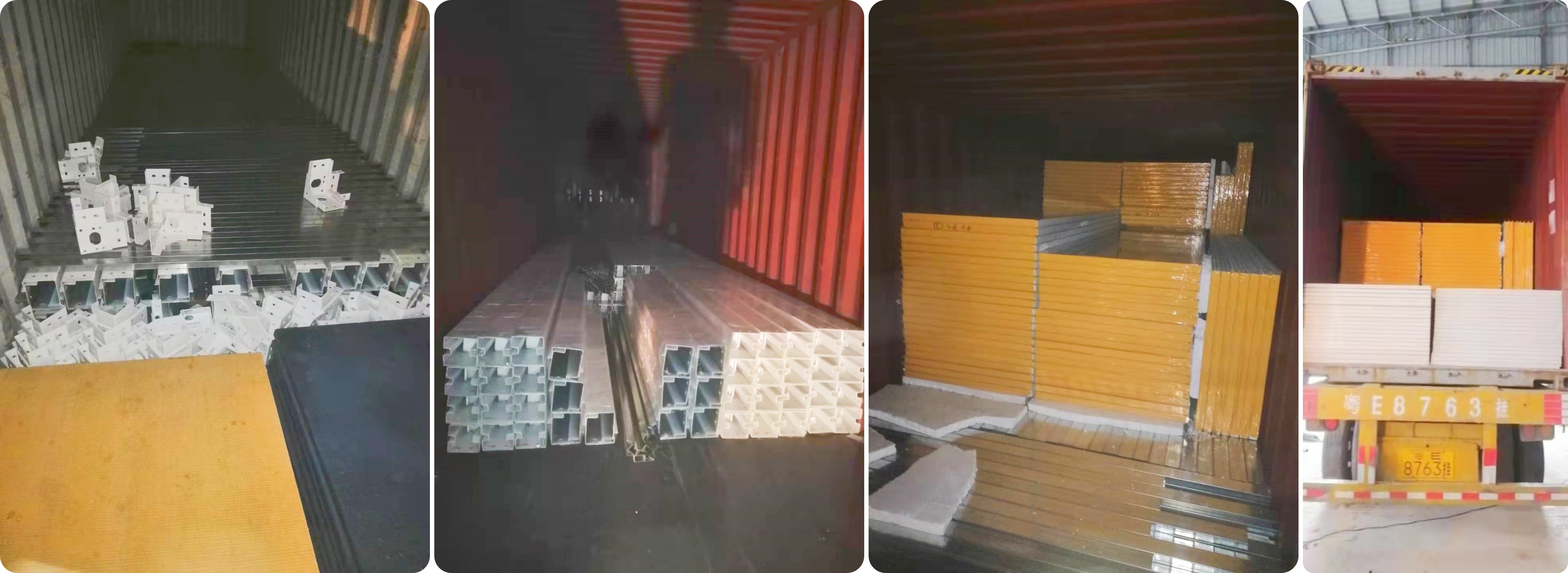

Standard size (without partition wall)20’ Prefab container packing:
Option one: 16 units can fit in 40HQ
Option two: 6 units can fit in 20GP
Packing method: Load in bulk to save space to load more building materials.

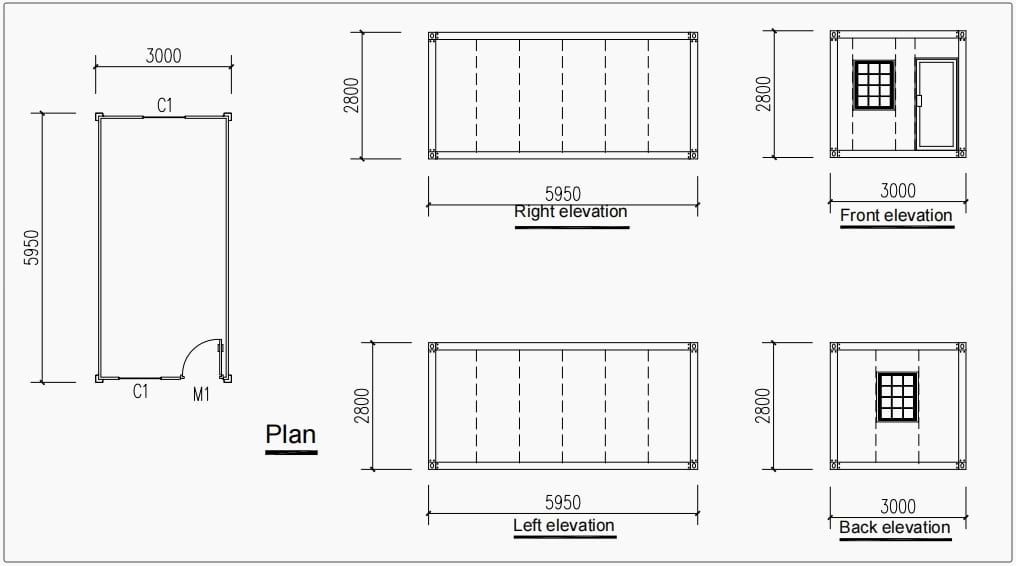

Standard type 20ft prefabricated container house drawing
To sumup, with the continuous improvement of environmental awareness, the construction materials and production processes of movable panel container houses will be more environmentally friendly, and the design and production of movable panel container houses will pay more attention to personalization and customization. Its application fields will continue to expand. For example, the applications in tourism, field engineering construction sites, and temporary resettlement after natural disasters will become more and more extensive. We will also continuously develop new products to meet the different needs of customers.
