Product Description
A prefab house office building, also known as a modular office building or prefab office, is a structure designed and constructed using prefabricated building techniques. It is a pre-engineered and factory-built office space that offers flexibility, efficiency, and quick installation compared to traditional on-site construction methods.

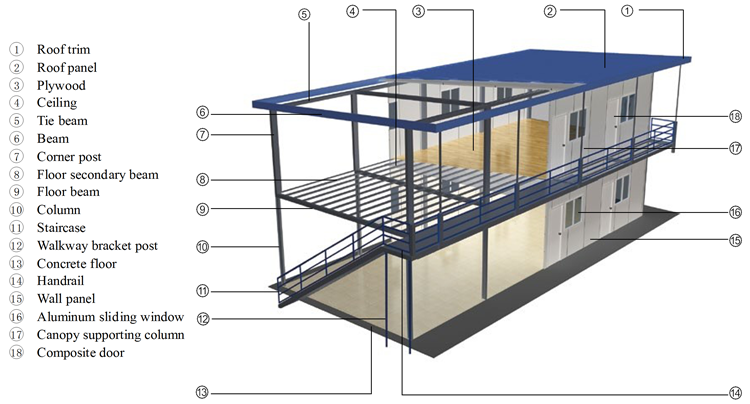

Prefab house material component
Prefabricated houses are constructed using various pre-manufactured components that are fabricated in a factory. These components are then transported to the construction site for assembly:
1/Wall Panels: Wall panels are pre-made sections of walls that include insulation, interior finishes, and exterior cladding. They are typically constructed using materials like steel sandwich panels, and corrugated steel sheets.
2/Floor Systems: Prefabricated floor systems consist of pre-built floor panels like cement board, MGO board, and plywood. These floor components are designed to fit together, creating a solid and durable base for the structure.
3/Steel frame: Roof trusses, columns, and related steel bracing are pre-engineered structural frameworks that support the house. They are designed to provide strength, stability, and proper weight distribution for the roof structure.
4/Windows and Doors: Prefabricated houses often include windows and doors. These components are specifically designed to fit the openings in the wall panels or modular units. They can be made from of aluminum, or PVC, and come with appropriate insulation and weatherproofing features.
5/Staircases: For multi-story prefabricated houses, pre-manufactured staircases are often included.They are designed to fit the specific dimensions and layout of the house, providing safe and convenient access between floors.
*Main steel frame:
/Column：口120*100*3.0
/Floor beam：HN248*124
/Roof beam：□200*100*3.5
/Floor purlin：C steel 160-45-2.0
/Roof purlin：C steel 100-40-2.0
/Stair： steel stair with handrail
*Wall & Roof & floor plate:
/Wall panel: 50*1150mm rock wool sandwich panel，steel sheet: 0.426mm
/Roof panel: 50*960mm rock wool sandwich panel，steel sheet: 0.426mm
/Floor plate: 18mm cement board
*Door & Window
Aluminum window/ fixed window
Steel door/ sandwich panel door
*Accessories
Hex tapping screws, Rivet, Galvanized Hex Screw, High-strength screws, Flat head tapping screws, Expansion screw, glue, trimming
Prefabricated T house application
1) Residential housing
They are widely used for residential purposes, because they offer cost-effective and quick construction solutions for individual homes, housing communities, and affordable housing projects.
2) Commercial buildings

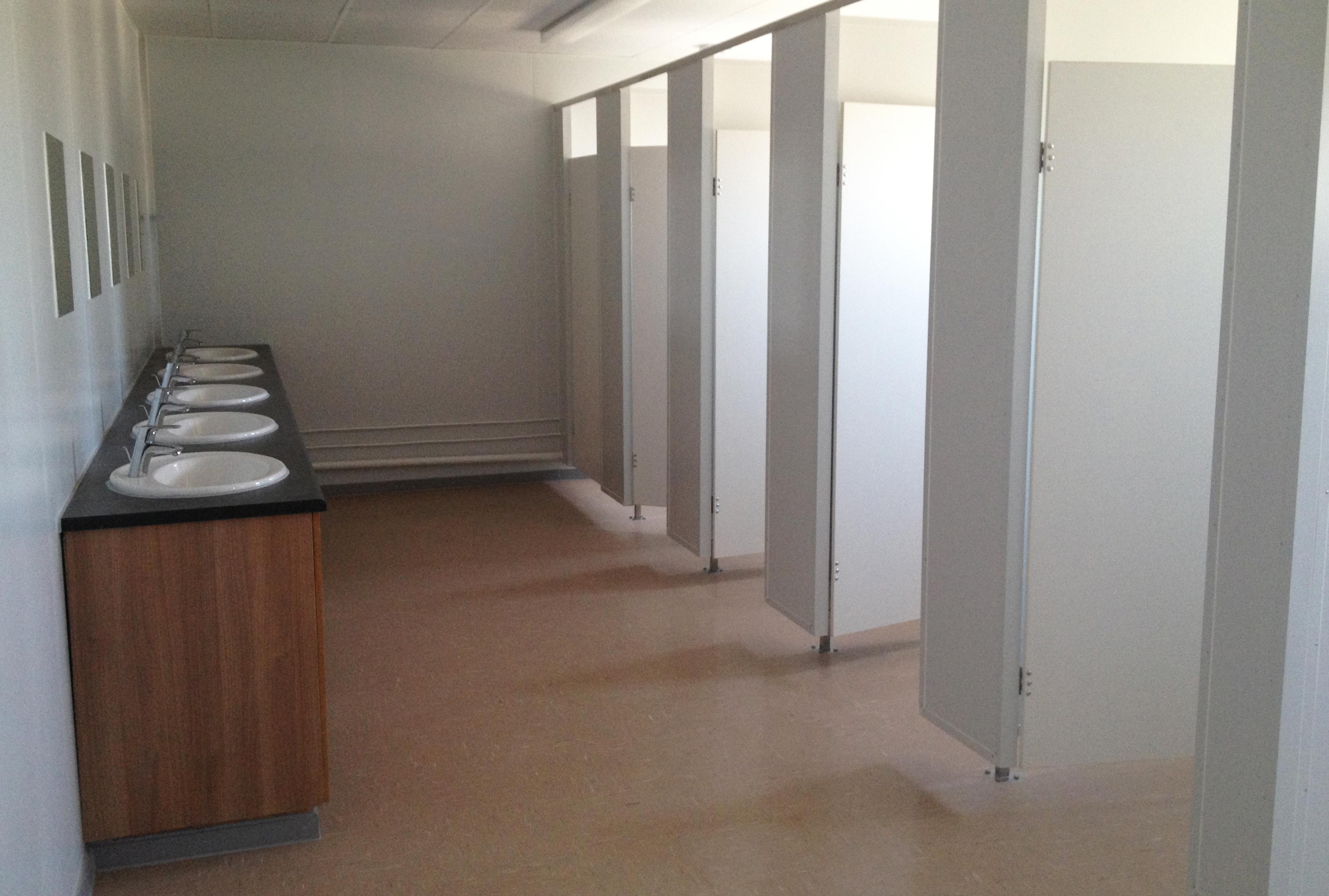

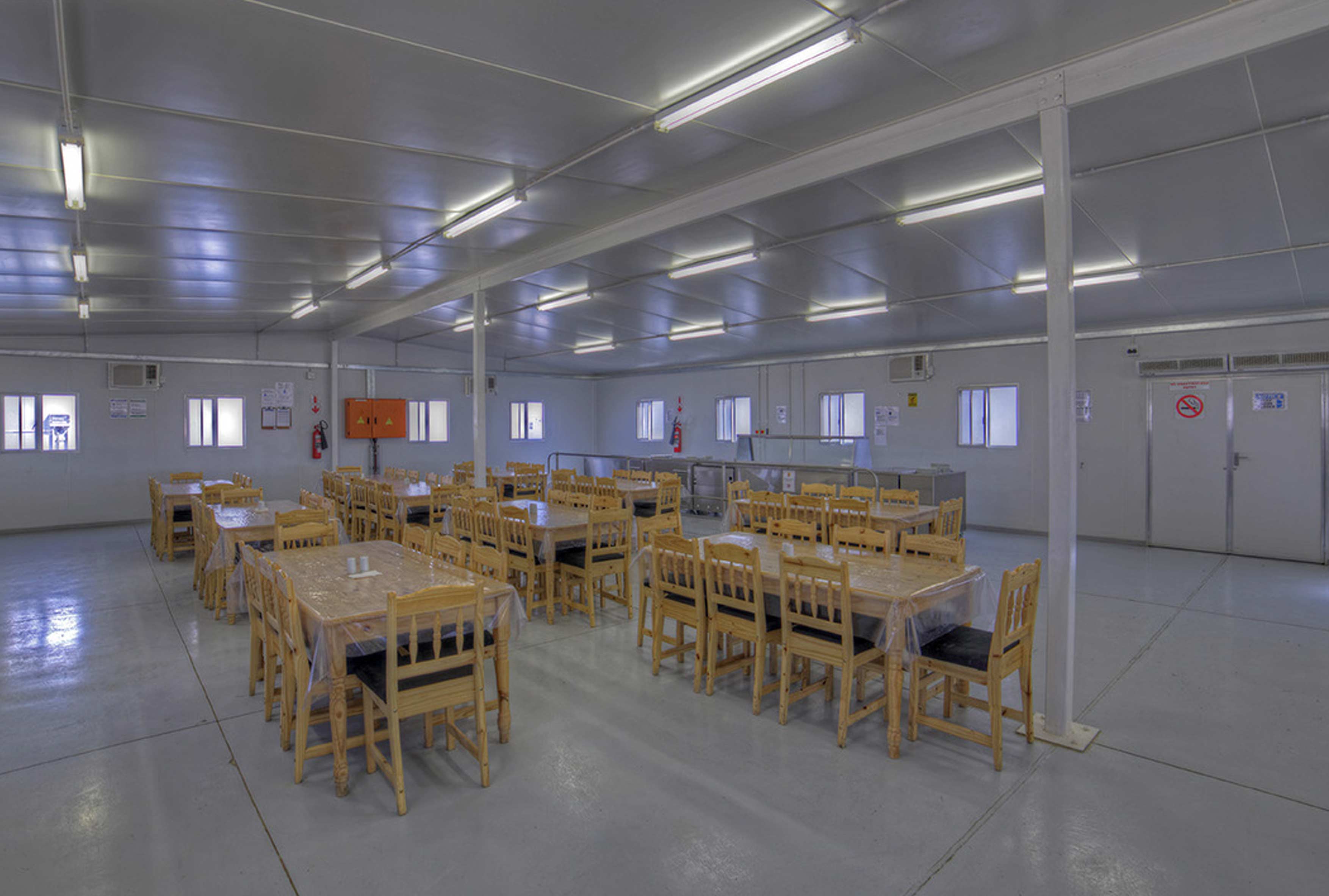

Sandwich panel prefab houses can also be used for commercial buildings such as offices, schools, healthcare facilities,toilet, canteen and retail spaces. Their quick assembly and versatility make them suitable for various commercial applications.
3) Industrial facilities
Sandwich panel prefab houses are commonly used for industrial facilities, including factories, warehouses, workshops, and storage buildings. These structures provide efficient and durable spaces for industrial operations.
4)Temporary housing: Sandwich panel prefab houses are often used as temporary shelters in emergency situations such as natural disasters or refugee camps. Their easy transportation and assembly make them suitable for providing quick and temporary housing solutions.
Prefab House Advantages:
1. Perfect anti-corrosion performance: The structure is made of cold-formed galvanized steel which is much better in corrosion resistance.
2. Short processing time: Mechanical mass production makes it easy to shorten the processing cycle.
3. Excellent sealing performance: The structures are hidden in the house and outer panels maintain a seamless connection with the tongue and groove system.
4. Easy installation: The structures are connected by bolts and nuts and without welding work, which greatly shortens the construction period.
5. Flexible design: It can be personalized according to customer demand.

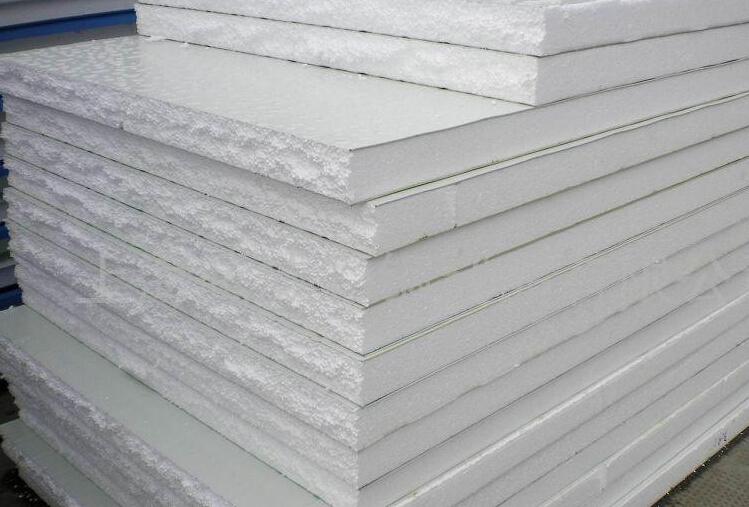

EPS VS fiber glass wool sandwich panel features:
1. EPS foam board/ Fiberglass sandwich panel as wall or roof cladding, is a thermal insulation sandwich panel made of 2 pcs steel color sheet with EPS foam or Fiberglass insulation at the middle, with features lightweight, easy install, low cost, strong low ability, soundproofing, thermal insulation, heating insulation and good moisture resistant, etc.

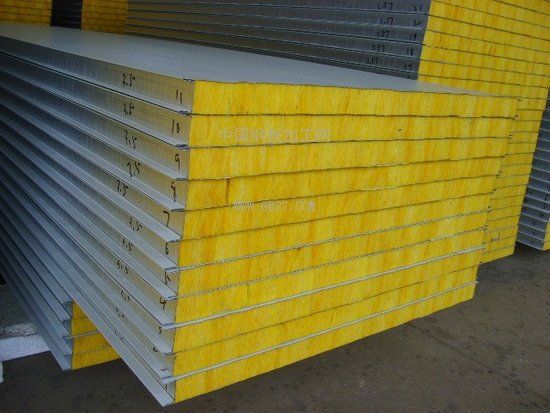

2. Thermal Insulation fiberglass mineral material
a. Class A1 non-combustible material
b. No odor, environmentally friendly and non-toxic
c. Thermal conductivity ≤0.03W/cm.k
d. heat resistance ≥700 degrees
e. Porous structure, good recovery, not afraid of any shock

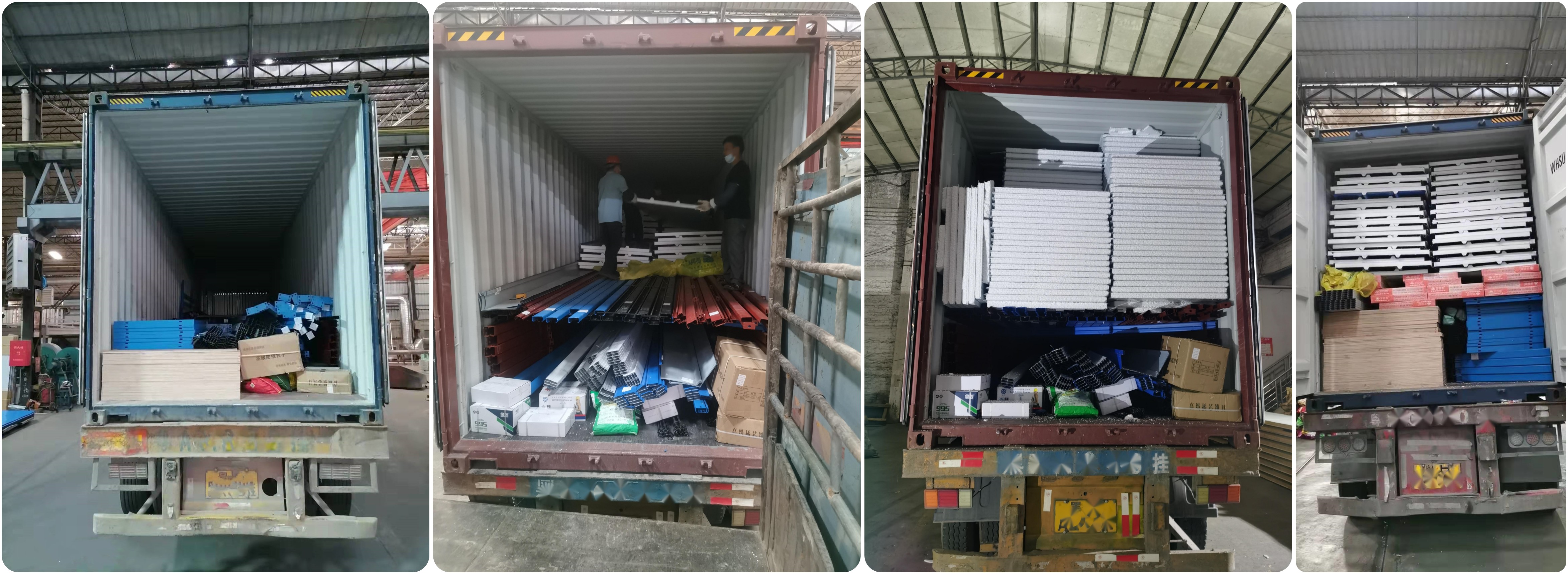

Prefab house container loading method
Choosing the right container loading method is very important for transporting and storing prefabricated houses. It maximizes the integrity and quality of the prefab house and also increases the efficiency of transportation and storage rates. Our most commonly used container loading method is to load steel structures at the bottom of the container, and load wall panels or roof panels on top of the steel structures. In this way, the combination of steel structures and panels is the most reasonable in terms of space and weight.
