Product information

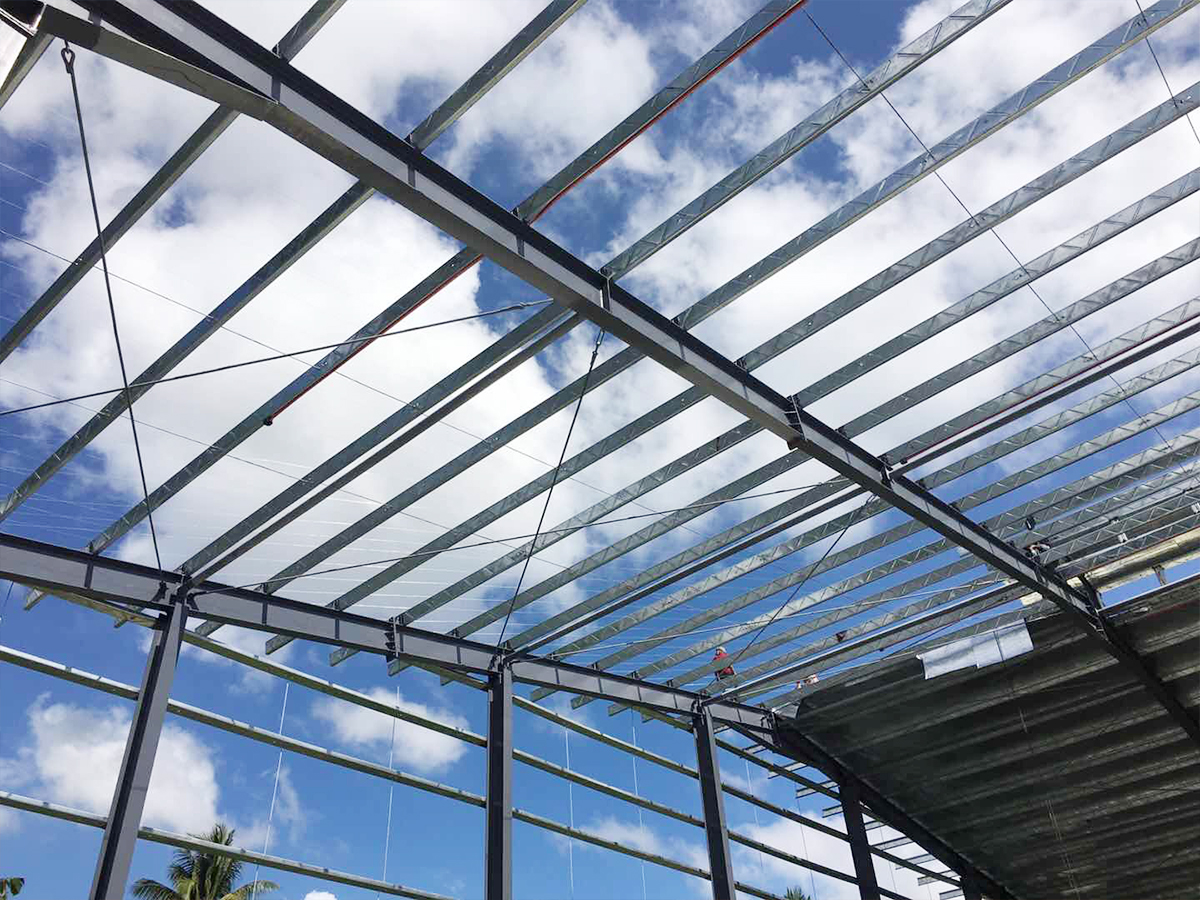

H beam steel buildings refer to building using H-shaped cross-section steel beams as the main structural components. It consists of a web (vertical part) and two flanges (horizontal parts) that are connected to form the H shape. They have a horizontal flange at the top and bottom, and vertical webs connecting the flanges.
H-beam steel buildings are popular in the construction industry because of their strength, versatility and cost-effectiveness. The beam's H-shaped design provides excellent load-bearing capacity and structural stability, making it suitable for a variety of applications, including industrial buildings, warehouses, bridges and multi-story residential structures.

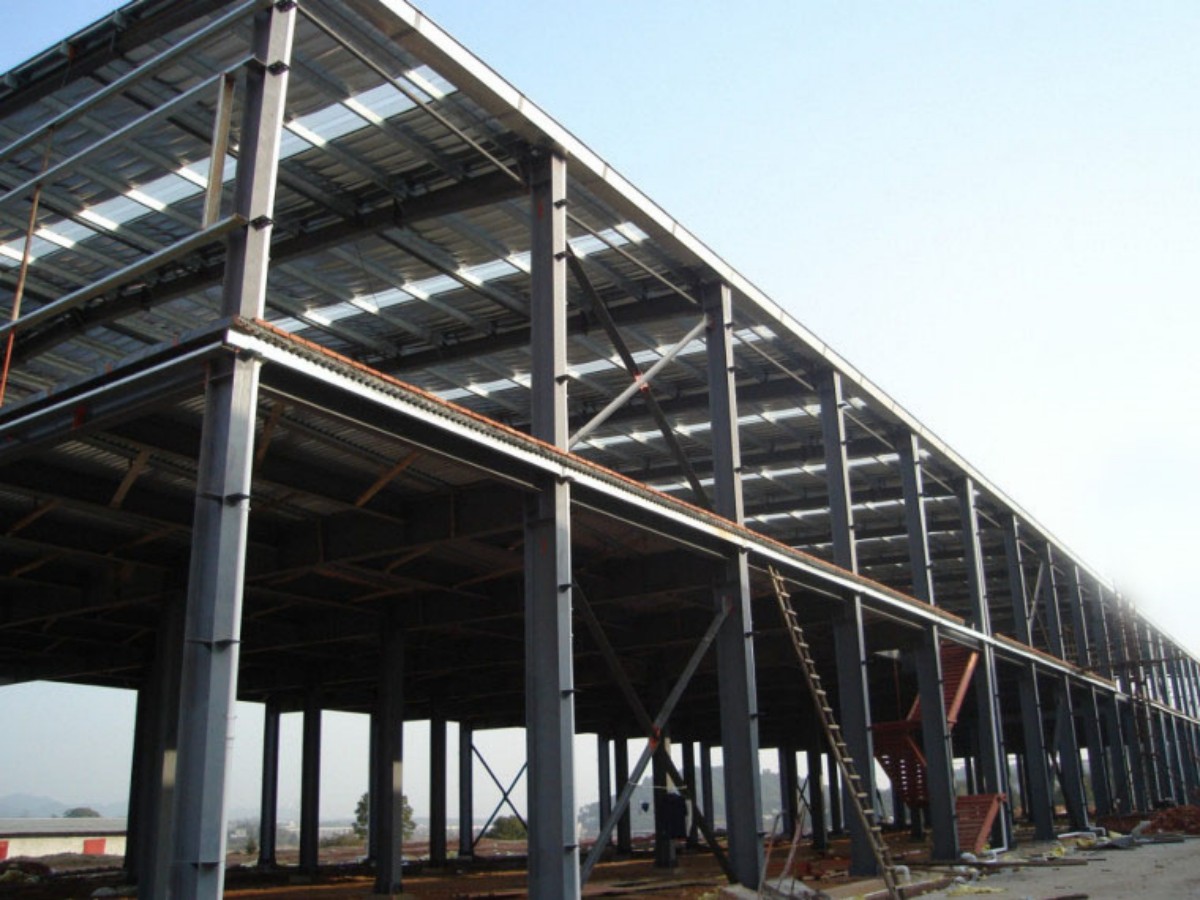

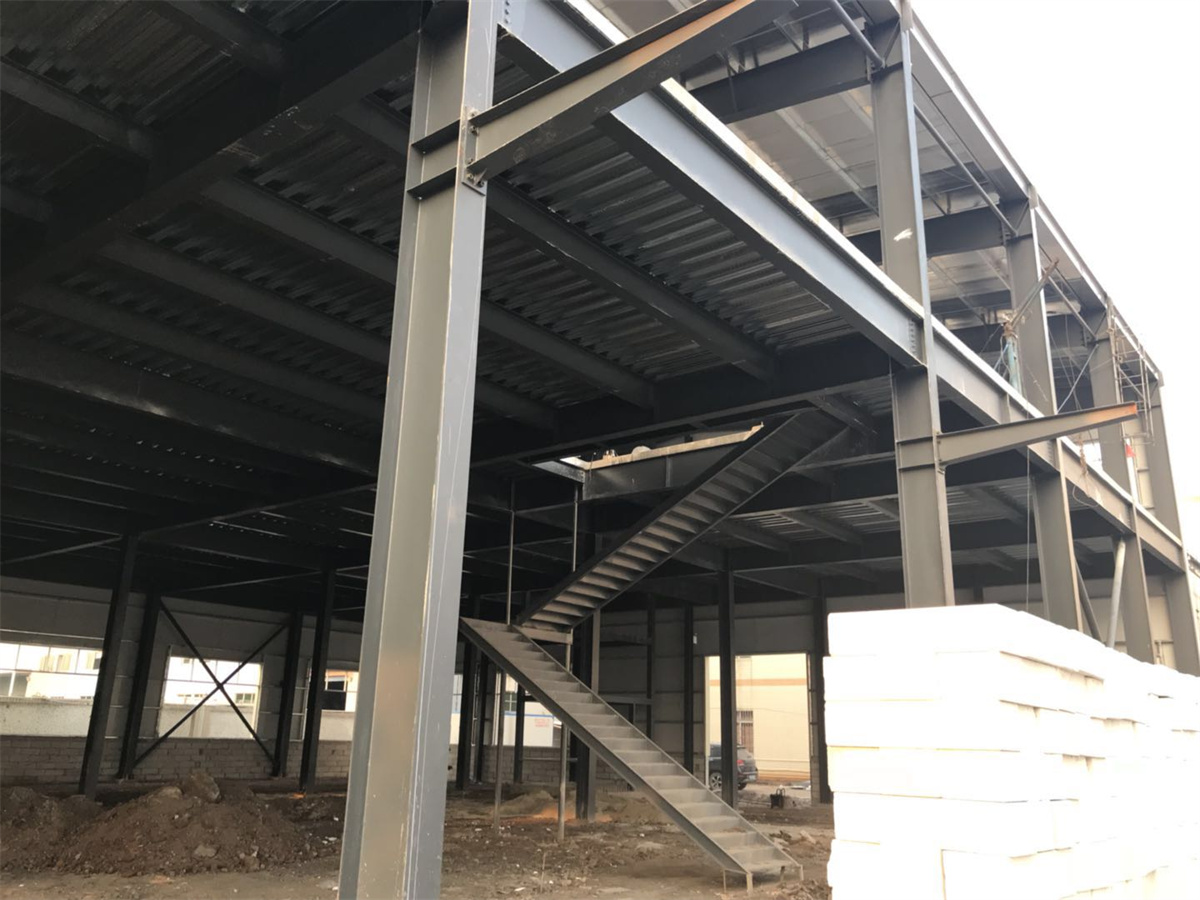

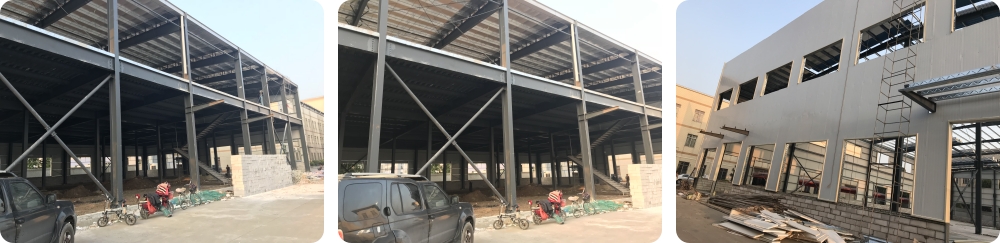

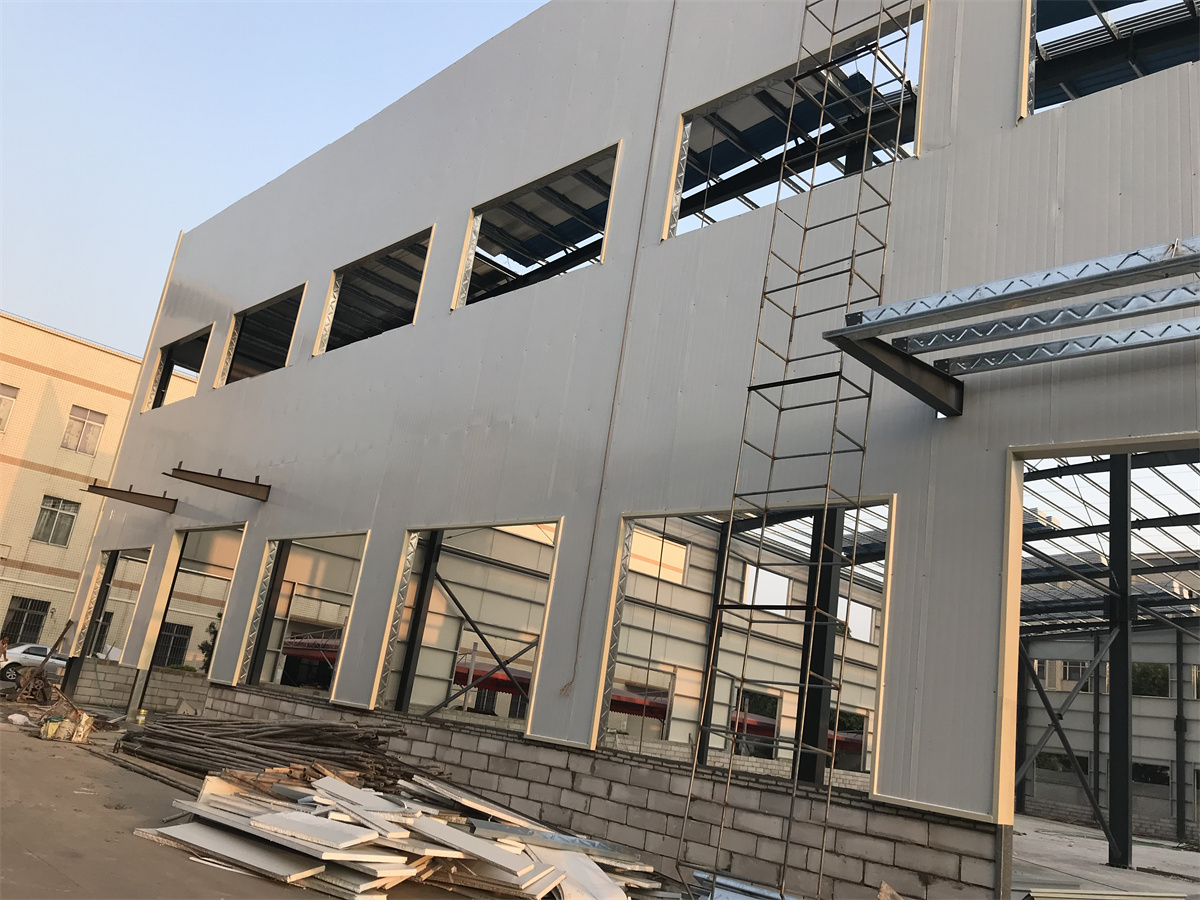

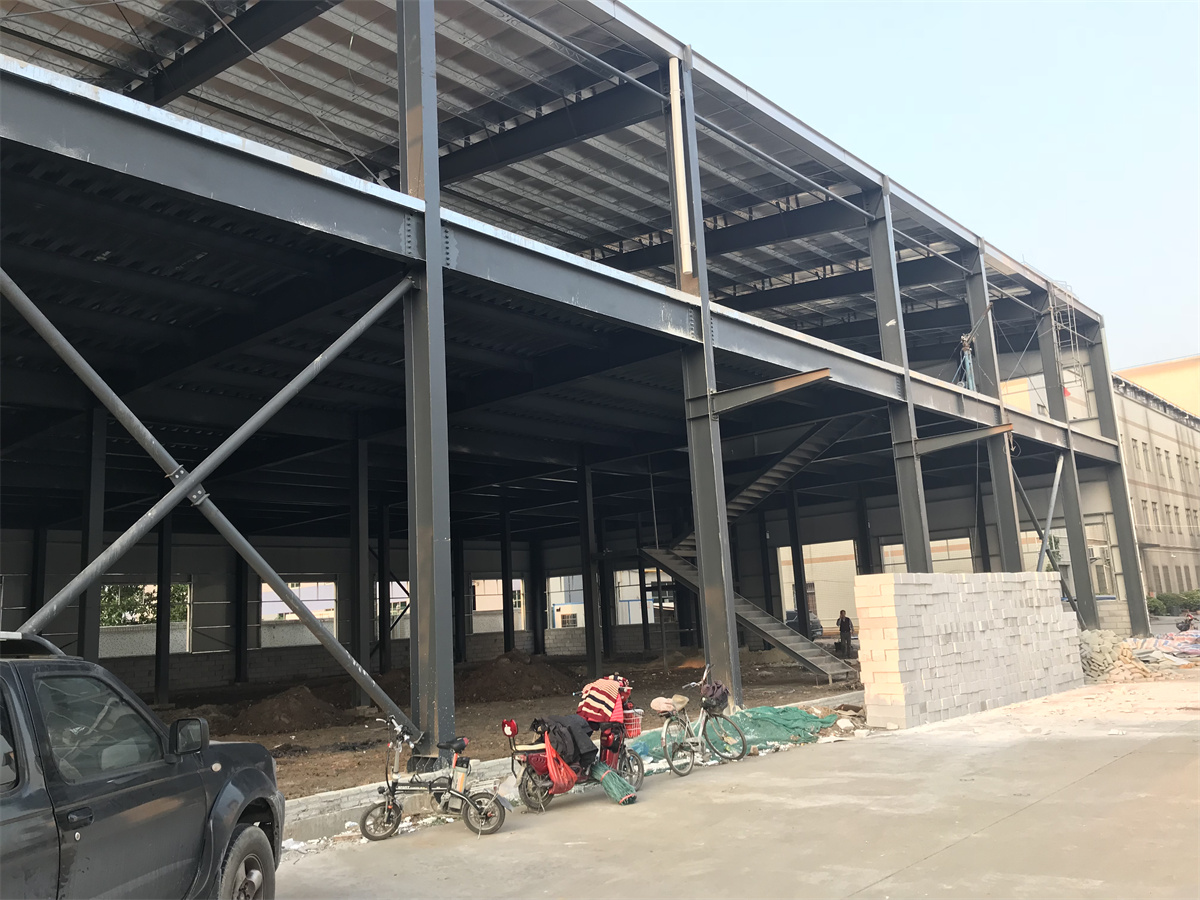

The steel product we mentioned here is a 2-floor steel structure building for a feather factory. To expand more usable space within the limited land area, the customer chose a 2-story design. The floor uses galvanized floor decking and poured concrete to make the ground on the second floor as solid as a traditional building. The exterior walls and roof panels are made of EPS sandwich panels with a thermal insulation effect. Reasonable door and window configuration makes the entire workshop lighting good. Project pictures display:

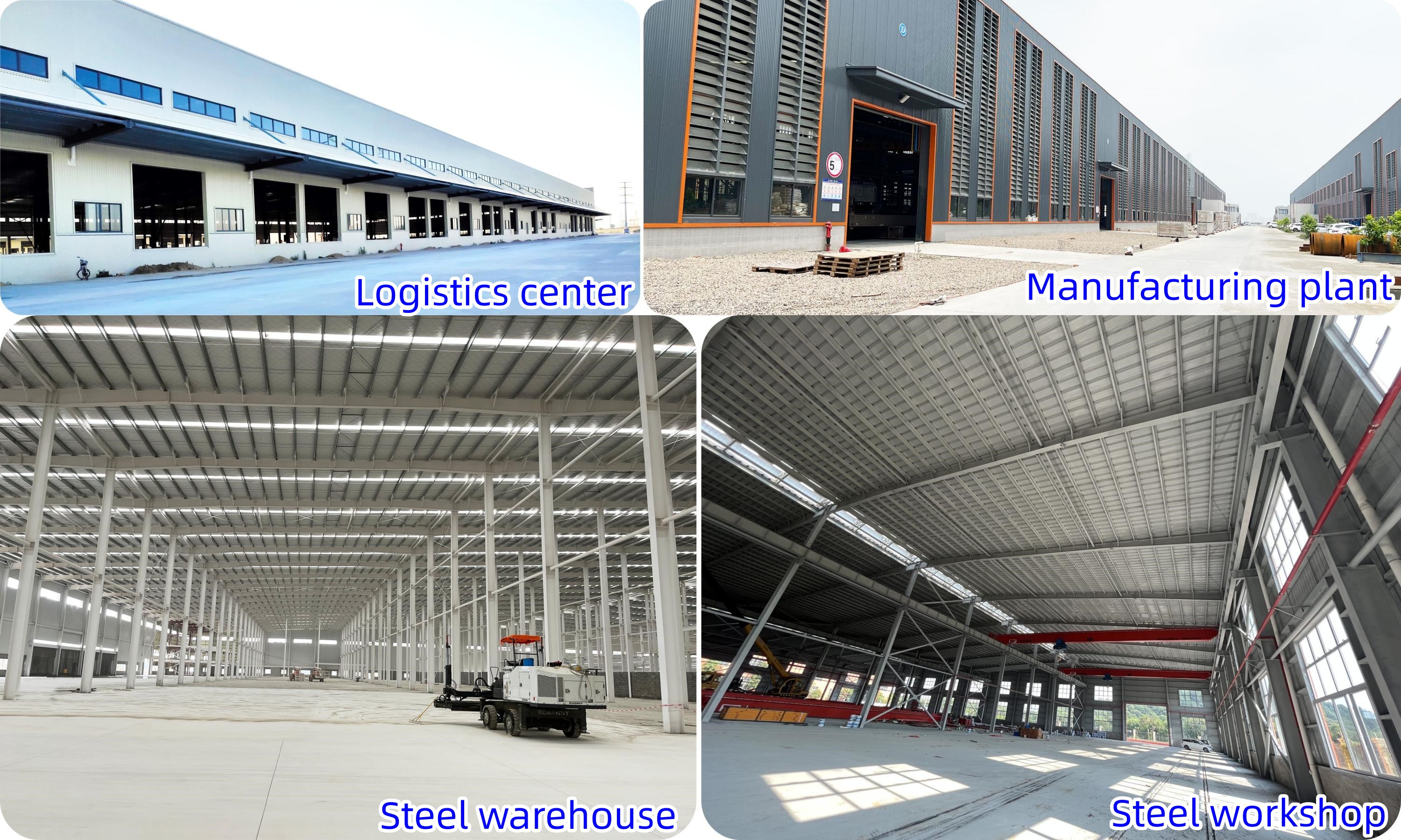

Steel structure building application
Steel structure buildings are widely used in various fields. They are often found in large industrial facilities, providing a strong and spacious structure. Due to their durability, they are also used in storage facilities. In addition, steel buildings can also be found in agricultural settings, such as barns and sheds. In addition, they play an important role in the construction of temporary structures such as event venues or construction sites.
Steel building features:
Statistically speaking, steel is one of the most commonly used building materials in modern construction overall. Steel structures are used for almost every type of construction, including heavy industrial workshop, warehouse building, storage shed, multi-story residential buildings, high-rise shopping malls, large-span exhibition hall, airport terminals, poultry farm, grain barn, godown etc.
Maximize the use of indoor space: Steel buildings can be constructed without any interior columns that might take up valuable floor space or interfere with interior operations. This allows the placement of any machinery required for production without being affected by the column.
Minimal maintenance: Steel is a durable and long-lasting material that is resistant to corrosion, rot, and pests. It does not require regular painting or sealing like other building materials. Additionally, steel is not prone to warping, cracking, or shrinking, which reduces the need for repairs or replacements. Overall, steel buildings can save time and costs in the long run.
Easy And Quick to Install: Steel Buildings are pre-fabricated all steel structure frames in the right size in our factory. This allows for precise construction and faster assembly on-site. The components of steel buildings are designed to fit together by bolts easily, reducing the need for extensive on-site fabrication or customization, and this can save time and labor costs during installation.
Flexibility in design to meet a variety of needs: A steel building can cover space that is not only versatile but expandable. It can also be built combined with the existing building or directly on the original conventional (or traditional) building. It can be easily expanded or modified in the future to meet changing needs or requirements.
Strong and Durable: The steel has superior strength and durability when compared with other building materials. When your structure is constructed using sturdy steel framing and materials, you can have peace of mind knowing that it’s built to withstand the test of time. Warehouses/Workshops/steel buildings often are used for commercial and industrial spaces, they may contain heavy objects or heavy machinery that if mishandled can cause significant structural damage. Steel buildings are better able to withstand this type of impact damage.
Cost-effective and Environmental Friendly: Steel is a durable and long-lasting material that requires minimal maintenance. It is also readily available and can be easily fabricated, reducing construction time and costs. Additionally, steel buildings are energy-efficient, which can lead to lower utility costs over time.
Customized Appearance: Steel buildings are easily Customized in their appearance, and can be designed to fit a certain local or a specific company brand. From eaves to massive garage doors to skylights, we can make sure that your building has the look pictured in your head.
Steel building construction material component
We supply and manufacture a full range of metal building components, providing everything you need for your project.
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||

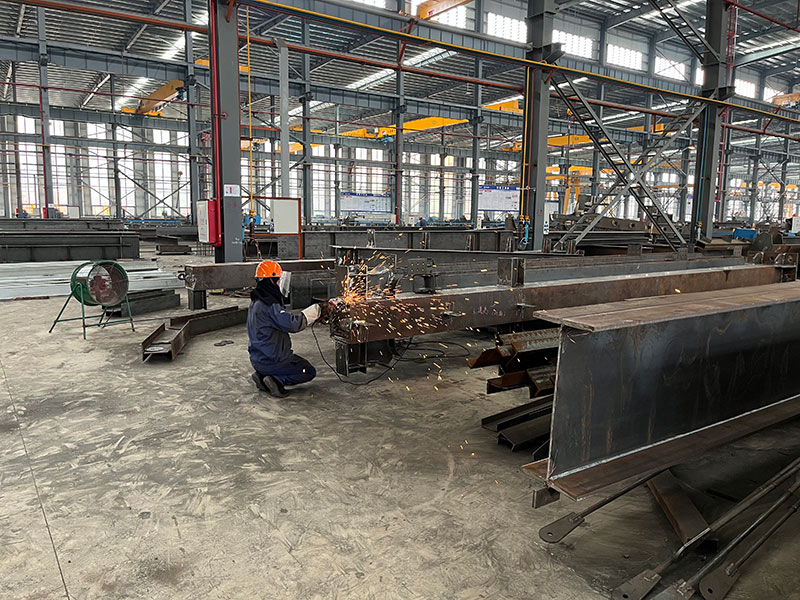

1)Steel beam/column

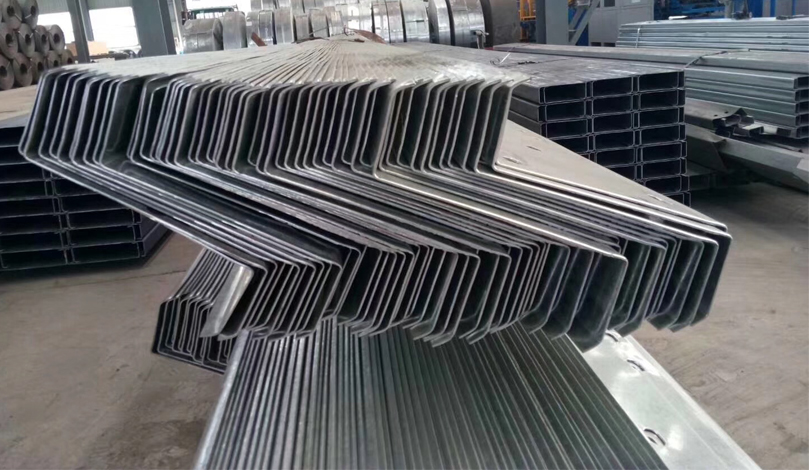

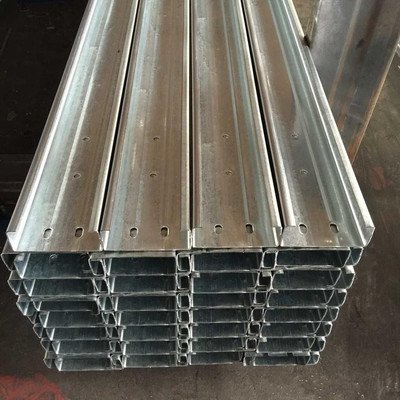

2)Wall & Roof purlin

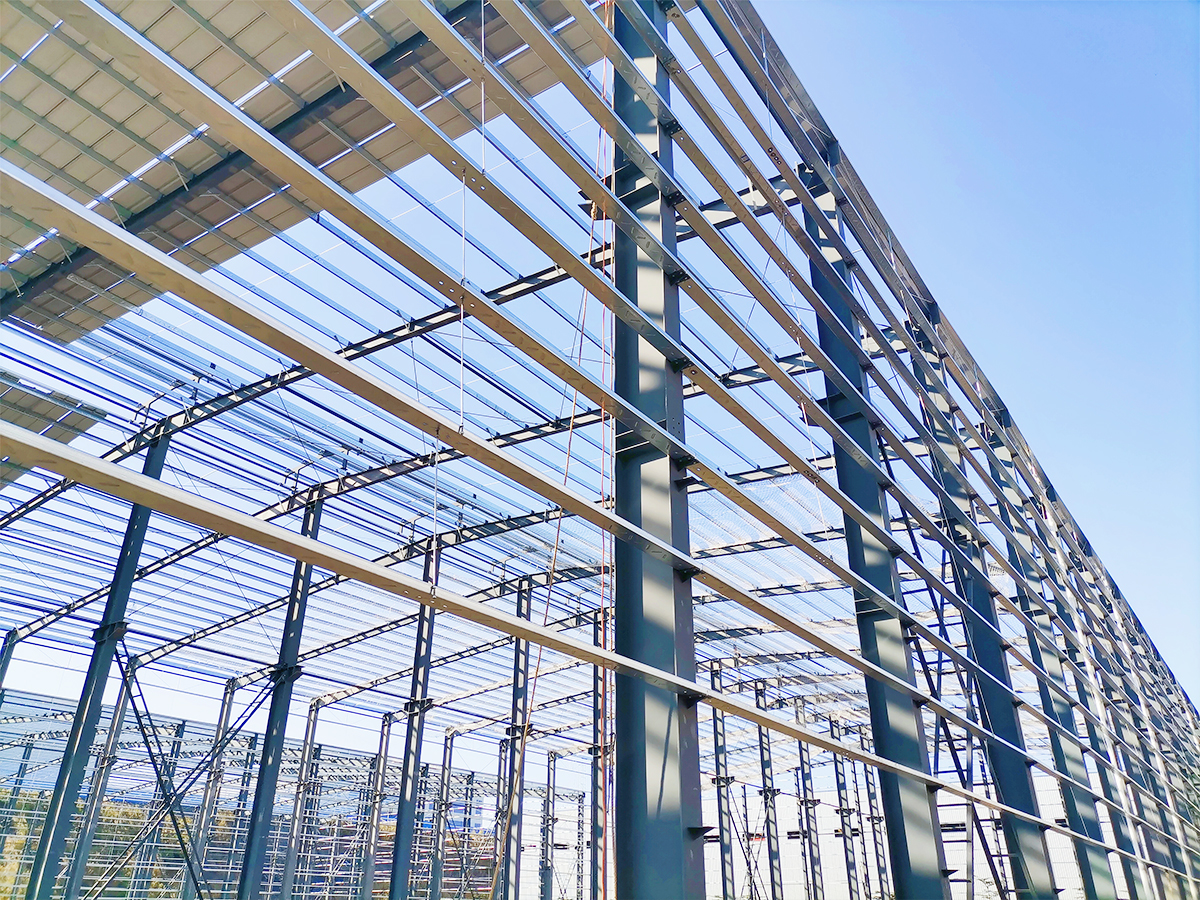

3)Bracing

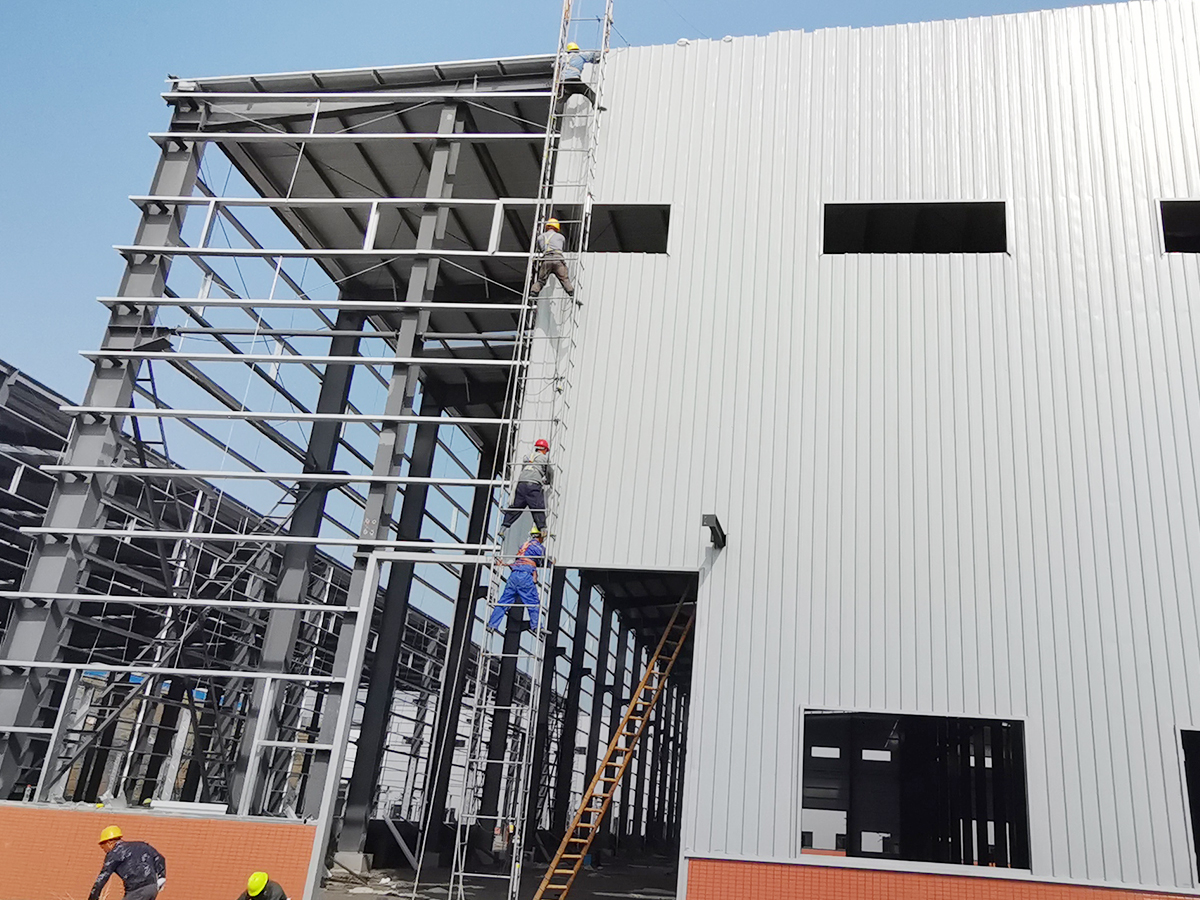

4)Wall & Roof siding

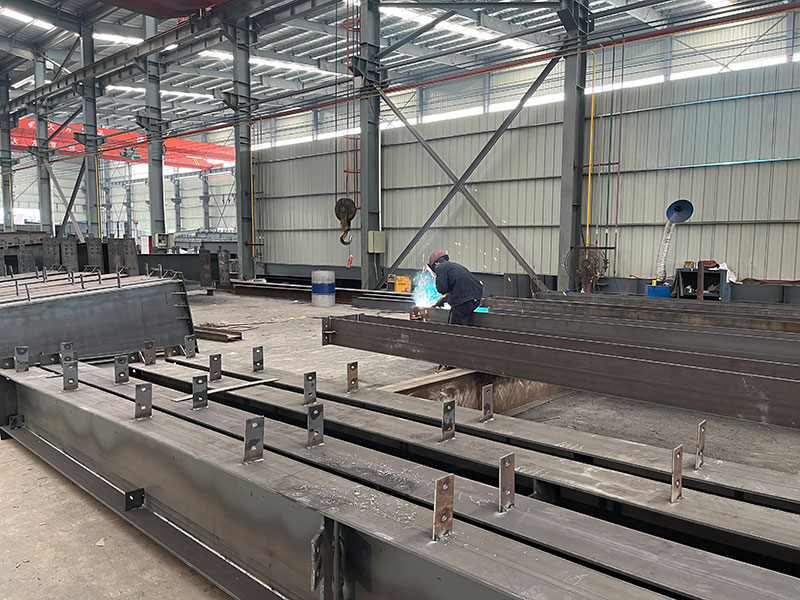

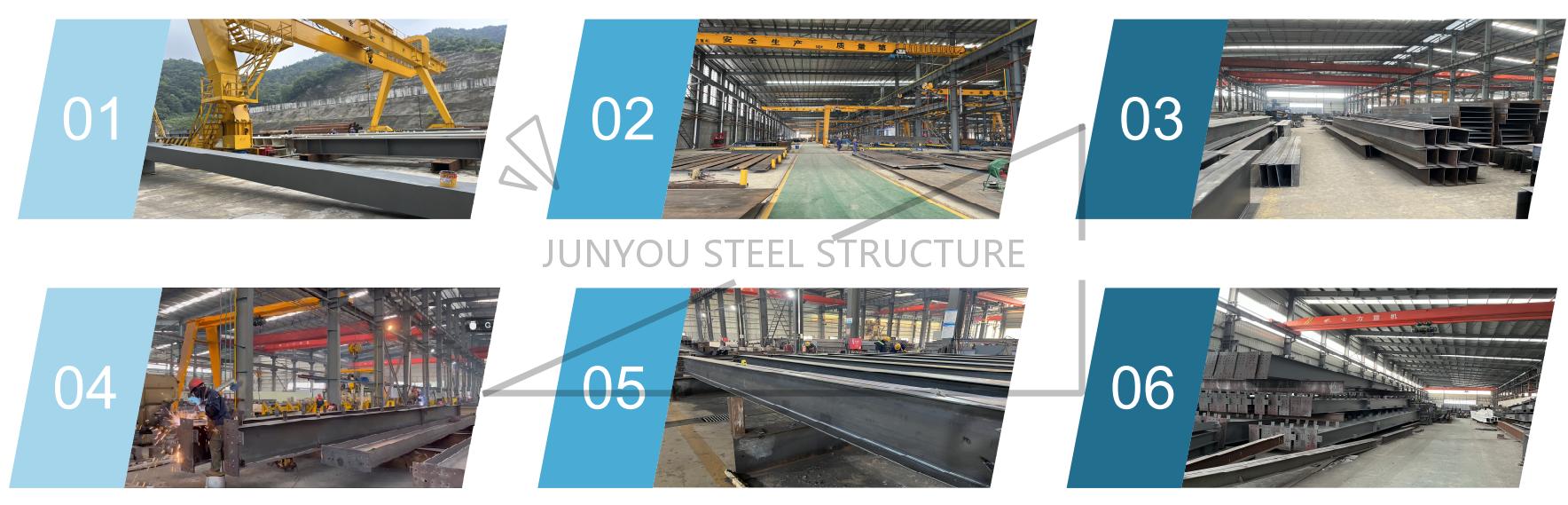

Our steel precessing workshop display
The information we need to make an design for you:
The specifications for the steel building do you need? (Length, width, and height, the height of the building can big affect the cost,usually between 6-8 m)
What is your steel building used for? (factory, workshop, warehouse, hangar, plant, poultry farm shed, etc.)
Thermal conditions of your steel building. (EPS, glass wool, rock wool, PU)
The lighting conditions of your steel building. (Ventilation/skylight)
The window and door requirements. (roll-up door/sliding door/steel door/ PVC door)
The wind-load/ snow load for your steel building. (to design a safe structure that can withstand the weather conditions)
Does The steel building have a crane or not? (3/5/10/15 ton)
FAQ
1. What is the wind speed that the steel structure you designed can generally withstand?
If the customer has no special wind speed requirements, we usually quote the wind speed as 100~110 km/h. We can also design some special countries and regions, such as the Bahamas and Mauritius, where the wind speed reaches 250~280km/h, but the cost will be higher.
2. For a multi-story building, if the floor plate is made of steel floor deck with rebar and concrete, how thick should the concrete will be?
We usually use 880mm type floor decking, and the thickness of the floor concrete is generally 100~150mm.
3. If I want to use floor decking, can you provide concrete and steel bars together?
We recommend that customers purchase steel bars and pour concrete locally because this is part of civil construction and it requires the use of cranes and concrete mixers. We provide floor decking and shear stud.
4. We want to ship the anchor bolt in advance, can you arrange it?
If your container needs to ship nearby, like Foshan/Guangzhou we can deliver the anchor bolt to your container loading place to ship with your other goods.
5. How high are your warehouses usually?
If it is a conventional warehouse without a crane and is simply used to store goods, we recommend that the customer build a 6m~8m warehouse, mainly based on considerations of building structure and economic benefits.
