Steel structures are capable of constructing single-story buildings, such as steel warehouses, workshops, and storage. They can also be employed to build double-story or even multi-story structures. The use of steel structures in the construction of multi-story buildings has the characteristics of rapid construction, strength superiority, and flexibility. It is suitable for a wide range of construction projects, including commercial office buildings, residential buildings, and public buildings.

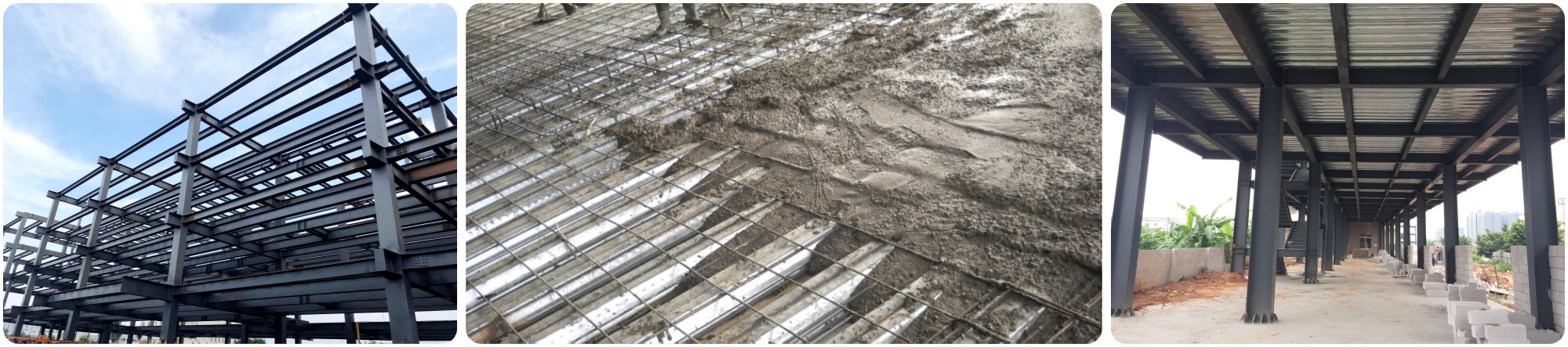

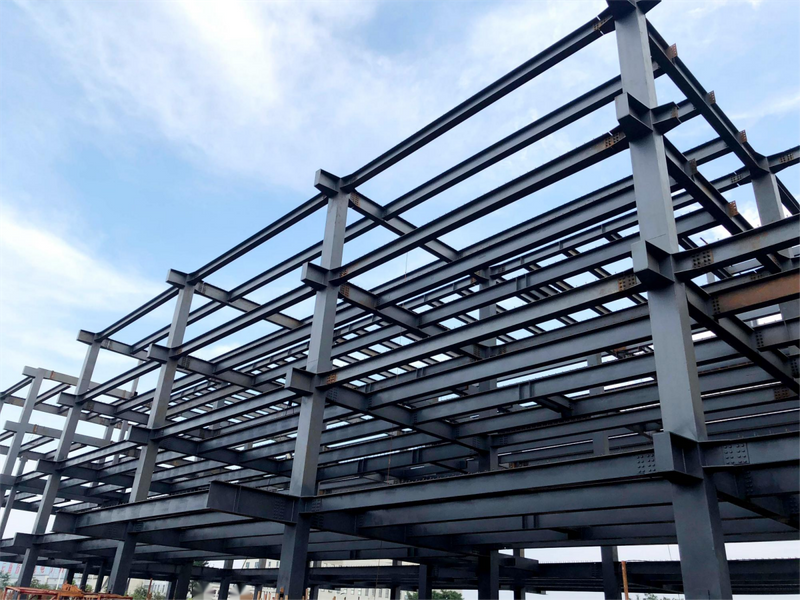

The steel building we intruduce here is also a 4-story building for an office metal building. It's steel main frame composed of H-section steel structure, and then use the light-weight concrete block as the wall. 1.0mm thick galvanized floor decking is used as the floor plate. Add re-bars, and pour 120~150mm concrete directly. This kind of making method is similar to traditional buildings, but the installation is generally much simpler and faster than conventional buildings. It can meet the earthquake and wind resistance requirements of different countries.
Steel structure design specification for this building
1. Loads
Roof dead load: 0.3 kN/m 2
Roof live load: 0.25 kN/m2
Floor load: 500kg/m2
Wind speed or wind load: 100km/h
Anti-seismic:7 grade
2. Materials
Main beam and post: GB Q355B grade, welded H steel section.
Sub-steel structure: GB Q235B grade, steel bar, pipe, angle steel, etc.
Purlin: galvanized, C-section.
3. Welding
The minimum size of the fillet welding for any that is not defined in the
drawings shall be 6mm with full welding.
4. Fasteners( bolts and nuts) for jointing
High Strength bolts Class 10.9 used to connect the Steel Columns and
pressure type high strength bolts Class 10.9 used to connect the
constructional elements.
5. Derusting and painting
Shot blasting to 2.5 and Applying Paint with the following
1st coat of Primary anti-rust paint 30 microns (Epoxy zinc-rich primer)
2nd coat of Primary anti-rust paint 30 microns(Alkyd finish)
Technical Parameters
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel building techniques

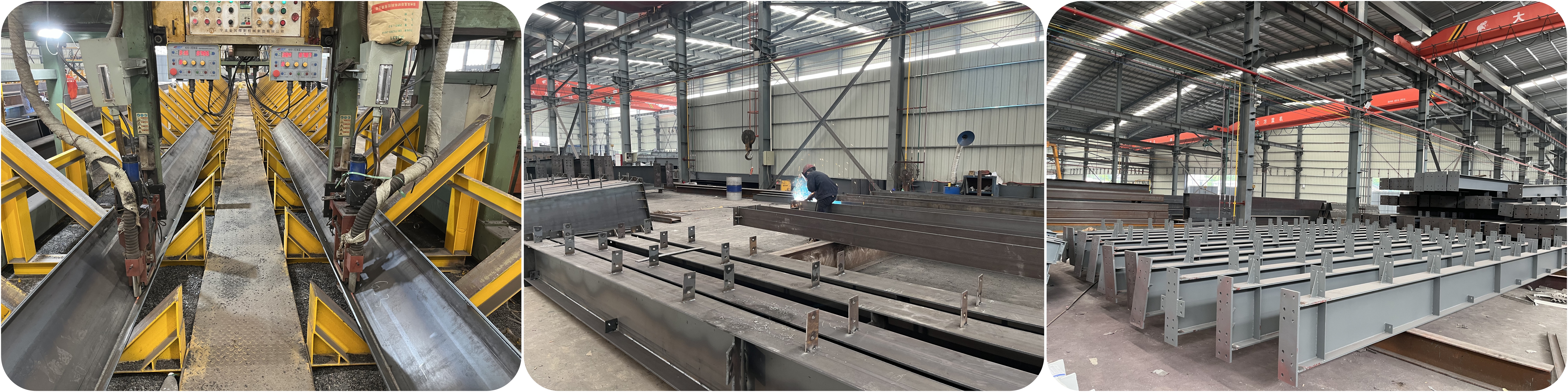

Steel building techniques include structural design, fabrication, welding, assembly, and installation. That refers to the methods and processes used in the construction of steel buildings. Steel is a durable and robust material that can support large spans and heavy loads, making it suitable for a wide range of construction projects. Steel has strength, versatility, and cost-effectiveness, making it a reliable and long-lasting choice for various applications.
Steel buildings application
Commercial Buildings: This includes office buildings, shopping malls, hotels, exhibition centers and entertainment venues.
Industrial Buildings: Such as factories, warehouses, logistics centers and manufacturing facilities.
Public buildings: Such as schools, hospitals, sports venues and cultural centers.
Residential buildings: They can be used in apartment buildings, high-rise residences, villas and residential complexes, etc.
Steel structue construction building advantages
Strength and Rigidity: Steel has high strength and rigidity and is able to withstand large loads bending forces earthquake proof and wind resistance, which makes the high structural safe.
Long-span design: Steel structures do not require too many support columns inside the building, allowing for more flexible interior space layouts and the ability to create open, spacious environments.
Fast construction: Steel-framed multi-story buildings feature prefabricated steel components fabricated in factories and then quickly installed and assembled by bolts on site.
Why are we using H beams more than I beams for a metal/steel building?
1. H beams are straightforward and have better mechanical properties than I beams.
2. H beams are easier to fabricate than I beams because of their straight outer flanges.
3. The H beam is lightweight but stronger than the cross-section of the I beam.
4. I beams are usually beams but H beams can be used as load-bearing columns or beams.
Production information
Steel structures are capable of constructing single-story buildings, such as steel warehouses, workshops, and storage. They can also be employed to build double-story or even multi-story structures. The use of steel structures in the construction of multi-story buildings has the characteristics of rapid construction, strength superiority, and flexibility. It is suitable for a wide range of construction projects, including commercial office buildings, residential buildings, and public buildings.

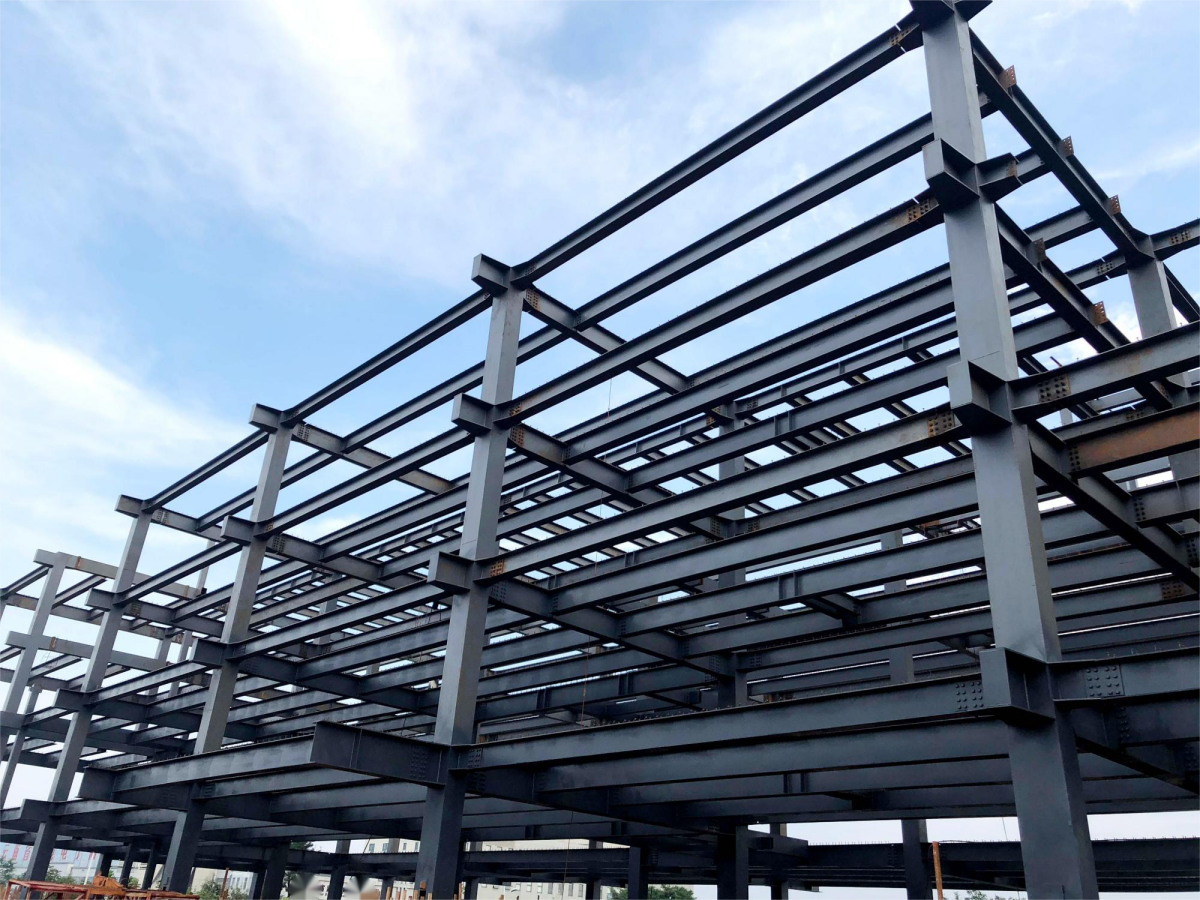

The steel building we intruduce here is also a 4-story building for an office metal building. It's steel main frame composed of H-section steel structure, and then use the light-weight concrete block as the wall. 1.0mm thick galvanized floor decking is used as the floor plate. Add re-bars, and pour 120~150mm concrete directly. This kind of making method is similar to traditional buildings, but the installation is generally much simpler and faster than conventional buildings. It can meet the earthquake and wind resistance requirements of different countries.
Steel structure design specification for this building
1. Loads
Roof dead load: 0.3 kN/m 2
Roof live load: 0.25 kN/m2
Floor load: 500kg/m2
Wind speed or wind load: 100km/h
Anti-seismic:7 grade
2. Materials
Main beam and post: GB Q355B grade, welded H steel section.
Sub-steel structure: GB Q235B grade, steel bar, pipe, angle steel, etc.
Purlin: galvanized, C-section.
3. Welding
The minimum size of the fillet welding for any that is not defined in the
drawings shall be 6mm with full welding.
4. Fasteners( bolts and nuts) for jointing
High Strength bolts Class 10.9 used to connect the Steel Columns and
pressure type high strength bolts Class 10.9 used to connect the
constructional elements.
5. Derusting and painting
Shot blasting to 2.5 and Applying Paint with the following
1st coat of Primary anti-rust paint 30 microns (Epoxy zinc-rich primer)
2nd coat of Primary anti-rust paint 30 microns(Alkyd finish)
Technical Parameters
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel building techniques
Steel building techniques include structural design, fabrication, welding, assembly, and installation. That refers to the methods and processes used in the construction of steel buildings. Steel is a durable and robust material that can support large spans and heavy loads, making it suitable for a wide range of construction projects. Steel has strength, versatility, and cost-effectiveness, making it a reliable and long-lasting choice for various applications.
Steel buildings application
Commercial Buildings: This includes office buildings, shopping malls, hotels, exhibition centers and entertainment venues.
Industrial Buildings: Such as factories, warehouses, logistics centers and manufacturing facilities.
Public buildings: Such as schools, hospitals, sports venues and cultural centers.
Residential buildings: They can be used in apartment buildings, high-rise residences, villas and residential complexes, etc.
Steel structue construction building advantages
Strength and Rigidity: Steel has high strength and rigidity and is able to withstand large loads bending forces earthquake proof and wind resistance, which makes the high structural safe.
Long-span design: Steel structures do not require too many support columns inside the building, allowing for more flexible interior space layouts and the ability to create open, spacious environments.
Fast construction: Steel-framed multi-story buildings feature prefabricated steel components fabricated in factories and then quickly installed and assembled by bolts on site.
Why are we using H beams more than I beams for a metal/steel building?
1. H beams are straightforward and have better mechanical properties than I beams.
2. H beams are easier to fabricate than I beams because of their straight outer flanges.
3. The H beam is lightweight but stronger than the cross-section of the I beam.
4. I beams are usually beams but H beams can be used as load-bearing columns or beams.
