Product Information
Prefabricated house/prefab house or mobile house refer to buildings that are mostly built in factories. The most parts of the house, such as walls, floors and roofs, are prefabricated and then assembled on site. This construction method can be faster, more economical, and more environmentally friendly than traditional construction methods. It can be designed in different styles and sizes to suit the client's needs.

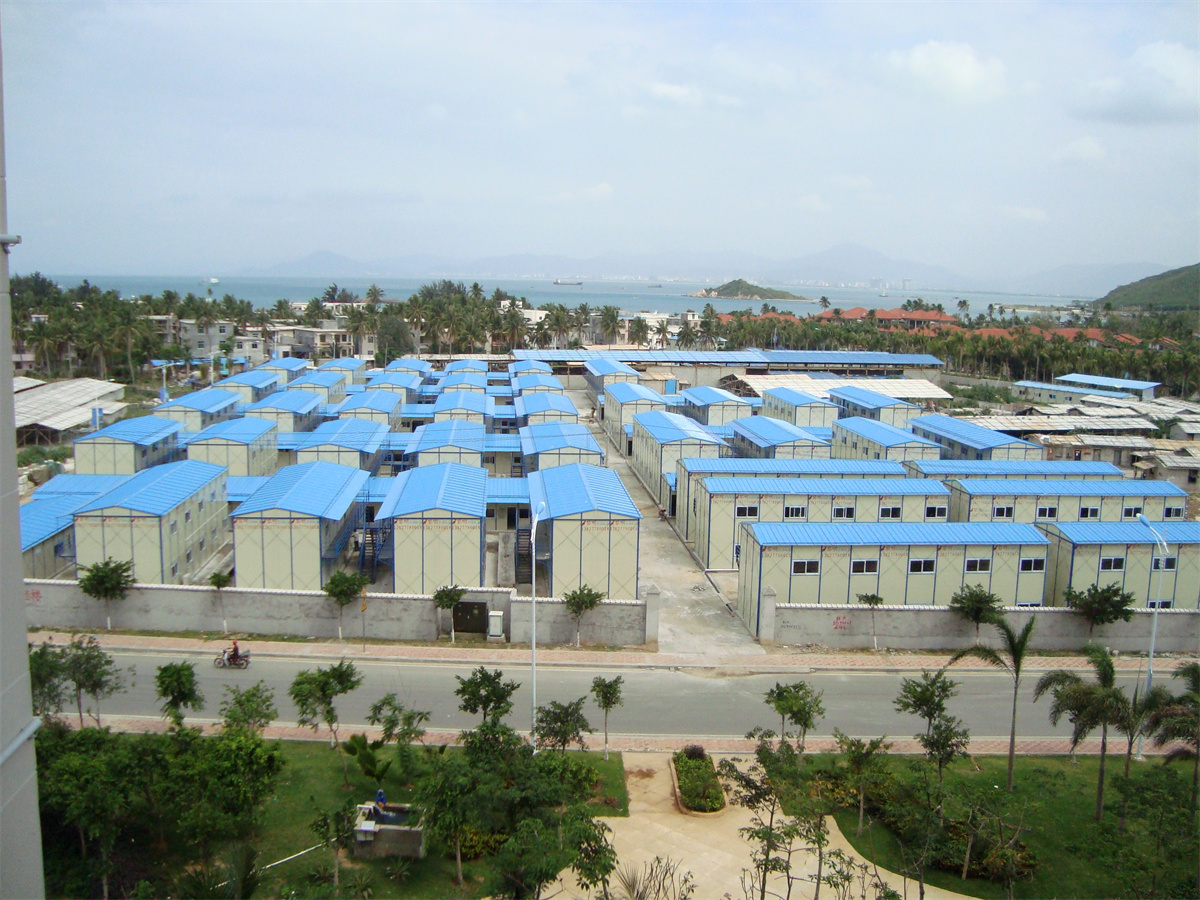

The temporary house we introduced here is a construction site worker living area. It is a designated space where workers have their accommodations, including dormitories or temporary housing units. This area is designed to provide basic living facilities and a place for the workers to rest and stay during the construction project. Project

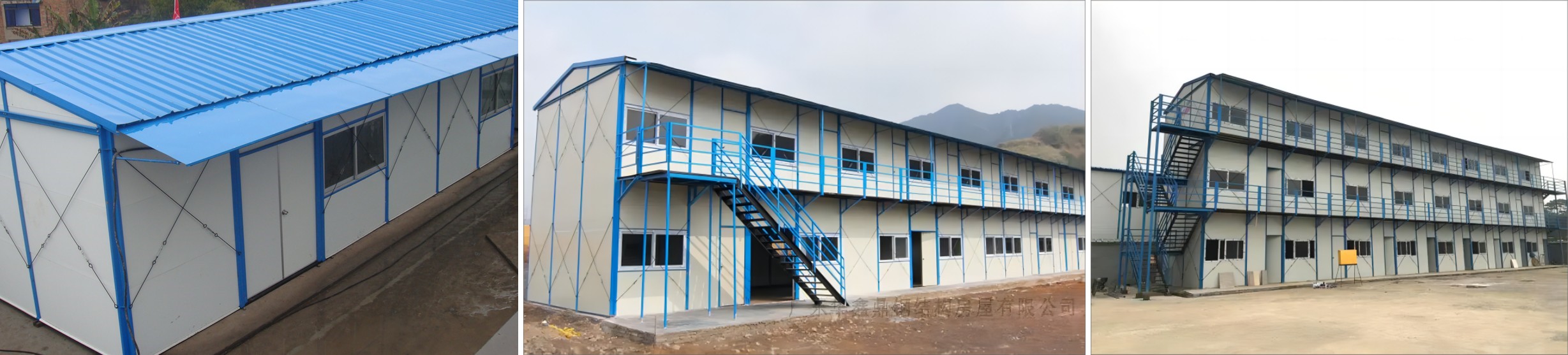

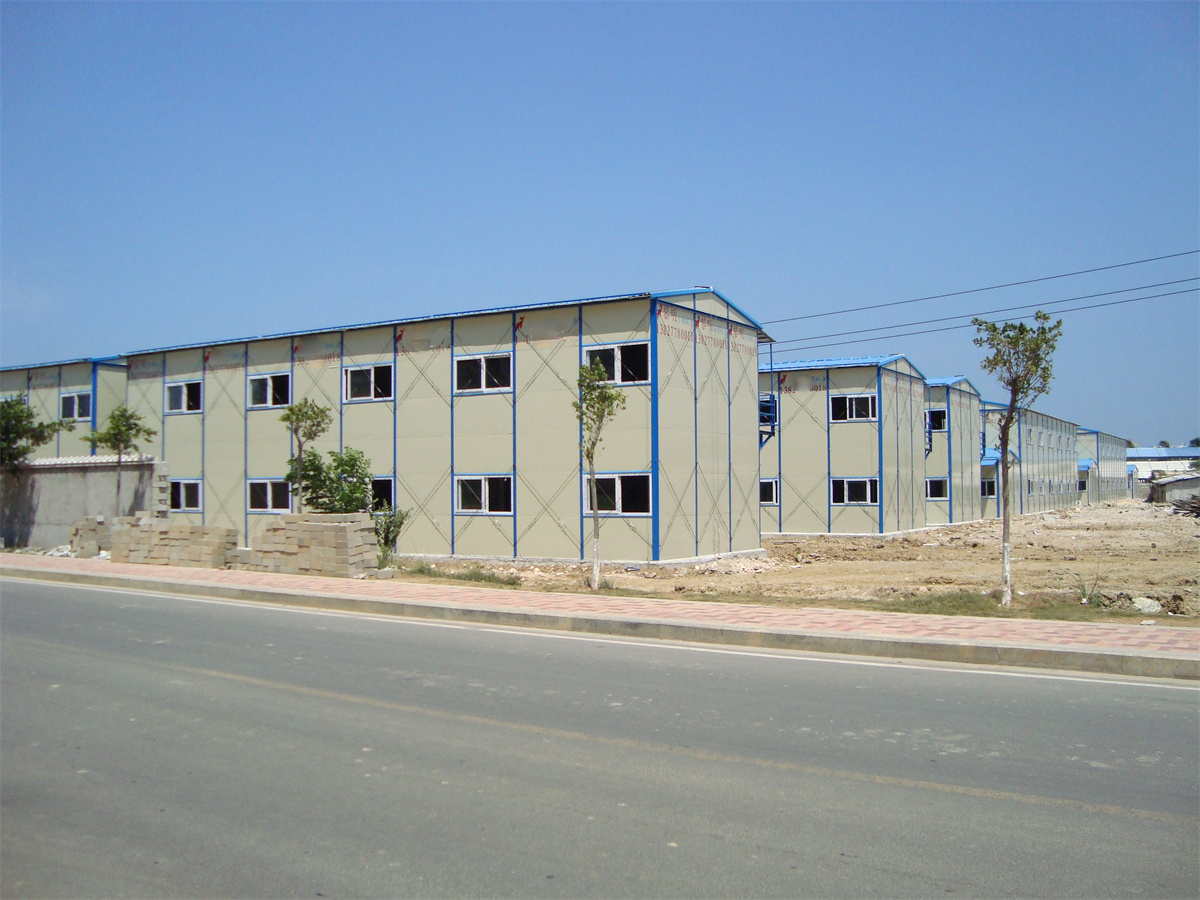

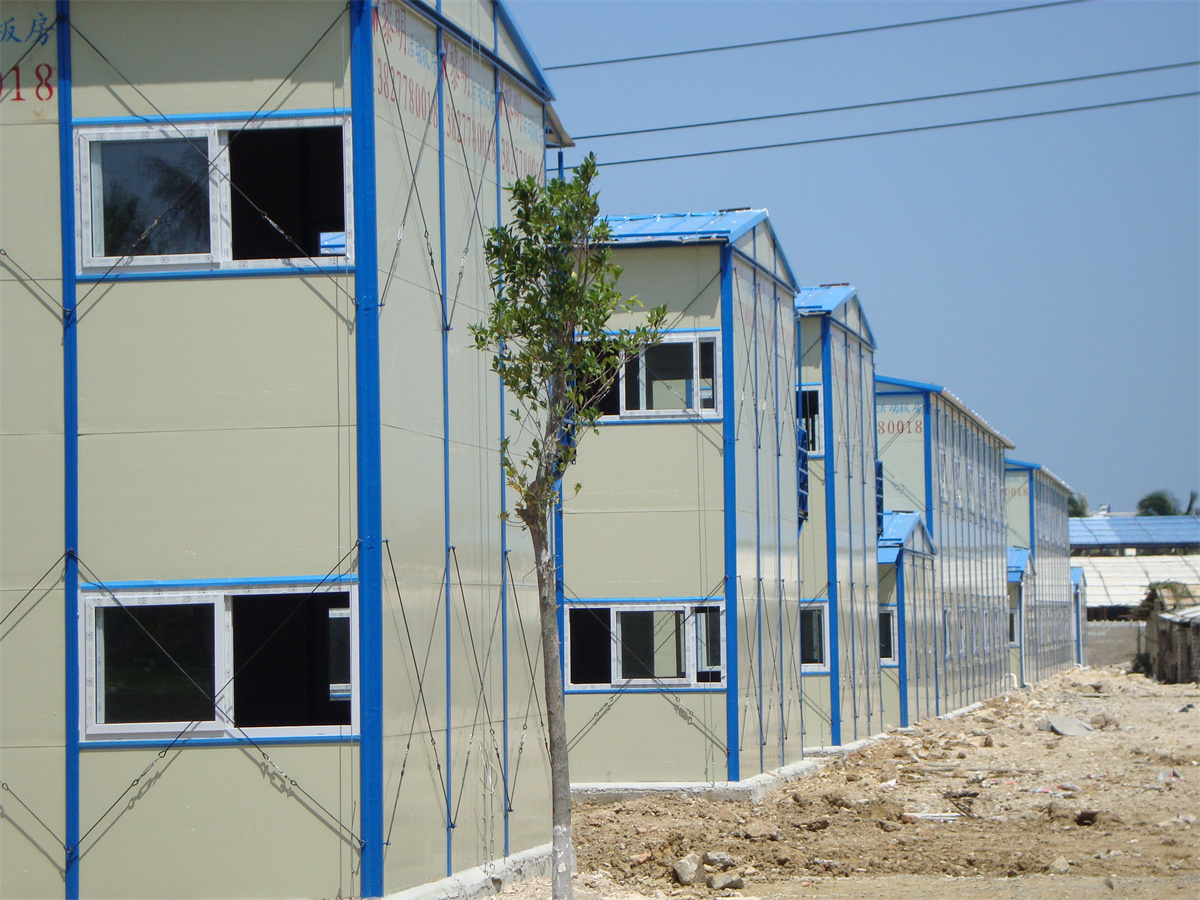

pictures display as below:

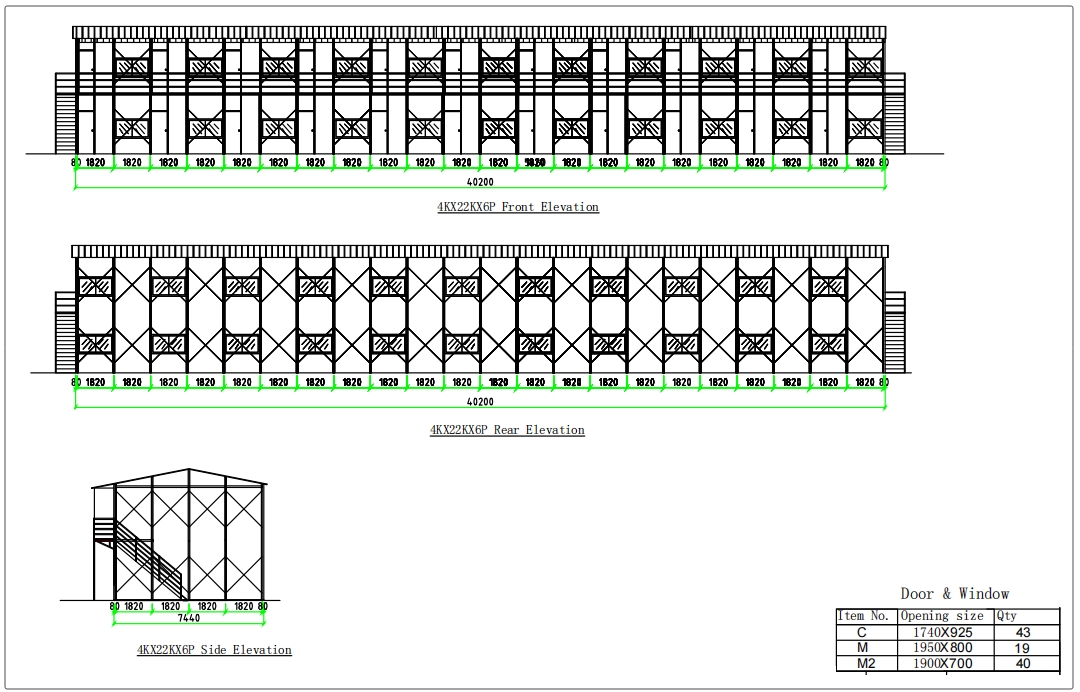

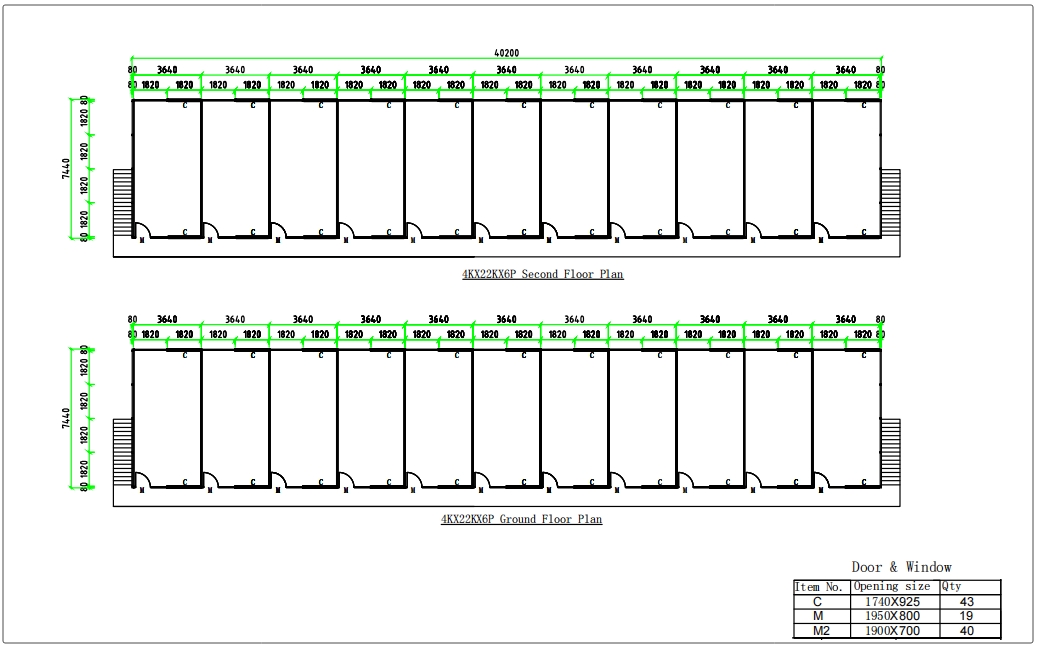

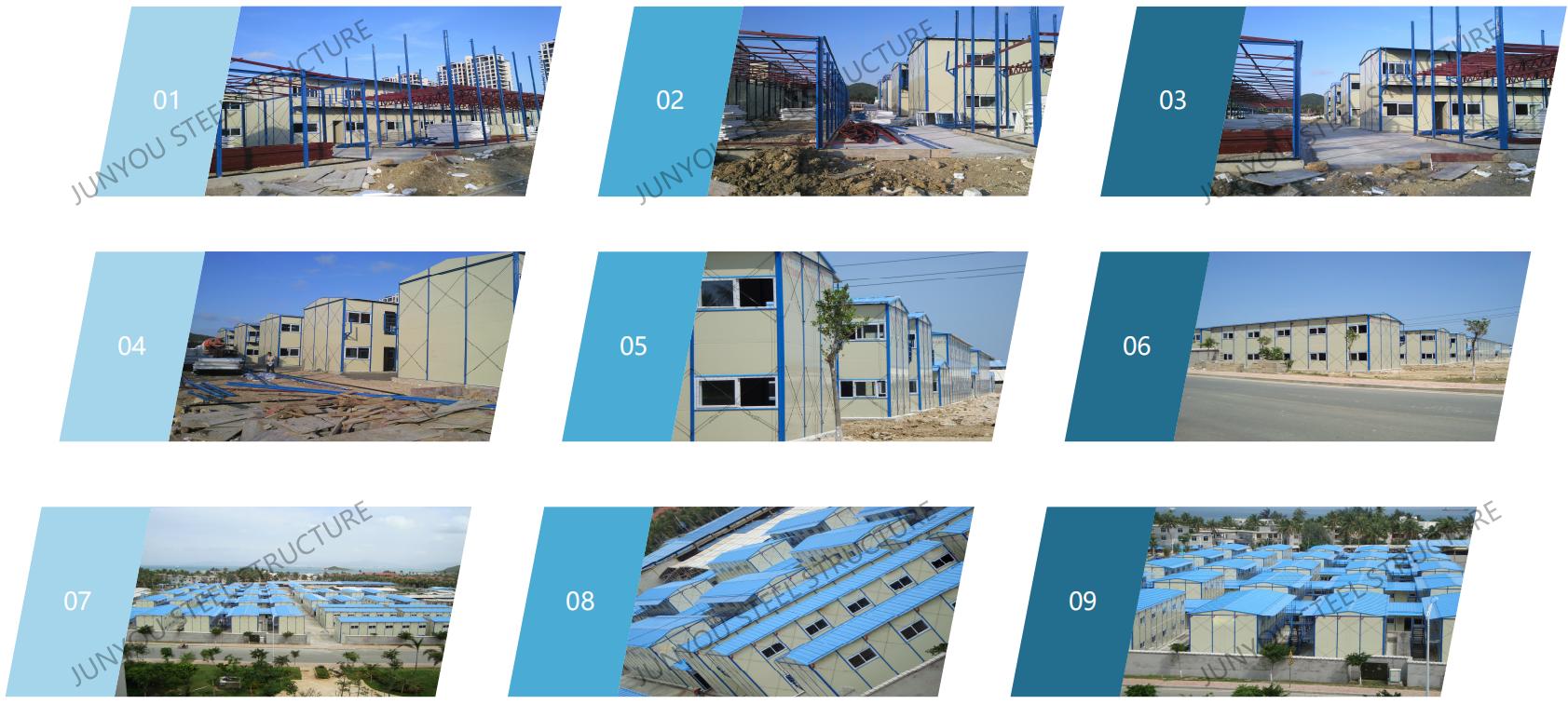

Project drawing display

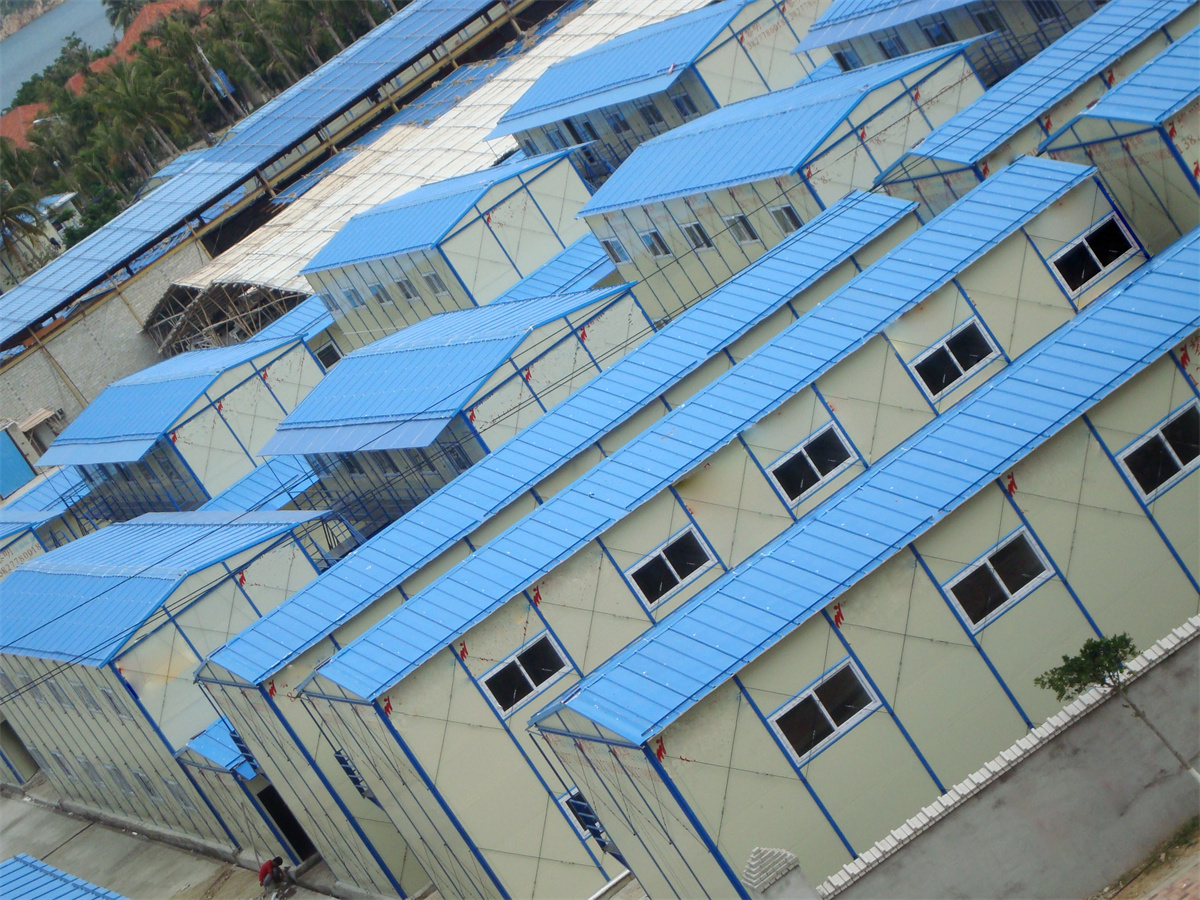

K house prefab house standard material color
The steel structure frame is blue, and the stair and aisle board is black.
The roof panel is blue
The wall panel is white
That means if the customer does not mention the color requirements of the material, we will basically use this standard color, and this standard color matching is also recognized in the market.
Prefab house wall & roof panel surface treatment:

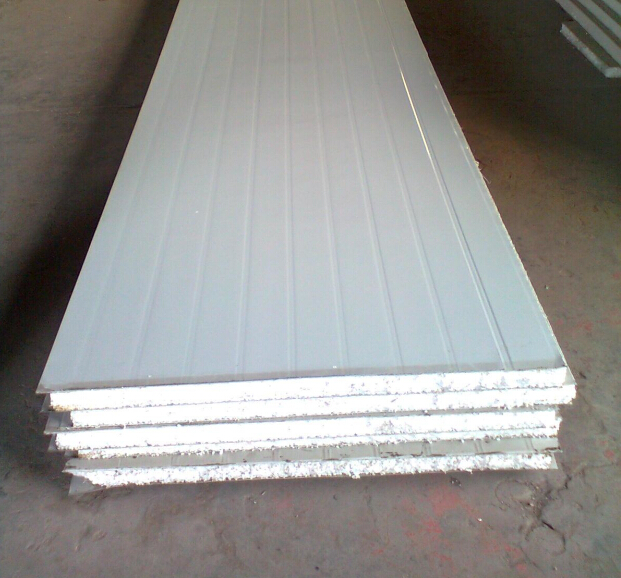

A)Embossed wall panel:
Embossed Board Wall Panels: Embossed board siding has a texture on the surface, usually in the form of raised lines. This texture adds rigidity and strength to the siding, making it more durable. Embossing can also provide a certain anti-slip effect, making the wall panels more stable during installation and use.

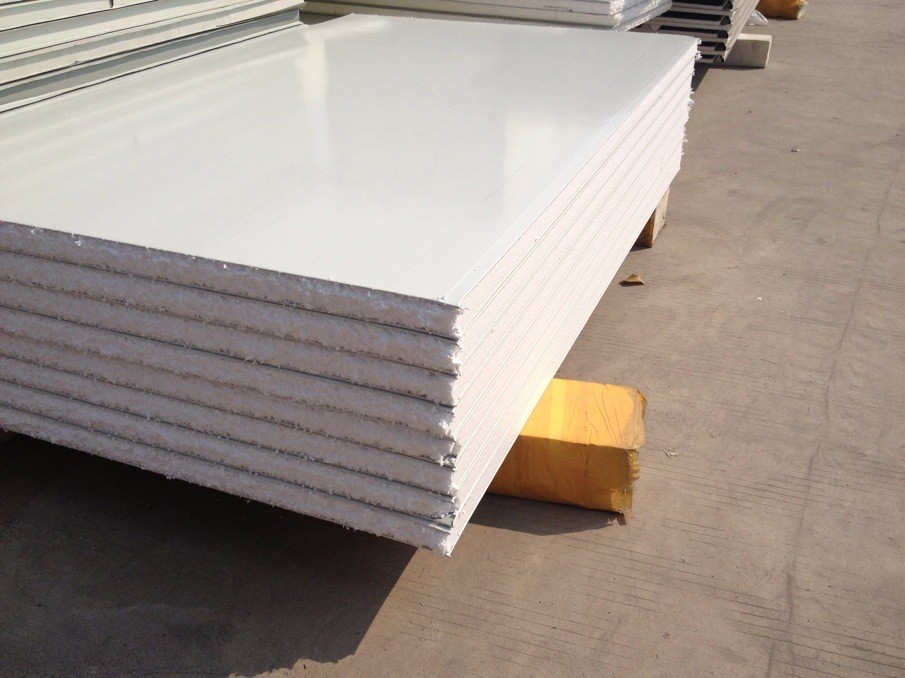

B)Non-embossed wall panel:
Non-embossed wall panels: The surface of non-embossed wall panels has no texture and is smooth. This design makes the surface of the wall panel flat and suitable for certain application scenarios. For example, unembossed siding may be more suitable in some environments that require smooth, easy-to-clean wall surfaces, such as medical facilities, laboratories, or food processing plants.

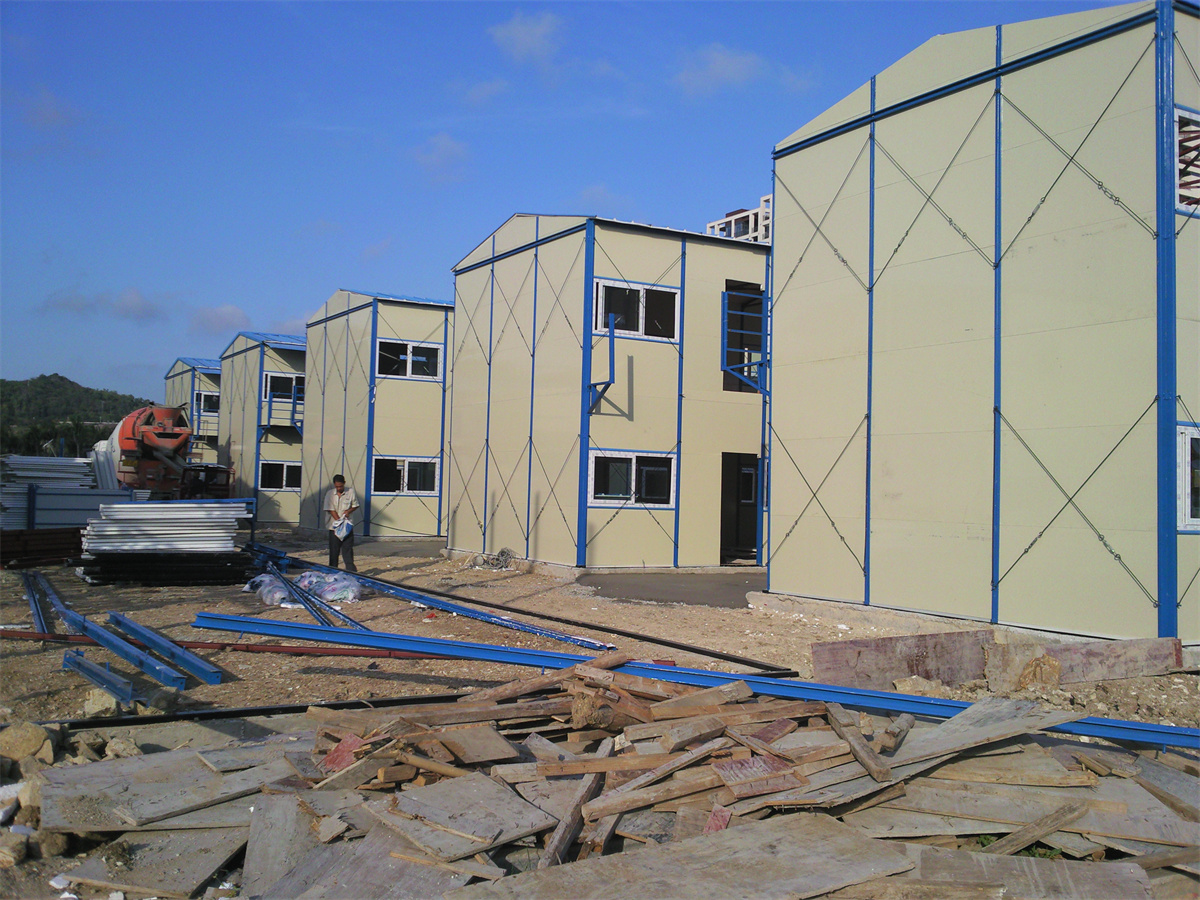

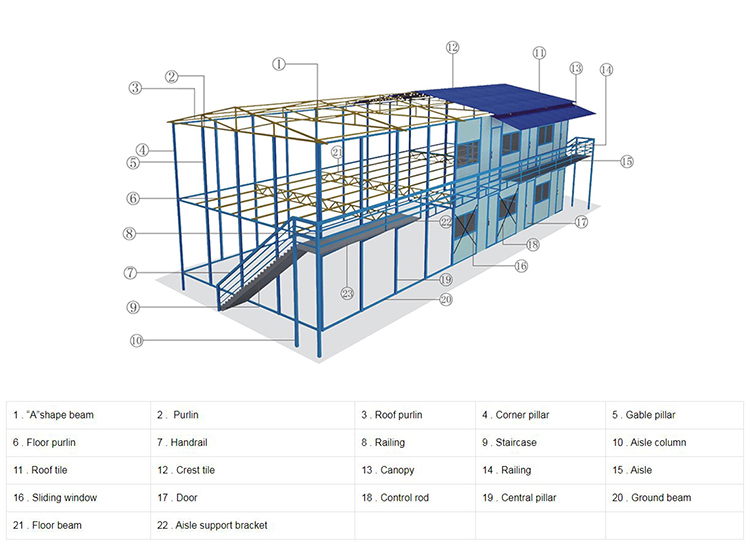

K type-prefabricated house component
They built using prefabricated components, such as sandwich panel walls, plywood/cement board floors, sandwich panel roofs, and related accessories which are pre-manufactured in a factory. These components are then transported to the site where they are easily and quickly assembled to create the final structure.
It can be Quickly and easily assembled and disassembled. Temporary buildings to achieve a common standard, establish environmental protection and energy saving, and fast and efficient architectural concepts.
Product Material List display
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|

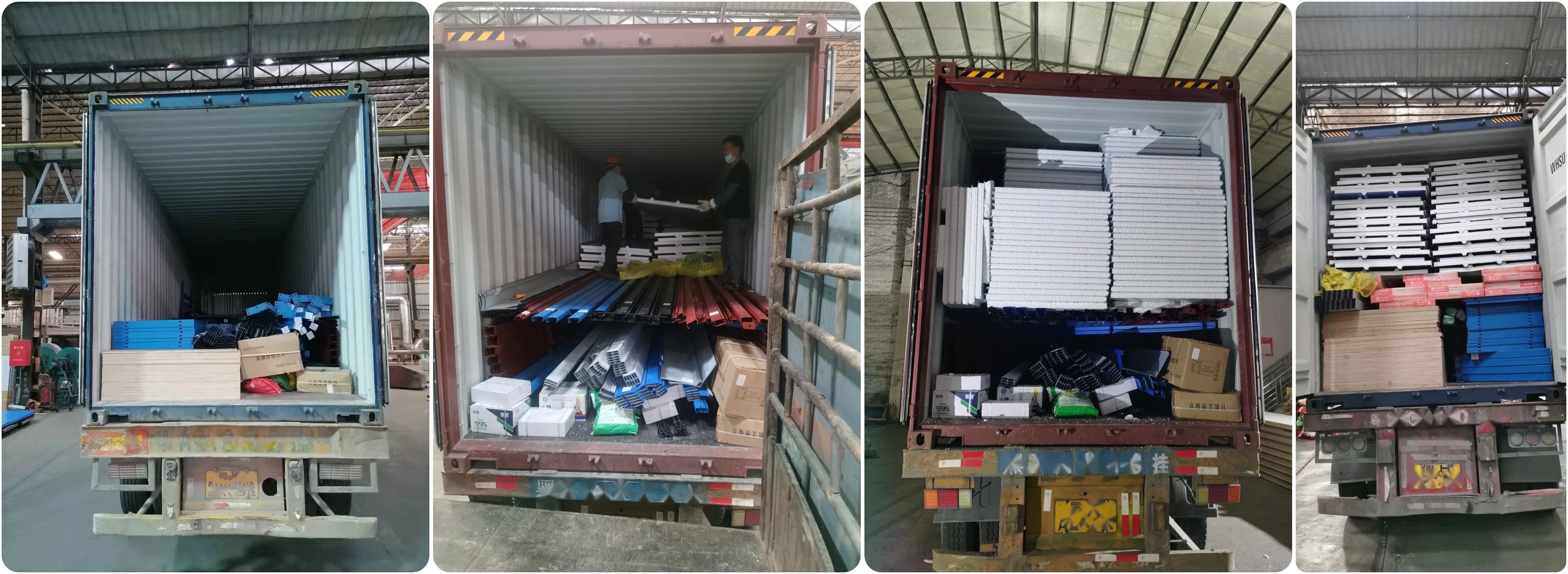

Prefab house container loading method
Shipment:1*40HQ can load about 250~300 square meters.
1 skillful installation worker can install 25~30 square meters per day.
Main Feature:
1. The unit figure for K house dimension is K, 1K=1.82m, K is the distance between the two closest columns.
2. K house can be built as 1 to 3 floors building. Figures for houses with different stories: One floor=3P, two floor=6p, three floor=9p
3. K house is qualified for waterproof, fireproof, heat insulation, and sound insulation performance.
4. K house can be relocated to different site, It can be assembled and disassembled six times.
5. K house is anti-termites. All steel structures are well painted and anti-rust which can be normally used for 10~15 years, and all materials can be recycled.
6. K house only requires a level concrete floor for the foundation.
7. 4 labors one team, can install more than 200 per day.
Advantage:
Good Quality: We choose high-quality steel to make support. As for panels, we also choose two layers of high-quality steel or other precision-forming metal as the surface. In the middle, we inject flame-retardant polyurethane bubble liquid, through high-pressure foaming and curing process. We use strong adhesion to compound them. So it possesses a great deal of advantages. Such as wind-resistance level 8 grade, earthquake-resistance 8 grade, heat-resistance, sound-proofing, hot insulation, and damp proofing.
Reasonable Price: Our company makes full use of our district's advantages. Such as abundant raw materials, excellent professionals, and a great deal of labor. We have our own factory, we are the source, so our price is very competitive. What's more, the more quantity, the more discount.
Express and Safe Logistics: We promise we will deliver the products on time, and wrap them in a safe way so that you can get complete and high-quality products.
Easy Installation: Installation is very simple. It only takes you two or three weeks to install it. So you can live in your own room very soon. In addition, the prefab house is movable, you take it with you anywhere.
Multi-room: We can design the structures according to your requests so that you can spend a small amount of money but live in a comfortable house. For example, we will design an independent toilet, and kitchen for you.
Long Service Life:Generally speaking, it can service you for 10 years. It's totally possible to live a longer life if you take good care of them.
Application:
These kinds of prefab houses are known for their speed of construction, cost-effectiveness, and versatility. They can be used for various purposes, including temporary housing, site offices, headquarters, classrooms, healthcare facilities, worker dormitories, labor camps, etc.

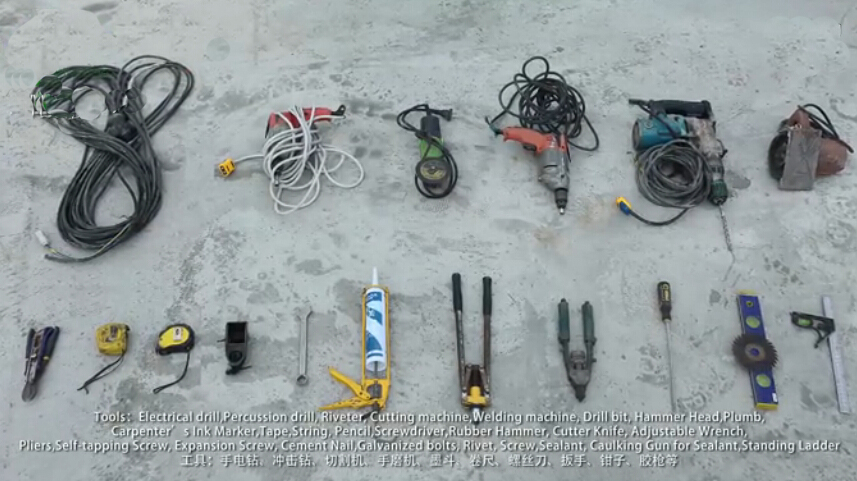

Installation tool
Prefab house is easy to install:Electric hand drill, impact drill, cutting machine, hand grinder, tape measure, screwdriver, spanner, pliers, glue gun, etc.
