Product Description

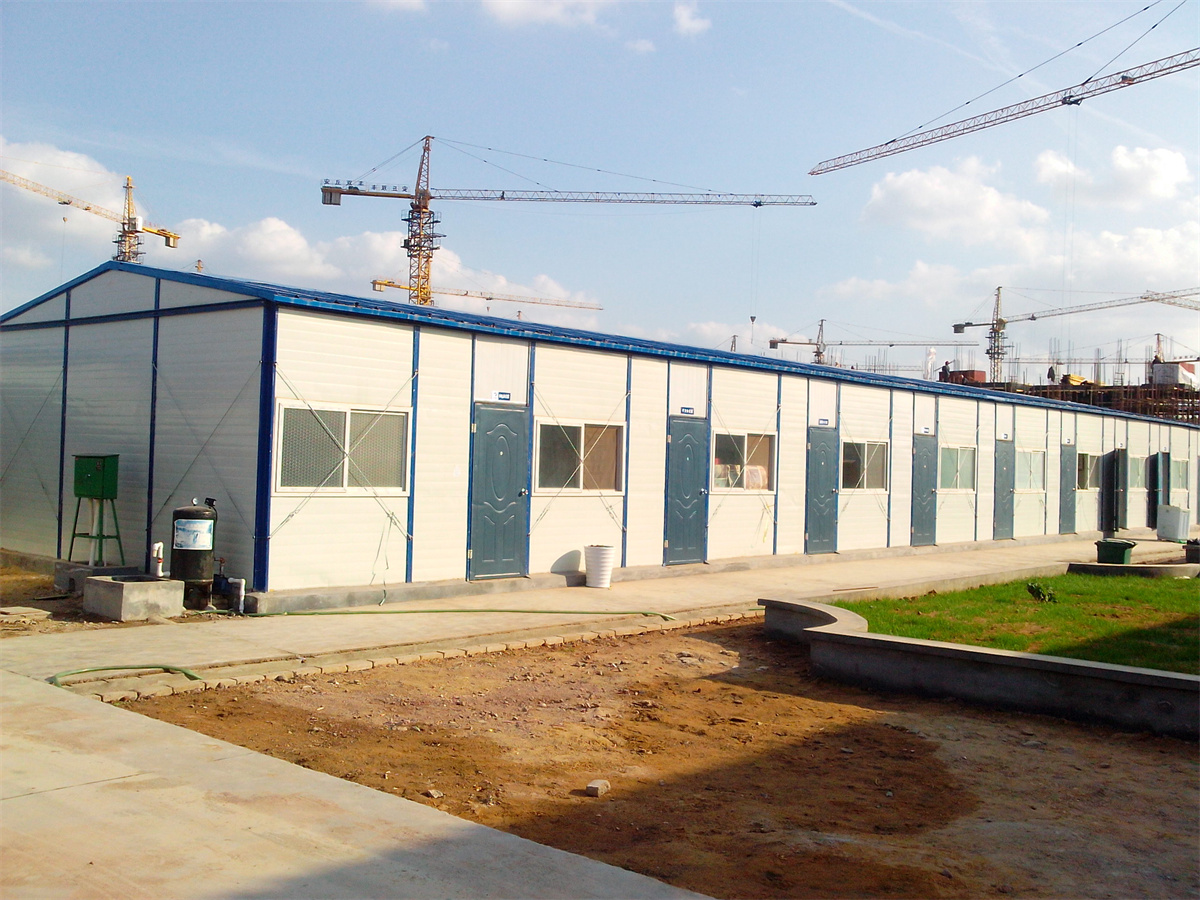

Prefab K house, also called slope-roof prefab house, is a prefab house product with a light steel structure as the skeleton（mostly C purlin）, sandwich panels for wall and roof, and forming the enclosure and roof system.
This product is spatially assembled according to standard modules, and the components are connected by bolts, which can be assembled and disassembled conveniently and quickly, realizing the construction concept of universal temporary building standards, economical, environmentally friendly, fast and efficient.
These kinds of prefab houses are known for their speed of construction, cost-effectiveness, and versatility. Its uses are very wide, including temporary construction houses used for field operations such as roads, railways, and construction; urban municipal, commercial and other temporary houses, such as temporary offices, conference rooms, headquarters, dormitories and temporary shops, temporary Schools, temporary hospitals, temporary parking lots, temporary exhibition halls, temporary maintenance departments, temporary gas stations, etc.

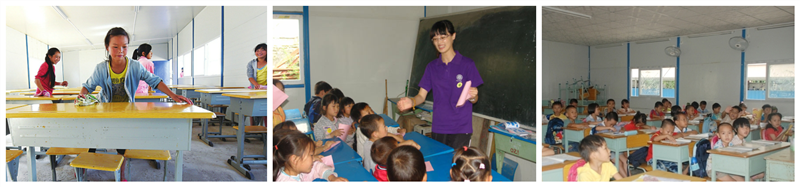

a)Temporary Schools

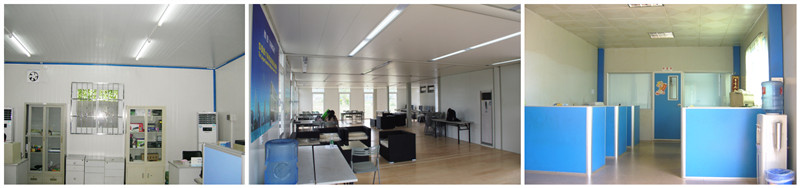

b)temporary offices

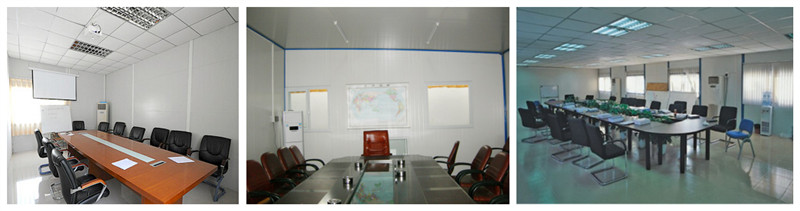

c)conference rooms
Prefabricated K House Area Formula
Grand total Area formula=a+b+c+d(option)
a.Floor area=(width+0.16m)*(length+0.16m)*storey
b.Aisle area=length+0.16m
c.Rain cover area=0.5*(length+0.16)
D.Stairs area: 2 layer=4.5sqm, 3 layers=16. 4sqm
It can be Quickly and easily assembled and disassembled. Temporary buildings to achieve a common standard, establish environmental protection and energy saving, and fast and efficient architectural concepts.
Prefabricated K type house floor plan & elevation plan display:
1)Prefab house for office
2)Prefab house for temporary house
Prefab house competitive advantages
1）Reliable structure: The light steel flexible structure system is safe and reliable and meets the requirements of building structure design specifications.
2）Convenient disassembly and assembly: The house can be disassembled and assembled many times and reused. The installation process requires only simple tools. On average, each person can install 20-30 square meters per day, and 6 people can complete a 3K×10K standard prefab house in just 2 days.
3）Flexible layout: doors and windows can be set at any position, indoor partitions can be set at any transverse axis, and stairs can be set outdoors.
4）Structural waterproofing: The house adopts structural waterproof design and does not require any additional waterproofing treatment.
Long service life: The light steel structures are all treated with anti-corrosion spray paint, and the normal service life can reach more than 10 years.
Prefab house indoor display: (with & without ceiling)
Prefabricated K house component
They built using prefabricated components, such as sandwich panel walls, plywood/cement board floors, sandwich panel roofs, and related accessories which are pre-manufactured in a factory. These components are then transported to the site where they are easily and quickly assembled to create the final structure.
Product Material List
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|

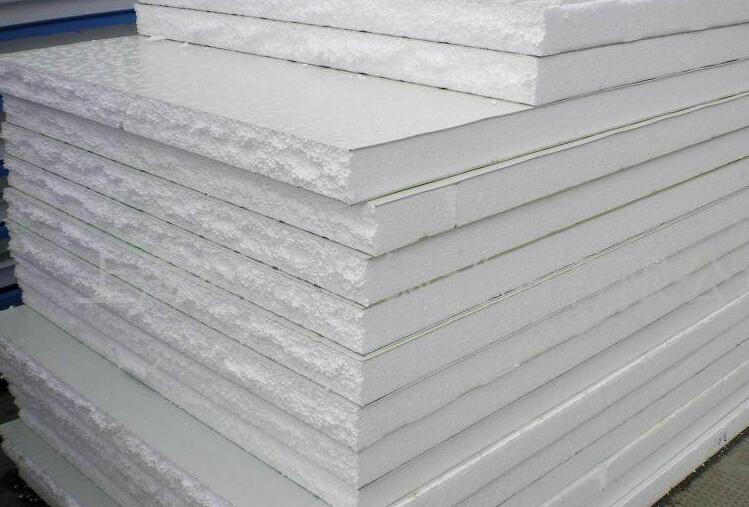

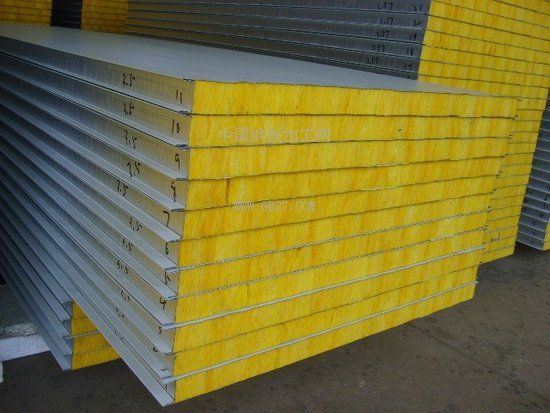

EPS and fiber glass wool sandwich panel features:
1. EPS foam board/ Fiberglass sandwich panel as wall or roof cladding, is a thermal insulation sandwich panel made of 2 pcs steel color sheet with EPS foam or Fiberglass insulation at the middle, with features lightweight, easy install, low cost, strong low ability, soundproofing, thermal insulation, heating insulation and good moisture resistant, etc.
2. Thermal Insulation fiberglass mineral material
a. Class A1 non-combustible material
b. No odor, environmentally friendly and non-toxic
c. Thermal conductivity ≤0.03W/cm.k
d. heat resistance ≥700 degrees
e. Porous structure, good recovery, not afraid of any shock
Our Global Market:
We have supported government projects in Russia, Australia, Malaysia, Niger, Kenya, Fiji, Philippines and other projects in more than 30 countries.
