Product Information
A prefab K-type house (K = 1820mm) is a type of prefabricated house with a specific dimension.
"Prefab" means the house is manufactured off-site in advance and assembled at the desired location.
"K type" refers to the specific design of the house, which is likely based on a standard K=1820 layout.
For example:
The K house design is characterized by its size(1K=1820mm,1P=950mm), for example, 3K* 12K*3P then the size is ｛(3x1.82)+0.16｝x｛(12x1.82)+0.16｝x3x950,that is 5.62m×22m×2.85m.Here 0. 16m is two side of steel.
K house made by the light steel frame(C section steel), EPS sandwich panels for building frame materials, as a standard module for space series, components used bolt connection, the new concept of environmental protection economic prefab house.

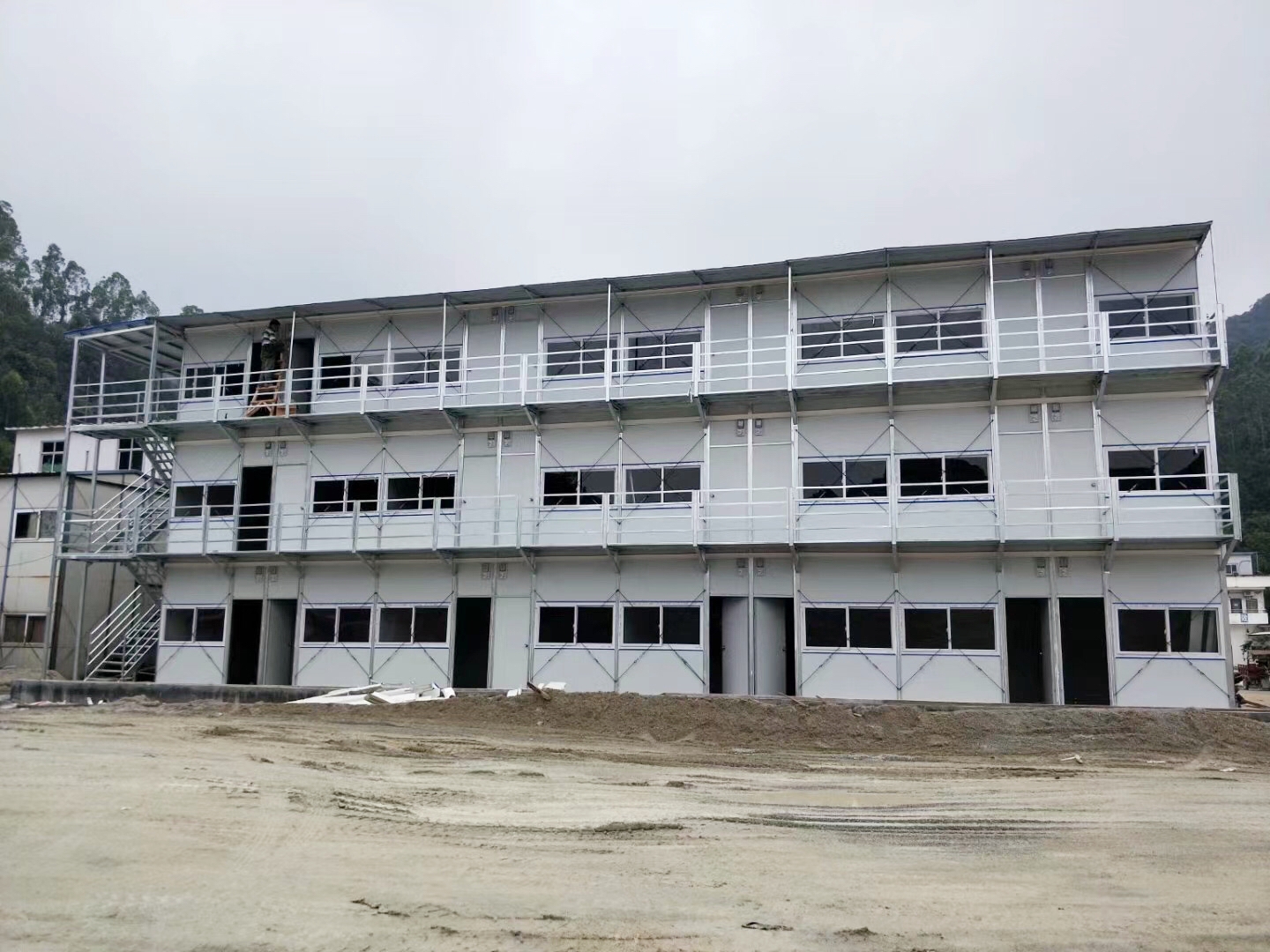

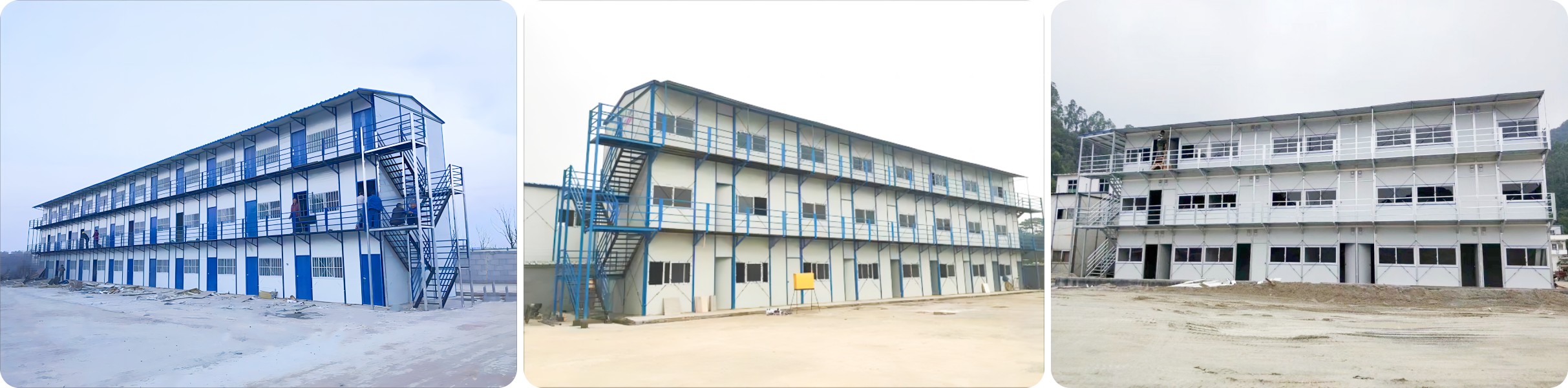

The product we are referring to here is a three-story mobile sheet house. Due to the limited land area of the customer, many workers need to be placed for accommodation. For such products, it cannot be constructed on more than three floors. Because it is made of light steel frames and steel sandwich panels as the roof and walls. If more than three floors are stacked together, the bearing capacity will increase, the stability will decrease, and it is easy to tip over. Therefore, we generally recommend that customers build single-story or double-story buildings.

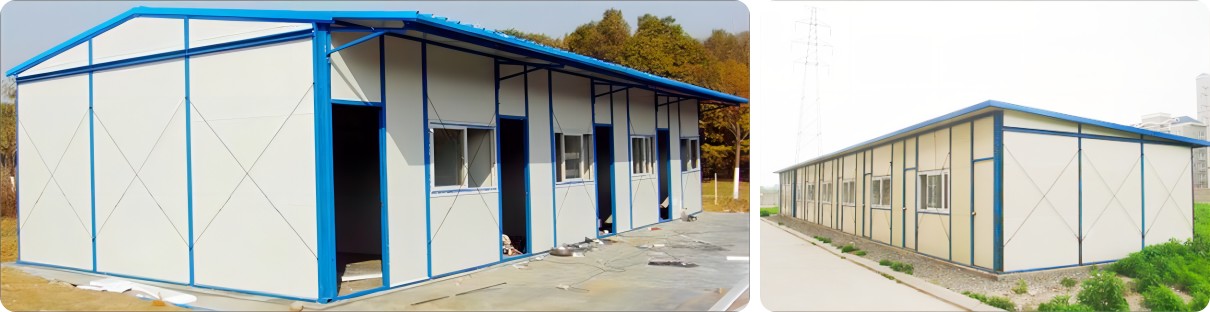

Most customers choose the form of a sloped roof, especially in countries with rainy seasons, because it facilitates faster water drainage. If the width of the prefabricated house project is not large, you can choose the form of flat roof, which will be slightly cheaper than the price of slope roof.
Prefab house advantage
It can be Quickly and easily assembled and disassembled. Temporary buildings to achieve a common standard, establish environmental protection and energy saving, and fast and efficient architectural concepts. So temporary housing into a series of developments, integrated production, matching of supply, inventory, and repeated use of stereotypes revolving around products.
Prefab house application
These kinds of prefab houses are known for their speed of construction, cost-effectiveness, and versatility. They can be used for various purposes, including temporary housing, site offices, headquarters, classrooms, healthcare facilities, worker dormitories, labor camps, etc.
Prefabricated K house component
They built using prefabricated components, such as sandwich panel walls, plywood/cement board floors, sandwich panel roofs, and related accessories which are pre-manufactured in a factory. These components are then transported to the site where they are easily and quickly assembled to create the final structure.
Product Material List
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|
Prefab house floor plan & elevation plan display:
Characteristics:
1. Environmental friendly
2. Lower cost and maintenance
3. Long use time up to 10 years
4. Stable and earthquake resistance up to 7 grade
5. Fast construction, time-saving and labor-saving
6. Good appearance
K Type prefab house features:
1. Recycle use: All components are standard and fabricated in a factory, which makes them suitable for recycling use many times.
2. Various selections: The house can be designed as single, two, or three stories. The outer panels can be optional based on fireproof or non-fireproof materials.
3. Quick installation: It is quick to erect due to the light-weight materials. An estimated six skilled workers can finish 200m2 in two days.
4. Flexible design: The panel can be placed anywhere to form the layout.
EPS and fiber glass wool sandwich panel features:
1. EPS foam board/ Fiberglass sandwich panel as wall or roof cladding, is a thermal insulation sandwich panel made of 2 pcs steel color sheet with EPS foam or Fiberglass insulation at the middle, with features lightweight, easy install, low cost, strong low ability, soundproofing, thermal insulation, heating insulation and good moisture resistant, etc.
2. Thermal Insulation fiberglass mineral material
a. Class A1 non-combustible material
b. No odor, environmentally friendly and non-toxic
c. Thermal conductivity ≤0.03W/cm.k
d. heat resistance ≥700 degrees
e. Porous structure, good recovery, not afraid of any shock
Our Global Market:
We have supported government projects in Russia, Australia, Malaysia, Niger, Kenya, Fiji, Philippines and other projects in more than 30 countries.
Our services:
ONE-STOP services & Customized solutions, 15 years+ experience of R&D, Design, Manufacturing, Exportation and After-sales support.
