Product Information
Prefabricated K houses can be have slope roof shape and flat roof shape. They are built using prefabricated components, such as sandwich panel walls, plywood/cement board floors, sandwich panel roofs, and related accessories which are pre-manufactured in a factory. These components are then transported to the site where they are easily and quickly assembled to create the final structure.

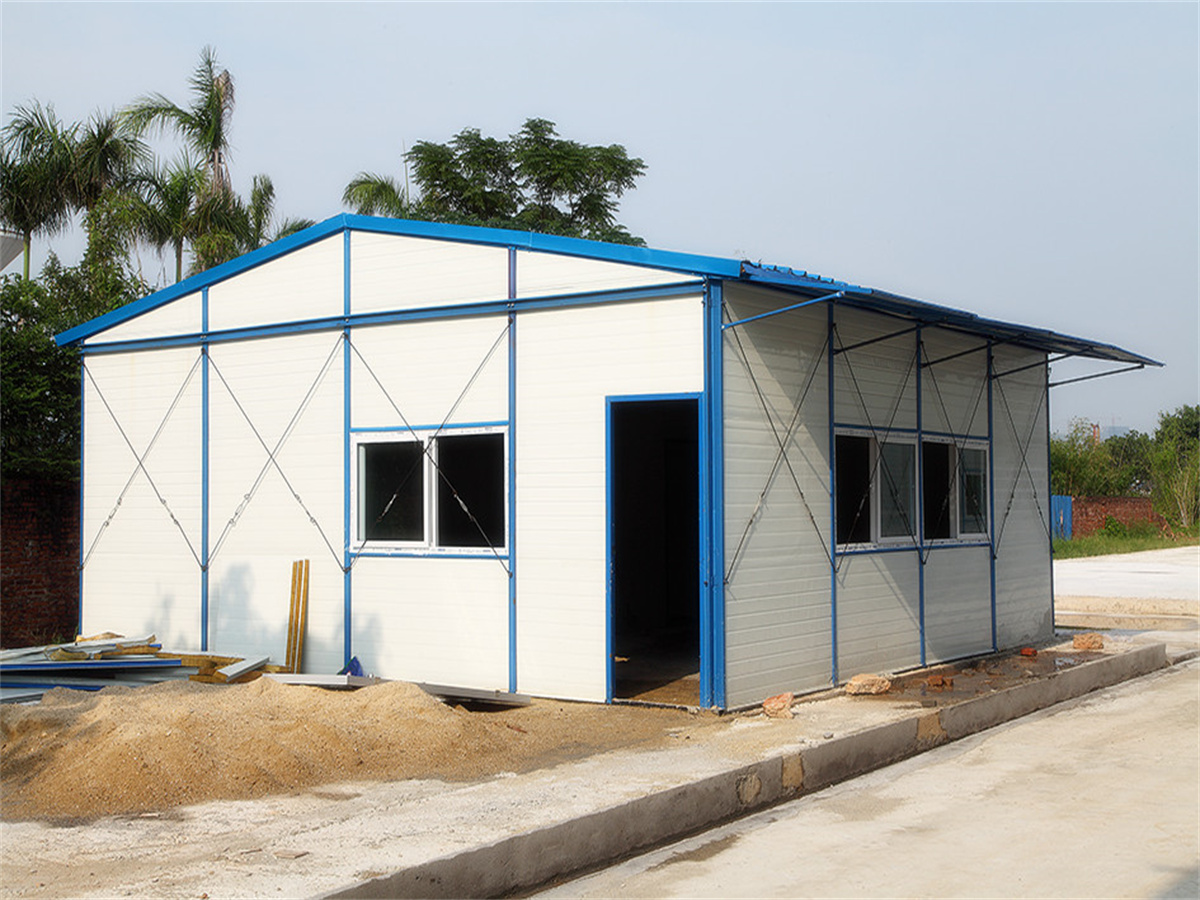

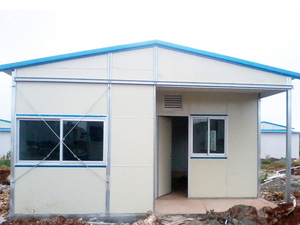

The product we mentioned belongs to the slope roof single-floor prefab house. Its area is relatively small it is generally used as a temporary house or a small warehouse for storing things. This house is directly installed on the cement floor, some customers are afraid of moisture when storing things, so they are required to lift the entire house. Then we need to provide a ground steel frame and floor, which will be a little expensive for it needs to offer more steel frames and floor plates.

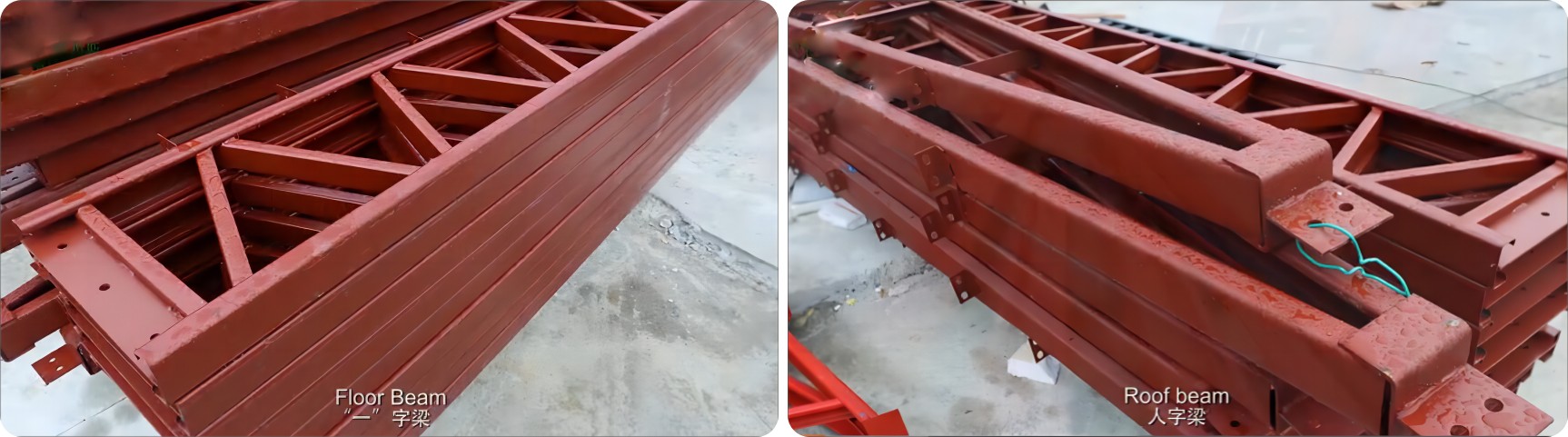

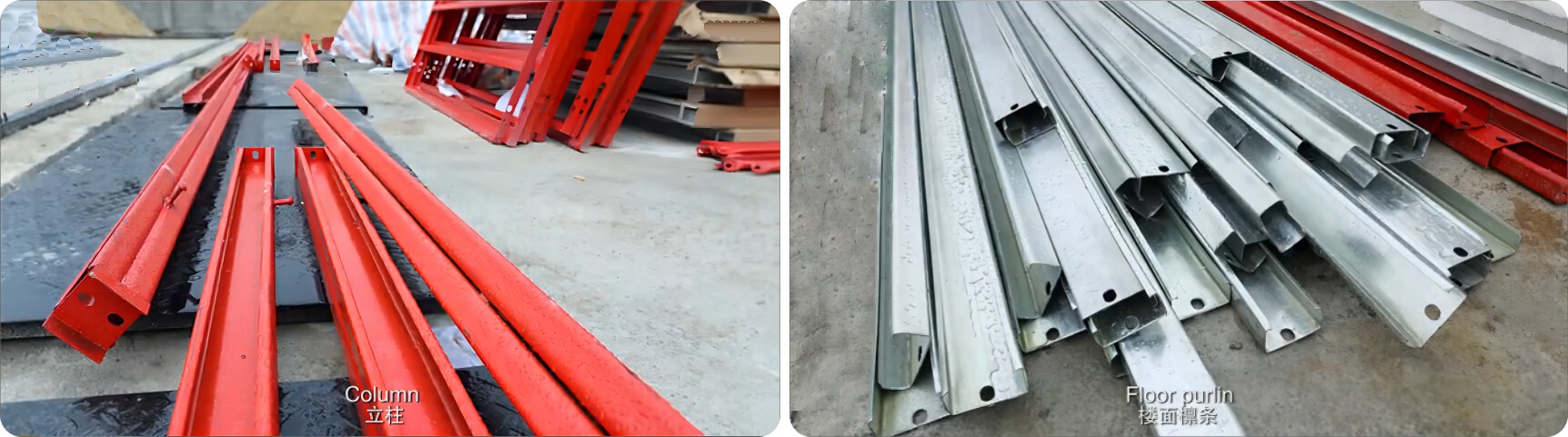

C-section steel function in K-type prefab house
The prefabricated K-type houses have one obvious feature is that the main steel structure frame is made of C-shaped steel, including columns, beams, and purlins. C-purlins are commonly used in steel construction due to their strength, versatility, and cost-effectiveness. C-purlins have excellent load-bearing capacity, making them suitable for supporting the roof and walls of the prefab house. They are lightweight compared to other structural components. C-purlins are typically pre-punched with holes, which simplifies the installation process.
Wall/ Roof panel type for prefab house

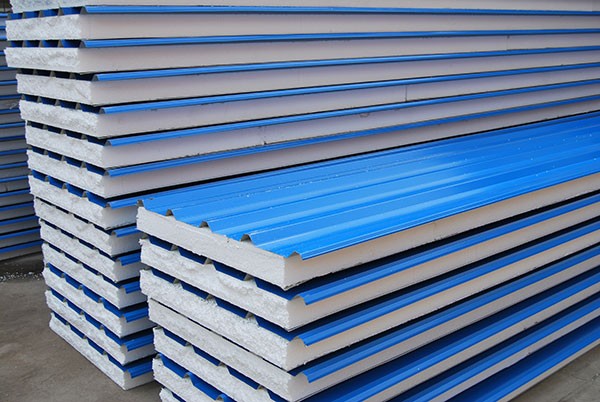

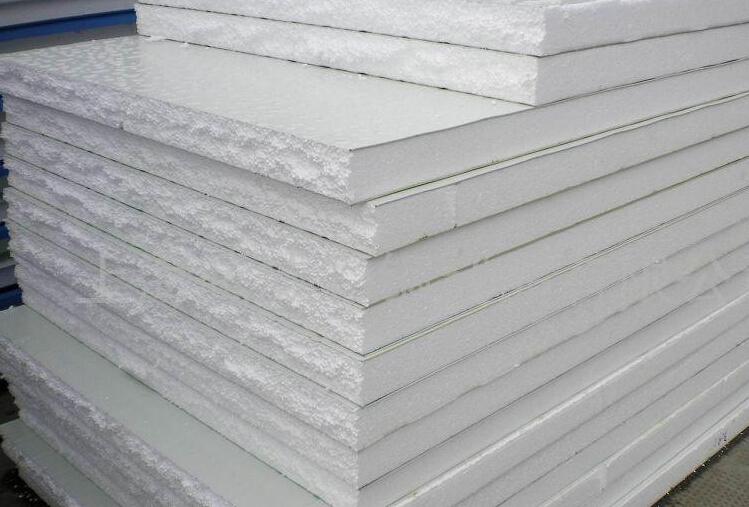

1) EPS (Polystyrene) sandwich panel is a construction material commonly used in building applications. They consist of three main components: two outer layers, typically made of steel, and a core layer made of Expanded Polystyrene (EPS) foam. The EPS foam core is a lightweight and rigid material that provides insulation properties to the sandwich panel.

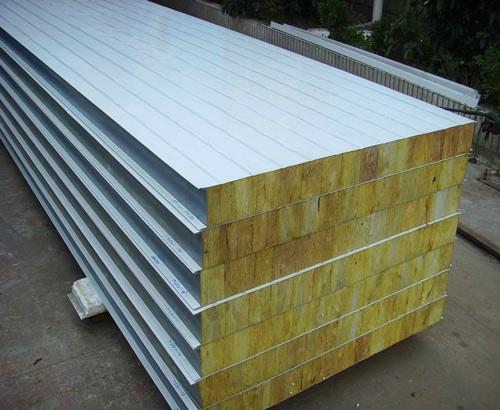

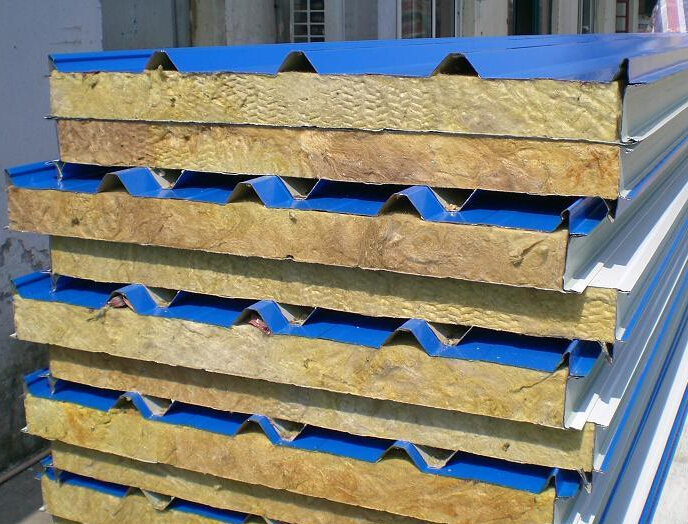

2) Rock wool sandwich panels, also known as mineral wool sandwich panels. The core layer of Rock wool sandwich panels is composed of mineral wool, which is a type of insulation material made from natural rock or stone fibers. The outer layers of the sandwich panel, usually made of steel provide structural strength and protection. They have good fire resistance and sound insulation properties.

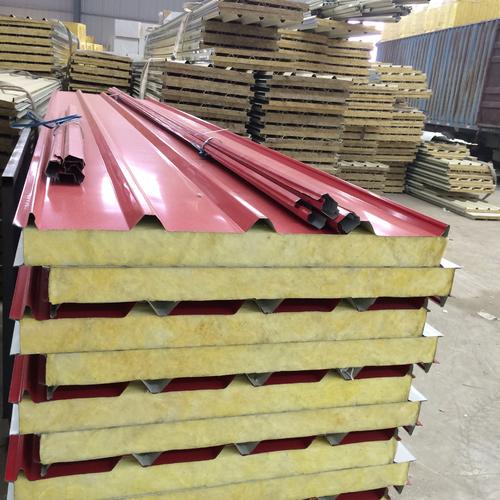

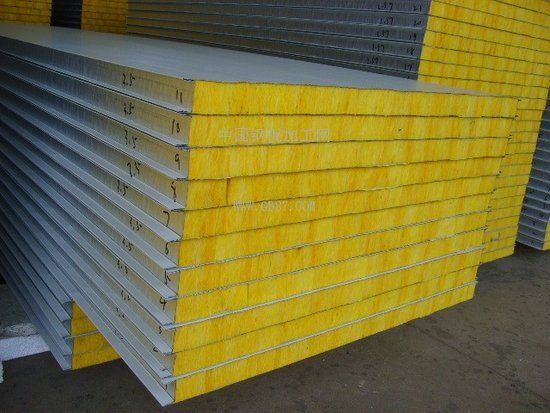

3) Glass wool sandwich panels The core layer of glass wool sandwich panels is made of glass wool, which is a type of thermal and acoustic insulation material. Glass wool insulation has low thermal conductivity, offers good sound insulation properties, and also fire-resistant.

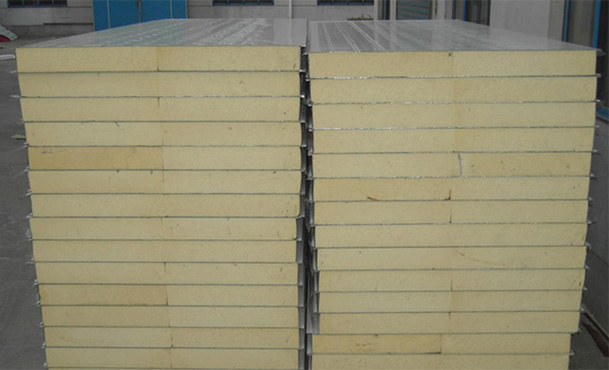

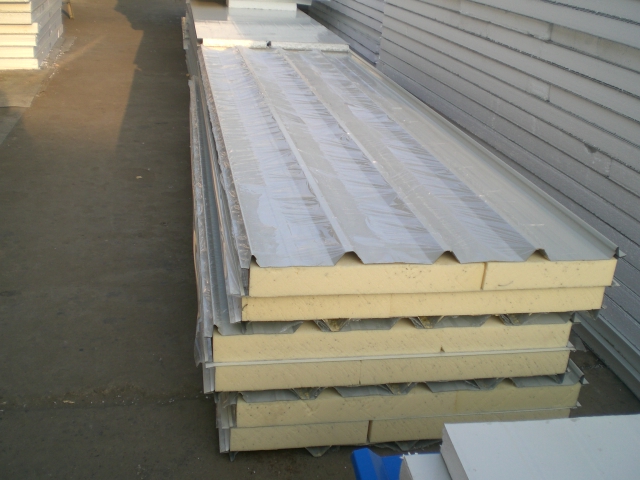

4) PU (polyurethane) sandwich panels, also known as polyurethane sandwich panels. This foam has excellent thermal insulation properties. The core layer of PU sandwich panels is composed of polyurethane foam, a type of rigid plastic foam. These panels also have good fire resistance properties.
Application:
• Worker Dormitories, Staff Quarters, and Executive Dormitories
• Fitness Centers
• Gymnasiums
• Movie Theaters
• Commissary
• Cafeteria-Style Dining
• Food Storage, Preparation, and Serving Areas
• Shower and Locker Rooms
• Medical Shelters and First-Aid Clinics
• Laundry Facilities
• Offices, Business Centers, Conference Rooms
It can be Quickly and easily assembled and disassembled. Temporary buildings to achieve a common standard, establish environmental protection and energy saving, and fast and efficient architectural concepts.

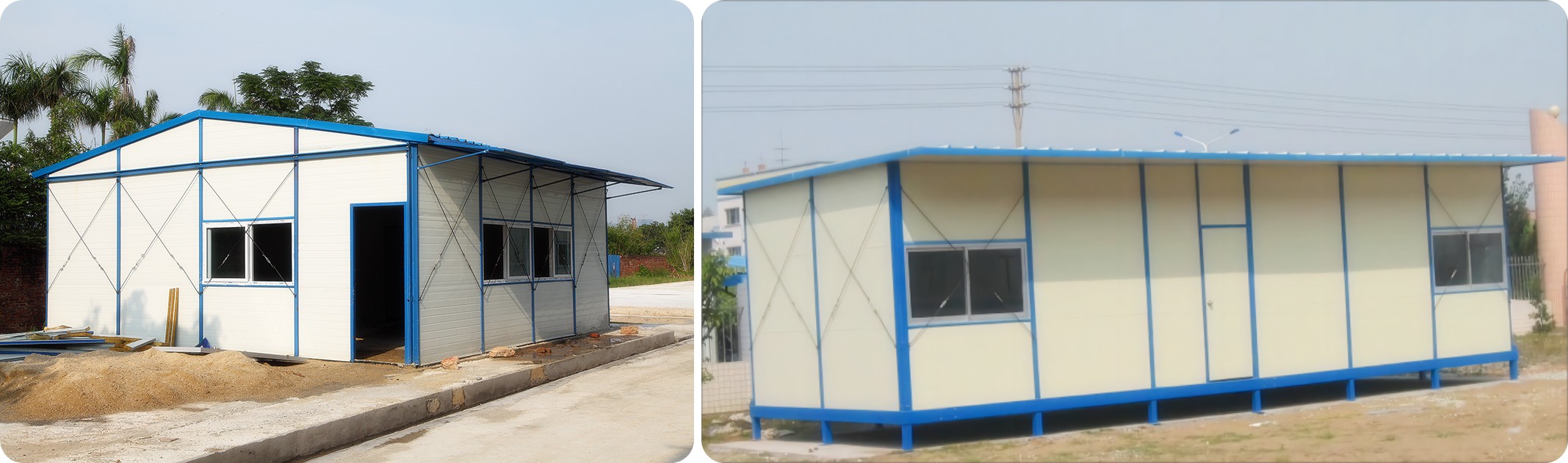

These kinds of prefab houses are known for their speed of construction, cost-effectiveness, and versatility. They can be used for various purposes, including temporary housing, site offices, headquarters, classrooms, healthcare facilities, worker dormitories, labor camps, etc.
Prefabricated K type house floor plan & elevation plan display:

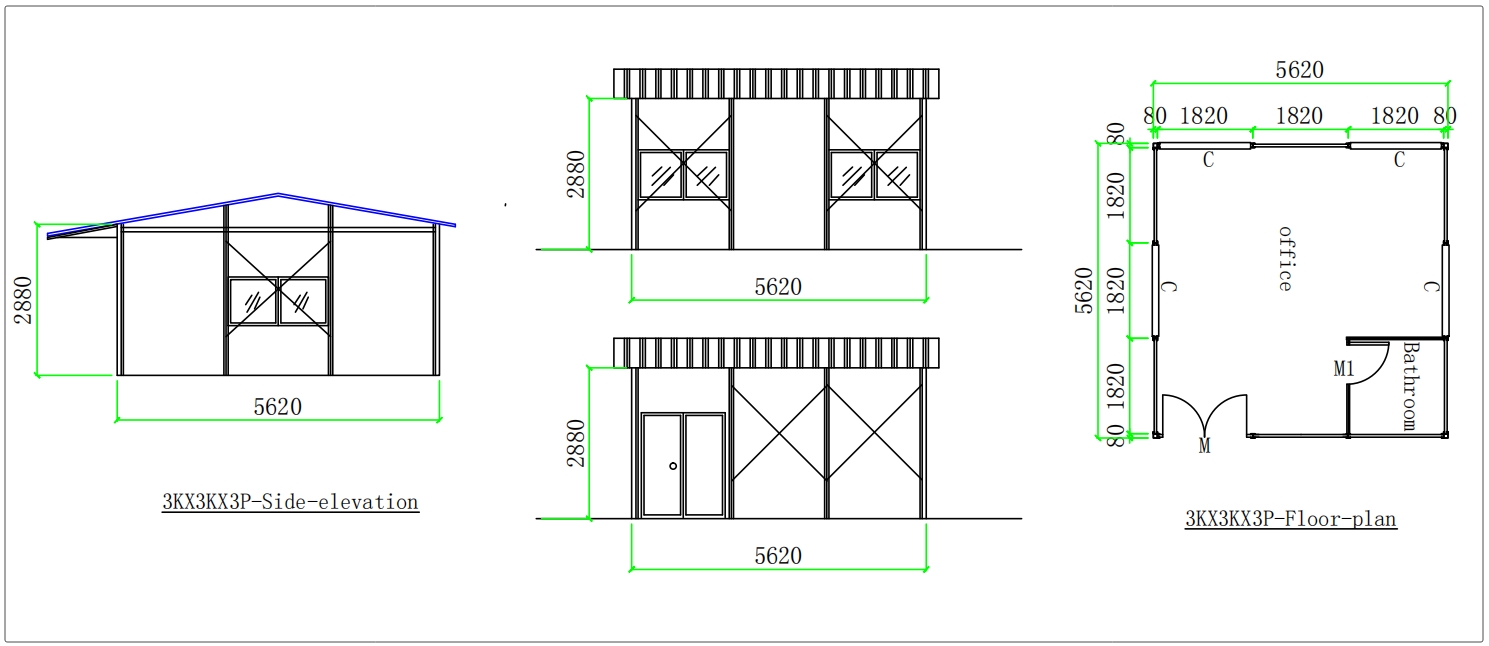

1)Prefab house for office

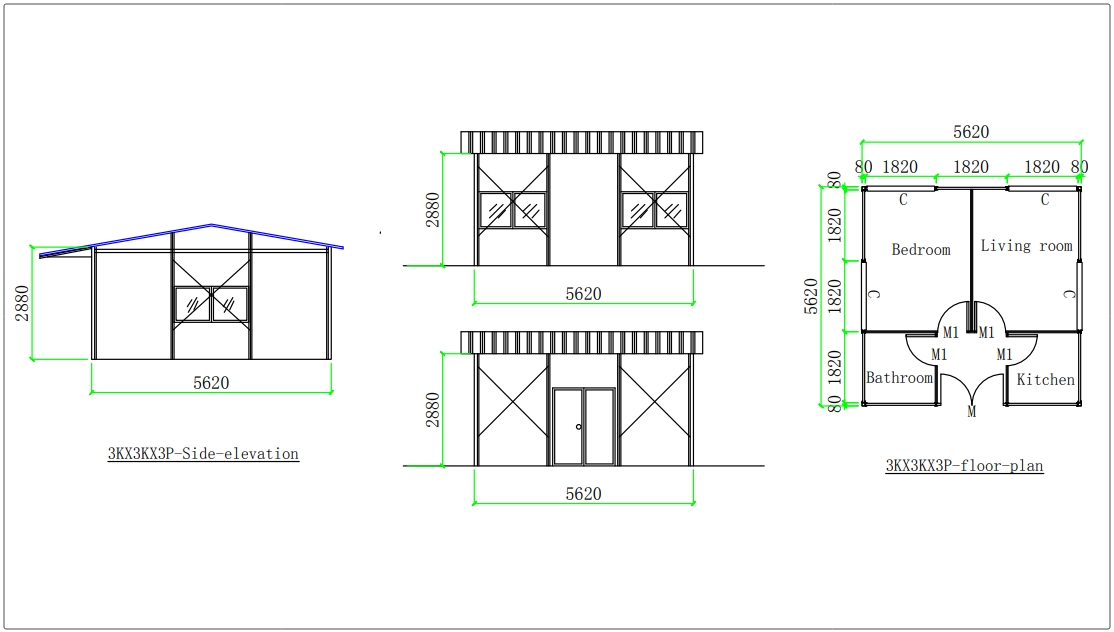

2)Prefab house for temporary house

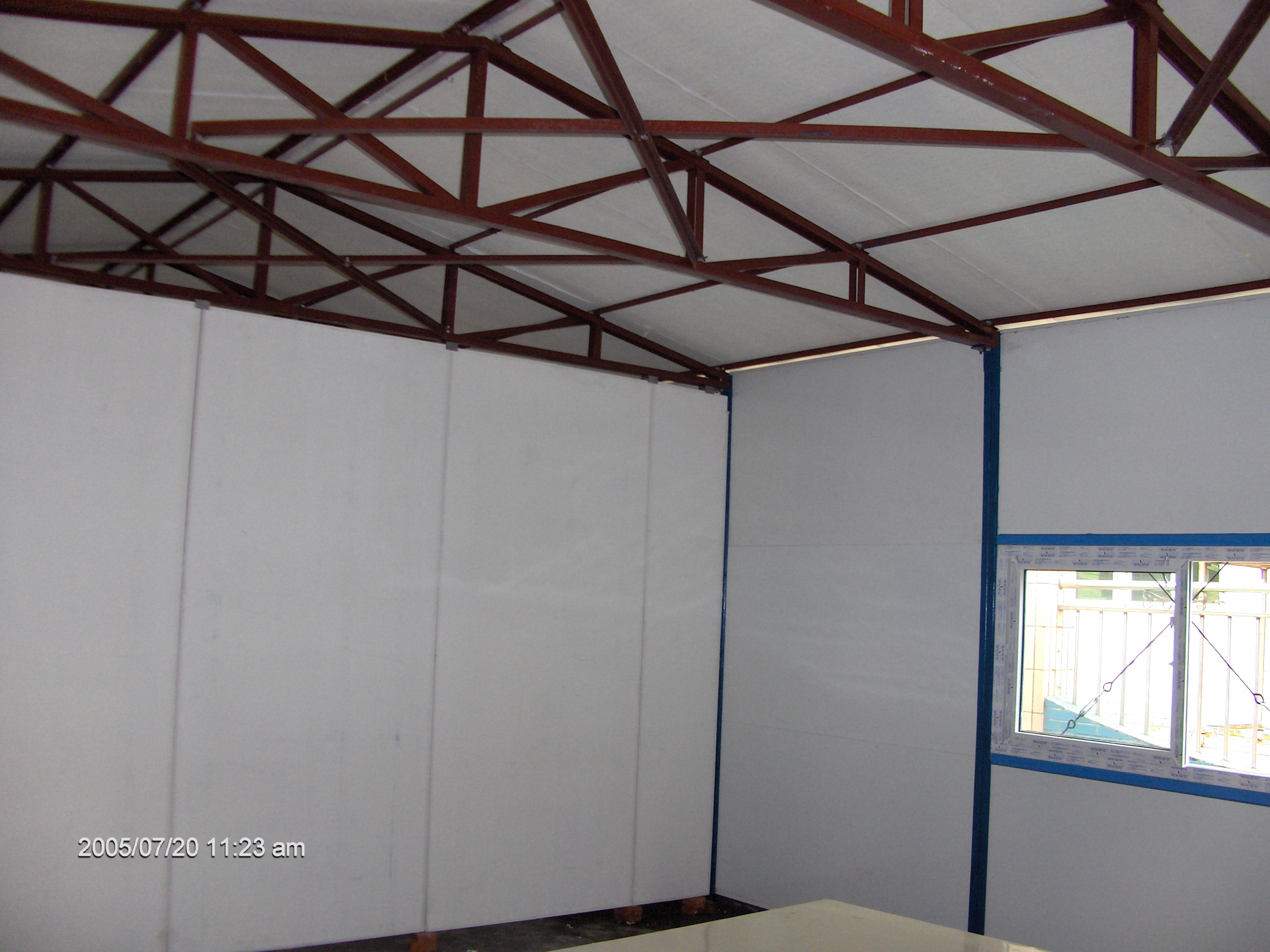

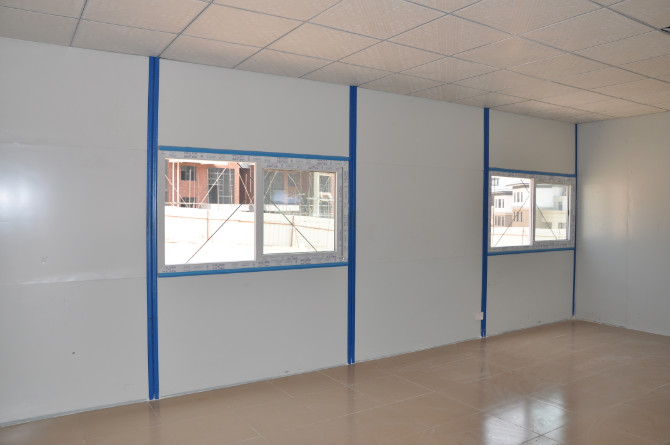

Prefab house indoor display: (with & without ceiling)
Product Material List
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|
Prefabricated K House Area Formula
Grand total Area formula=a+b+c+d(option)
a.Floor area=(width+0.16m)*(length+0.16m)*storey
b.Aisle area=length+0.16m
c.Rain cover area=0.5*(length+0.16)
D.Stairs area: 2 layer=4.5sqm, 3 layers=16. 4sqm
Prefab K type house advantages
1. Earthquake resistance: It can withstand 7 rare earthquakes.
2. Durability: The main structure can last for more than 10 years.
3. Fire resistance: If we use fireproof wall and roof sandwich panels.
4. Environmental protection: more than 80% of steel structure materials can be recycled.
5. Construction period: assembly and standardization of light steel structure houses is simple and fast.

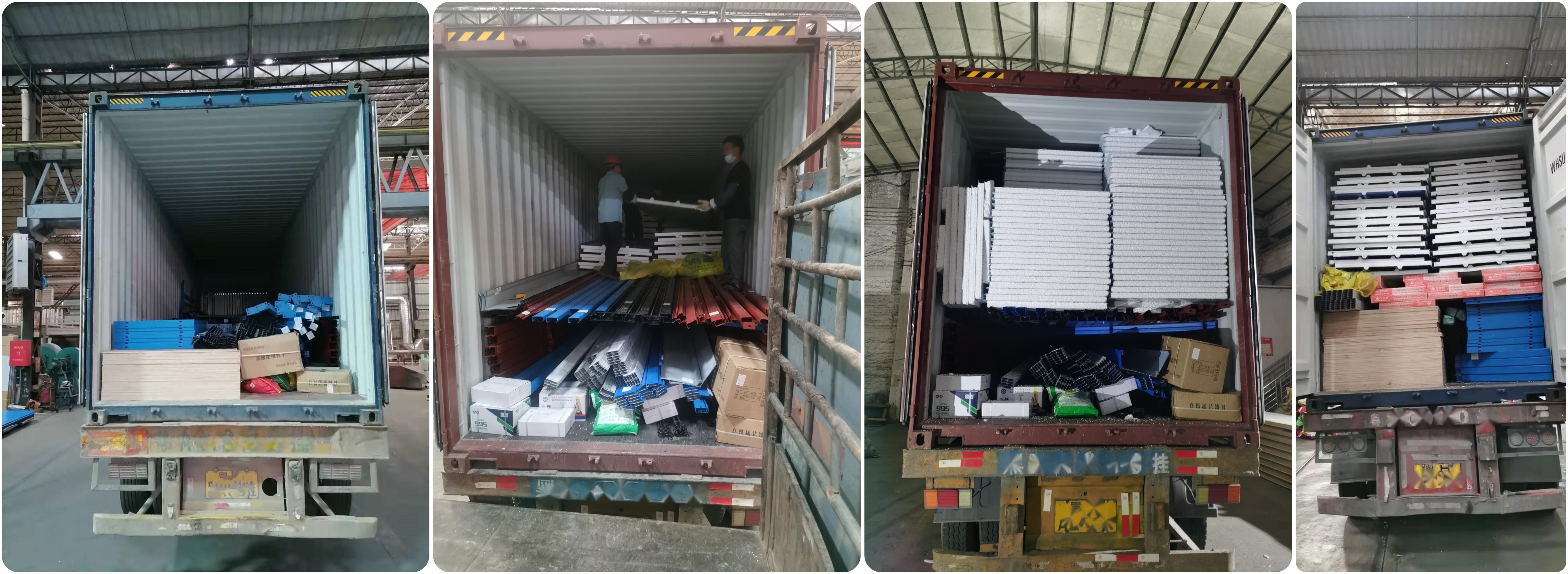

Container house loading display
Our service
**We offer recommendations for our customers in the pre-sale stage.
**We offer floor plans, elevation plans, and quotations for free.
**We offer construction drawings, and calculation sheets to help you get a construction permit after the order is confirmed.
**We offer detailed foundation and Installation drawings after delivery.
**We offer details packing lists for every container when loaded so it will be easier to check and get the materials. Form A, Form E, and CO certificates are available.
Our Global Market:
We have supported government projects in Russia, Australia, Malaysia, Niger, Kenya, Fiji, Philippines and other projects in more than 30 countries.
