Product Information
Prefab K-type house is a kind of temporary building, usually used in construction sites to provide accommodation and office space for construction workers. K-type houses are known for their efficient use of space, affordability, and quick construction time.It is mainly composed of light steel framework and sandwich panels and other materials, and has the characteristics of light weight, easy to assemble and disassemble, and reusable.
Prefabricated K house is designed and manufactured off-site in sections or modules and then transported to the construction site for assembly. Except for the prefabricated K-type house, there are also similar temporary building structures: like Light steel movable houses, container-type portable houses, tents, and modular houses.

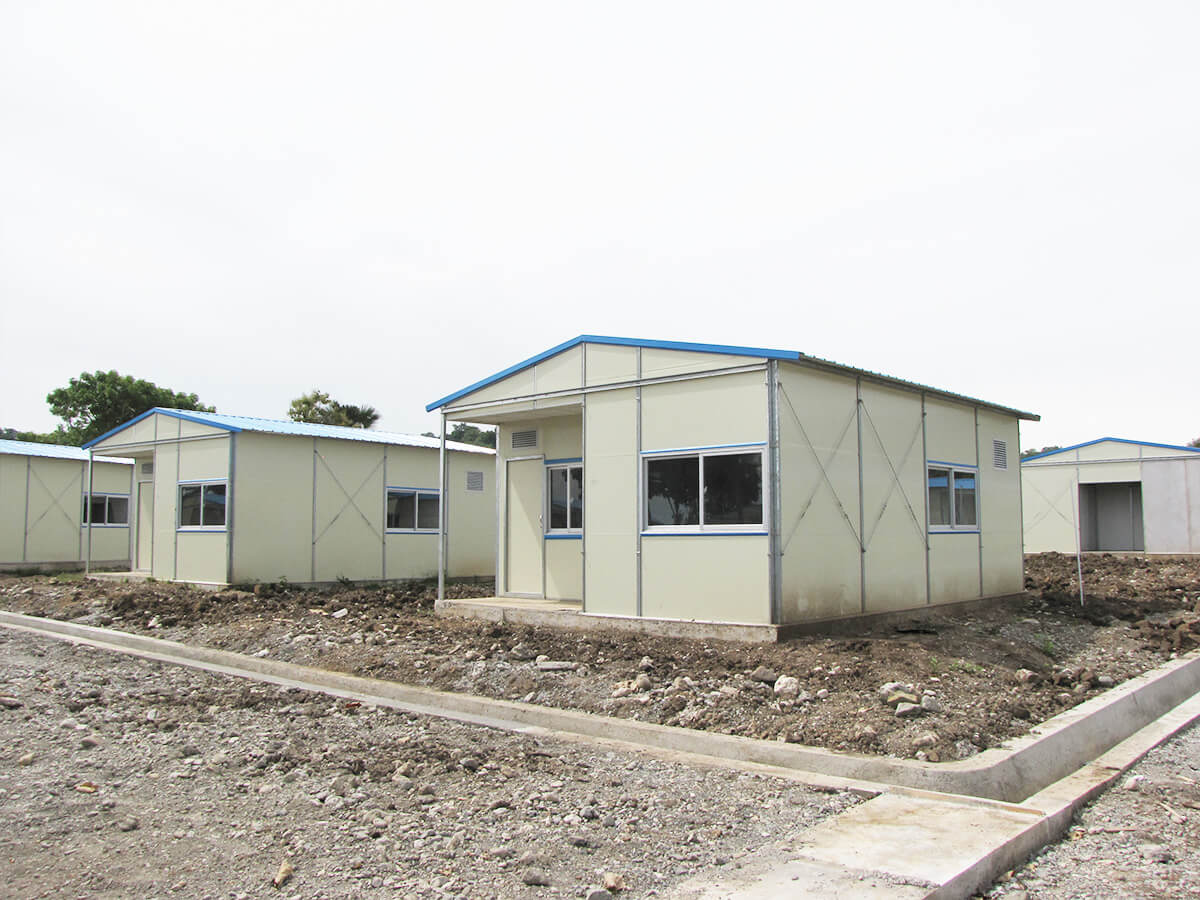

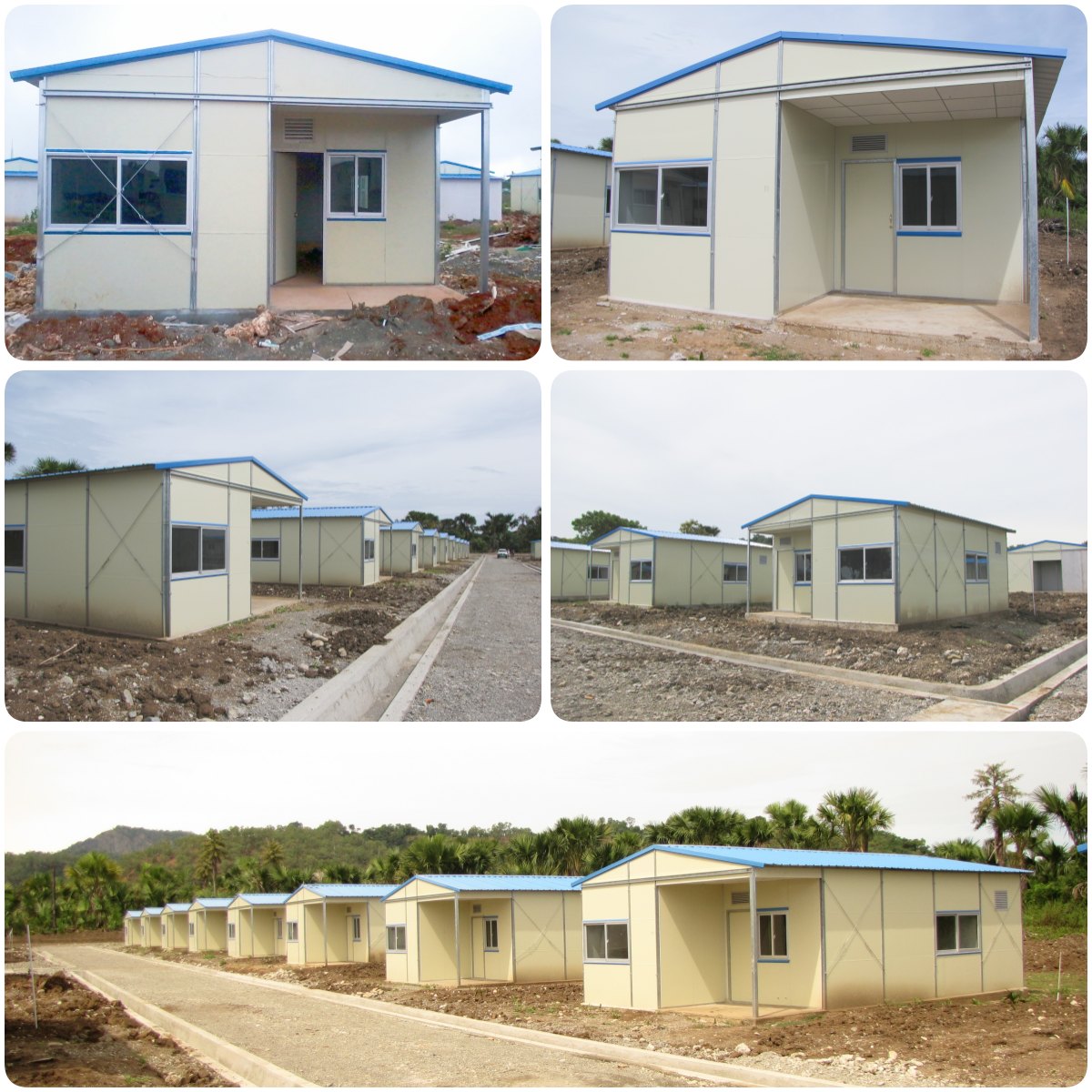

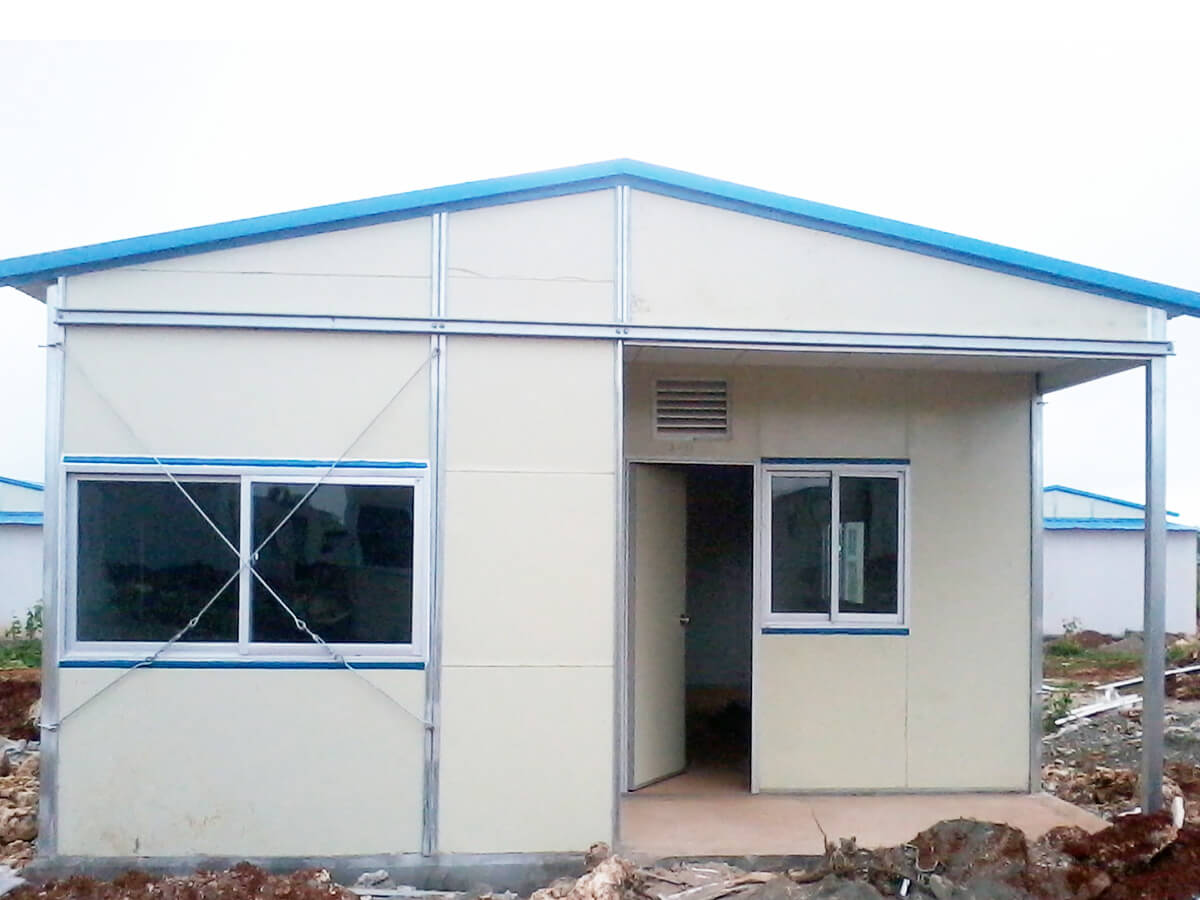

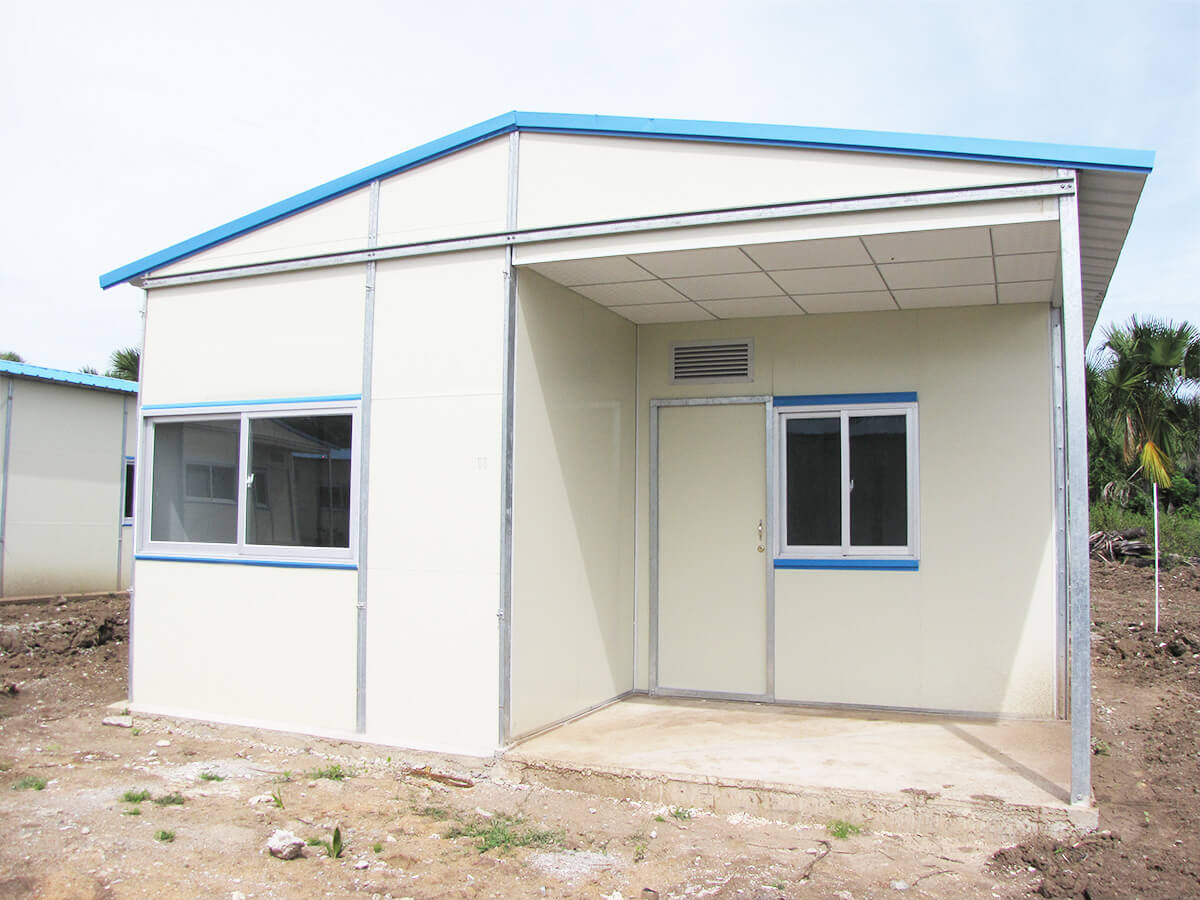

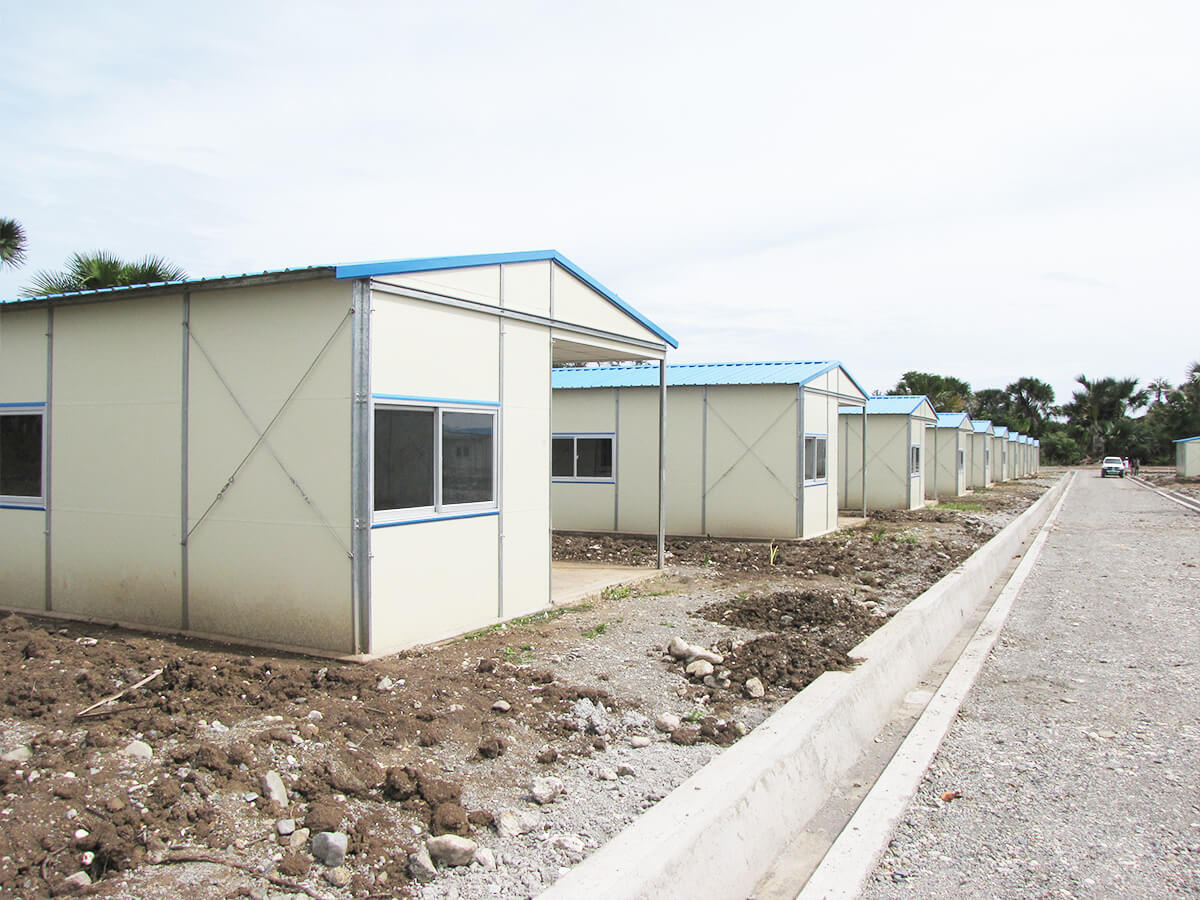

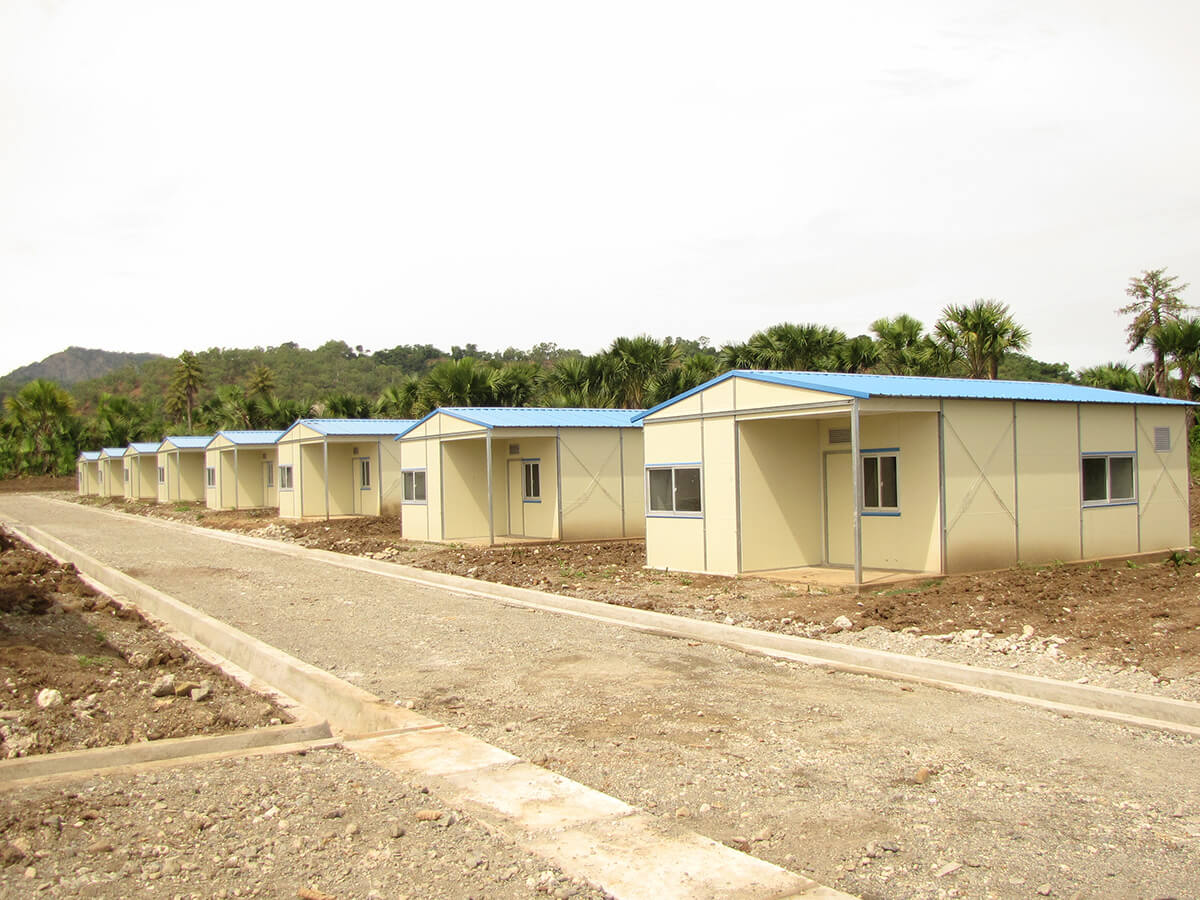

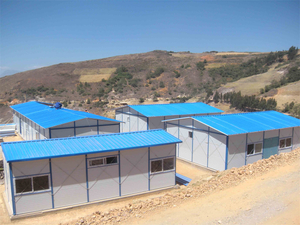

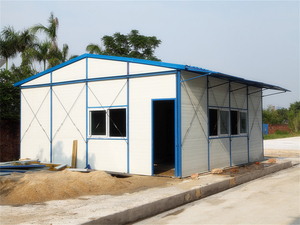

The product we are talking about here is a prefab house government project for temporary housing for low-income families in Timor-Leste. These houses in government-supported projects generally have the same specifications and are large in number, which facilitates unified maintenance and management. The following is a picture display of the project:

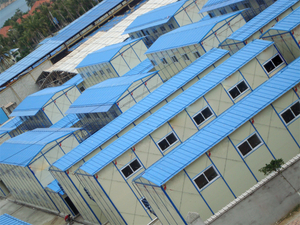

Prefab house types display

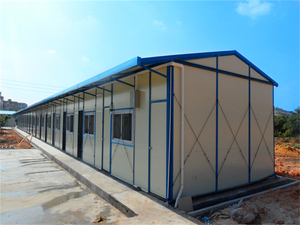

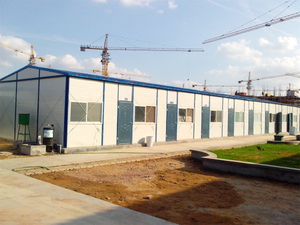

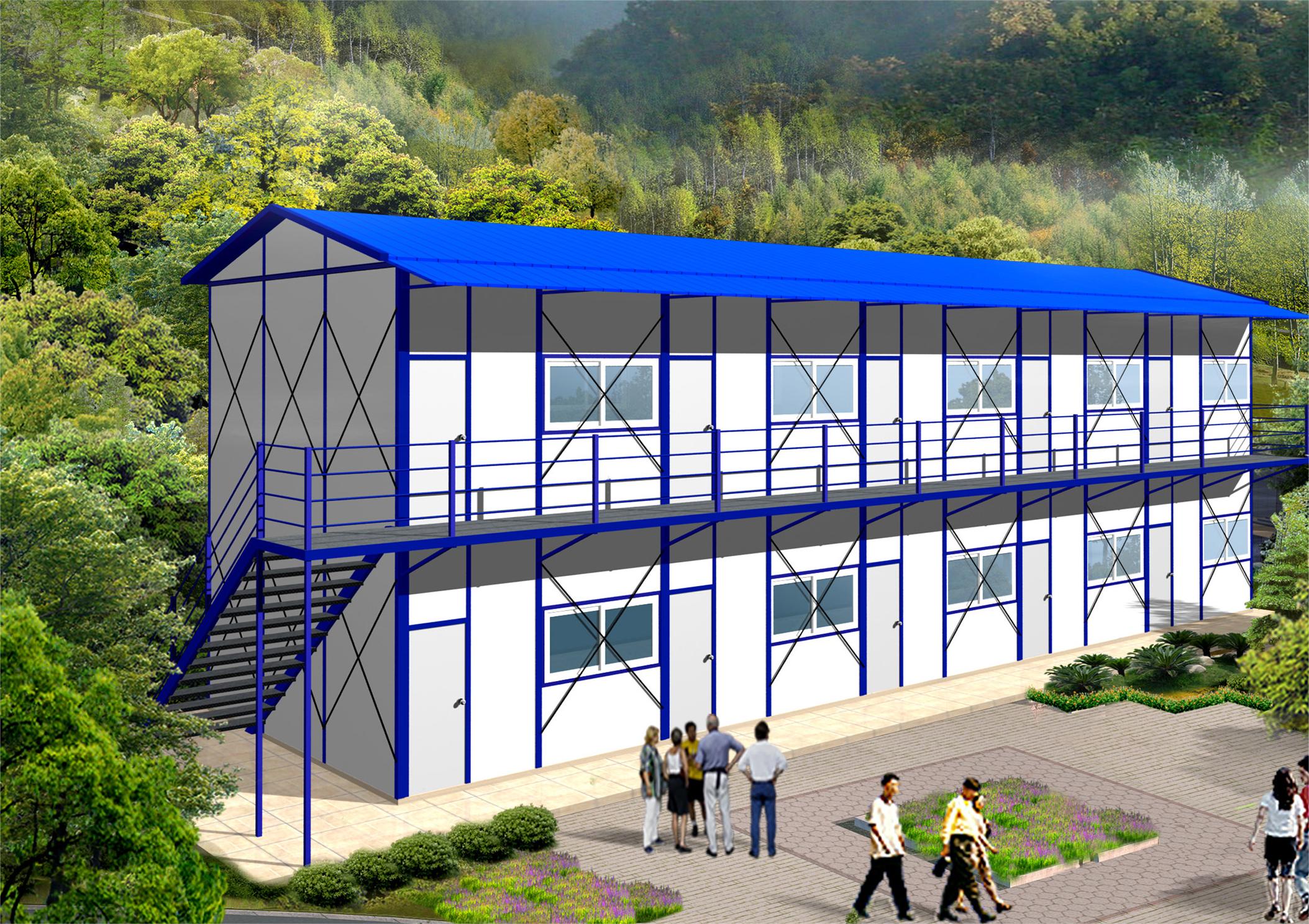

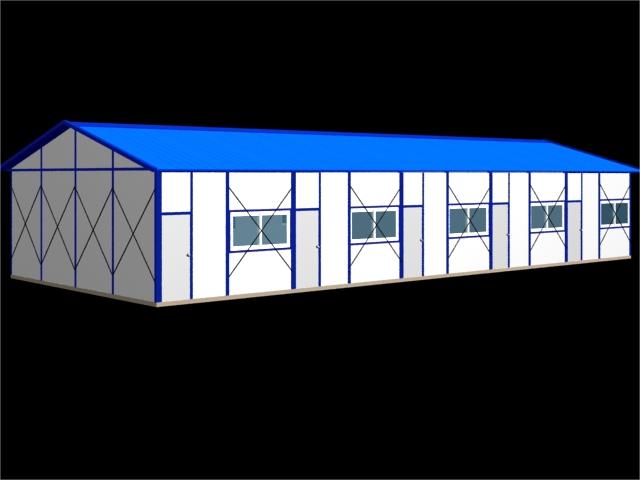

1)Slope roof K type prefab house (single/ double/ triple floor)

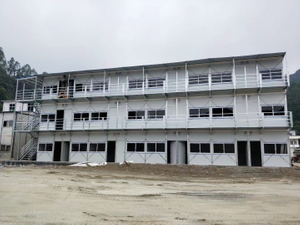

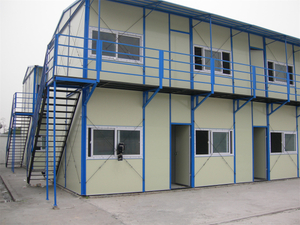

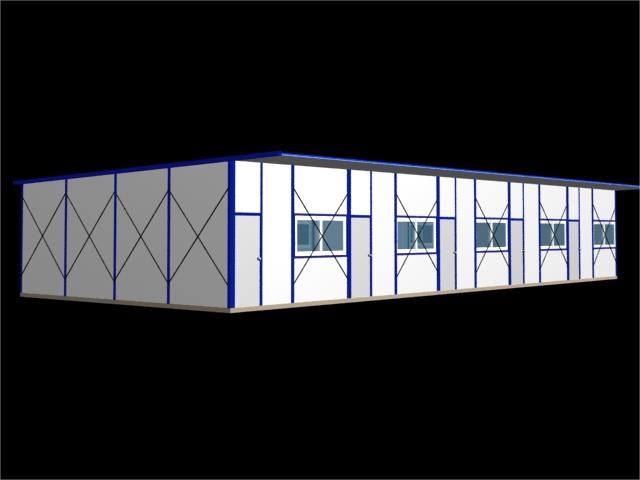

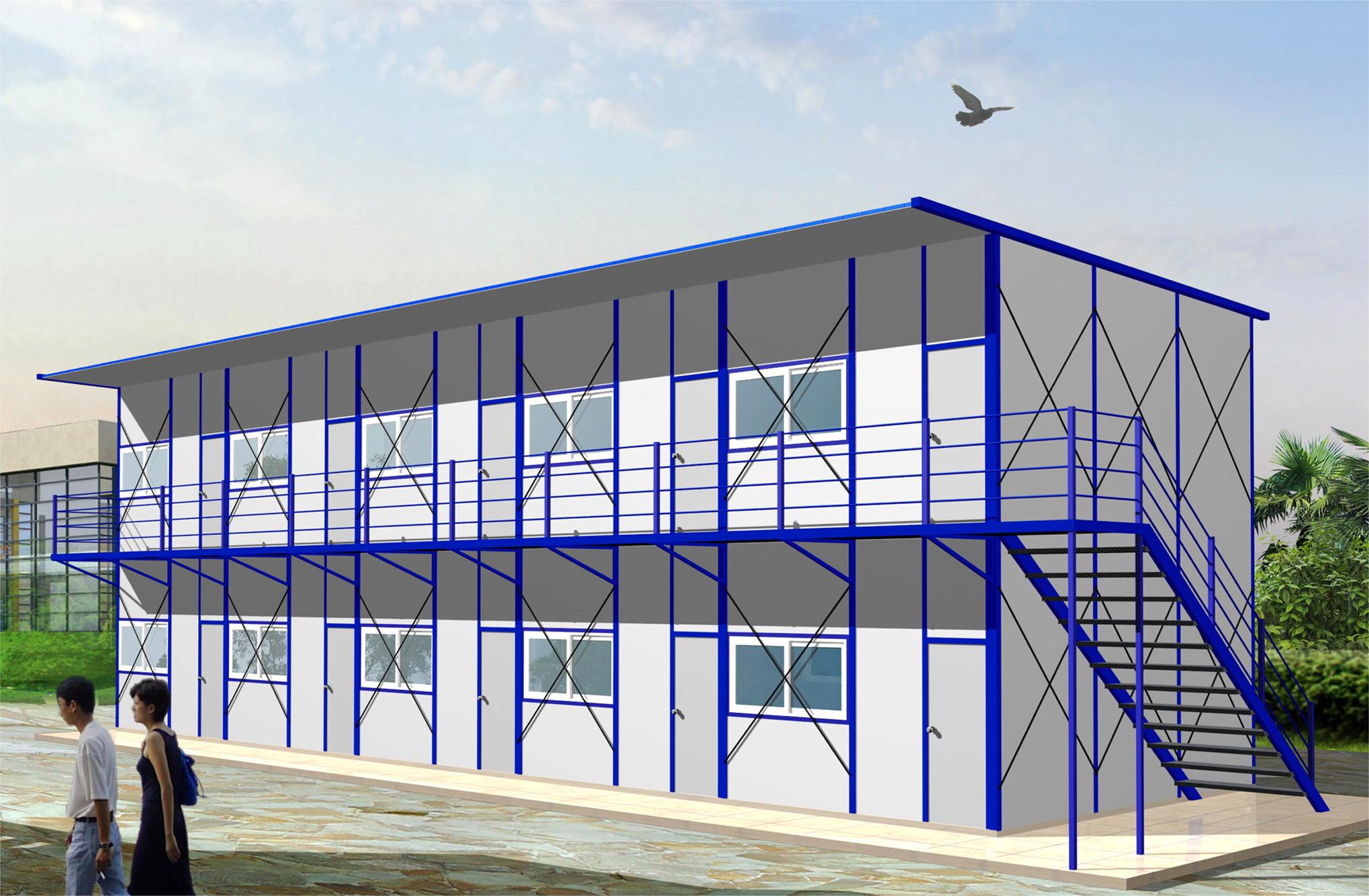

2)Flat roof K type prefab house((single/ double/ triple floor)
Application

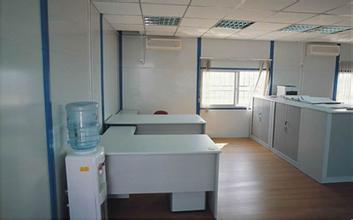

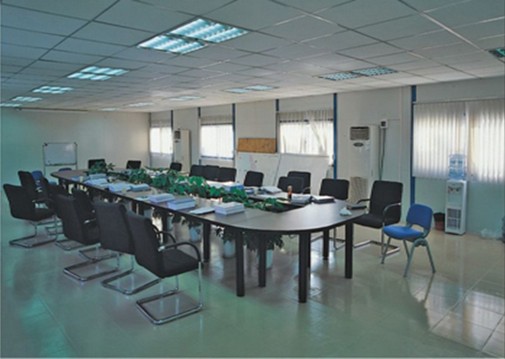

These kinds of prefab houses are known for their speed of construction, cost-effectiveness, and versatility. They can be used for various purposes, including temporary housing, site offices, headquarters, classrooms, healthcare facilities,worker dormitories, labor camps, etc.
Prefab house K-type features and characteristics
The modular construction approach speeds up construction and increases the precision of the construction process.
The compact design focuses on functionality and practicality while minimizing wasted space.
Lightweight Construction materials help facilitate transportation, and assembly and increase the energy efficiency of the house.
The modular nature of the building allows for flexible floor plans and the ability to add or remove modules as needed.
Standardized production processes in a factory environment help reduce costs and minimize construction waste.
Prefab house elements help reduce energy consumption and lower utility costs for occupants.

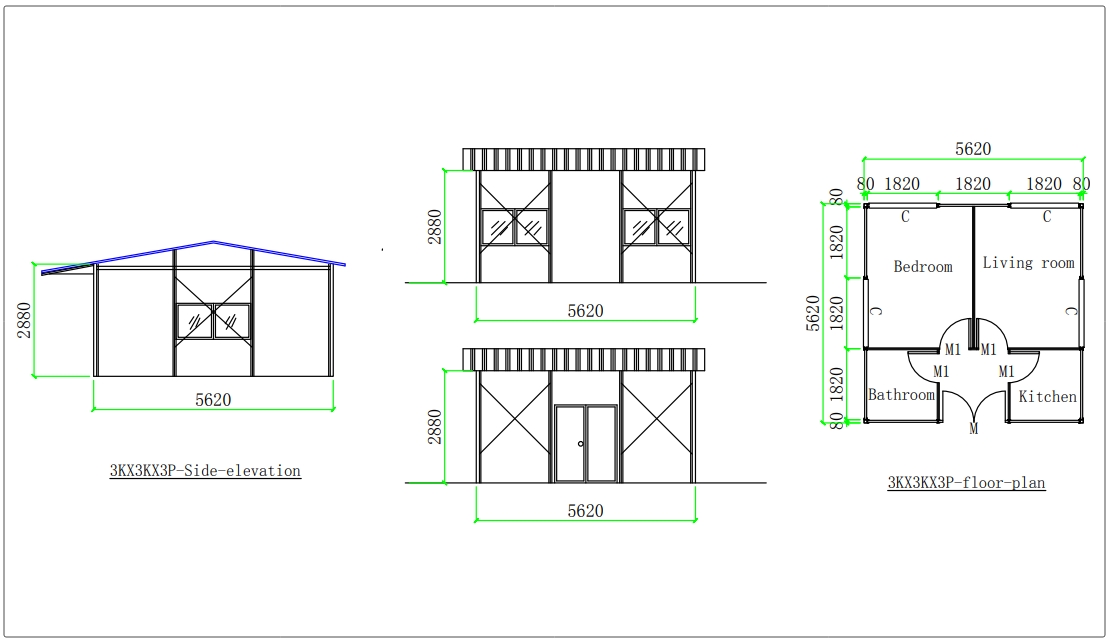

Floor plan and elevation plan display:
Product material list in detailed
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |

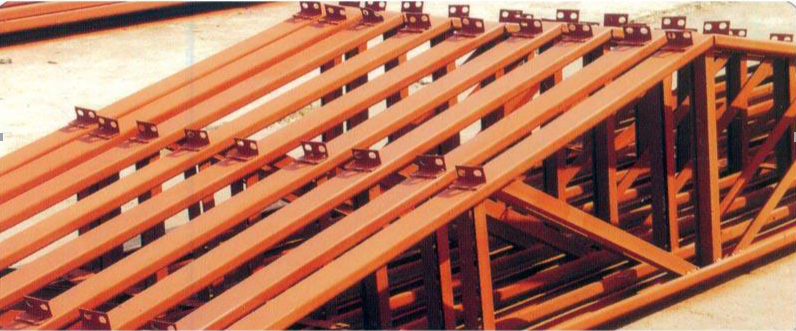

6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|

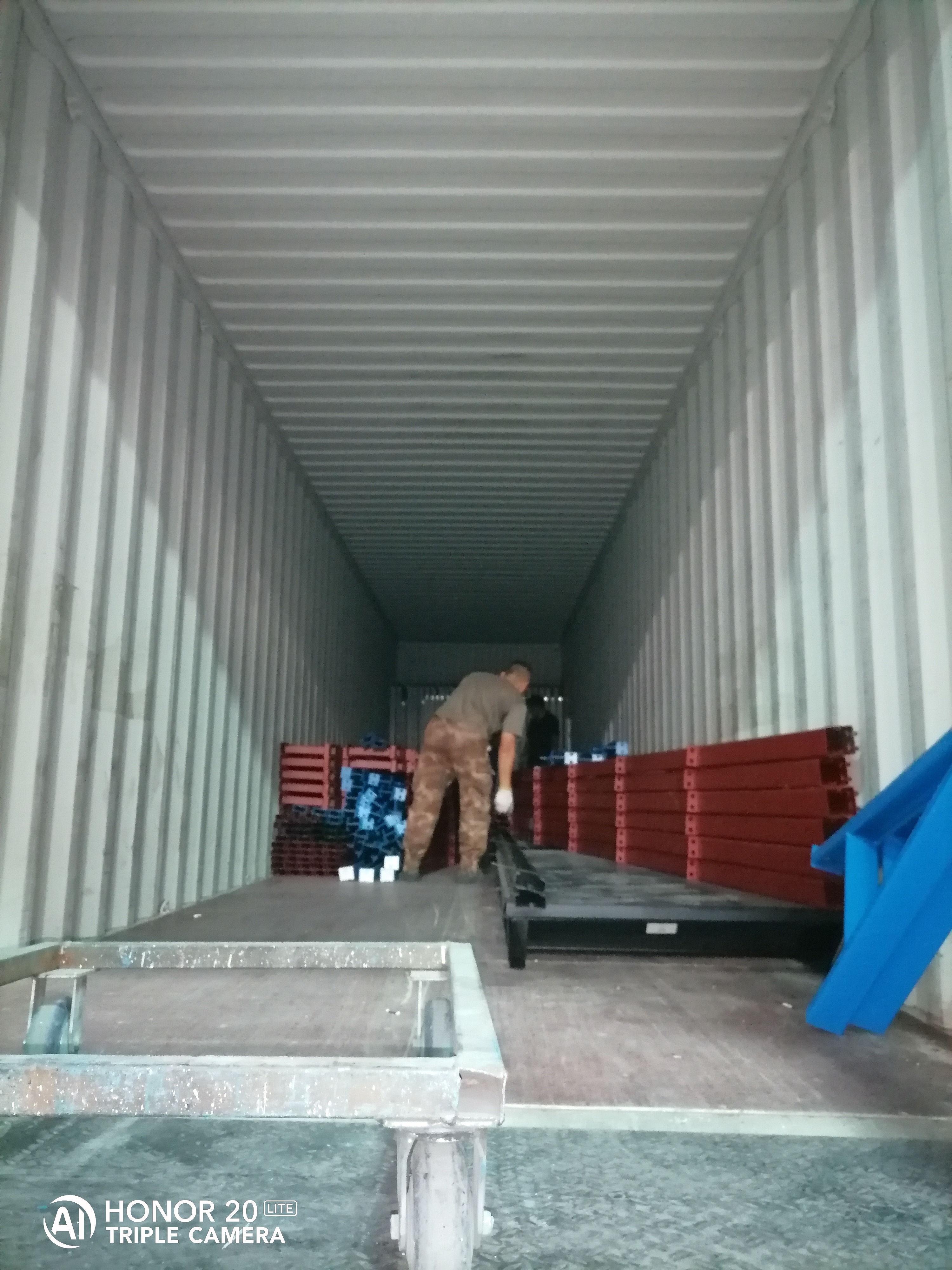

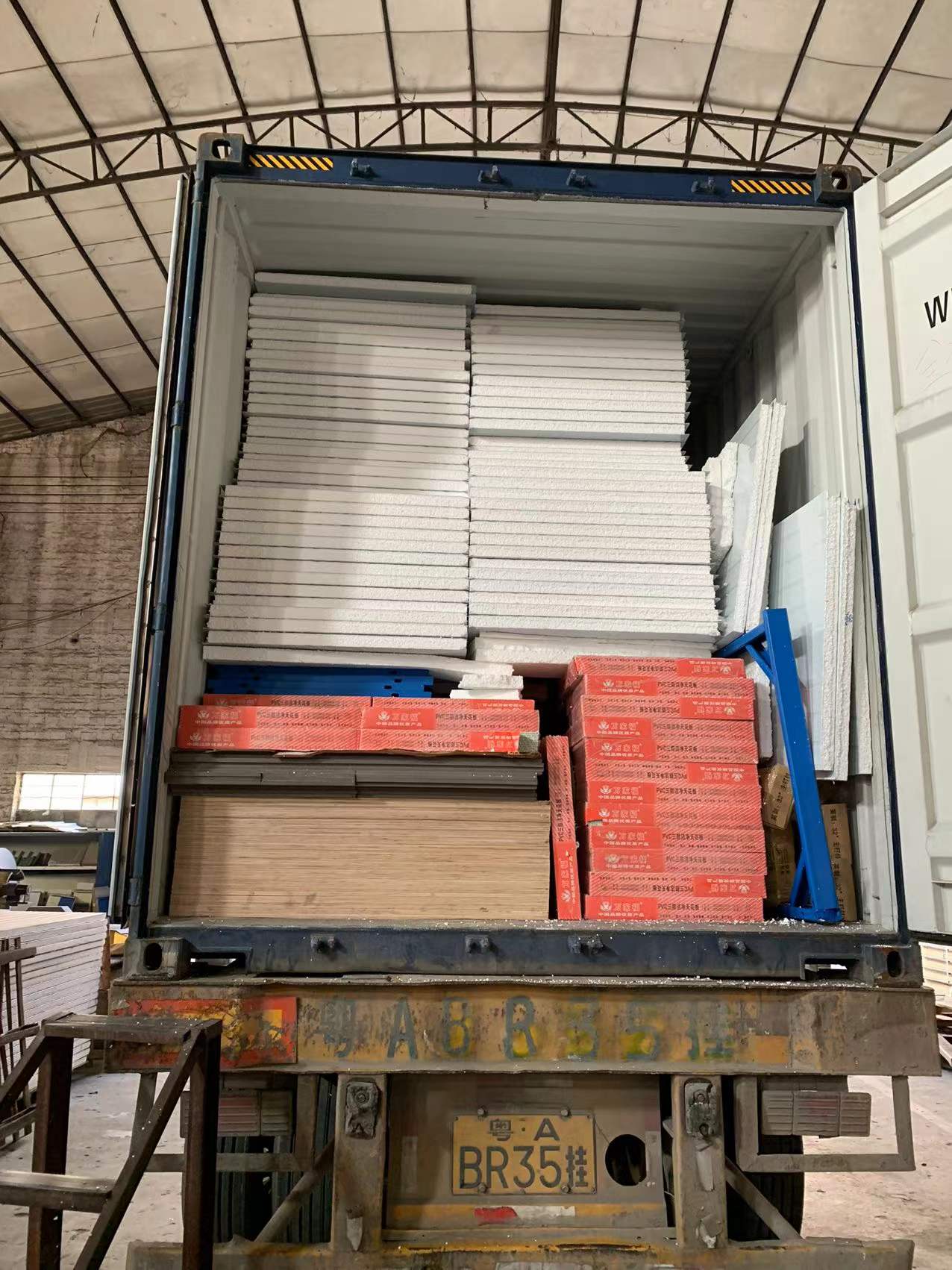

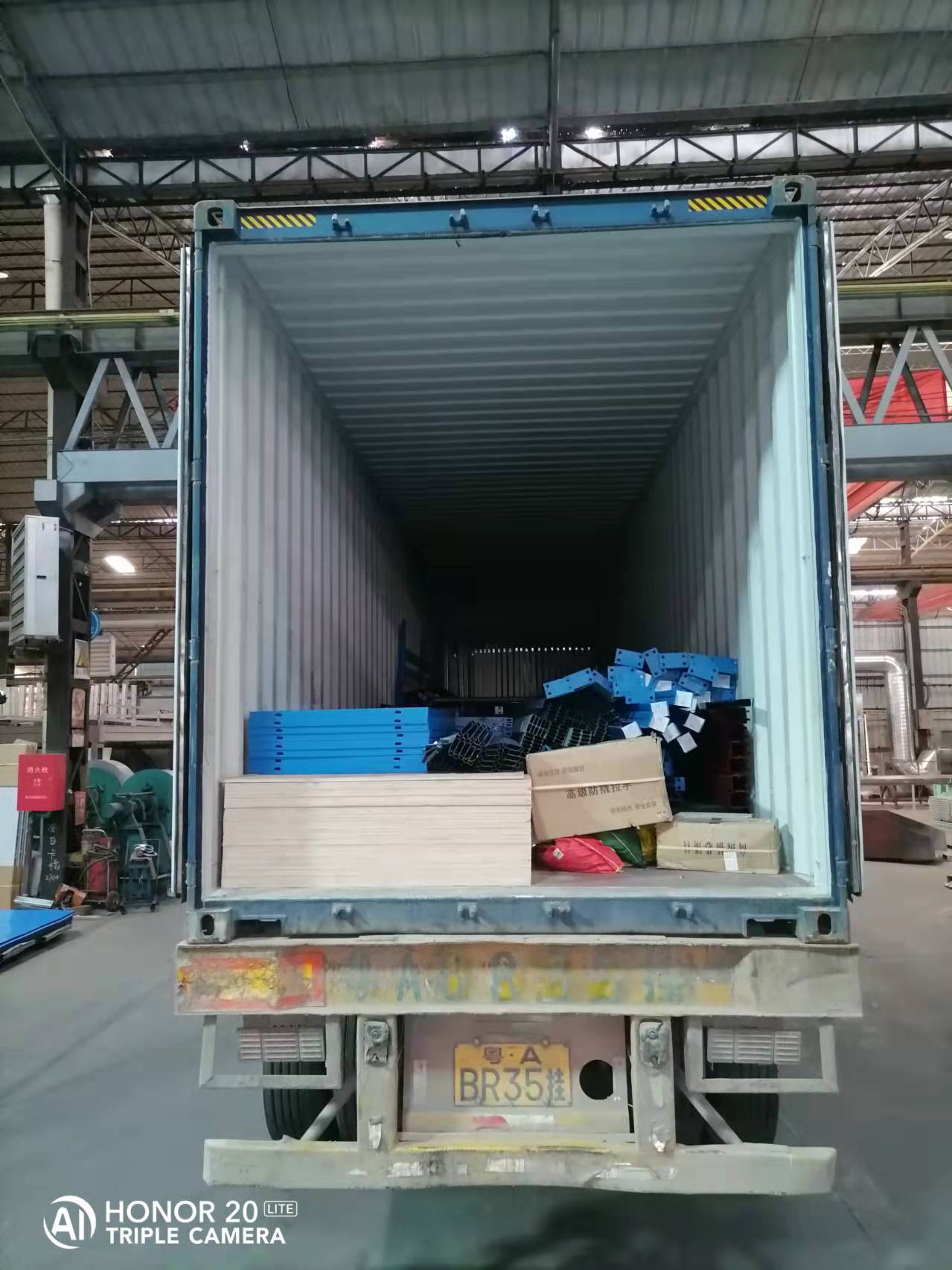

Building material container loading
Prefab house competitive advantages
1. Competitive Price: Compared with traditional construction, the cost will save more than 50%.
2. Time-Saving: Four workers 8 hours can install 100 m2 per day.
3. Save Shipping Cost: It can load about 300 m2 per 40HQ.
4. Short Production time: It’s a standardized product that can produce a large number in a short period.
5. Easy to Install: You only need to find an installation team that can understand the drawings and the installation work can be completed smoothly.
6. Wide-ranging application with no environmental restriction.
Choose appropriate sandwich panel for wall & roof is important
Wall & Roof panel | Fireproof | Cost(A-D↓) | Density |
EPS(polystyrene) sandwich panel | NO | D | 8~14 kg/m3 |
Glass wool sandwich panel | YES | C | 8~20kg/m3 |
Rock wool sandwich panel | YES | B | 60~120/m3 |
PU(Polyurethane) sandwich panel | YES | A | 10~40/m3 |
FAQ
1. Is it convenient if I arrange some goods from other suppliers that I need to send to your factory to ship together?
It is possible, that we can understand the shipping cost is expensive, and we can help to load your other goods into your container.
2. I need to build a prefab house but the only information I have is the floor area. Can you help us design it?
If the customer does not have formal drawings, we can help you design according to his floor area and functional uses, and recommend suitable materials according to his budget.
3.What is the wind speed that the prefab house you designed can generally withstand?
If the customer has no special wind speed requirements, we usually quote the wind speed as 70~80 km/h.
4.How many floors can a prefabricated house be built at?
Single-story and two-story prefabricated houses are quite common and widely available, and max floor is 3 floor.
