Product Information
K-type prefab houses, also known as K-type modular house,prefabricated house. It is a type of prefabricated housing structure. These houses are built using modular components that are manufactured in a factory and then
transported to the desired location for assembly.
The prefab house is a combination of light steel and sandwich panels, featuring convenient installation, complete supporting facilities, economic and environmental friendliness, and easy transportation, and is highly suitable for use on the construction site. Moreover, the cost of the panel house is remarkably inexpensive, with the price ranging from about 200 to 350 yuan per square meter. However, this price is not uniform and will be influenced by external factors such as region and material.
K-type prefab houses are typically constructed using steel frames and have a modular design, meaning they can be easily assembled, disassembled, and transported. The "K(K=1820mm)" in K-type prefab houses refers to the shape of the structure, which resembles the letter "K" when assembled.
The Prefab house we mentioned here is a 2-floor K-type prefab house for labor dormitory. It is the most standard approach. The roof panels are sea blue, the wall panels are ivory white, and the steel structure color is also standard blue. This also belongs to a standardized product, so we can make some steel structure frames in stock so that when customers place orders, we can greatly shorten the delivery time.

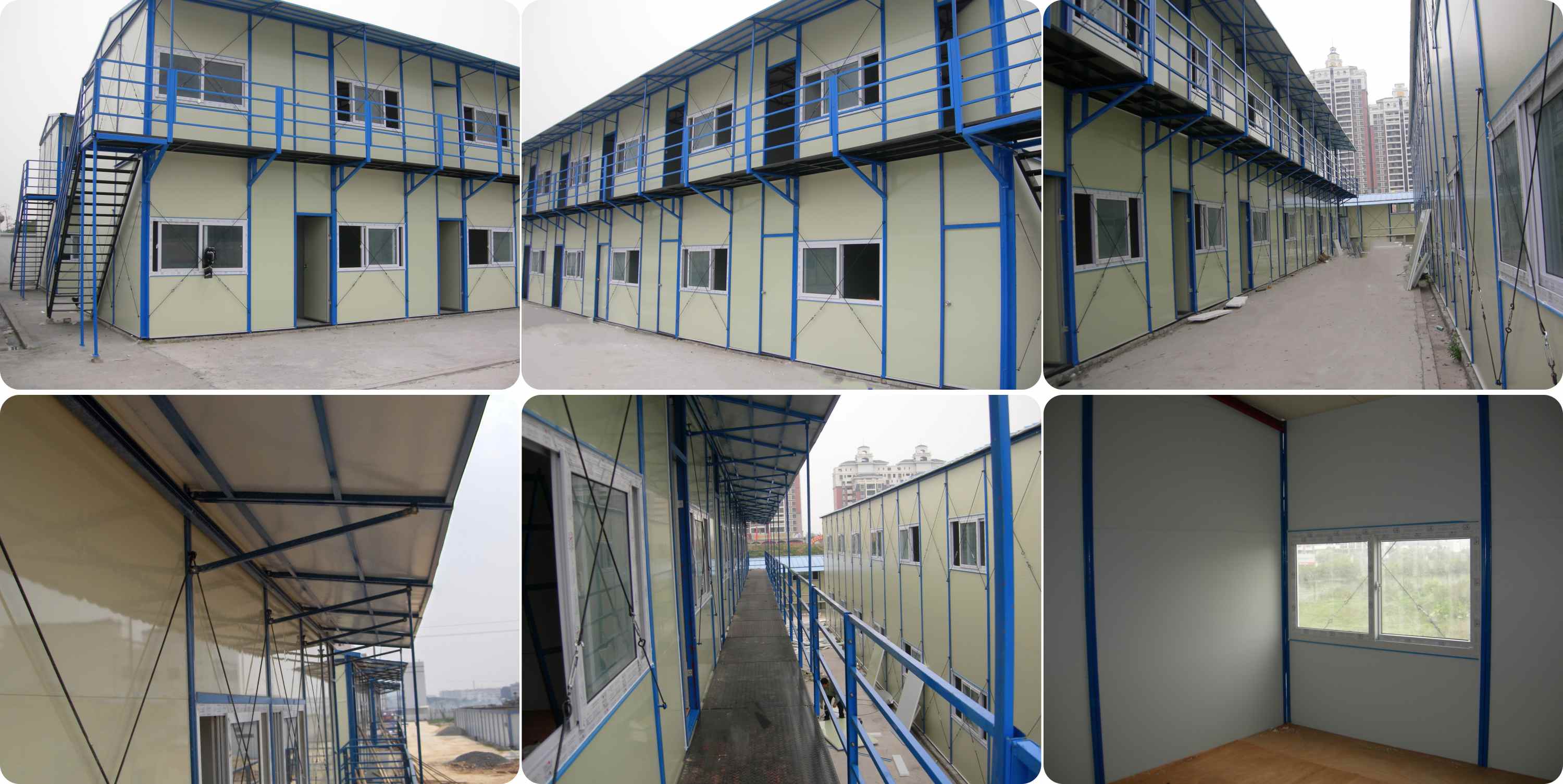

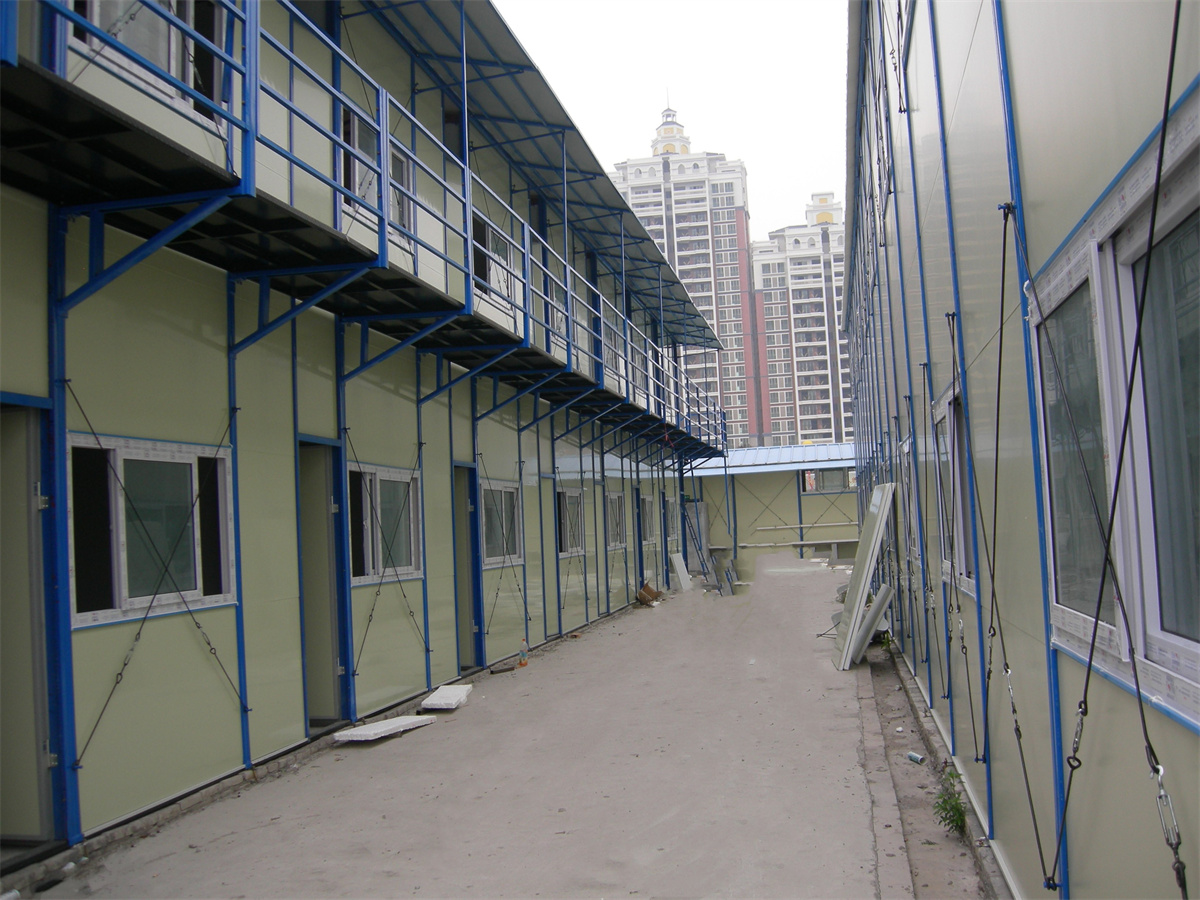

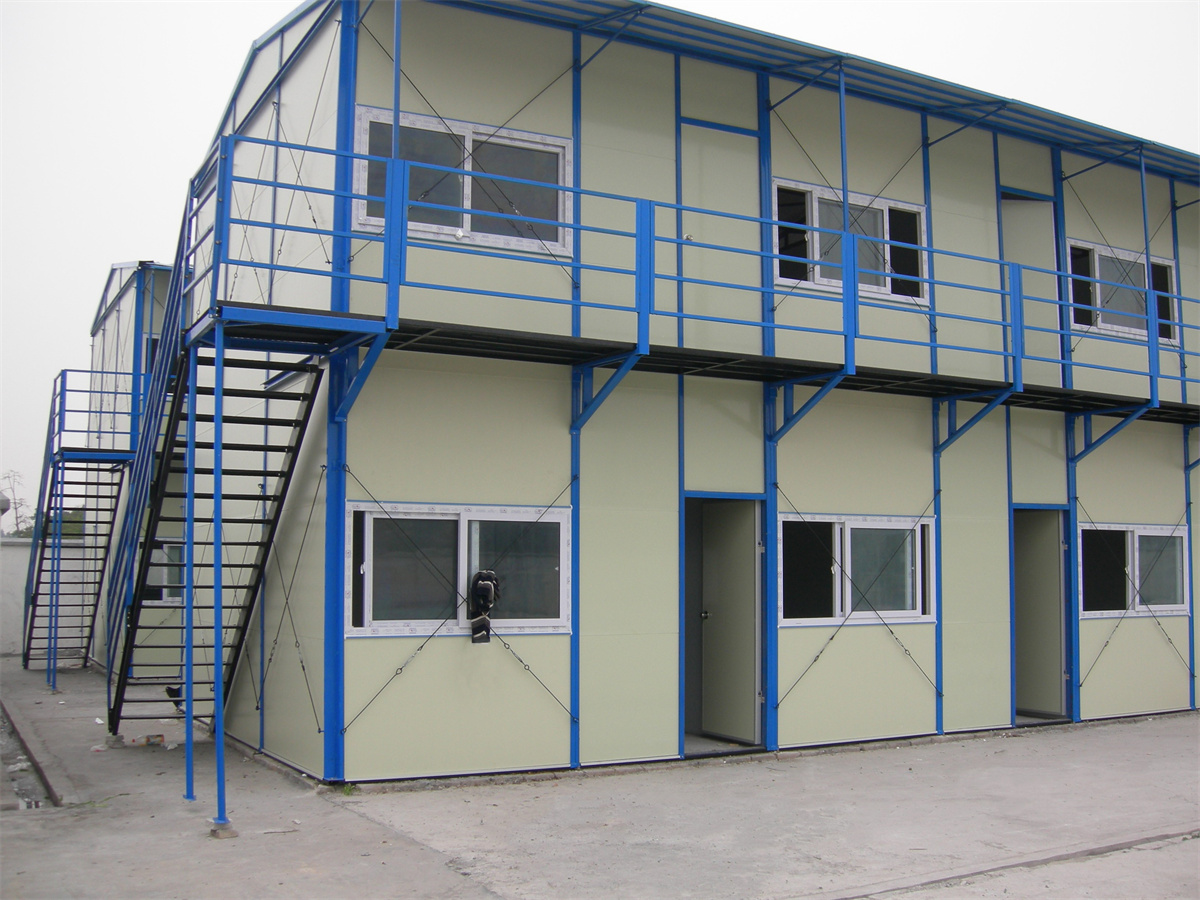

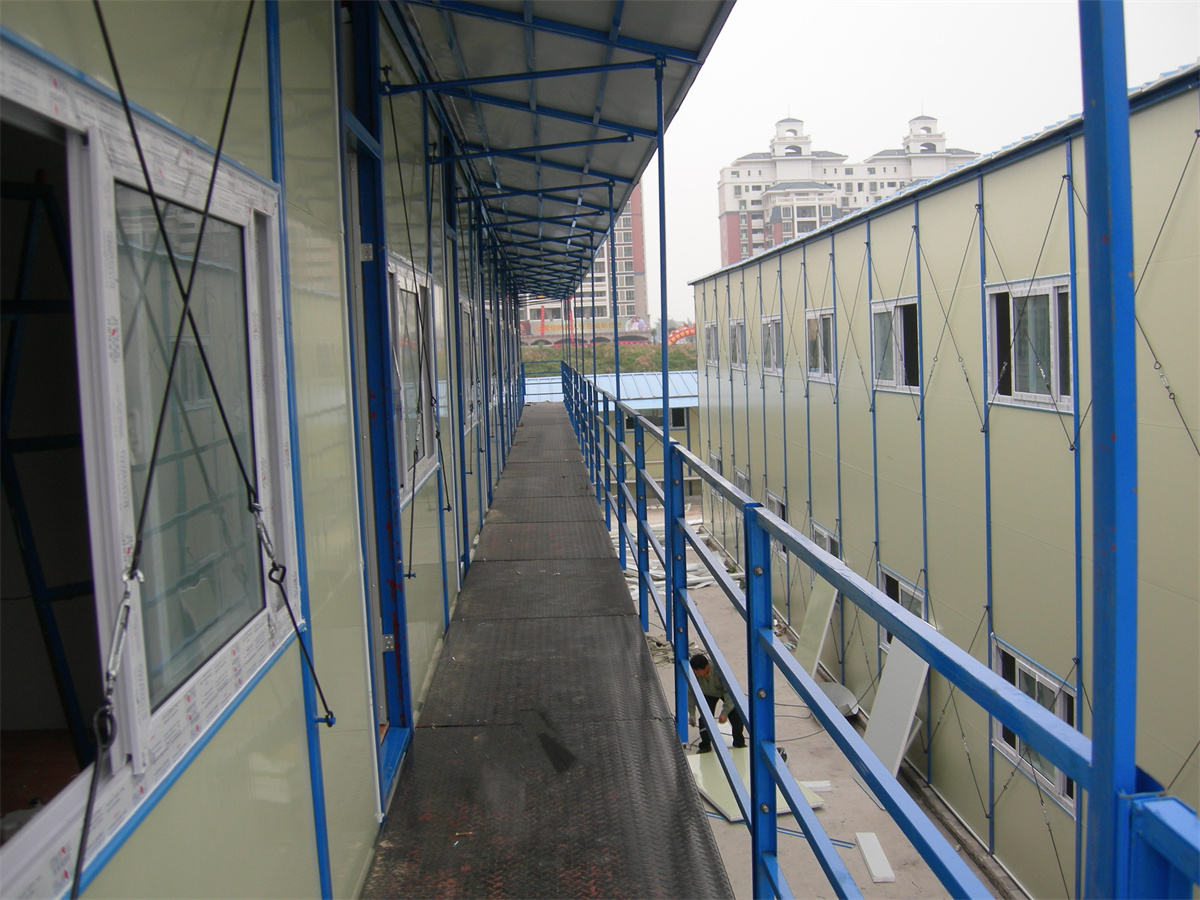

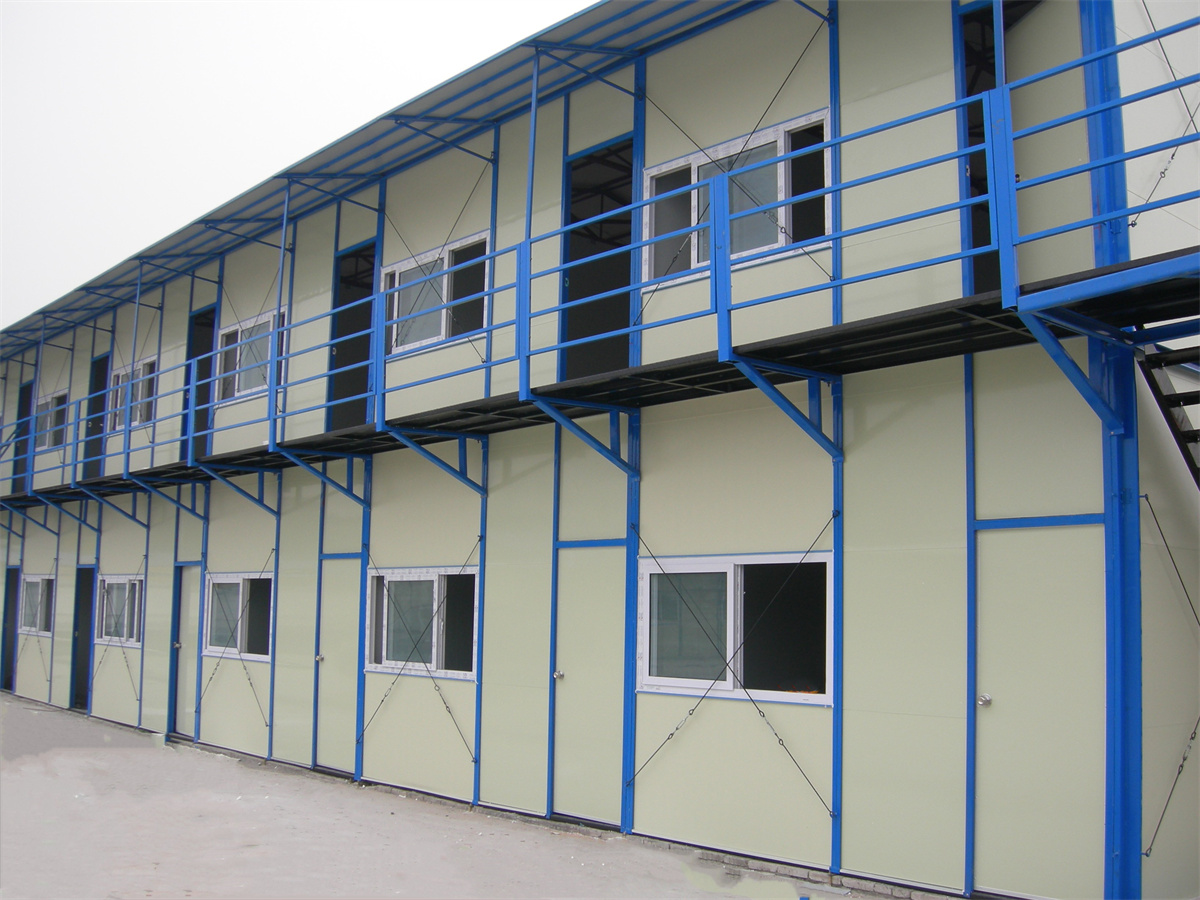

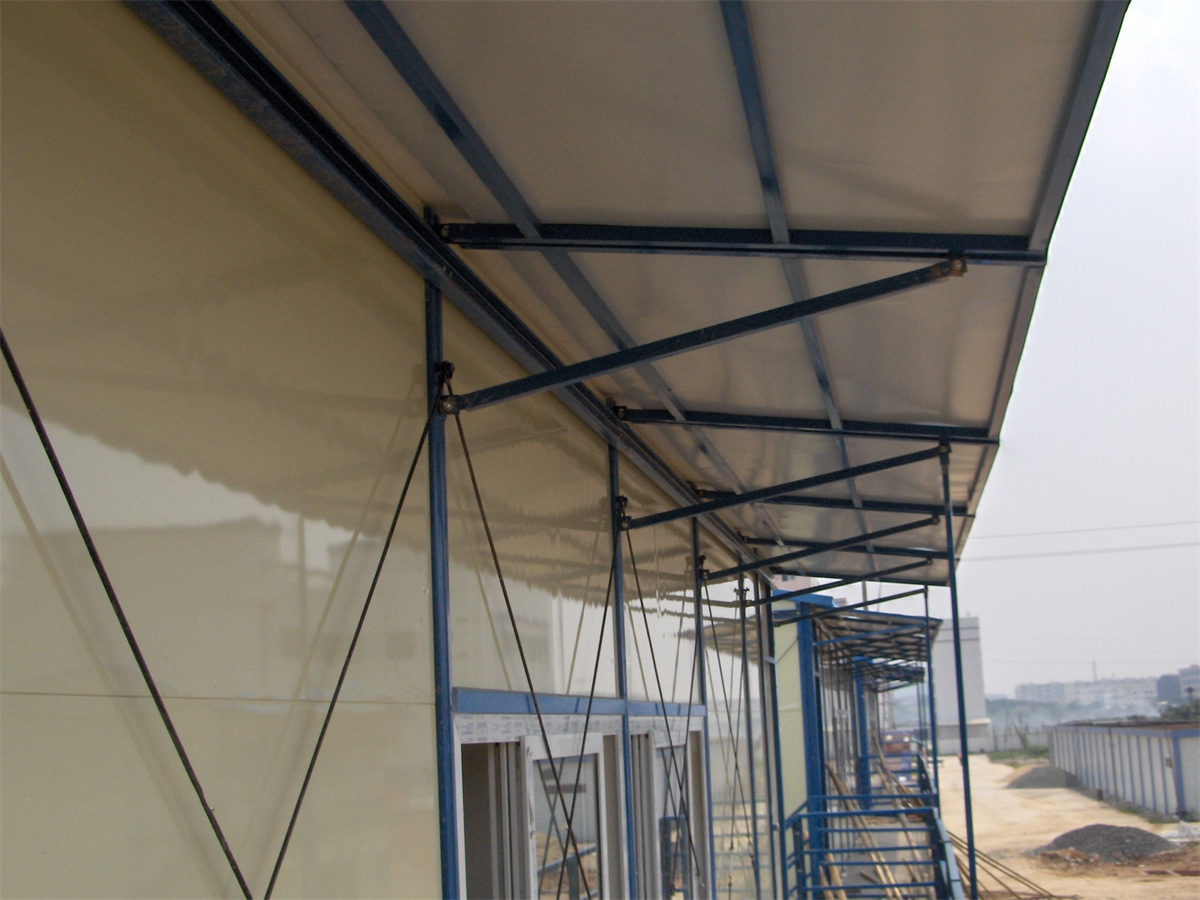

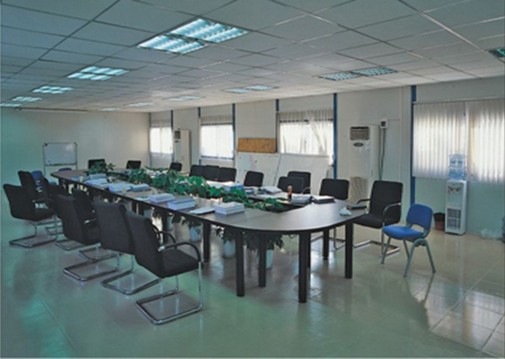

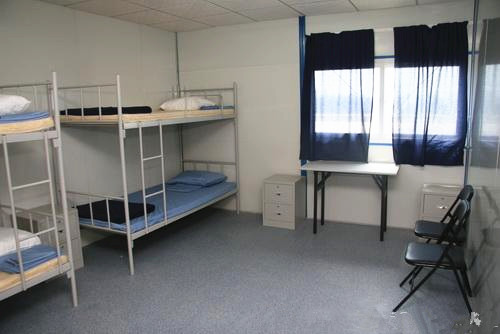

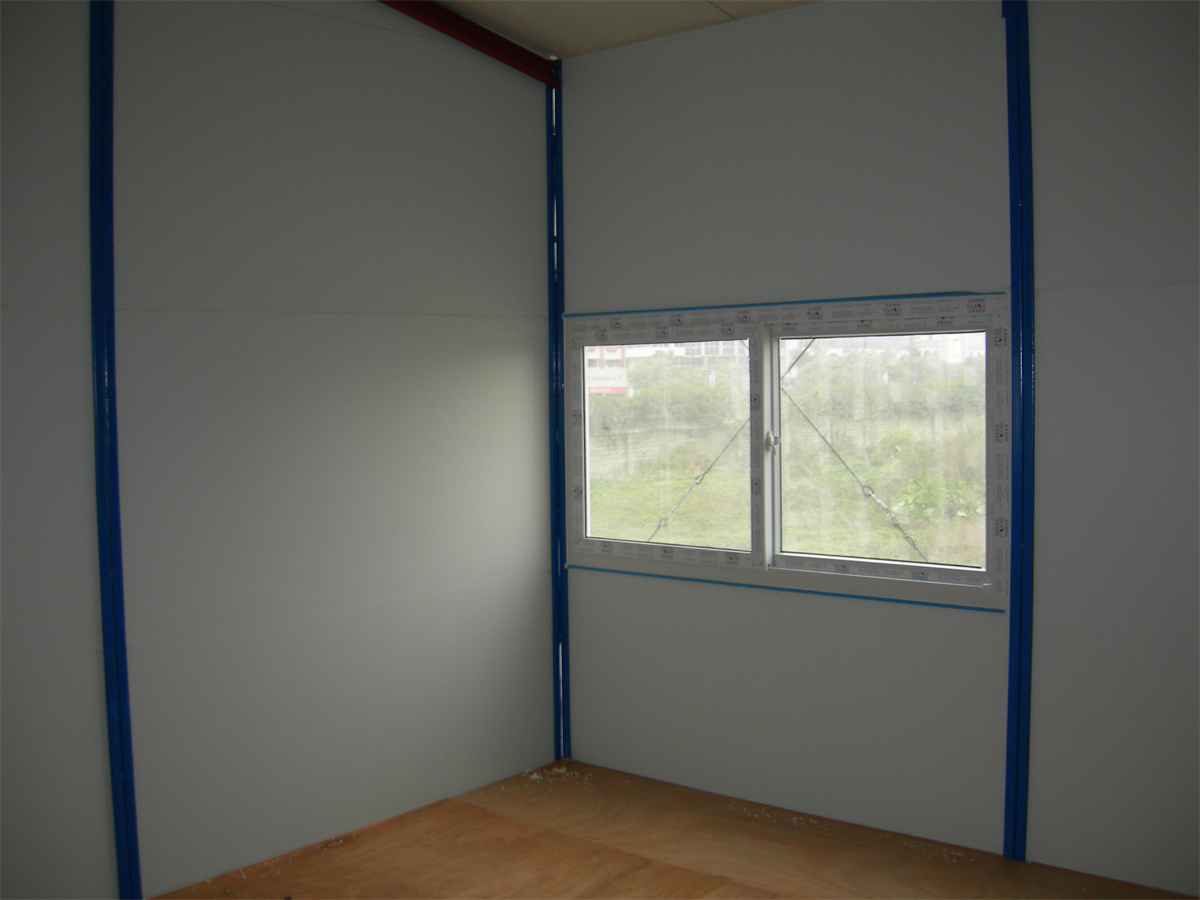

Project pictures display
Features of K-type prefab houses:
1.Modular Construction: The house is made up of individual modules that are factory-built and can be easily transported and assembled on-site.
2.Steel Structure: K-type prefab houses are constructed using steel frames, which provide strength, durability, and resistance to various weather conditions.
3.Quick Assembly: Due to the modular design, K-type prefab houses can be quickly assembled on-site, reducing construction time compared to traditional construction methods.
4.Customization: These houses offer flexibility in terms of layout and design. Modules can be combined and arranged in different configurations to create various room layouts and sizes.
5.Portability: K-type prefab houses are designed to be portable and relocated if needed. They can be disassembled and transported to a new location, making them suitable for temporary or semi-permanent housing solutions.
6.Cost-Effective: Prefabricated construction techniques often result in cost savings compared to traditional construction methods, as the manufacturing process can be streamlined and materials can be purchased in bulk.
The common applications of K-type prefab houses:
1>Temporary Housing: K-type prefab houses are often used as temporary housing solutions. They can be quickly assembled and disassembled, making them suitable for construction sites, mining camps, and other temporary work locations where accommodation is needed.
2>Disaster Relief Shelters: In the aftermath of natural disasters such as earthquakes, floods, or hurricanes, K-type prefab houses can be deployed as emergency shelters for displaced individuals or communities. Their quick assembly and portability make them ideal for providing temporary housing during relief efforts.
3>Commercial Spaces: K-type prefab houses can be utilized for commercial purposes such as offices, retail spaces, clinics, classrooms, or community centers. They provide a flexible and adaptable solution for establishing temporary or semi-permanent commercial spaces.
4>Educational Facilities: In areas with a need for temporary or additional educational facilities, K-type prefab houses can be used as classrooms, training centers, or school administration buildings. They offer a quick and efficient solution to accommodate students and educators.
Prefabricated K house component
They built using prefabricated components, such as sandwich panel walls, plywood/cement board floors, sandwich panel roofs, and related accessories which are pre-manufactured in a factory. These components are then transported to the site where they are easily and quickly assembled to create the final structure.
Product Material List
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|

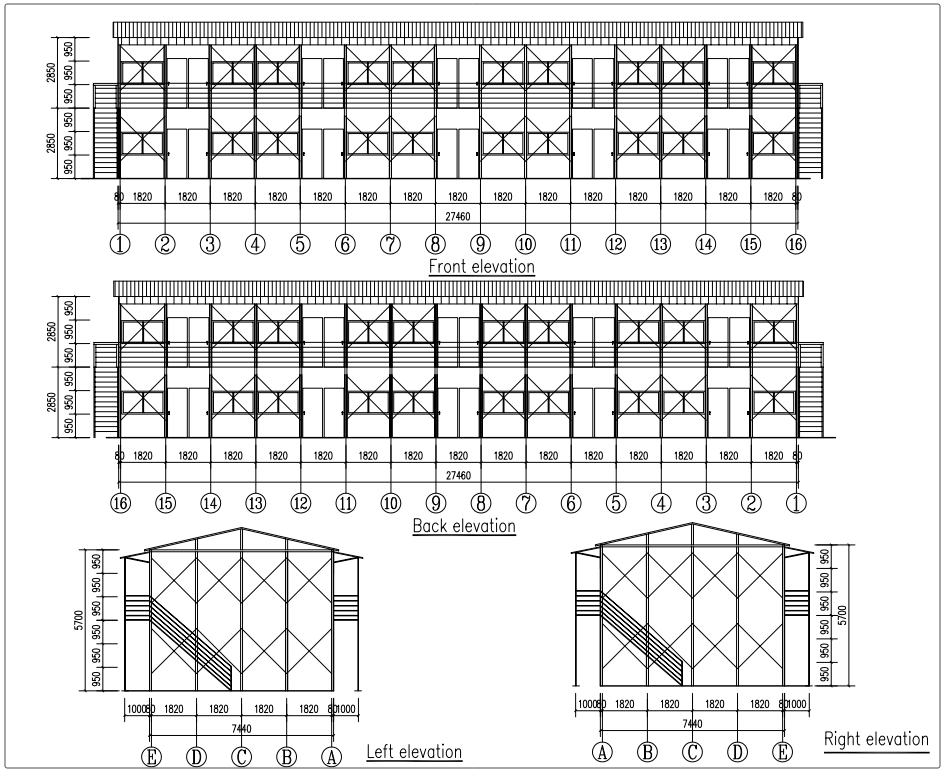

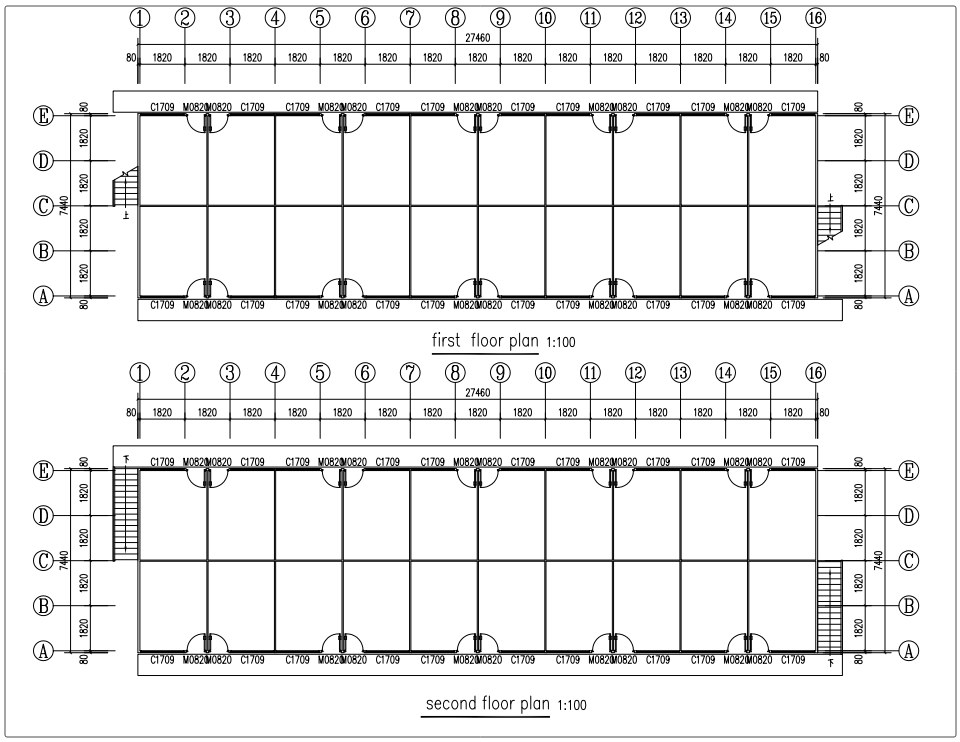

Prefab house floor plan & elevation plan display:

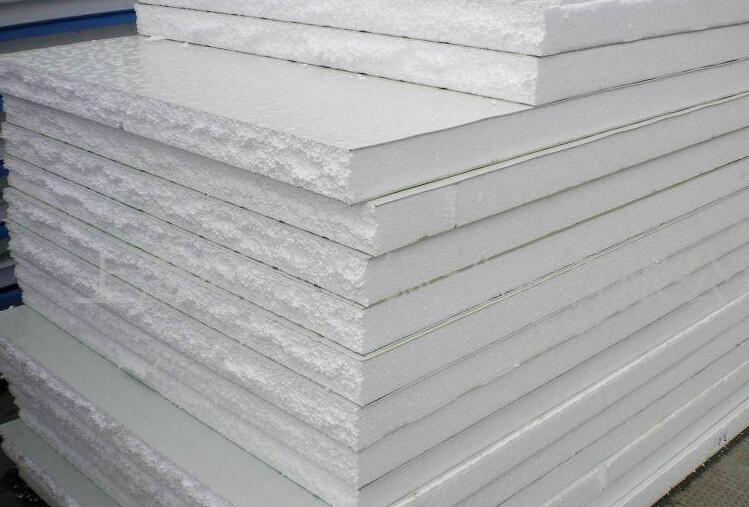

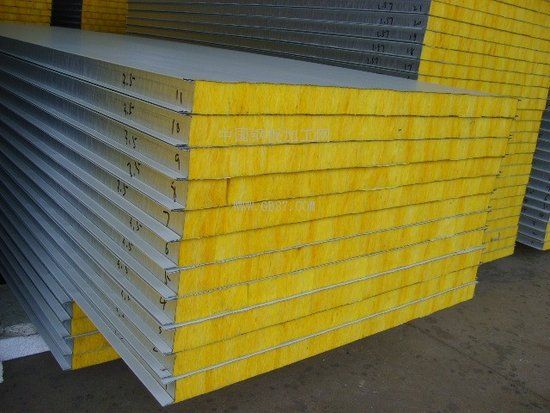

EPS and fiber glass wool sandwich panel features:
1. EPS foam board/ Fiberglass sandwich panel as wall or roof cladding, is a thermal insulation sandwich panel made of 2 pcs steel color sheet with EPS foam or Fiberglass insulation at the middle, with features lightweight, easy install, low cost, strong low ability, soundproofing, thermal insulation, heating insulation and good moisture resistant, etc.
2. Thermal Insulation fiberglass mineral material
a. Class A1 non-combustible material
b. No odor, environmentally friendly and non-toxic
c. Thermal conductivity ≤0.03W/cm.k
d. heat resistance ≥700 degrees
e. Porous structure, good recovery, not afraid of any shock

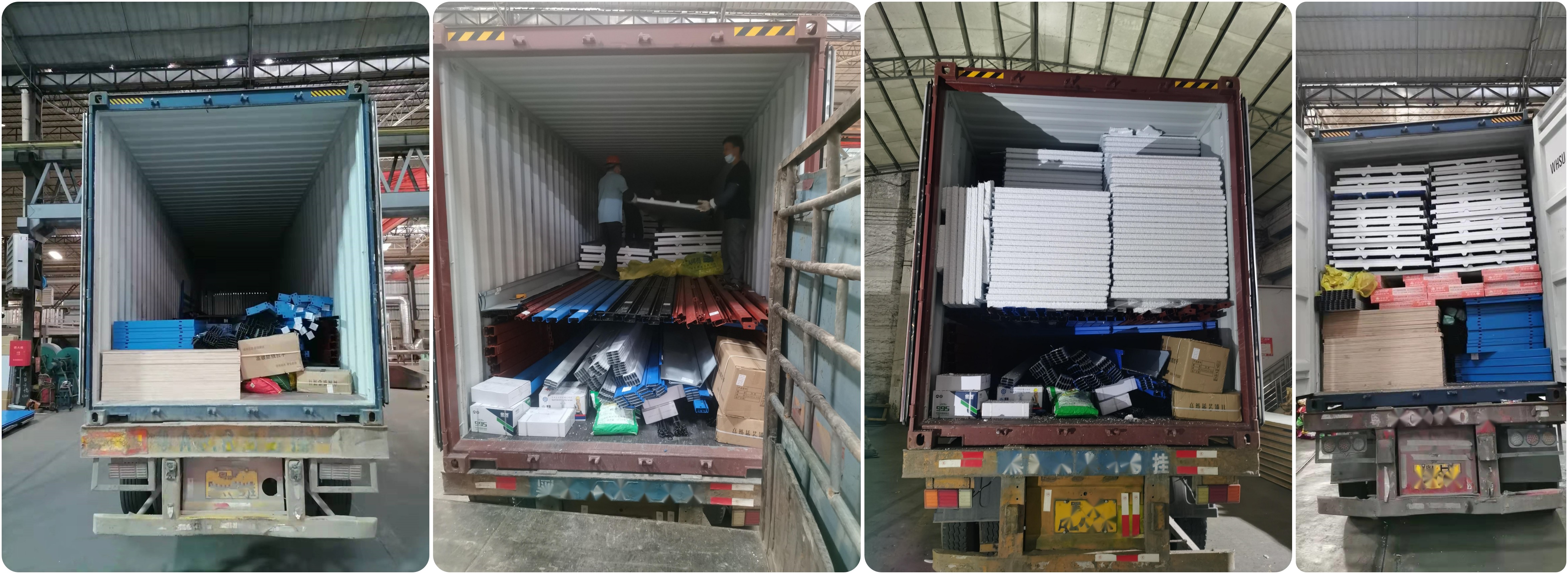

K type prefab house kit container loading method:
For the loading of this kind of house, we generally adopt the method of loading half of the steel structure frame and half of the sandwich panel(wall & roof panel), which can well balance the weight of the cabinet, so that it is not too heavy or too light. In terms of the use of space, this combination is also a relatively appropriate approach.

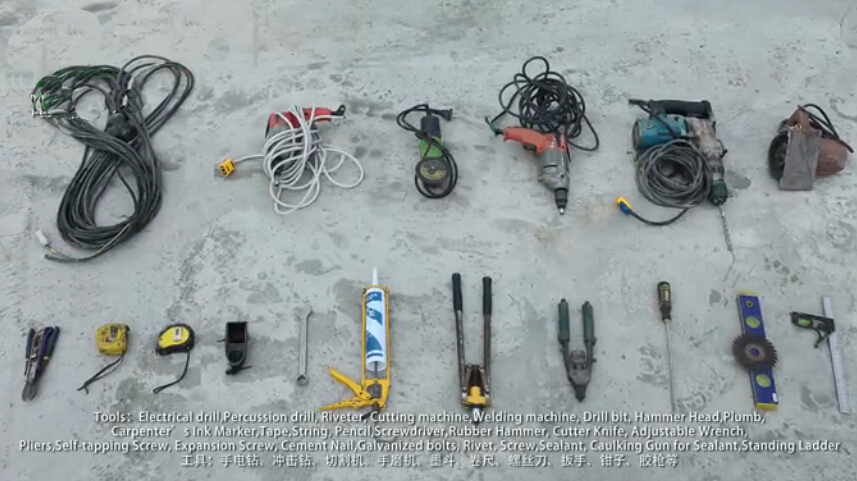

Installtion toos
Our Global Market:
We have supported government projects in Russia, Australia, Malaysia, Niger, Kenya, Fiji, Philippines and other projects in more than 30 countries.
Our services:
ONE-STOP services & Customized solutions, 15 years+ experience of R&D, Design, Manufacturing, Exportation and After-sales support.
