Product Information
K-type prefab houses and K-type prefab homes are the economic type modular houses.Because of the low-cost price, convenient mobile and recyclable materials this kind of house is widely used in construction sites and labour camps.
A prefabricated K house is made of a light steel frame and sandwich panels for wall and roof. The steel frame is can be painted or galvanized light steel(mainly using C section steel). It is anti-rust and earthquake proof.
The K-type prefab house we mentioned here is a sandwich panel prefabricated house for a small temporary storage. Using prefabricated houses as temporary storage or warehouses has many benefits:
It is fast to build and can meet usage needs in a short time;
It is highly flexible and can be adjusted and moved according to actual conditions;
The cost is relatively low and economical;
The internal space of the prefabricated house can be reasonably planned and utilized to improve storage efficiency.

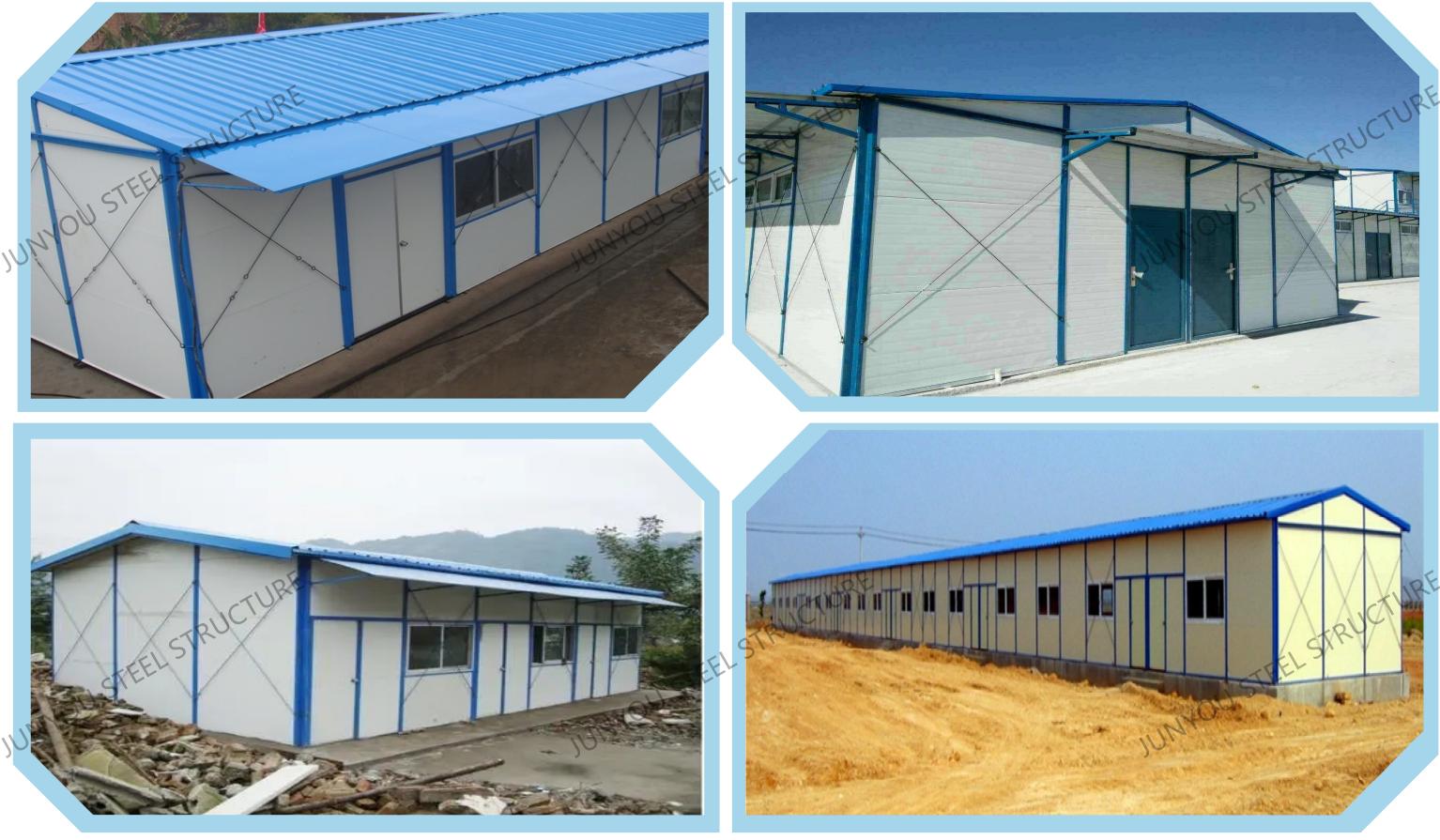

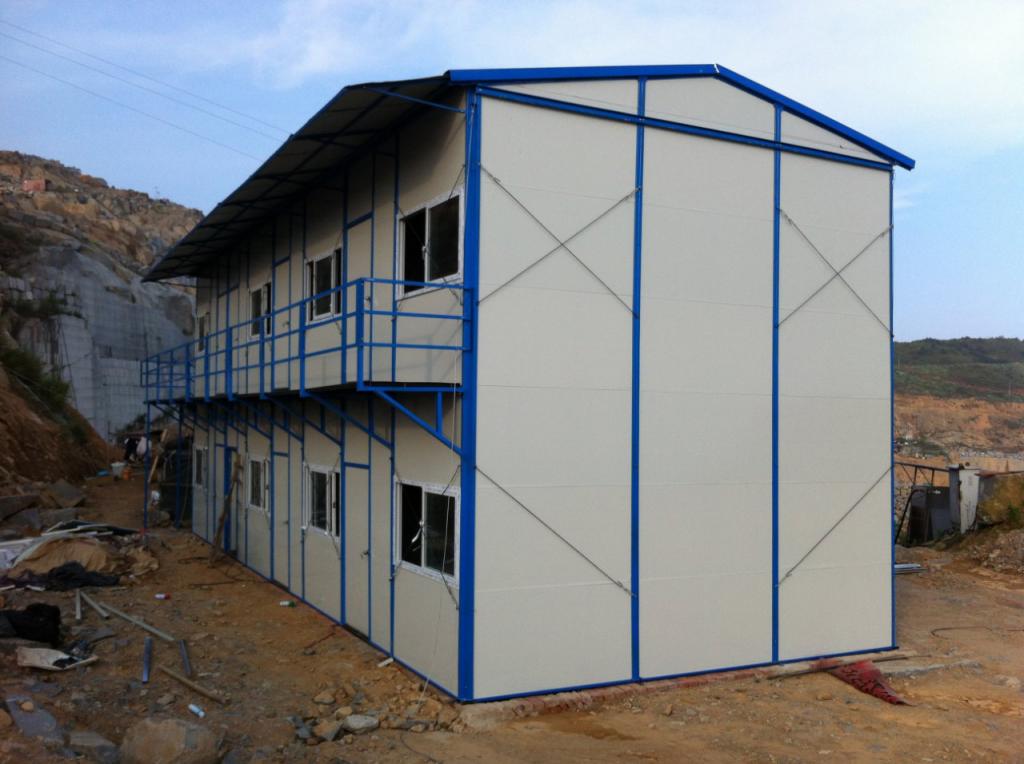

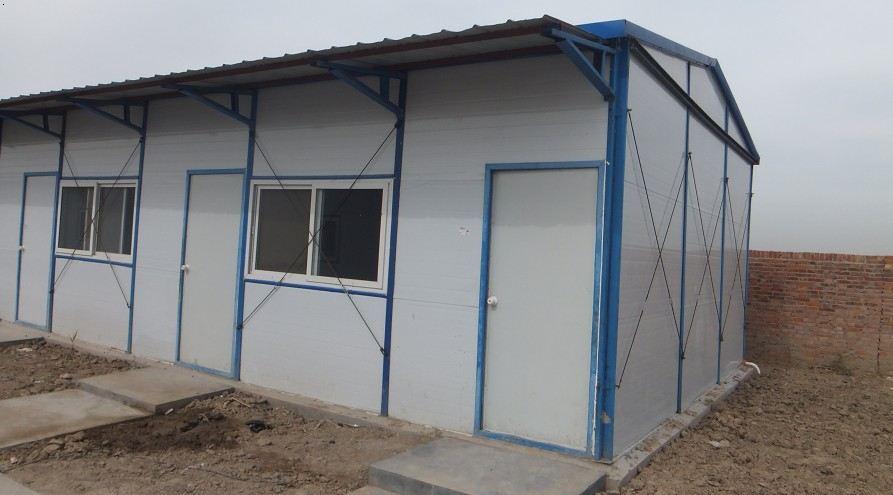

Prefabricate house for storage project picture display

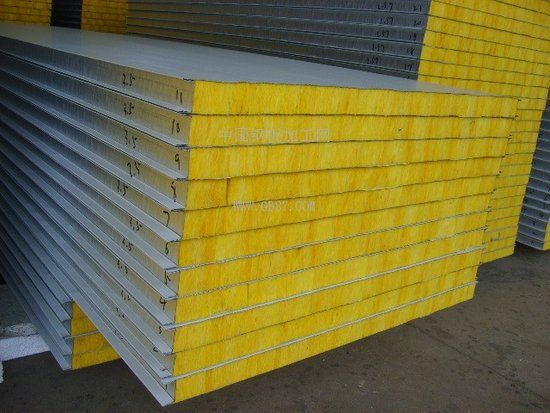

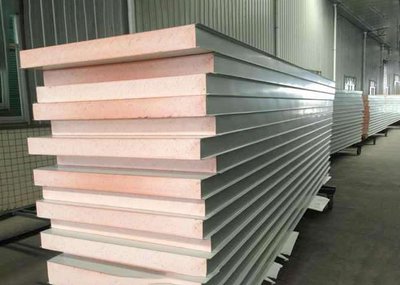

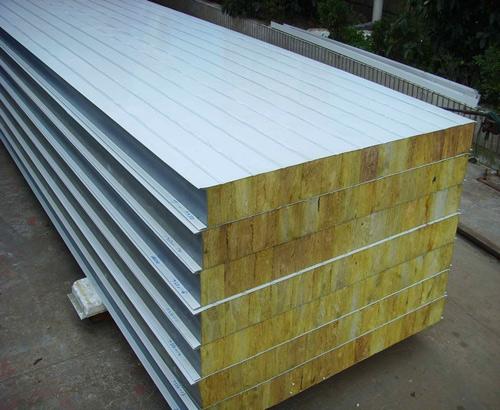

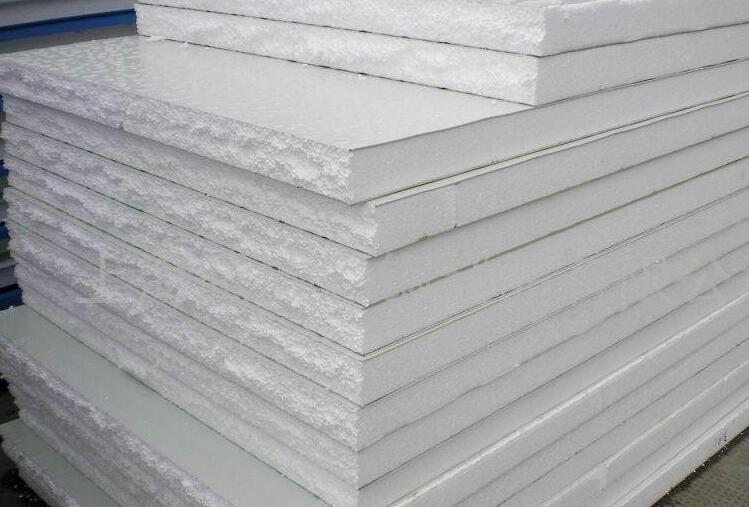

Wall and roof Insulated steel sandwich panel types
The sandwich panels can be EPS ,rock wool, fiberglass or PU sandwich panels for insulation.They also provide excellent thermal insulation, helping to reduce energy consumption for heating and cooling. Additionally, they have good sound insulation properties, contributing to a quieter indoor environment.They provide a reliable and sustainable solution for achieving insulation and structural requirements in construction projects.
Why call it K house?
Prefabricated K house refers to a type of modular housing unit that is designed and manufactured off-site in sections or modules and then transported to the construction site for assembly. It is also called the slope-top prefabricated house. The K house design is characterized by its size(1K=1820mm,1P=950mm), for example, 3K* 12K*3P then the size is ｛(3x1.82)+0.16｝x｛(12x1.82)+0.16｝x3x950,that is 5.62m×22m×2.85m.Here 0. 16m is two side of steel.

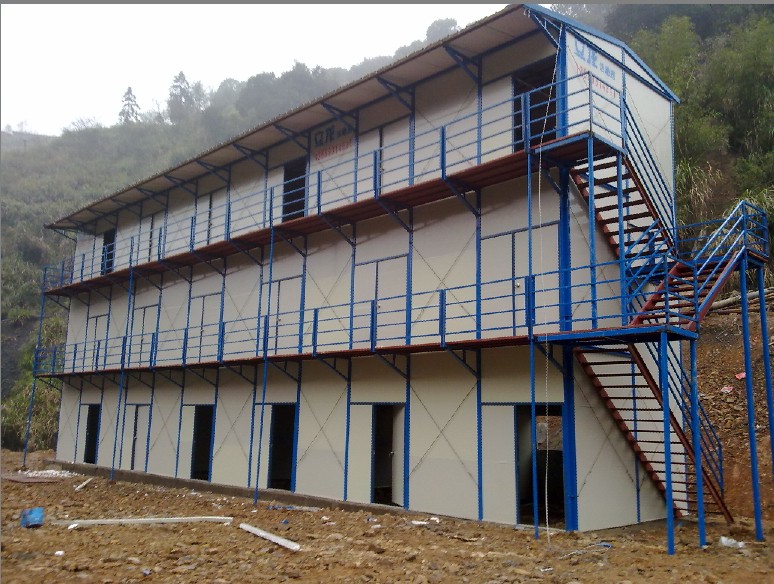

In addition to single-story and double-story, we can also build 3-story buildings. However, the height of prefabricated houses generally does not exceed three floors. The more standard height of prefab houses is about 2.88 meters, because if it is too high, the center of gravity will be unstable. The bottom cannot withstand much pressure and risks collapse.
K Type prefab house features:
Recycle use: All components are standard and fabricated in a factory, which makes them suitable for recycling use many times.
Various selections: The house can be designed as single, two, or three stories. The outer panels can be optional based on fireproof or non-fireproof materials.
Quick installation: It is quick to erect due to the light-weight materials. An estimated six skilled workers can finish 200m2 in two days.
Environmental protection: The materials can be recycled and no construction waste during construction.
Flexible design: The panel can be placed anywhere to form the layout.
Application:
1. Job sites as temporary office buildings

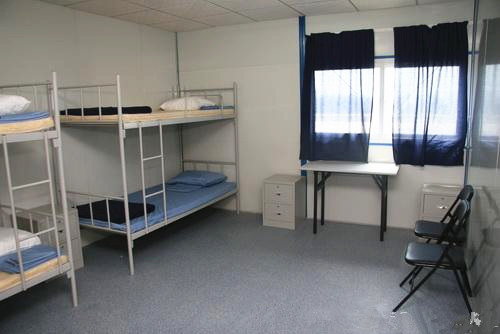

2. Accommodation houses
3. Canteen and warehouses
4. Temporary School
5. Hospital parking
6. Maintenance department
7. Scenery district vacation house
8. Disaster relief, etc.

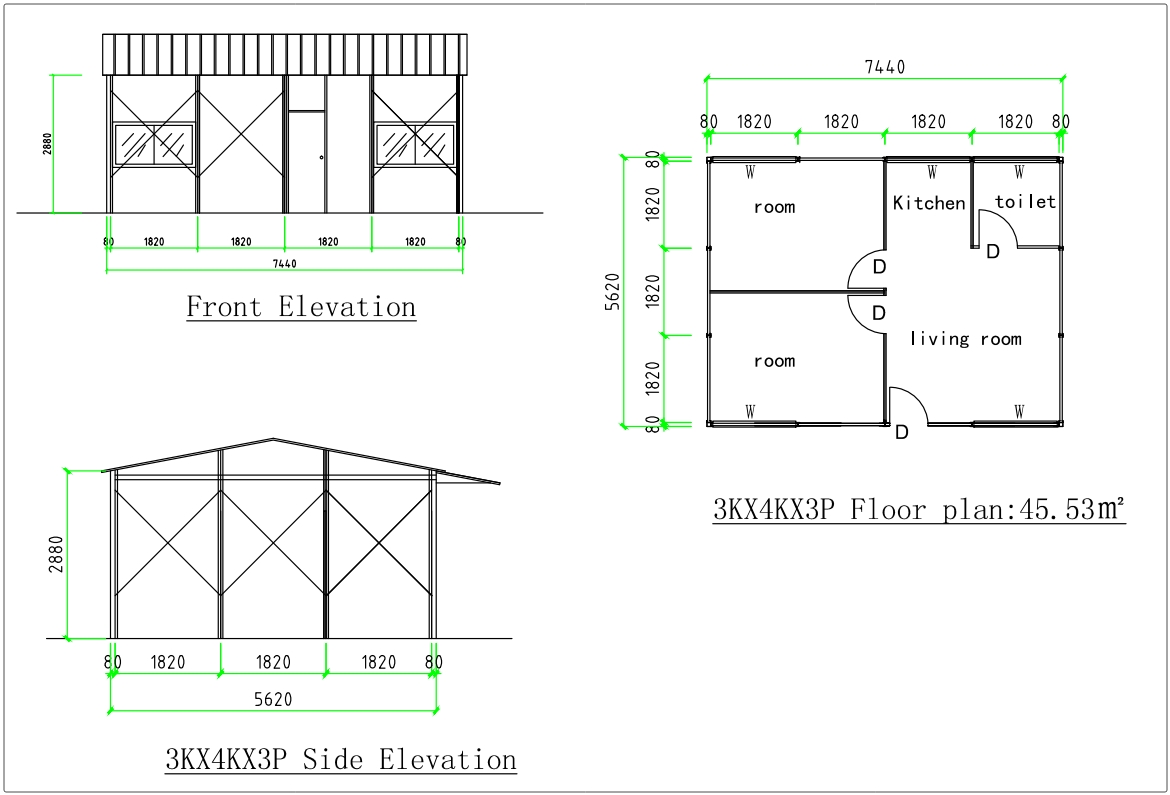

Prefab house also can be use as temporary house drawing display:
Prefab house product material list
No. | Item | Specification | Reference pic | Remarks |
1 | Ground beam | C78x38x15x1.5mm |
| Paint |
2 | Column | Double C78x38x15x1.7mm |
| Paint |
3 | Ring beam | C78x38x15x1.5mm |
| Paint |
4 | Corner column | Double C78x38x15x1.7mm |
| Paint |
5 | Floor Purlin | C78*38*15*1.5mm |
| Paint |
6 | Herringbone beam | C78*38*15*1.5mm |
| Paint |
7 | Roof purlin | 1.4mm L angle |
| Paint |
8 | Gable wall roof beam | C78*38*15*1.5mm |
| Paint |
9 | Canopy steel frame | C50*1.2mm, steel sheet |
| Paint |
10 | Wall panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
11 | Roof panel | 50mm EPS Sandwich panel (steel sheet thickness 0.326mm) |
| EPS density: 10kg/m³ |
12 | Window | PVC sliding window |
| single glass |
13 | Entrance Door | EPS sandwich panel door |
| with locks |
14 | Accessories | nail,screws,glue,trimming,etc |
|
Prefab house competitive advantages
Removable and reusable.
Short manufacturing period and no foundation.
Safety, windproof and shockproof.
It adopts an air-heat insulation design, with good sound and heat insulation.
It can be designed in various shapes, with many colors on the outer wall, and a bright and beautiful appearance.
Low cost, high quality, and low price.

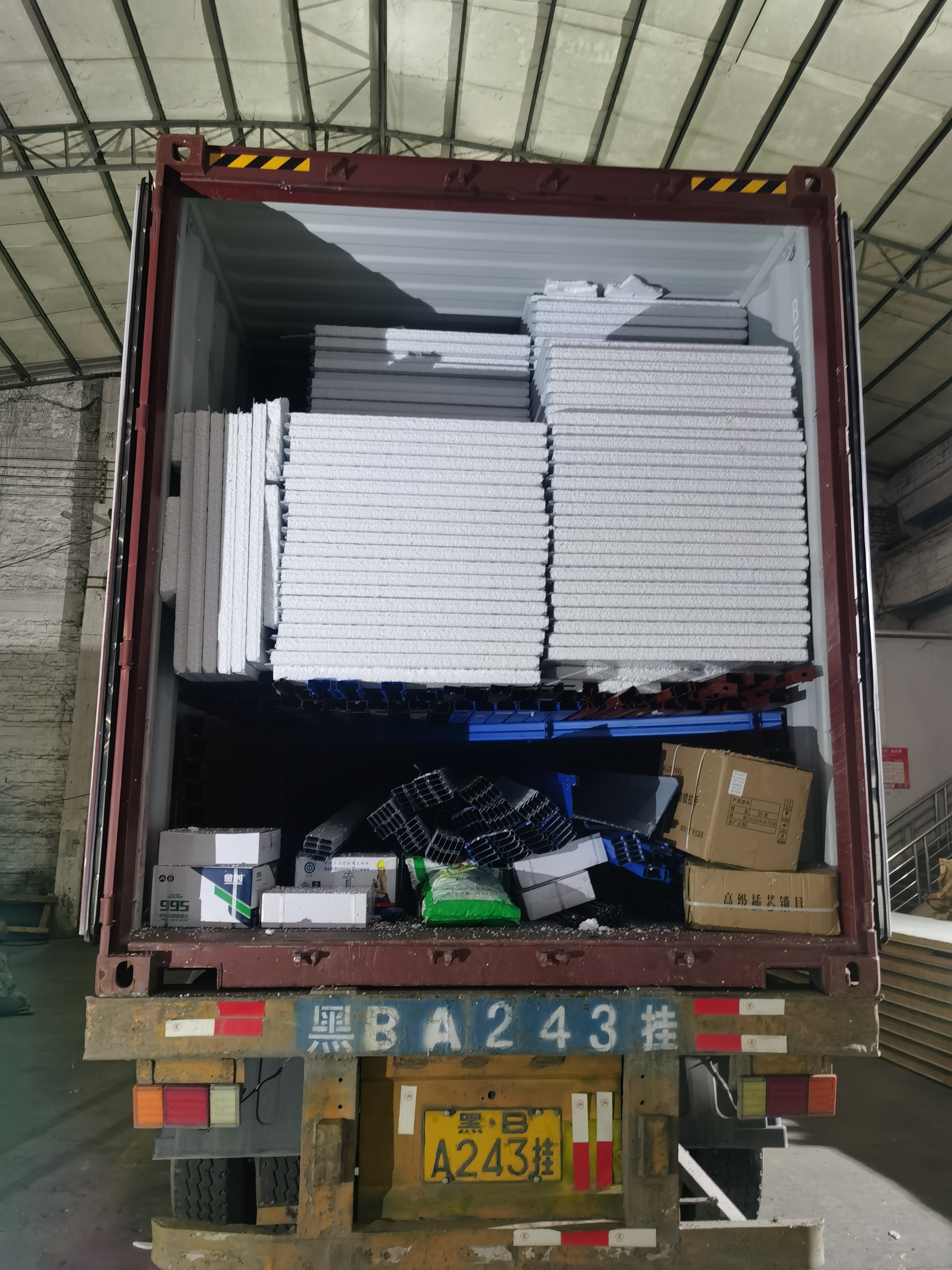

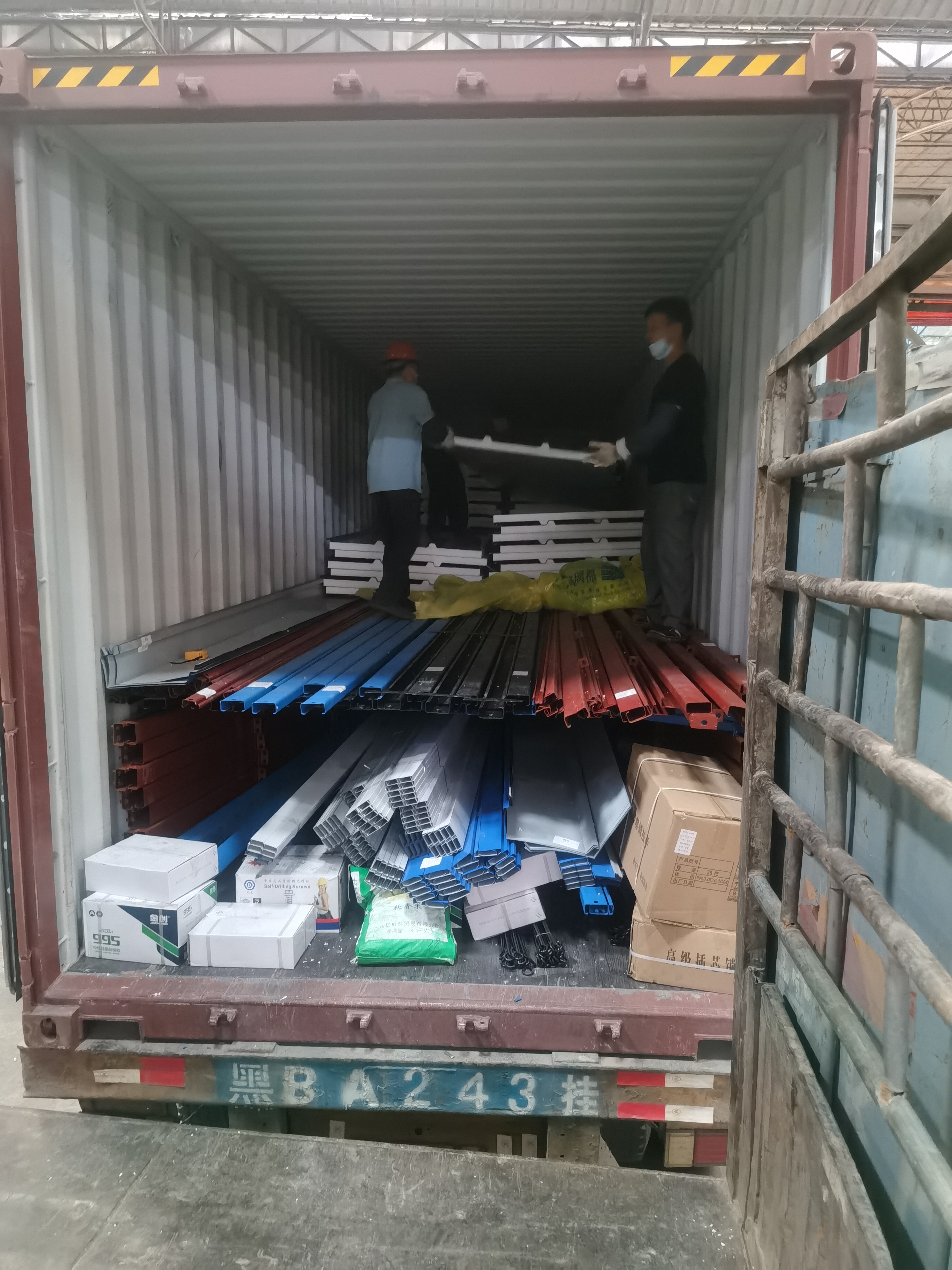

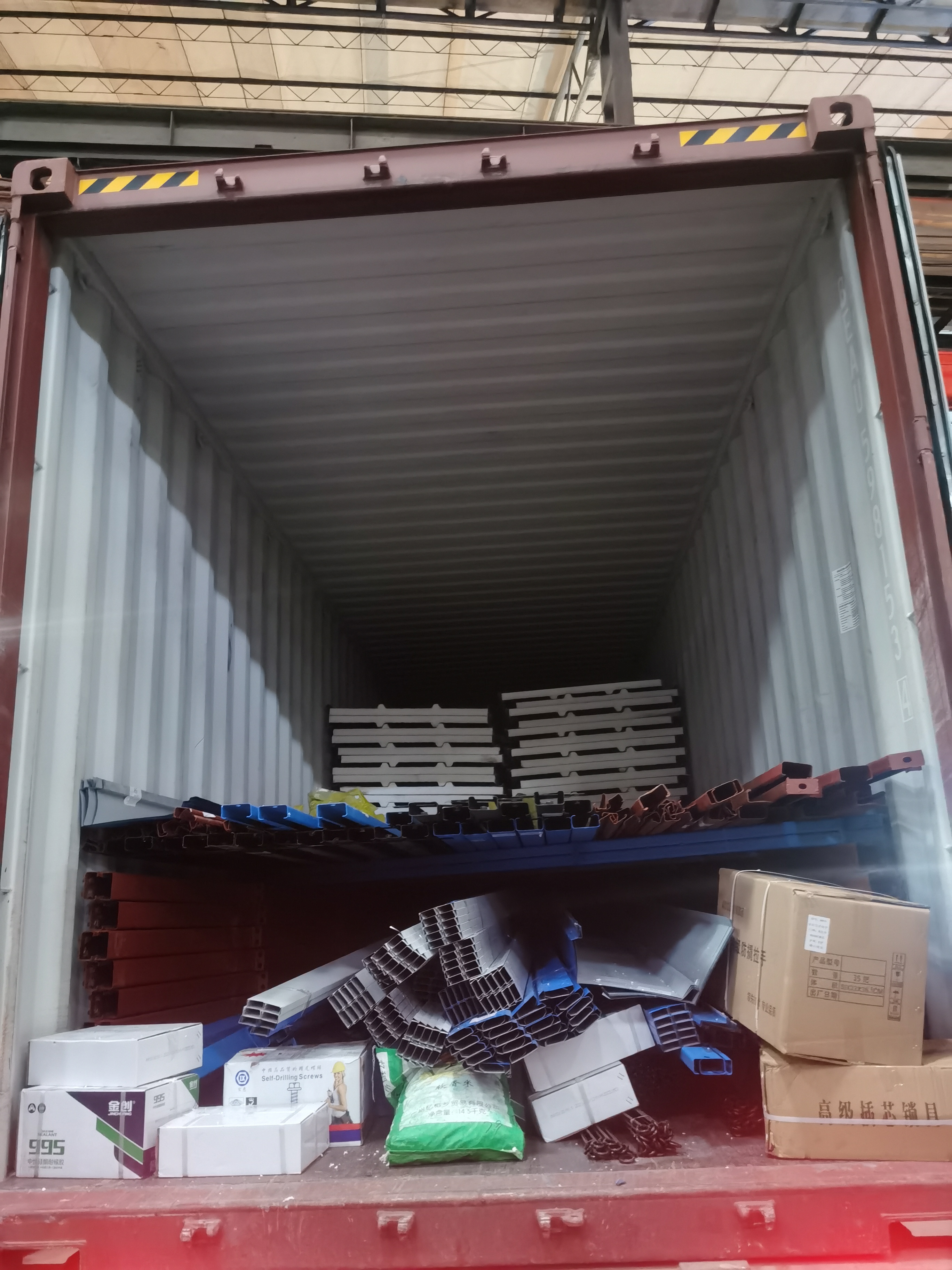

Prefab house container loading method(steel frame mix sanwich panel)
Our Global Market:
We have supported government projects in Russia, Australia, Malaysia, Niger, Kenya, Fiji, Philippines and other projects in more than 30 countries.
