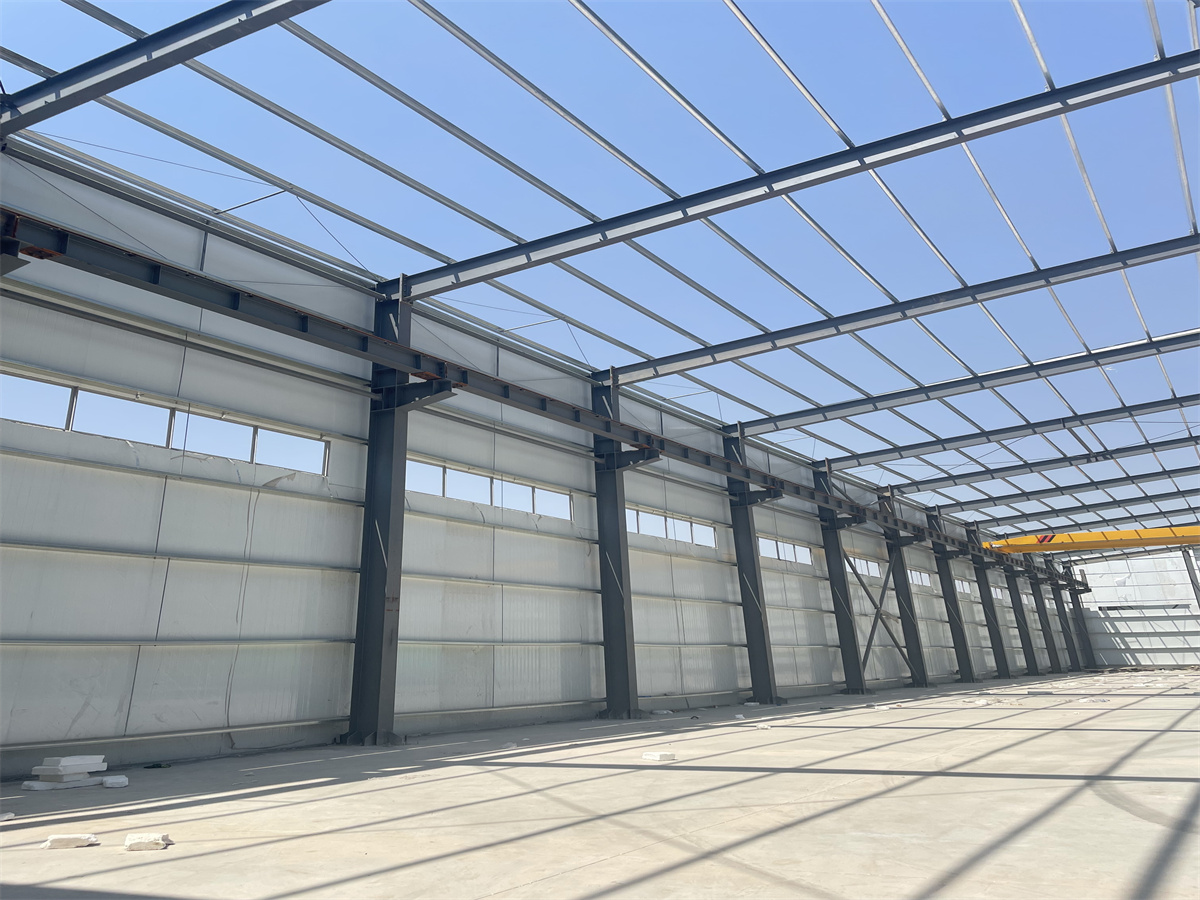

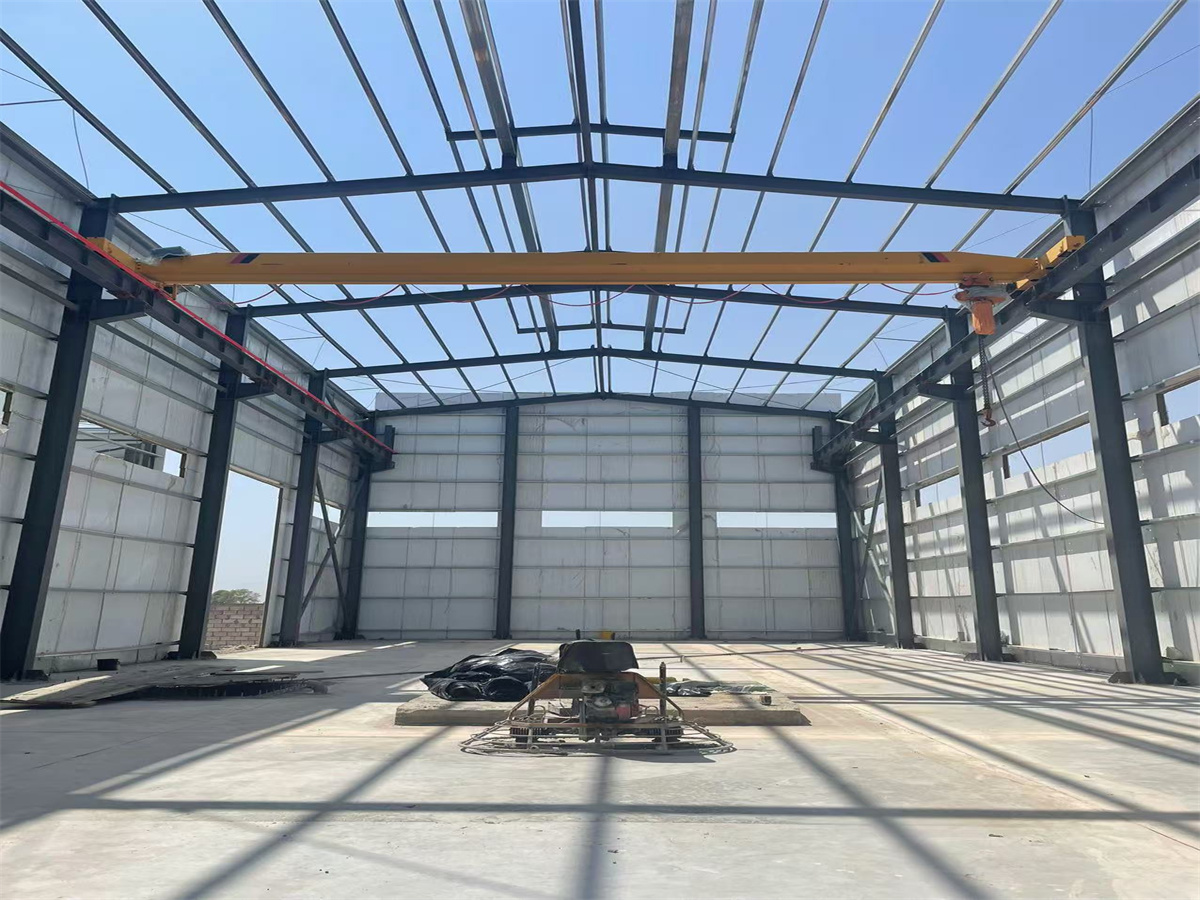

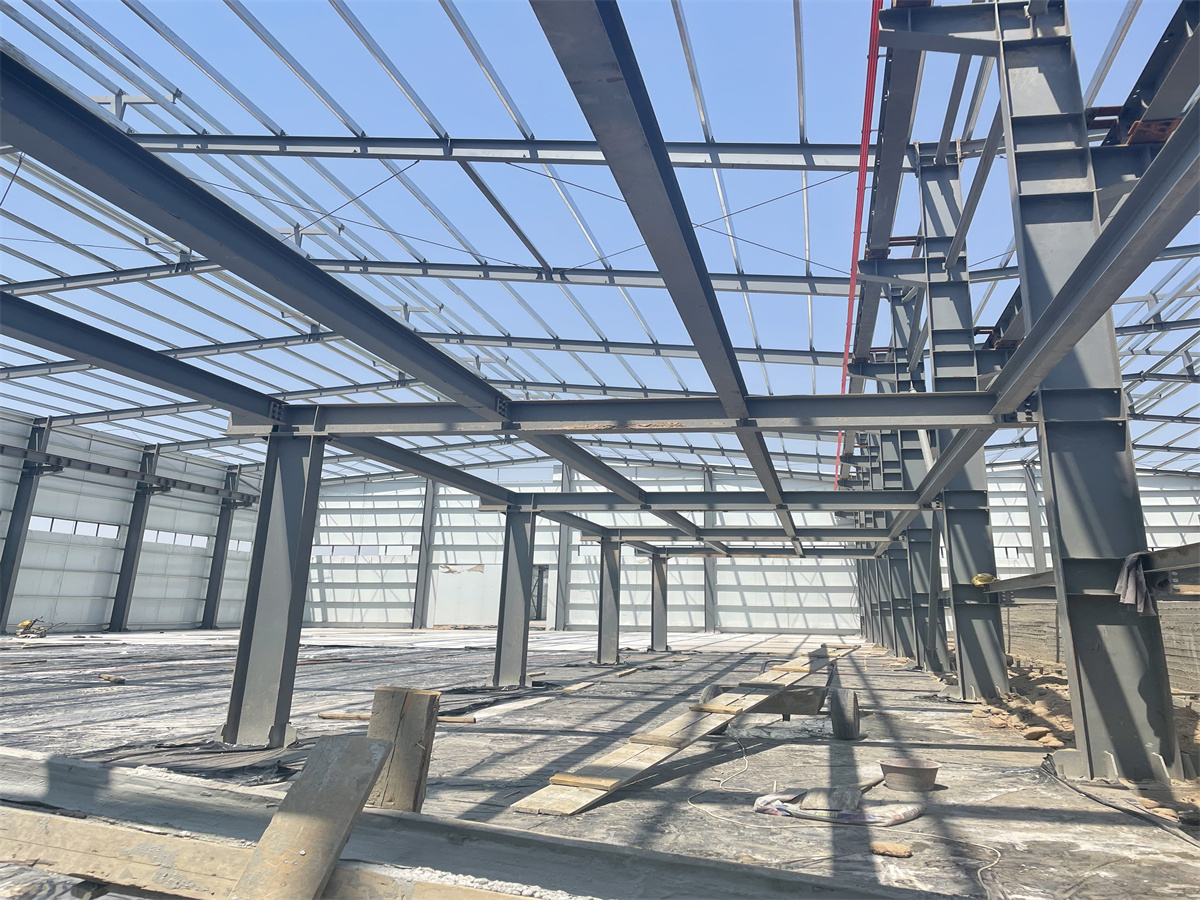

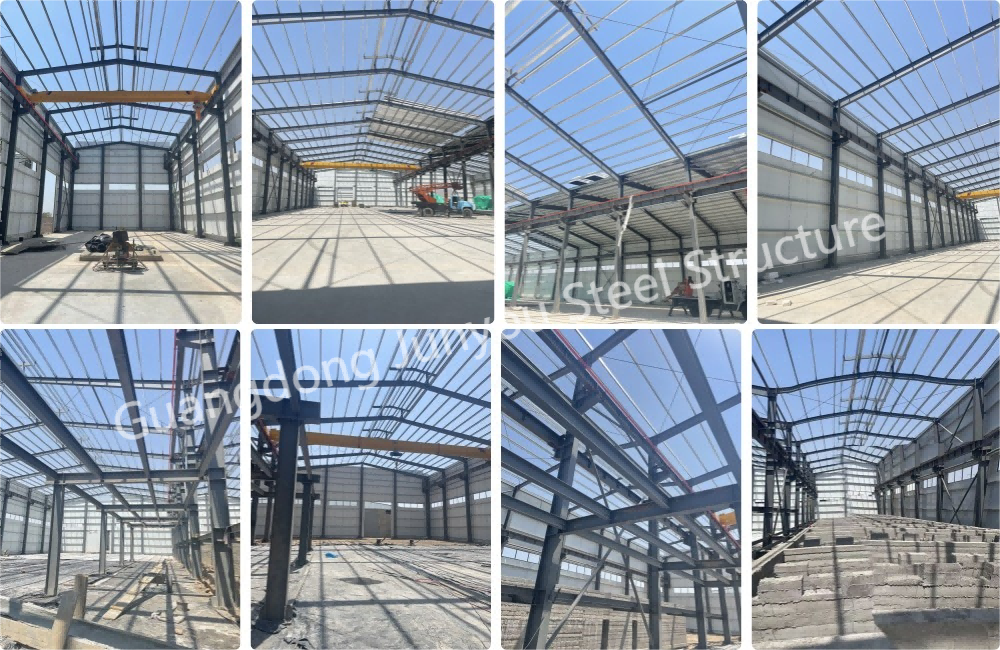

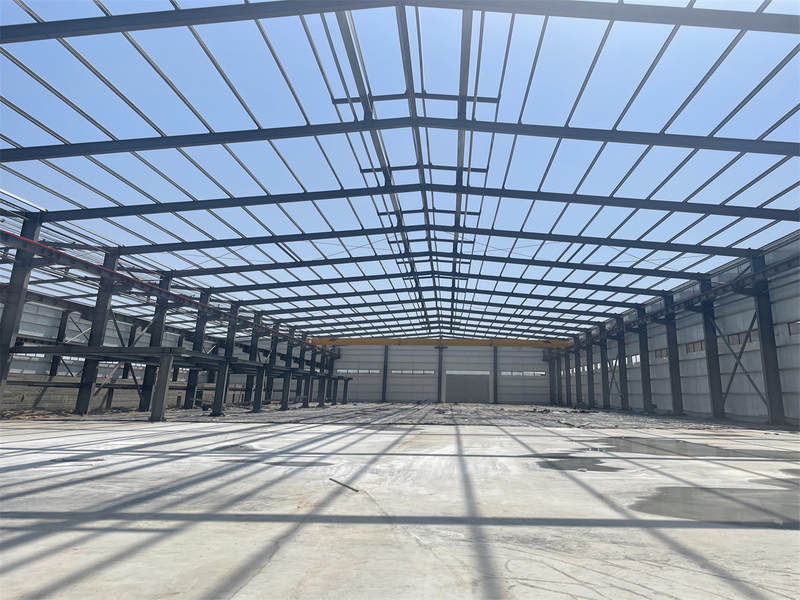

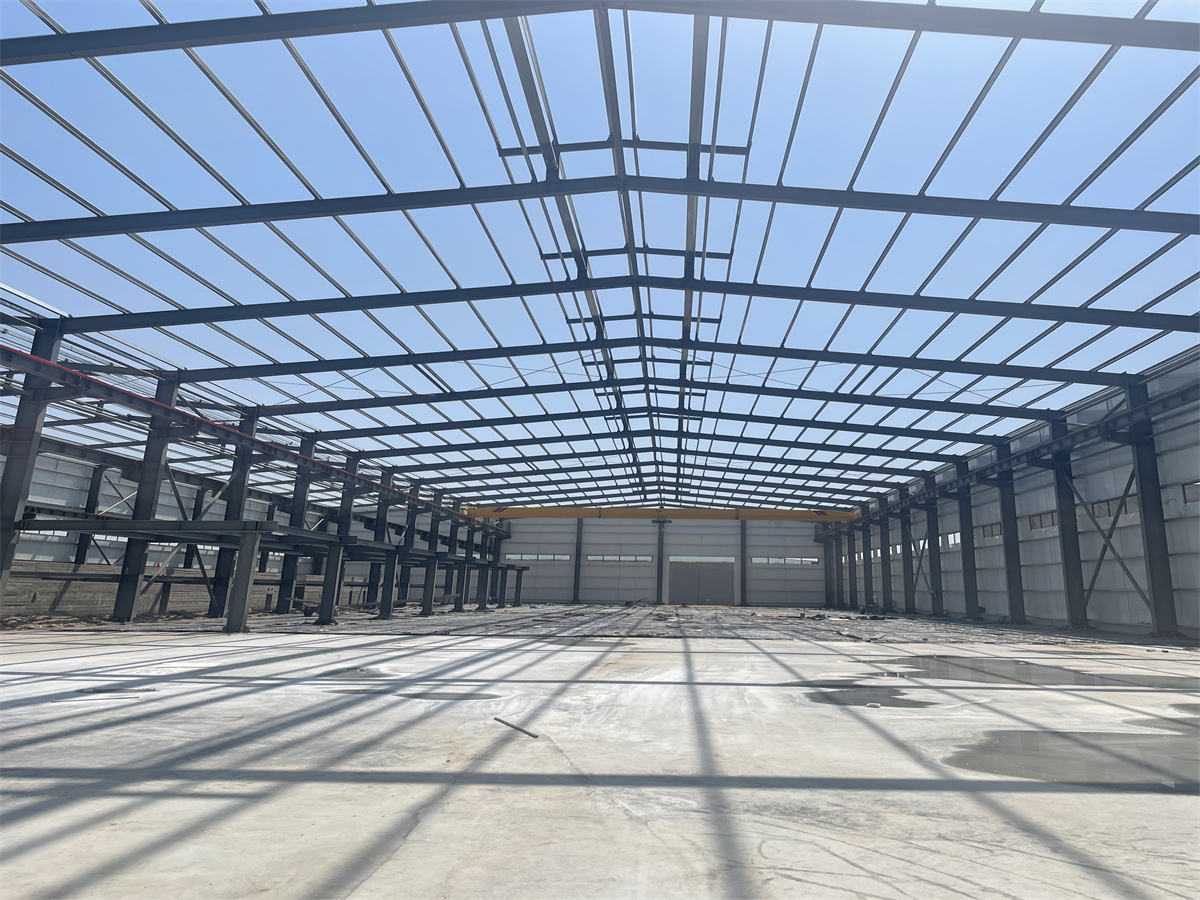

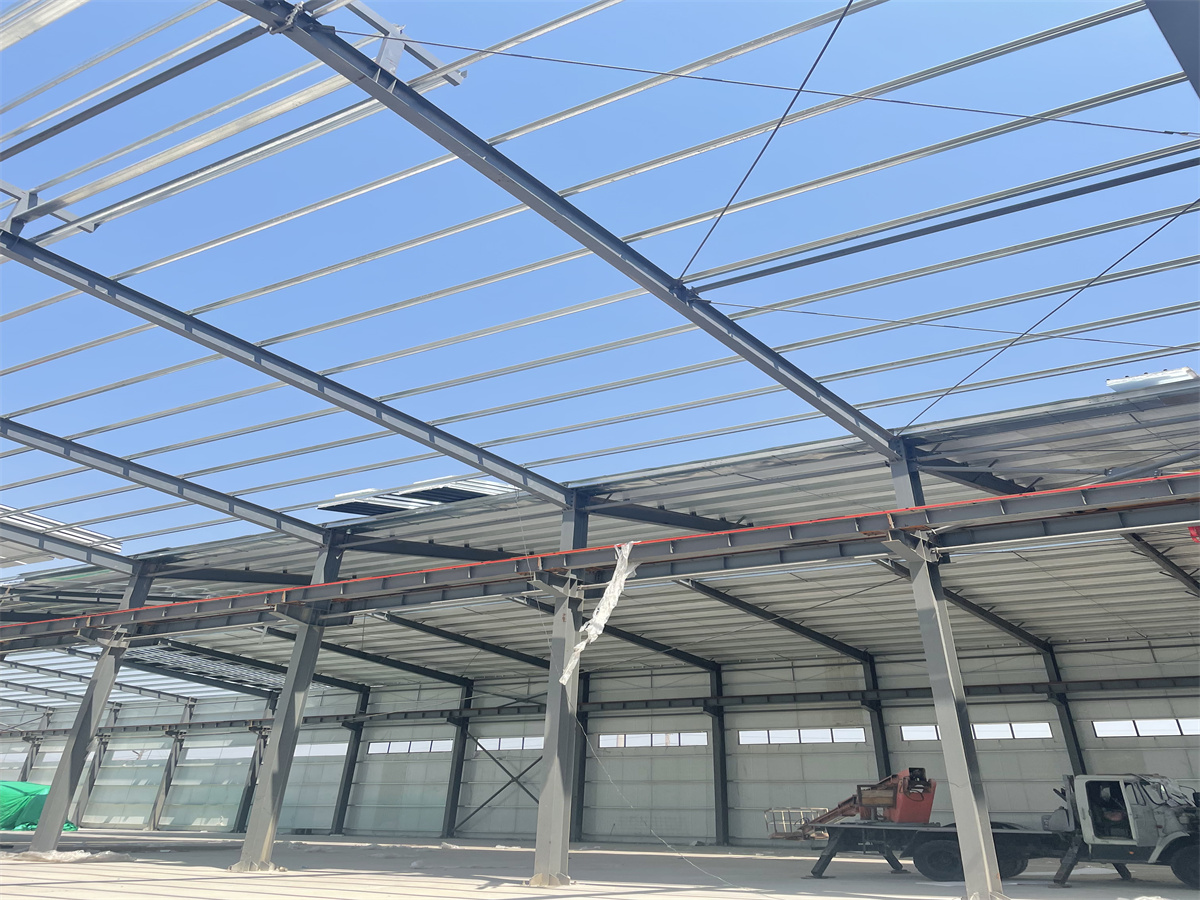

Steel structure workshops are common in many industries. They can be customized with extra insulation, lighting, and ventilation to meet all the customers' specific needs.
The key point characteristics of a steel structure workshop:
Frame Construction
Pre-Engineered Design
Versatility
Durability and Low Maintenance
Cost Efficiency
Sustainability
1. Loads
Roof dead load: 0.25 kN/m 2
Roof live load: 0.3 kN/m2
Wind speed or wind load: 100km/h
Anti-seismic:7 grade

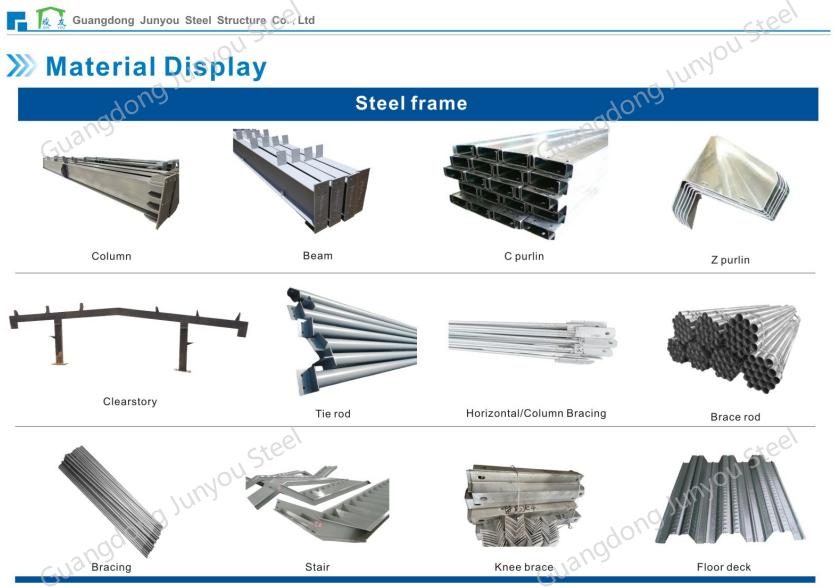

2. Materials
Main beam and post: GB Q355B grade, welded H steel section.
Sub-steel structure: GB Q235B grade, steel bar, pipe, angle steel, etc.
Purlin: galvanized, C-section.
3. Welding
The minimum size of the fillet welding for any that is not defined in the
drawings shall be 6mm with full welding.
4. Fasteners( bolts and nuts) for jointing
High Strength bolts Class 10.9 used to connect the Steel Columns and
pressure type high strength bolts Class 10.9 used to connect the
constructional elements.
5. Derusting and painting Or Hot-dip galvanized
Shot blasting to 2.5 and Applying Paint with the following
2 layers of primary anti-rust paint 80 microns.
1 coat of alkyd finishes paint 30-40 microns.
If hot-dip galvanized is around 60~80 microns.
Steel workshops are valuable for meeting the specific needs of different industries, from storing goods and housing manufacturing equipment to creating controlled environments for food storage and agriculture. They provide a practical and economical solution for businesses seeking adaptable, durable and functional spaces.
Design application
Manufacturing Plants
Vehicle and Equipment Repair Workshops
Cold Storage Facilities
Energy and Utility Facilities
Industrial Processing Plants
Agricultural Buildings
