Production Information

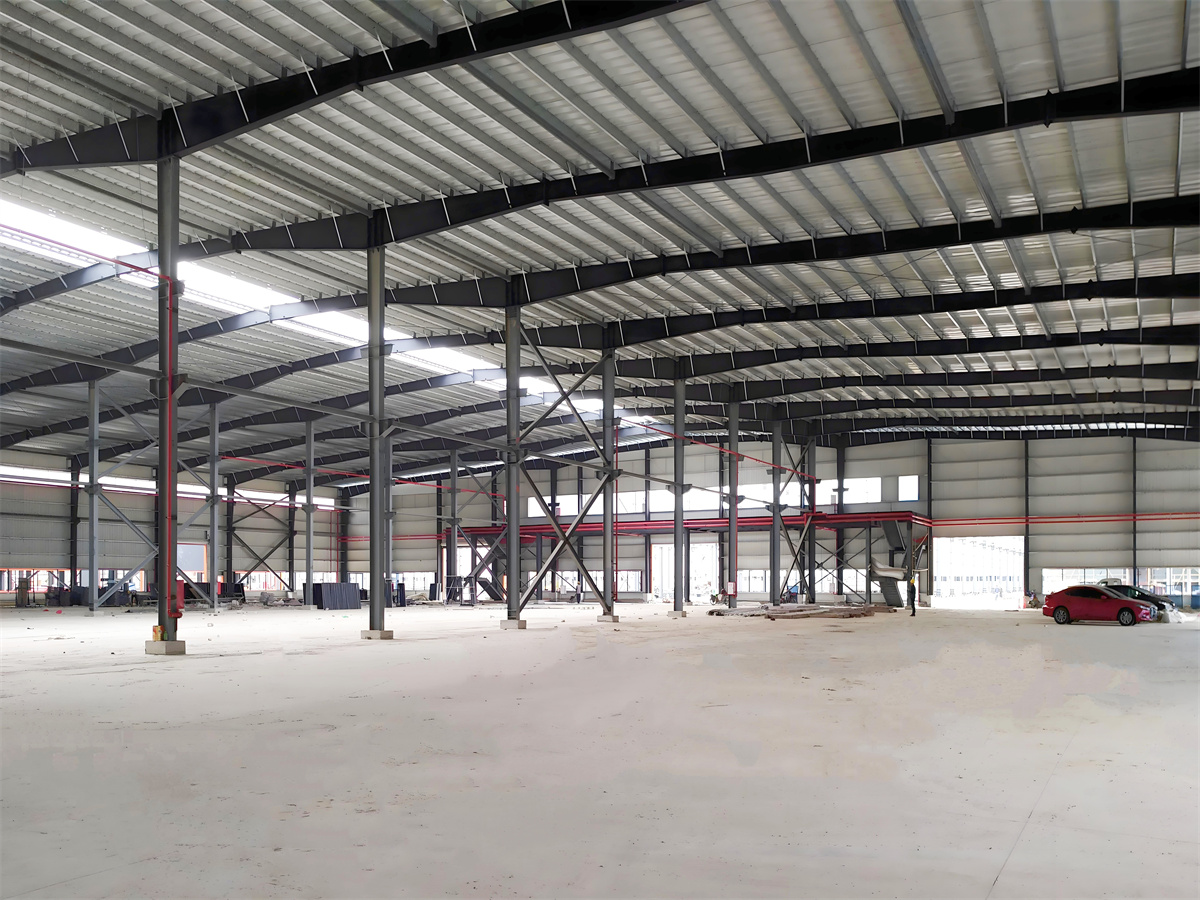

This large two-span steel structure workshop is specifically designed to support the manufacturing of carpet products.  Its stronger design features a spacious layout with a width of 36 meters, a length of 100 meters, and a height of 7.5 meters, making it ideal for accommodating large-scale production equipment and materials.

 (Project location:Uzbekistan ）

The steel structure ensures durability, flexibility, and efficiency, providing a reliable foundation for high-quality carpet production operations.

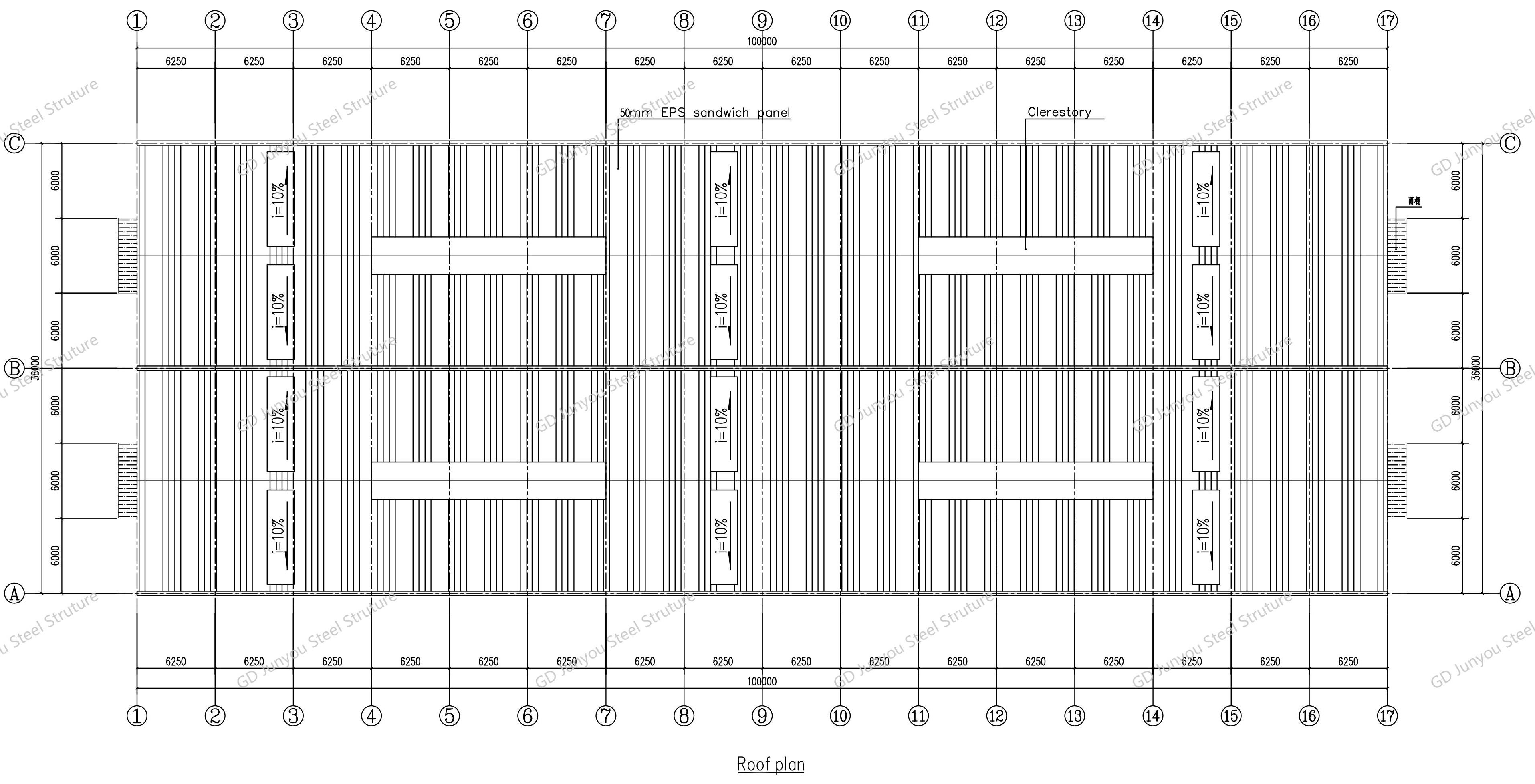

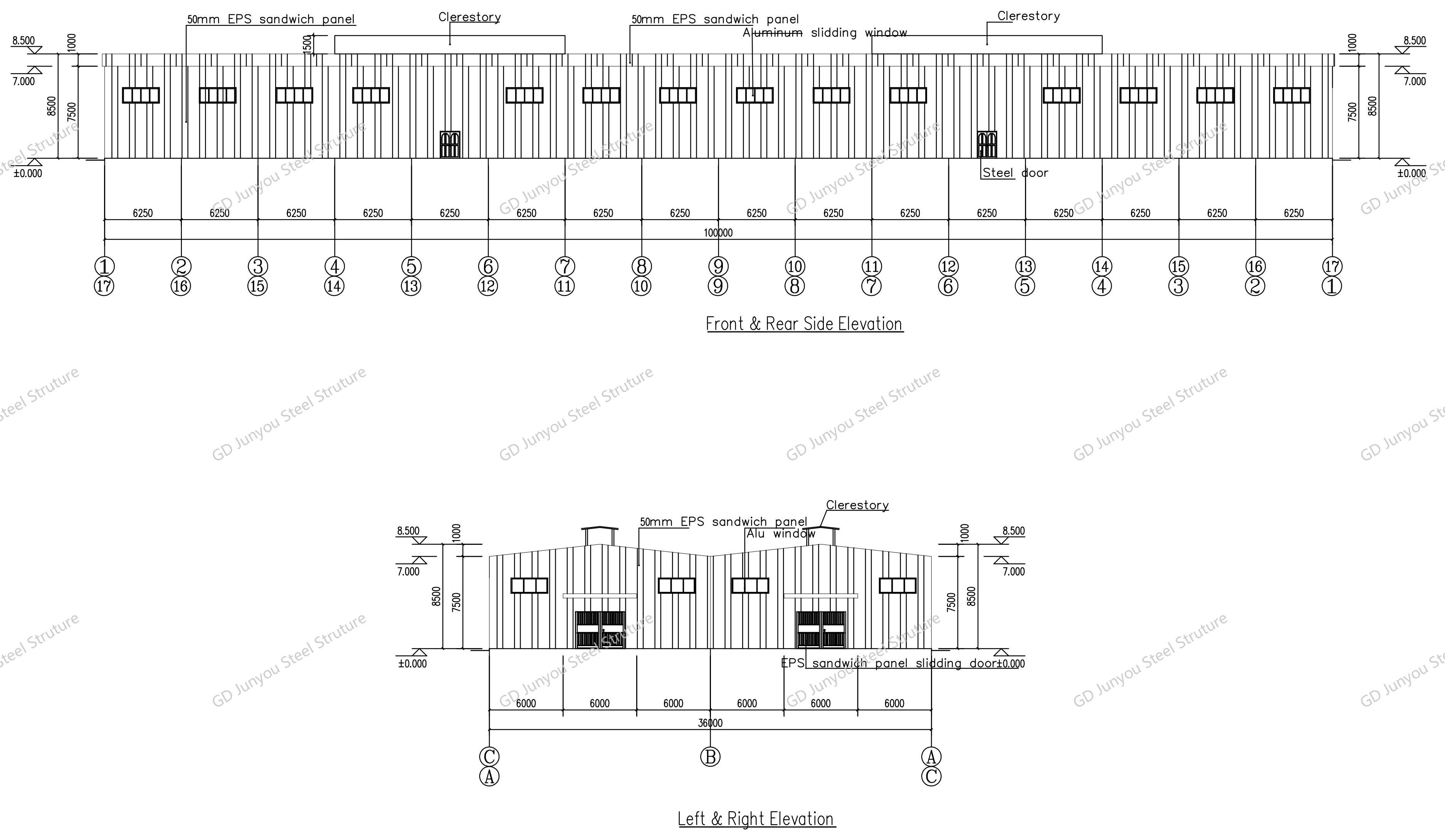

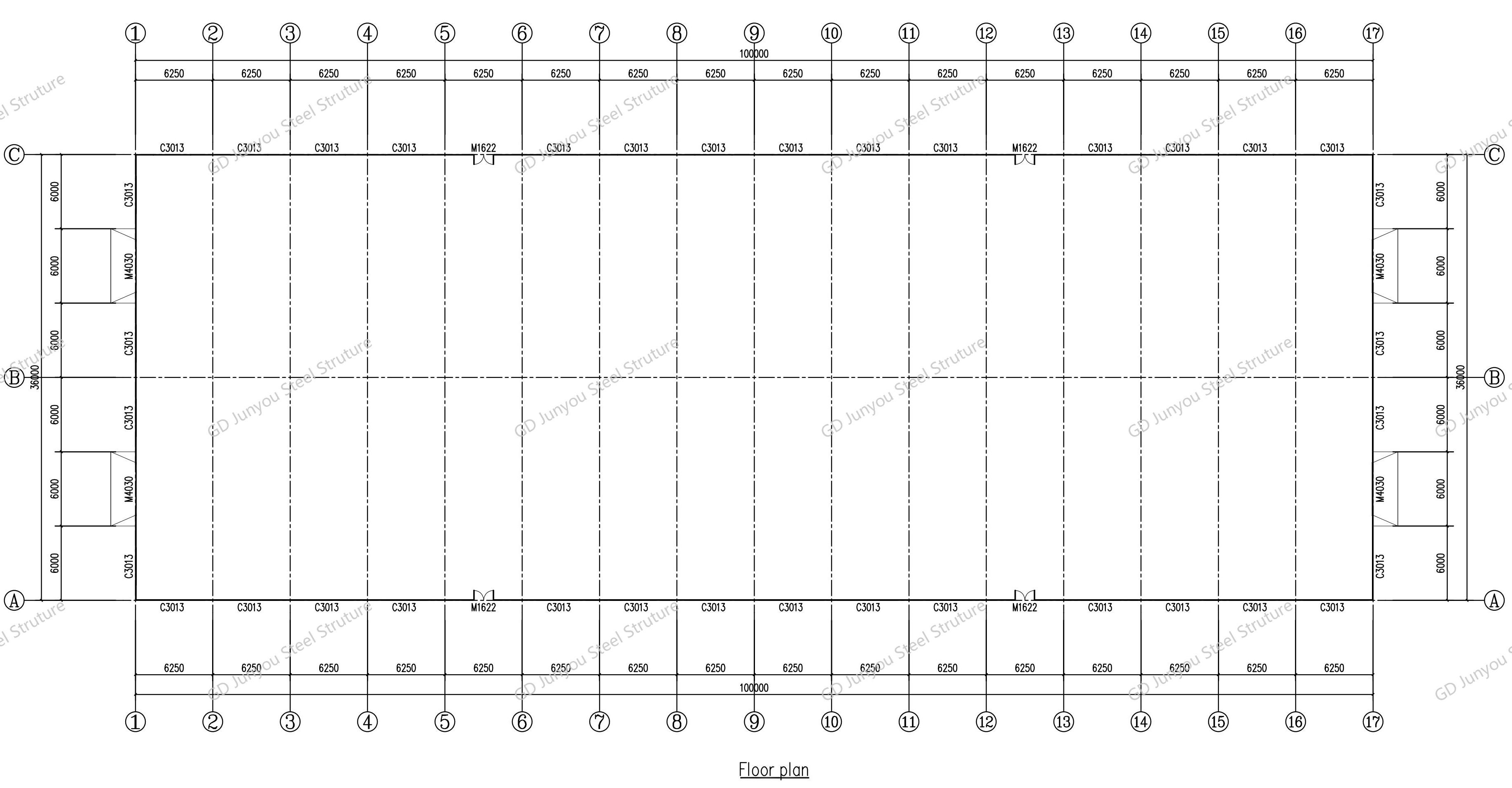

Steel workshop design

Steel structure design specification

1. Loads

Roof dead load: 0.25 kN/m 2

Roof live load: 0.3 kN/m2

Wind speed or wind load: 100km/h

Anti-seismic:7 grade

2. Materials (Q235B/Q355B)

• Steel column: HN350X175X7X10mm (20.7 ton)

• Wind column: HN300X150X6.5X9 (2.42 ton)

• Steel beam: HN300X150X6.5X9 (25.75 ton)

• Tie rod:  ∅89X3.0 (3.98 ton)

• Column bracing:  ∅22 steel bar (0.72 ton)

• Horizontal bracing: ∅22 steel bar(1.06 ton)

• Knee-brace: L50X3.0 (1.17 ton)

• Clerestory: [16 U-bar (2.88 ton)

• Roof purlin(Galvanized): C160*60*20*2.0 (20 ton)

• Wall purlin(Galvanized): C160*60*20*2.0 （10.26 ton）

• Connecting plate: 6mm～20mm steel plate (6.48 ton)

• Roof panel: 50mm EPS sandwich panel (3694 sqmt)

• Wall panel: 50mm EPS sandwich panel  (2082 sqmt)

• Slidding door : W4000*H3000 (4 units)

• Steel door: W1600*H2200 (4 units)

• Alumium slidding window: W3000*H1250 (36 units)

• Gutter: 2.0mm galvanized (304m)

• Down pipe: ∅110 PVC with accessories (396m)

• Trimming: 0.5mm steel sheet (1532m)

3. Welding

The minimum size of the fillet welding for any that is not defined in the

drawings shall be 6mm with full welding.

4. Fasteners( bolts and nuts) for jointing

High Strength bolts Class 10.9 used to connect the Steel Columns and

pressure type high strength bolts Class 10.9 used to connect the

constructional elements.

5. Derusting and painting

Shot blasting to 2.5 and Applying Paint with the following

2 layers of primary anti-rust paint 80 microns.

1 coat of alkyd finishes paint 30-40 microns.

The advantages of steel structure workshop

• High Strength and Durability

• Lightweight, Reducing Foundation Costs

• Fast Construction with Prefabricated Components

• Flexible Design for Large Spans and Open Spaces

• Cost-Effective and Reduces Waste

• Environmentally Friendly and Recyclable

• Resistant to Natural Disasters

• Low Maintenance Requirements

• Expandable and Easy to Modify

• Modern and Aesthetic Appearance

Steel structure workshop application

Design function

• Manufacturing Plants

• Vehicle and Equipment Repair Workshops

• Cold Storage Facilities

• Energy and Utility Facilities

• Industrial Processing Plants

• Agricultural Buildings
