Product Information
The development of steel structure industrial workshops/plants is becoming increasingly mature, and people's acceptance levels are also getting higher and higher. Nowadays, the design of the steel workshop or plant is getting more and more attractive. Besides fulfilling the functions, it also meets the requirements of a modern and good-looking appearance.

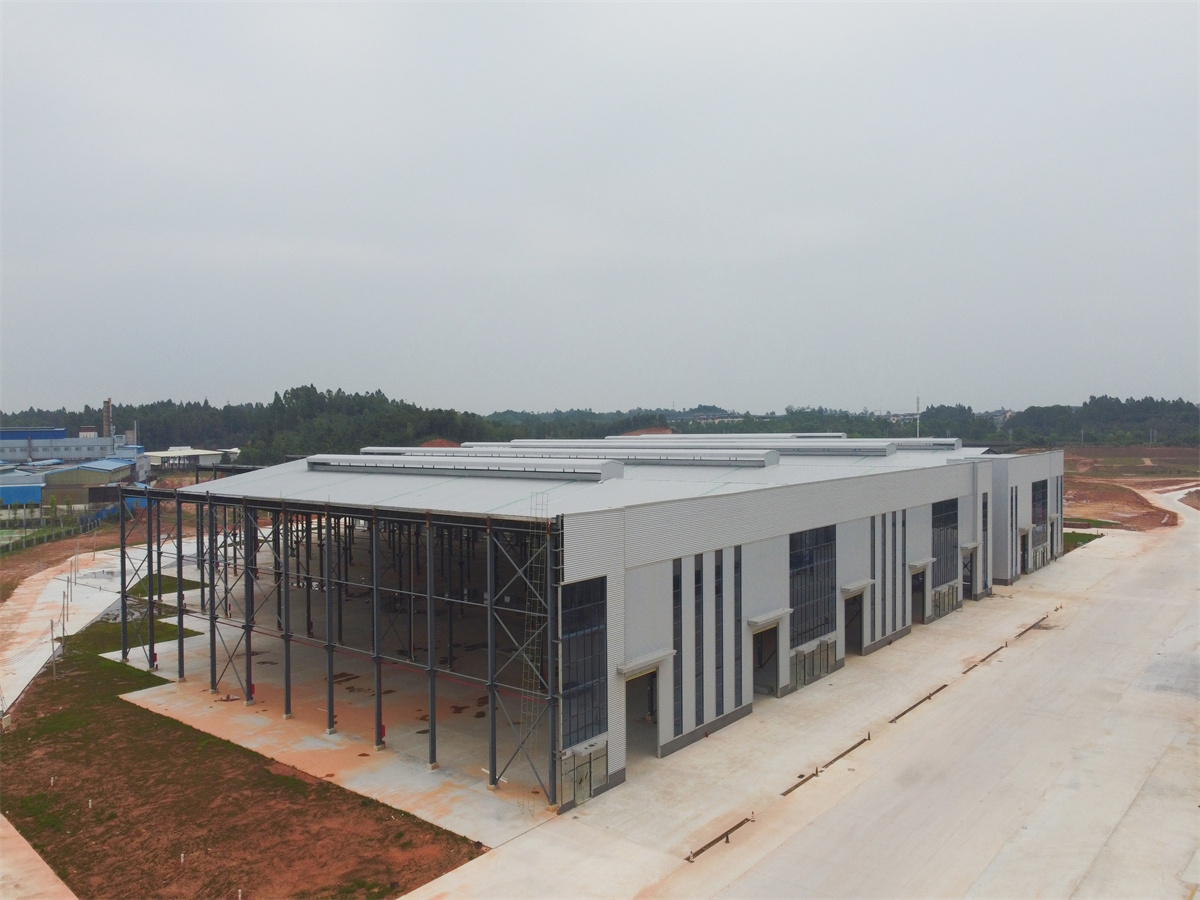

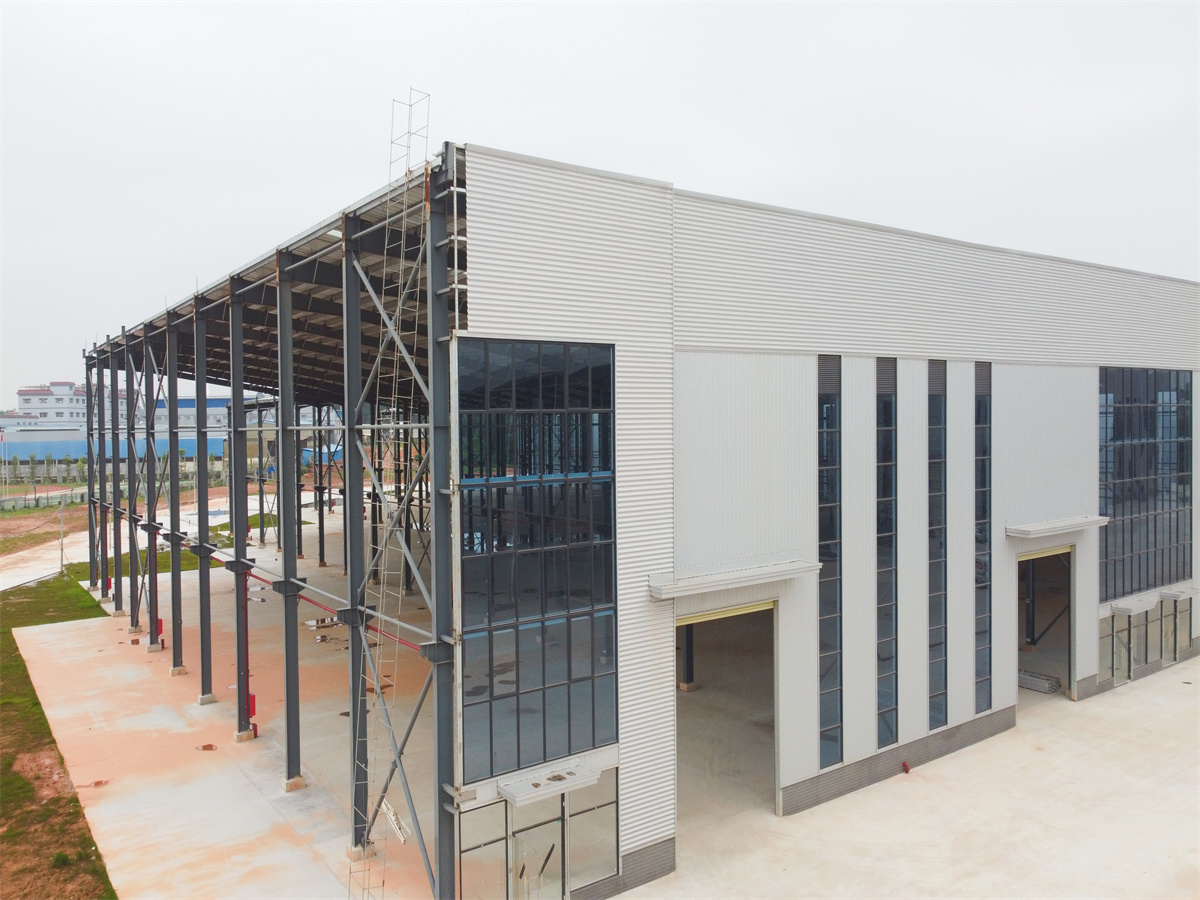

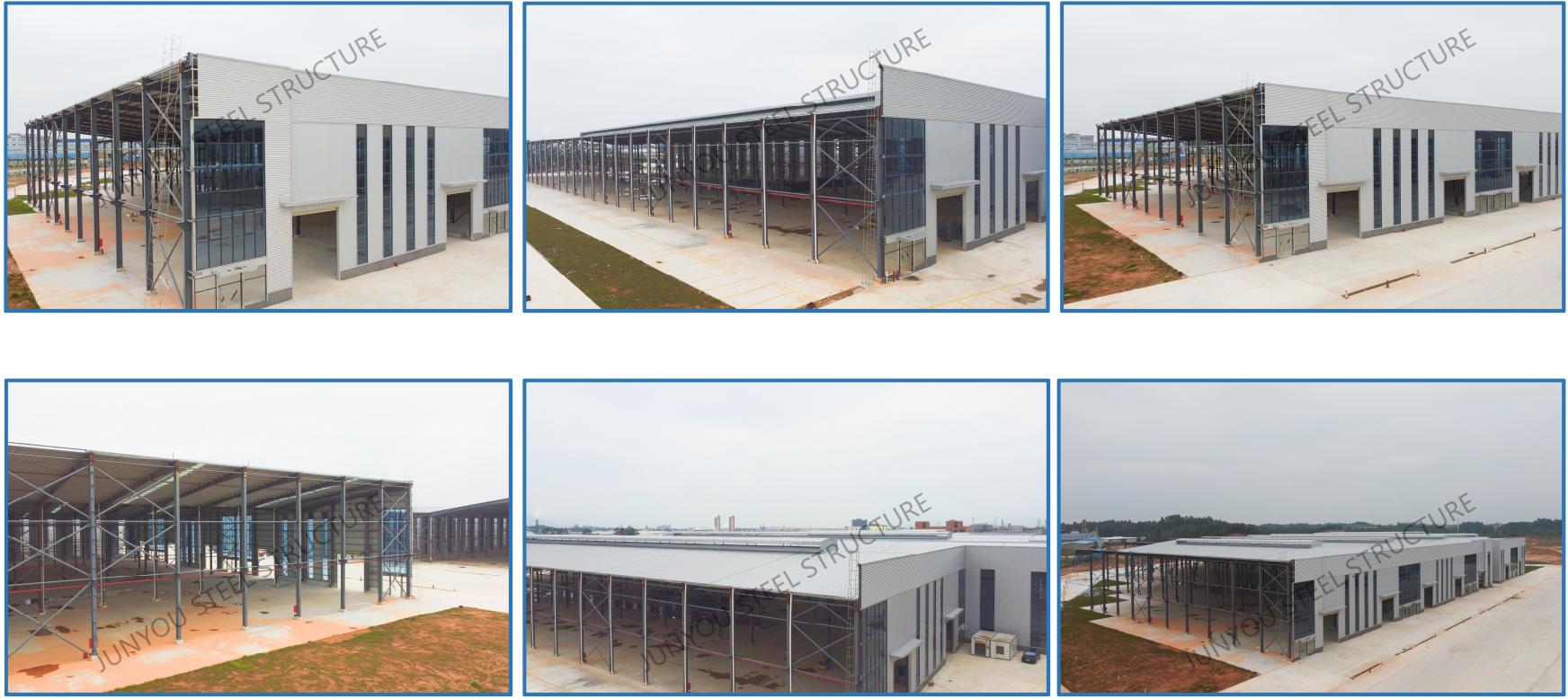

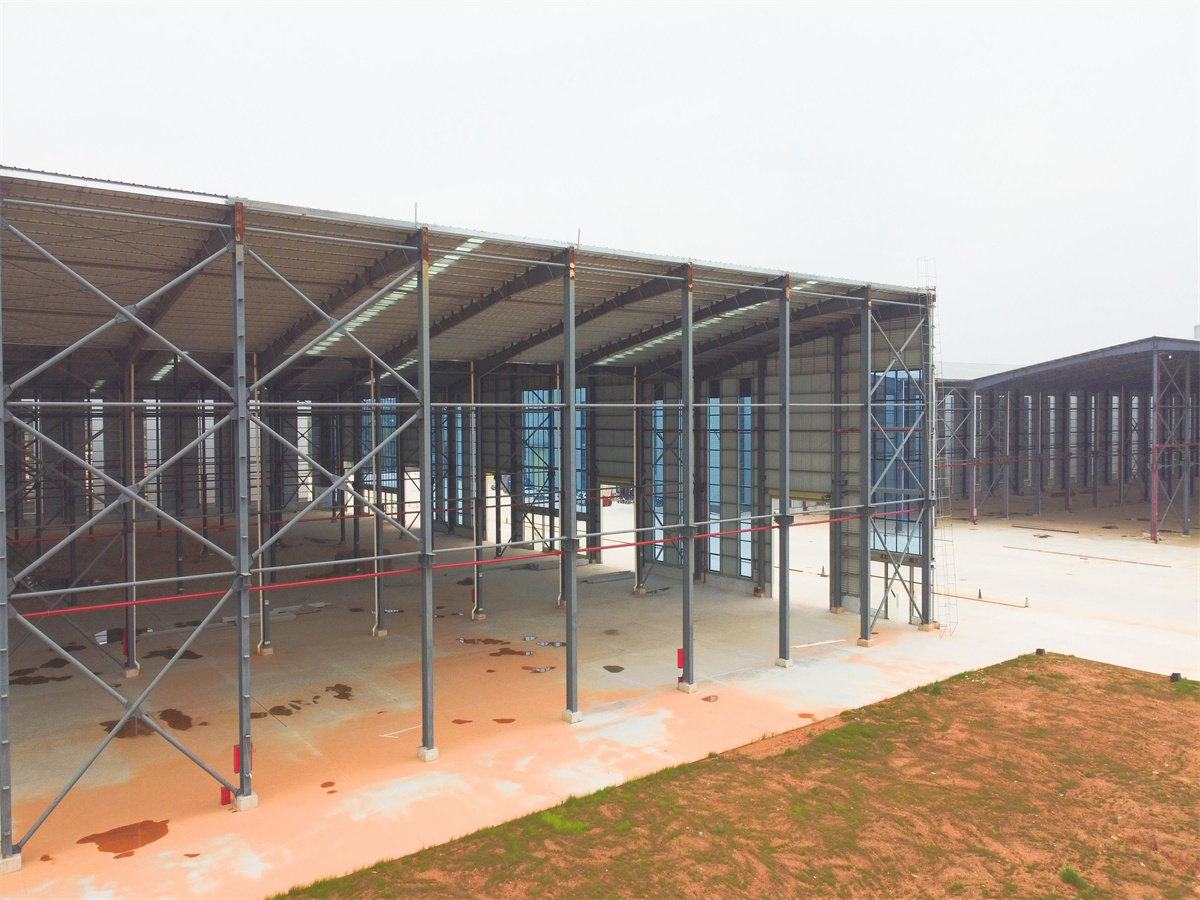

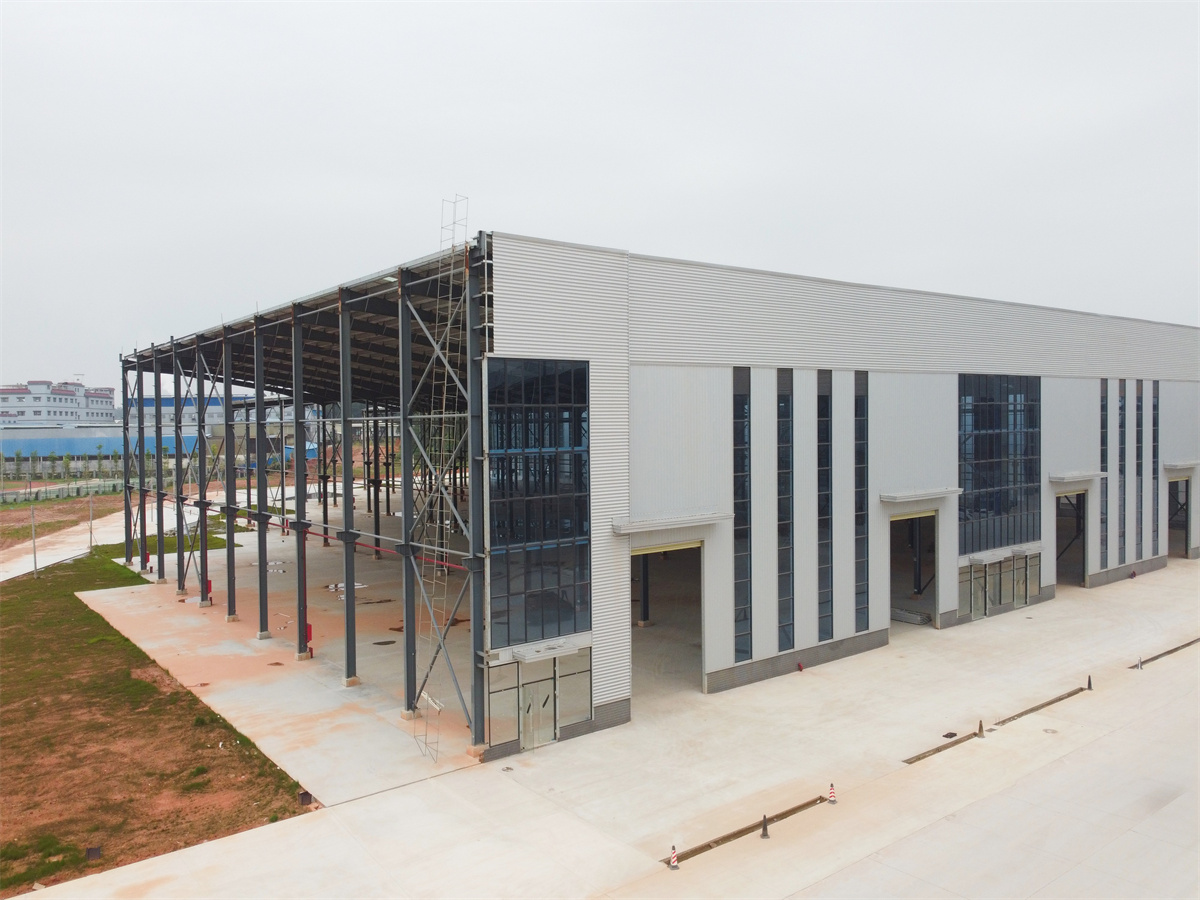

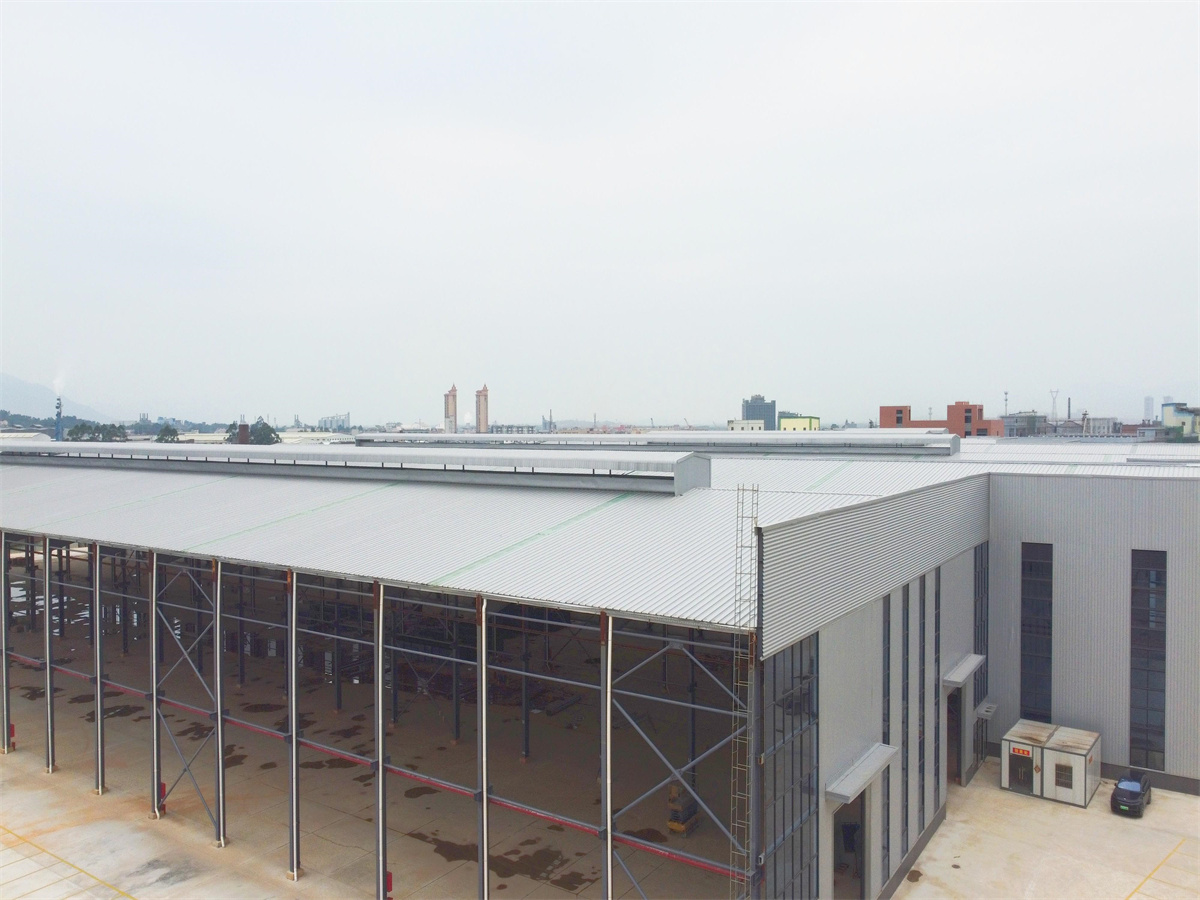

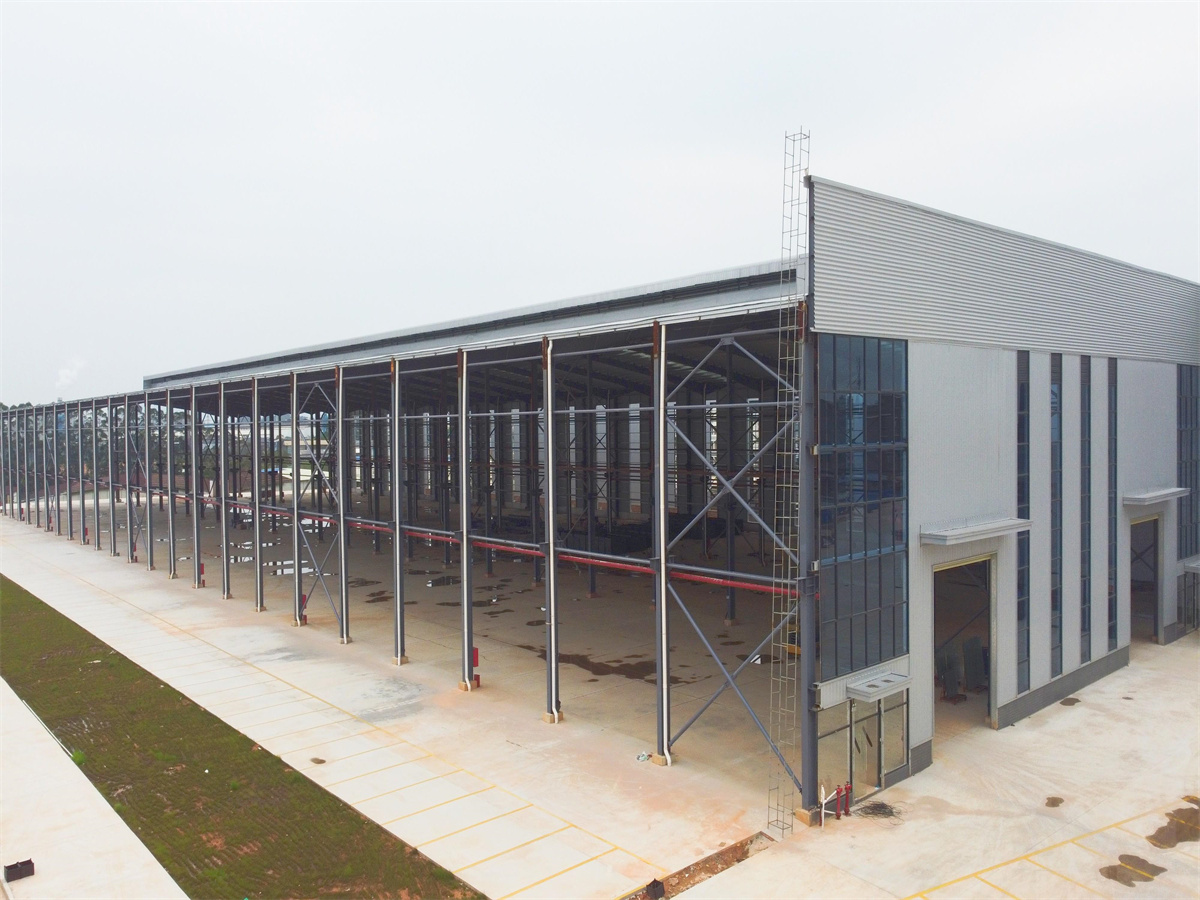

The steel workshop project we introduce here is a modern design workshop with a small office inside. From the outside, you can see more glass features than the normal industrial workshop. Like the glass curtain wall, the glass door for the entrance, and the glass-fixed window on the wall from the bottom to the top, straight line parapet wall, it just looks nice. While the industrial workshop usually has fixed windows on the upper wall and sliding windows at about 1.2m high, the door is the roll-up door. The below is the project pictures shows:

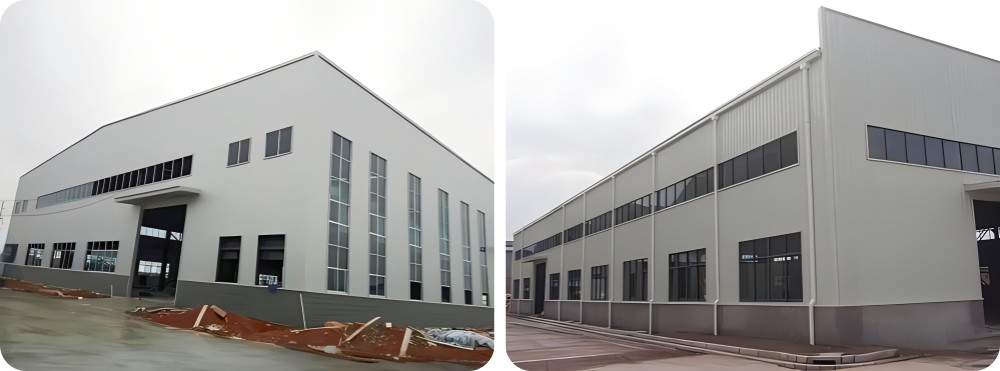

Parapet wall features
A parapet wall is a low protective wall along the edge of a roof, balcony, bridge, or other elevated structure. The function of a parapet wall in a steel structure workshop mainly includes: providing safety to prevent falling; enhancing the overall stability of the building; protecting the interior space from external influences; and adding to the aesthetics of the workshop.
Material list with specification
The main components of steel structure workshop buildings include steel columns, steel beams, steel trusses, purlin, and bracing, which are connected by bolts at the site. The walls and roofs of steel structure workshops can be made of corrugated steel plates, sandwich panels, brick walls, and half prefabricated panel half brick walls according to the specific requirements and design of the building.
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel workshop advantage:
High-strength steel material, the main steel structure frame design life span can last more than 50 years;
Steel portal frame structure uses H Beam and I beam to make wind resistance, snow resistance, and earthquake resist design;
Hot dip Galvanize and paint the structure frame for options to meet the different needs for anti-rust whether close or not close to the sea.
Maximize the use of indoor space, clear span can reach 60m;
Roof and wall cladding insulation & single steel sheets are both available to match different kinds of client budgets.
Bolt assembly without on-site welding can speed up the installation work. This can save time and labor costs during installation.
Customized steel building appearance design to fit a certain local or a specific company brand.
Steel structure workshop application

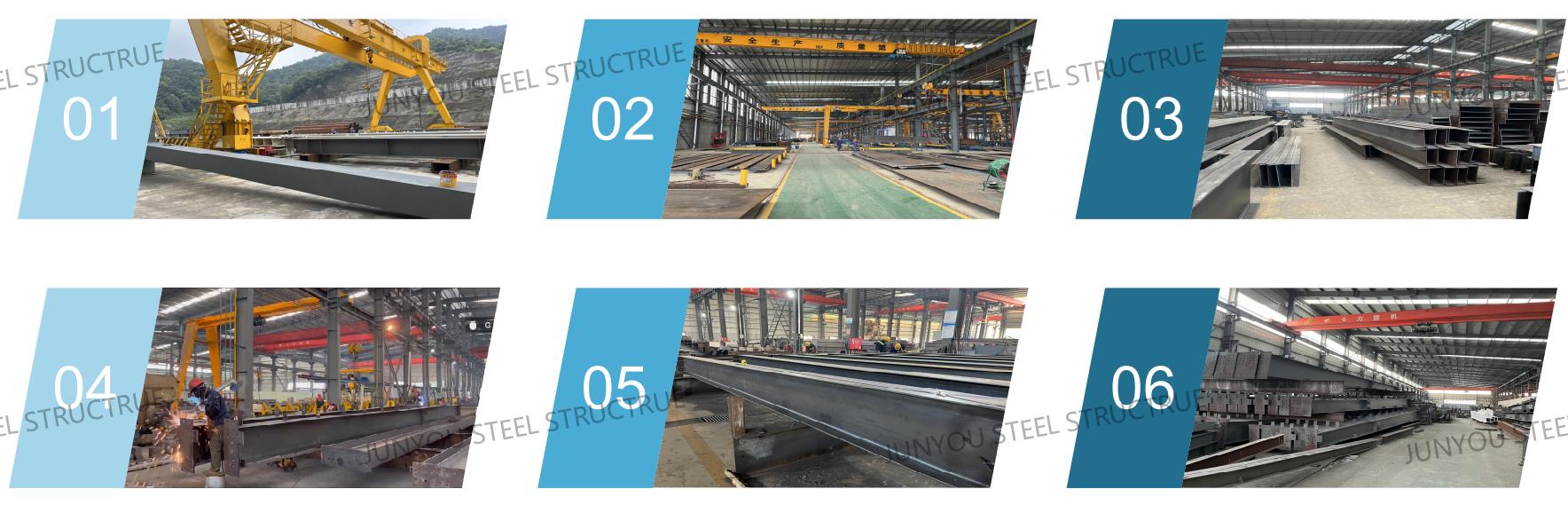

About Junyou Steel Structure:
We have extensive experience and can provide you with a range of steel structure types and designs. These include prefabricated steel warehouses/workshops/steel buildings/chicken farms/hangars/chicken coops/storage sheds/agricultural barns...
All of our workshop buildings are customized to meet our customers' specific requirements. This includes considerations such as size, layout and integration of features such as overhead cranes, ventilation systems and insulation. Our philosophy is that by providing quality steel workshops, we can provide our customers with dedicated operating space, increase productivity and ensure efficient workflows. This is exactly why our customers choose to build steel structures factories with us.
