High-strength Durable Metal Workshop Building

Product Description

A steel workshop is a structure specifically designed to provide an industrial workspace for various types of manufacturing or assembly processes. These buildings are usually made of steel frames and cladding and have multiple advantages compared to other building materials such as wood or concrete. Some of the advantages of steel workshop buildings include durability. Steel is a very strong and durable material, which makes it an ideal choice for industrial buildings that need to withstand heavy use, as well as harsh weather conditions.

All the workshop buildings we make are customized to fit the specific needs and requirements of our clients, including the size, layout, and features such as overhead cranes, ventilation systems, and insulation. We believe offering a good steel workshop can provide our client with a dedicated space for production, ensuring efficient workflow and improving productivity.This is precisely the significance of customers building a steel structure factory.

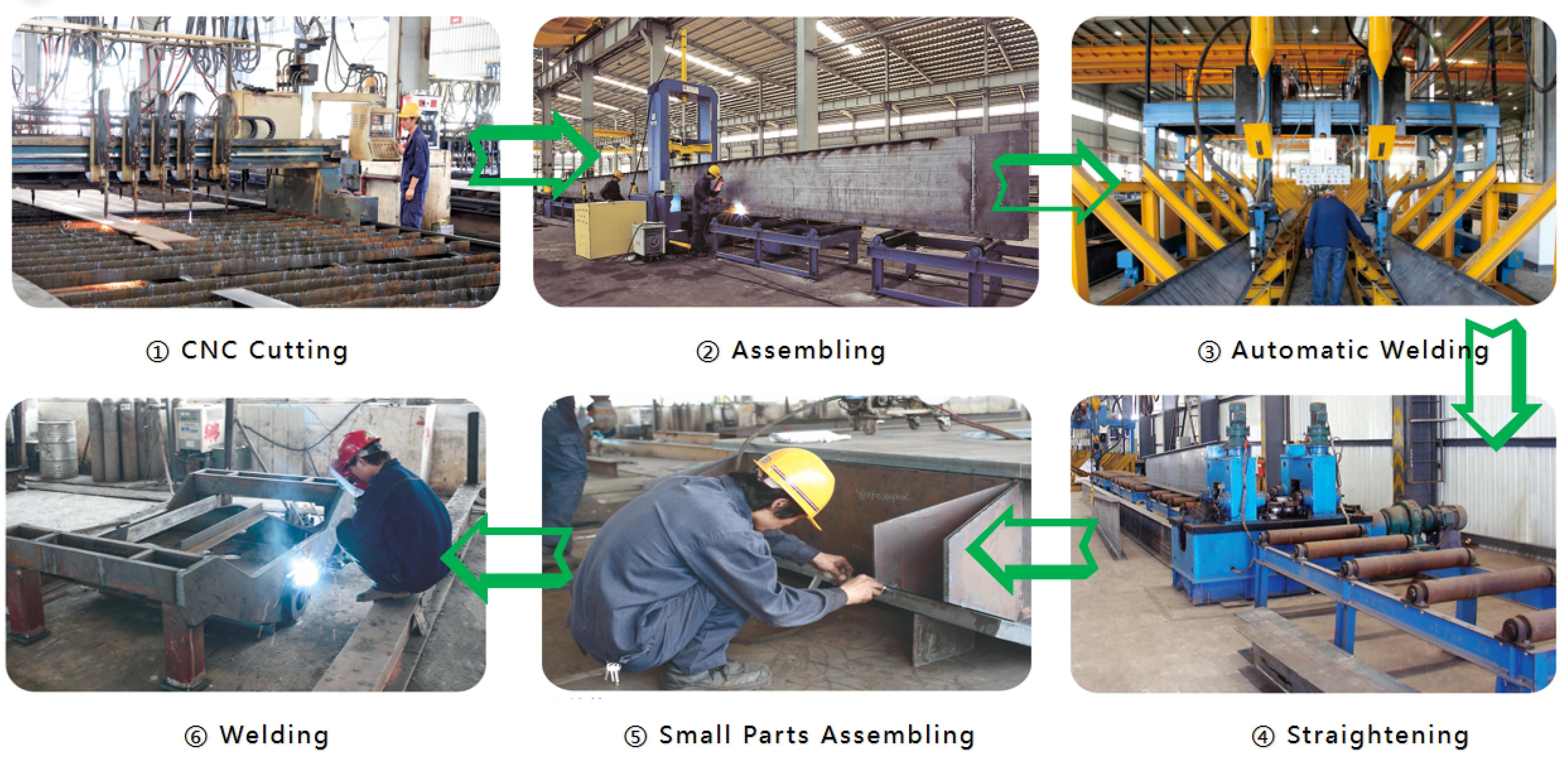

Processing and production steps

• CNC Cutting

• Assembling

• Automatic Welding

• Welding

• Small parts assembling

• Straightening

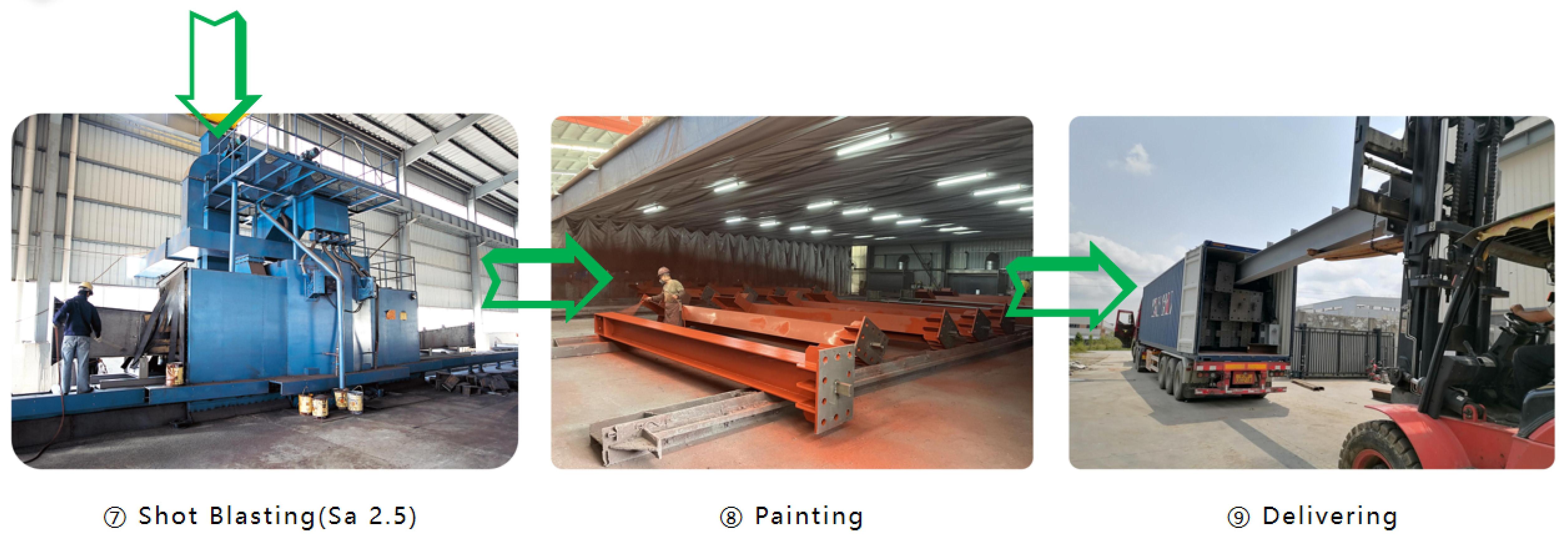

• Shot blasting (Sa 2.5)

• Painting/Hot-dip galvanized

• Delivering

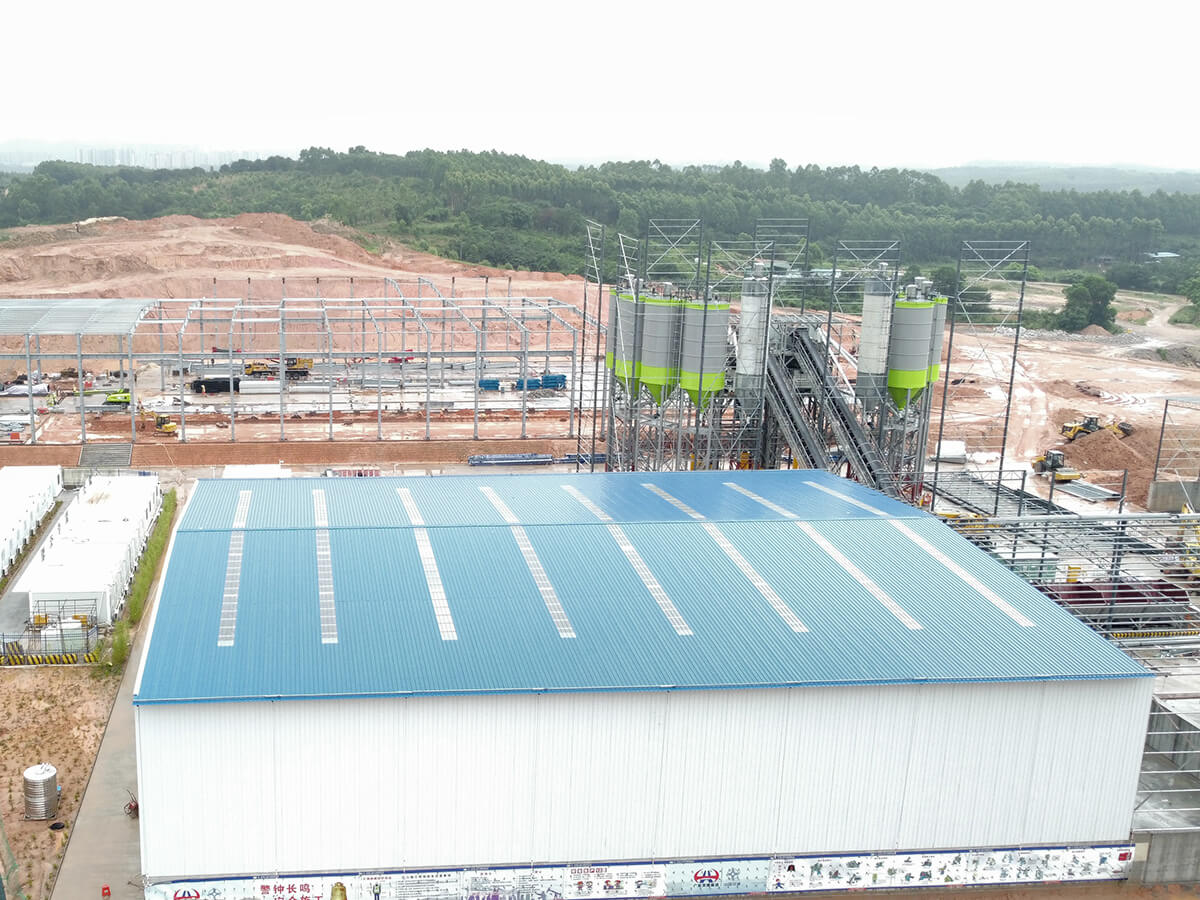

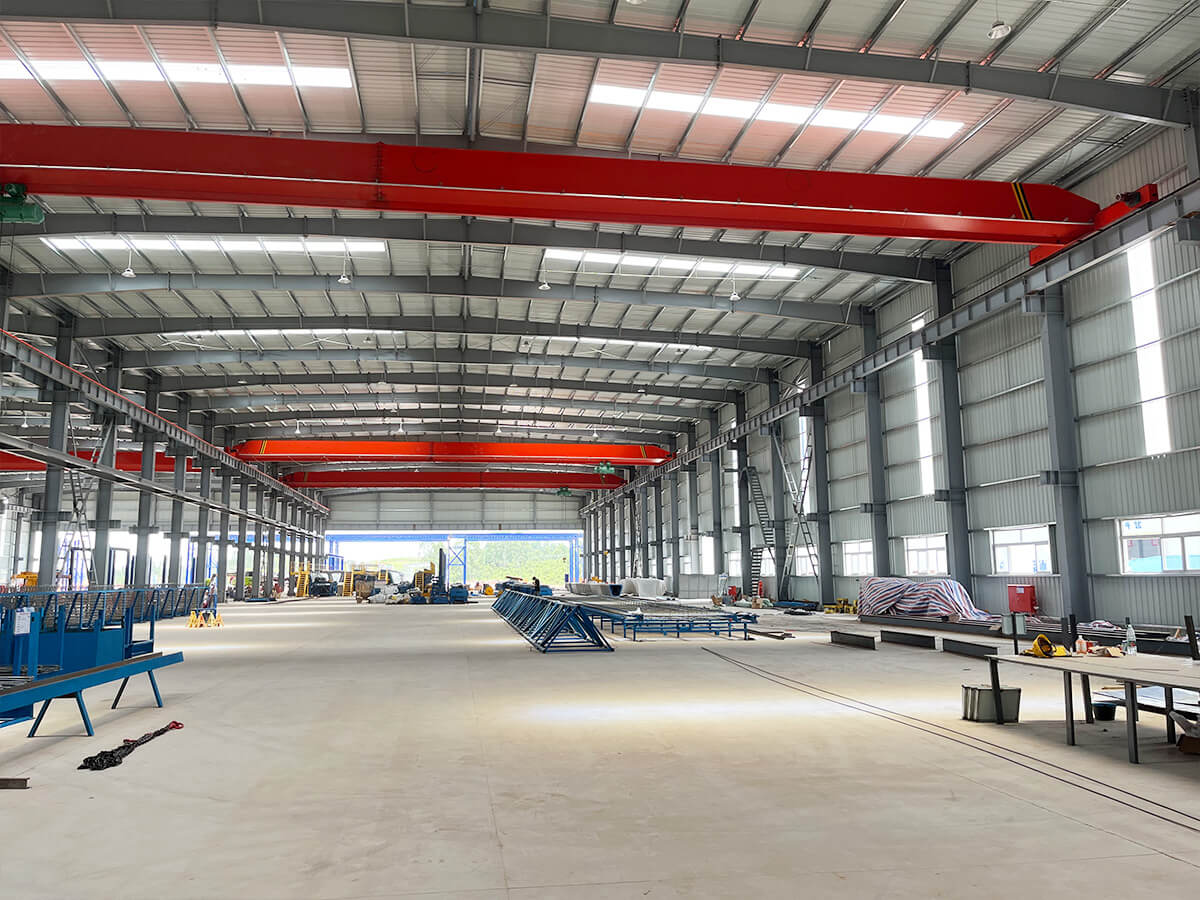

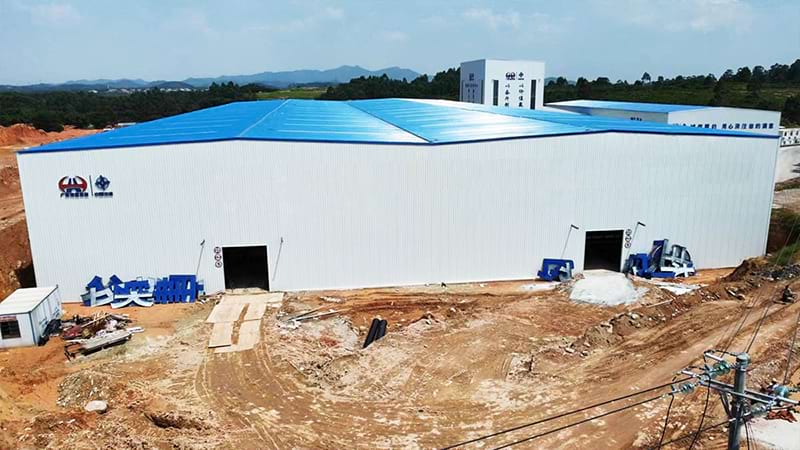

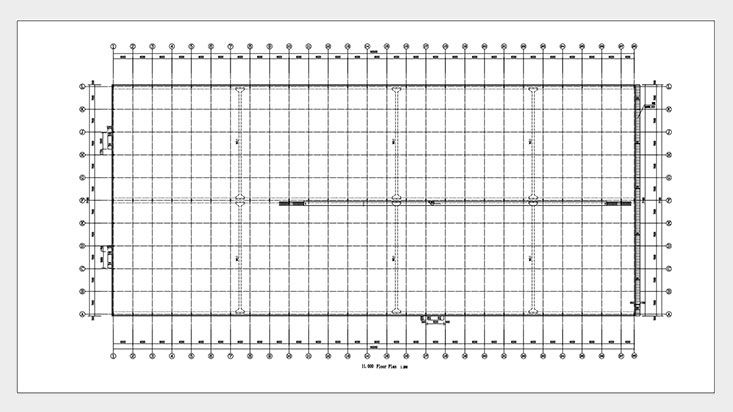

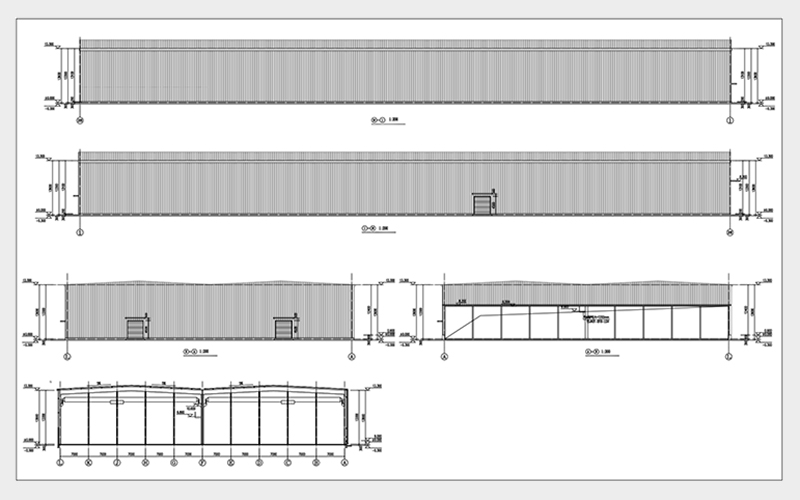

This is a high-quality heavy-duty metal workshop in size:160.2x71x13.6m, with 3 x electric roll-up doors,10 unit 10 tons overhead cranes, and corrugated steel sheet for wall and roof panel.

The steel workshop component are as follows:

I	Main steel frame
1.	Steel structure frame	Welded H steel	Q235B/Q355B	Painting/Hot-dip galvanized
2.	Wall/Roof purlin	C/Z steel	Q235B	Galvanized
II	Bracing Part
1.	Tie Rod	∅89/114/158	Q235B	Painting/Hot-dip galvanized
2.	Flexible Bracing	∅16/18/20	Q235B	Painting/Hot-dip galvanized
3.	Sag rod	∅20	Q235B	Galvanized
4.	Brace Rod	∅32	Q235B	Galvanized
5.	Knee-brace	L50	Q235B	Painting/Hot-dip galvanized
III	Roof & Wall Part
1.	Roof /Wall panel	Steel sheet	0.326~0.7mm corrugated steel sheet
		Insulated sandwich panel	EPS,Glass wool/Rock wool/PU insulated
2.	Roof/Wall trimming	Ridge roof panel	0.4~0.5 mm steel sheet
		Flashing	0.4~0.5 mm steel sheet
		Gable wall trimming	0.4~0.5 mm steel sheet
		Wall corner trimming	0.4~0.5 mm steel sheet
IV	Window & Door part
1.	Window	PVC/Aluminum frame	Single/double glazing (Fixed/sliding/swing)
2.	Door	Rolling/sliding door	Automatic and manual method
V	Accessories
1.	Bolts	Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud
2.	Gutter	Steel sheet/galvanized/Stainless steel(304)
3.	Downpipe	PVC 110/160
4.	Roof Ventilator	∅600 (Galvanized)

Steel workshop building component display

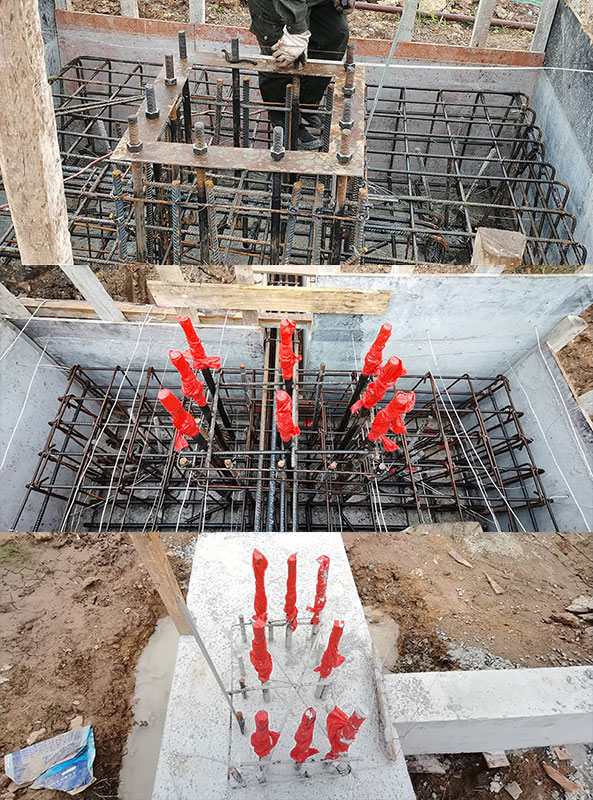

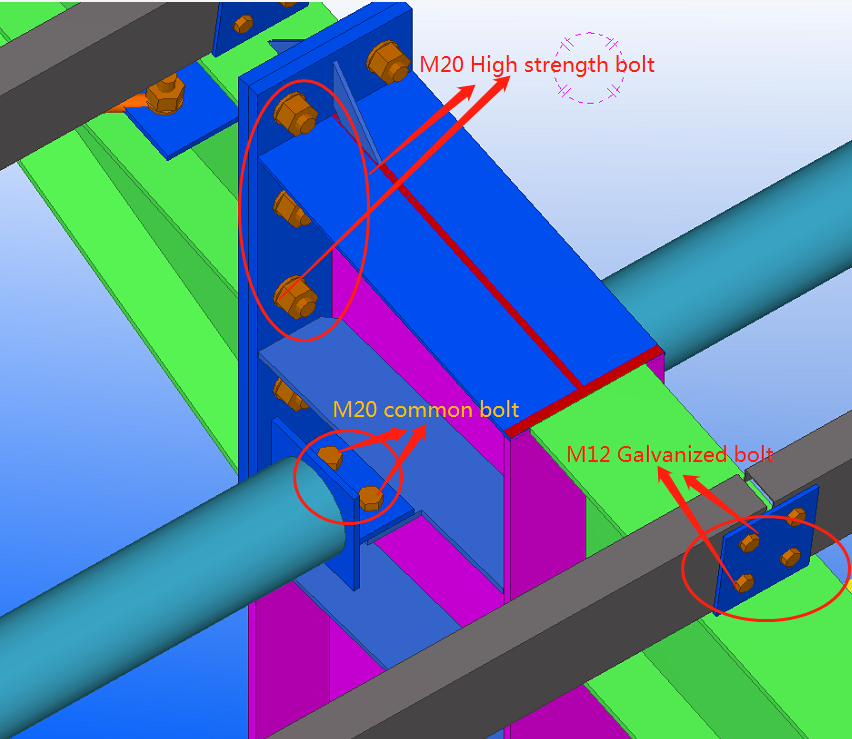

1>Fasteners( bolts and nuts) for jointing: The common connection method of ordinary steel structure workshop is anchor bolt(φ24~φ64mm) connections. It includes hinge connection and rigid connection. High Strength bolts M20,10.9 Grade are used to connect the steel columns and pressure-type constructional elements. Common bolt M20 is for tie rods connect to the columns,and galvanized bolt M12 is for roof and wall purlin.

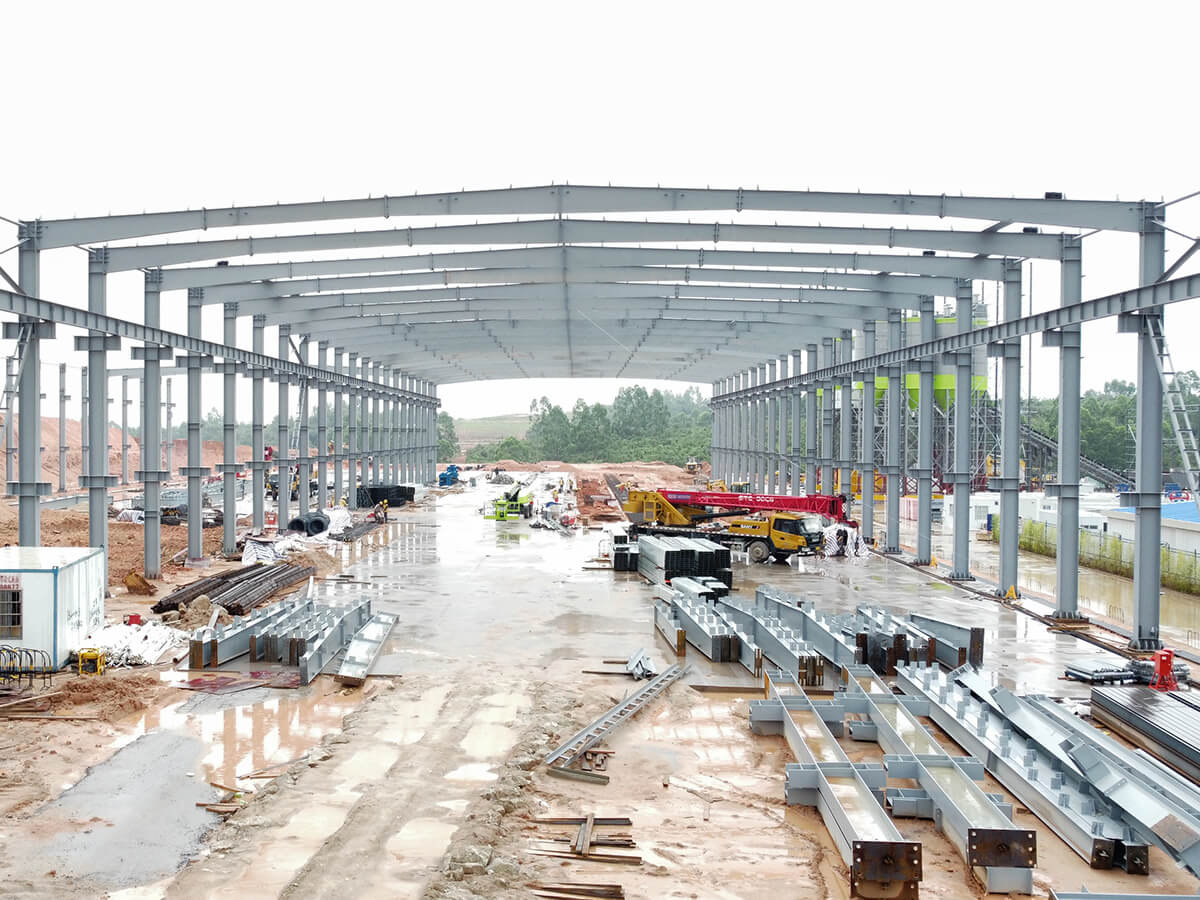

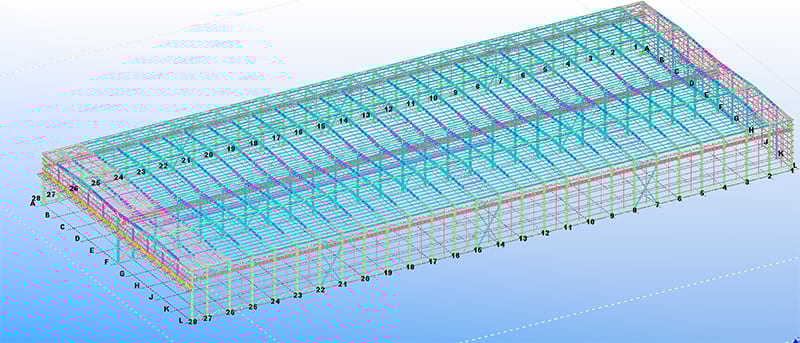

2>Primary framing: This includes the steel columns, beams, and trusses that provide the structural support for the building. These components are made from high-strength steel and are designed to withstand various loads and forces.

3>Secondary framing: This includes purlins, bracing, and eave struts that support the roof and wall panels. These components help distribute the load evenly and provide additional structural stability.

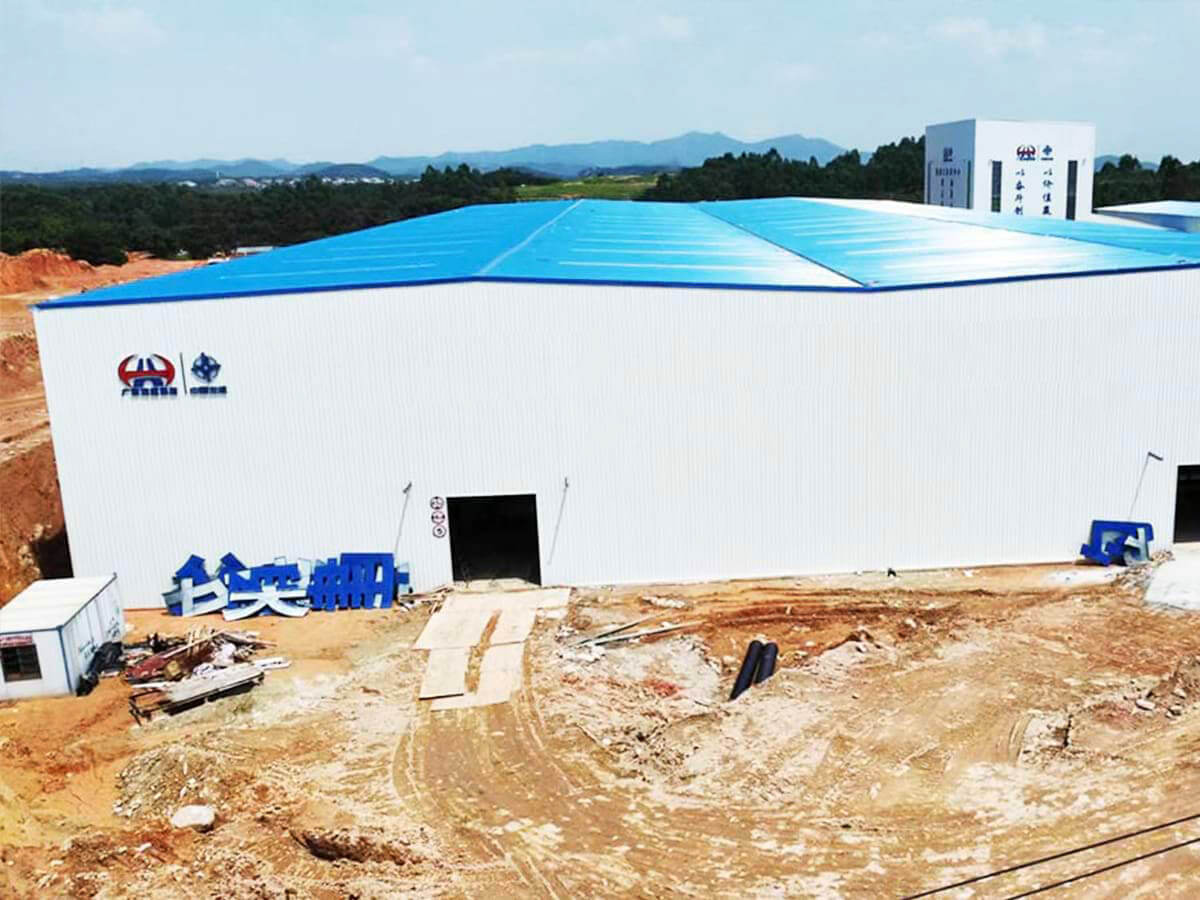

4>Roof and wall panels: Steel workshop buildings are typically enclosed with steel roof and wall panels. These panels offer weather protection, and insulation, and can be customized to meet specific aesthetic requirements.

5>Doors and windows: Steel workshops often have large doors, such as overhead roll-up doors or sliding doors, to accommodate the entry and exit of equipment and materials. Windows can also be included to provide natural light and ventilation.

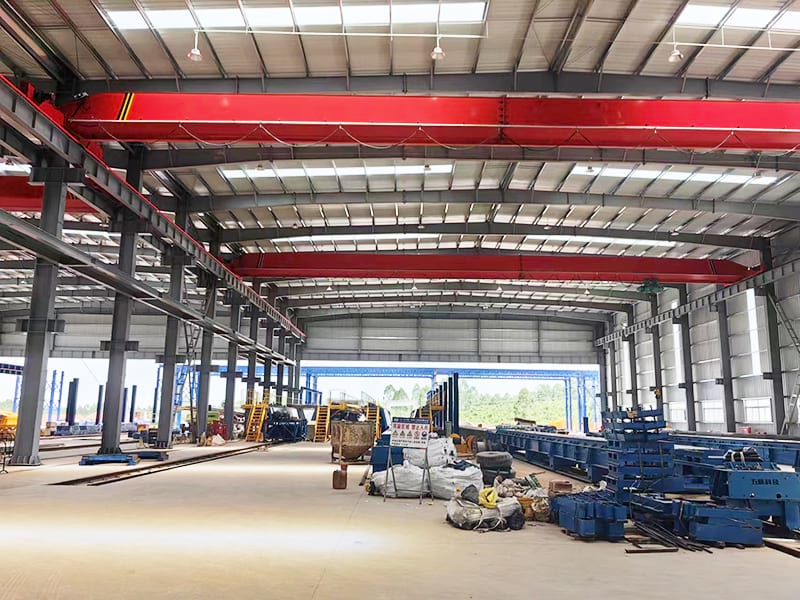

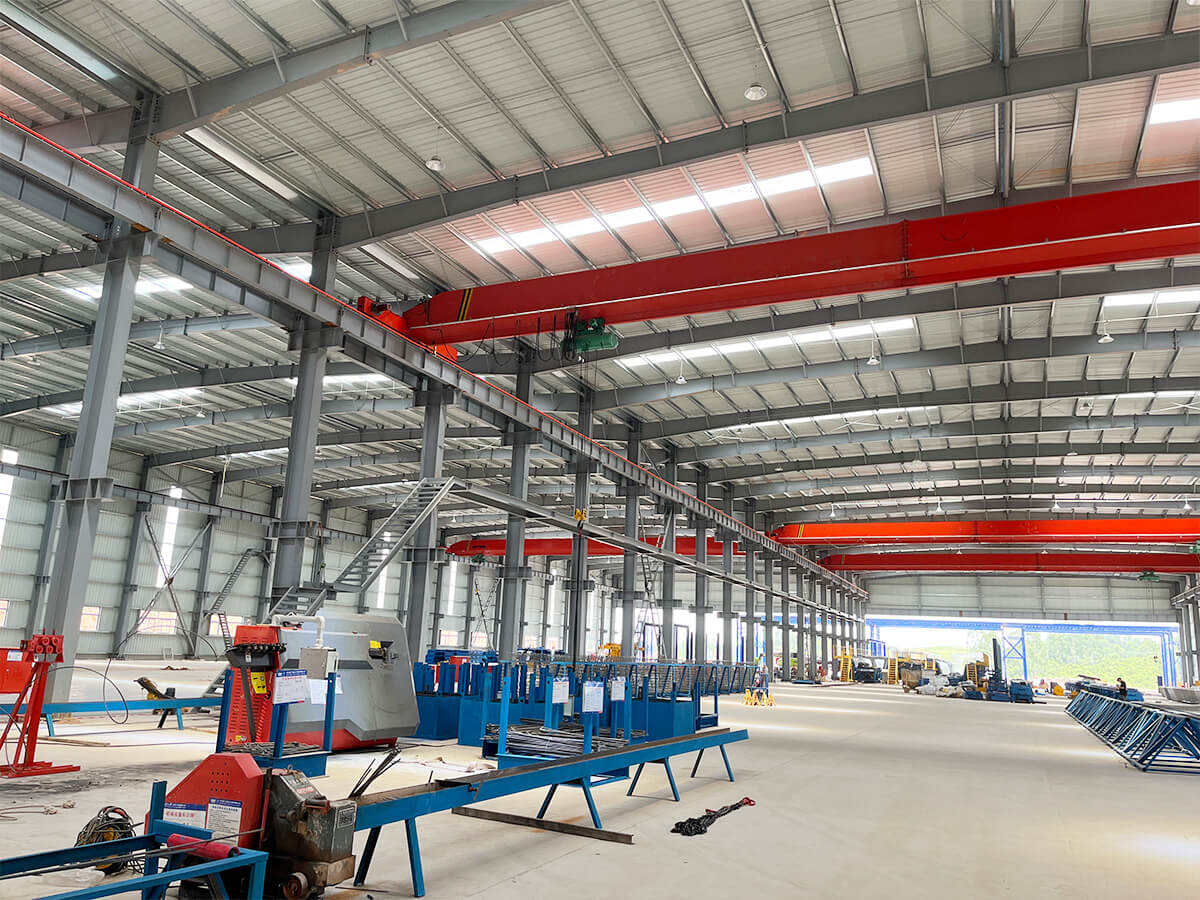

6>Overhead cranes: Depending on the workshop's requirements, an overhead crane(5~20 tons)system may be installed. These cranes help with lifting and moving heavy materials and equipment within the workshop.

7>Utilities and services: Steel workshops can be equipped with essential utilities such as electrical systems, lighting fixtures, heating, ventilation, and air conditioning (HVAC), plumbing, and fire protection systems.

The advantages of steel workshop construction：

1)steel structures can be used for a wide range of purposes, including factories, warehouses, office buildings, gymnasiums, and hangars. They are suitable for both single-story long-span buildings and multi-story or high-rise constructions.

2)the construction process is relatively simple and quick. All components are prefabricated in the factory, and on-site assembly is easy, significantly reducing the construction period.

3)steel structures are durable and require minimal maintenance. They can withstand harsh weather conditions and only need simple upkeep.

4)steel structures offer aesthetic appeal and practicality. The clean lines of steel buildings provide a modern look, and colored wall panels offer a variety of design options. Other materials can also be used for the walls, allowing for greater flexibility.

5)steel construction is cost-effective. The lightweight nature of steel reduces foundation costs, and the fast construction speed allows for quicker completion and production. Overall, the comprehensive economic benefits of steel structures are often better than those of concrete structures.

Steel workshop application

Industrial manufacturing, automotive repair and maintenance, logistics and warehousing, agriculture(poultry farm product processing, barn shed), commerce(showroom, shopping center), sports center, education and training, technology research and development, culture and art, temporary buildings, etc. Their flexibility, quick build, and scalability make them suitable for a variety of industries and projects.
