Product Information
Prefabricated steel structure workshop buildings, or pre-engineered steel factory buildings and steel plants, are simple steel frame structures with H-shaped column and roof truss constructions. We can customize the width, height, floor, roof, and insulation materials according to your needs. Just tell us your budget, and we will recommend suitable materials based on your budget. Steel buildings are very popular nowadays because they are versatile, efficient, and of high-quality steel construction.

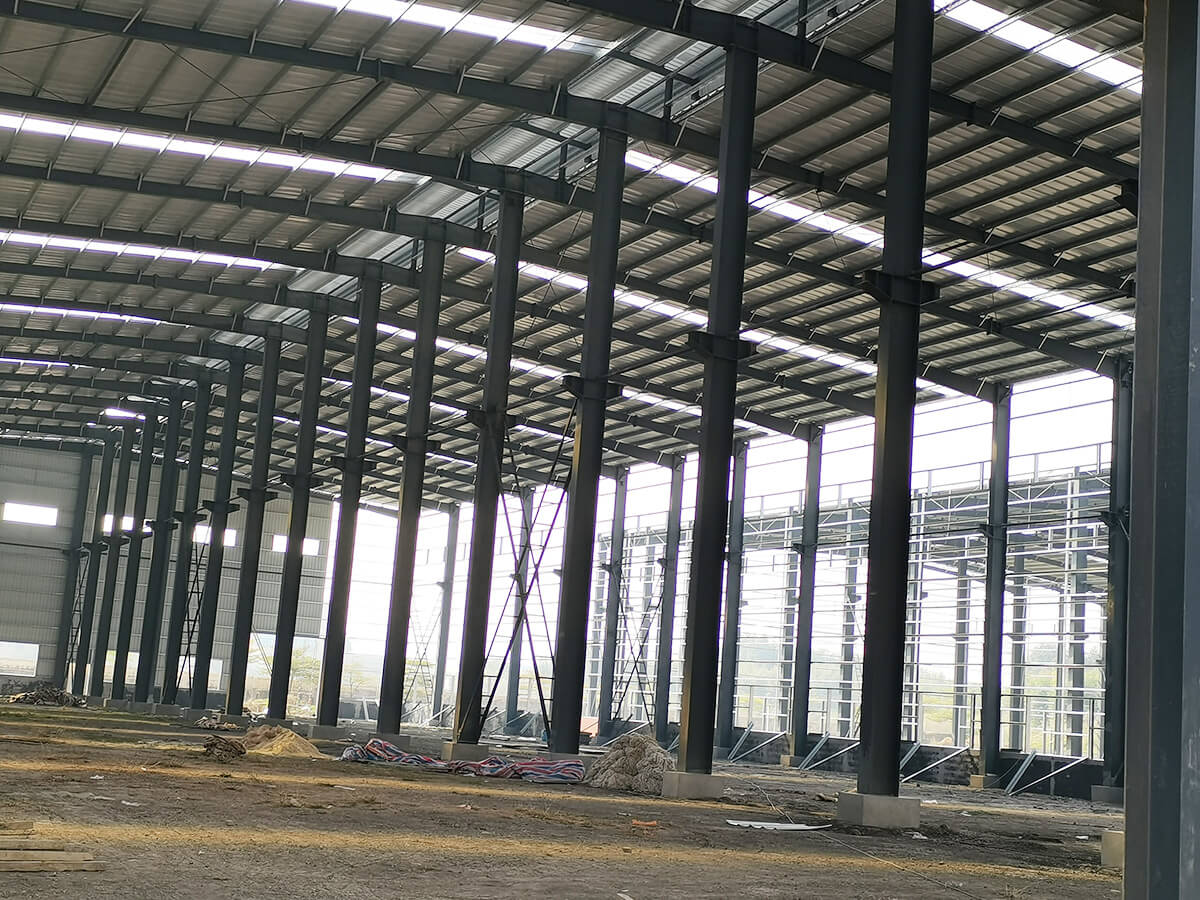

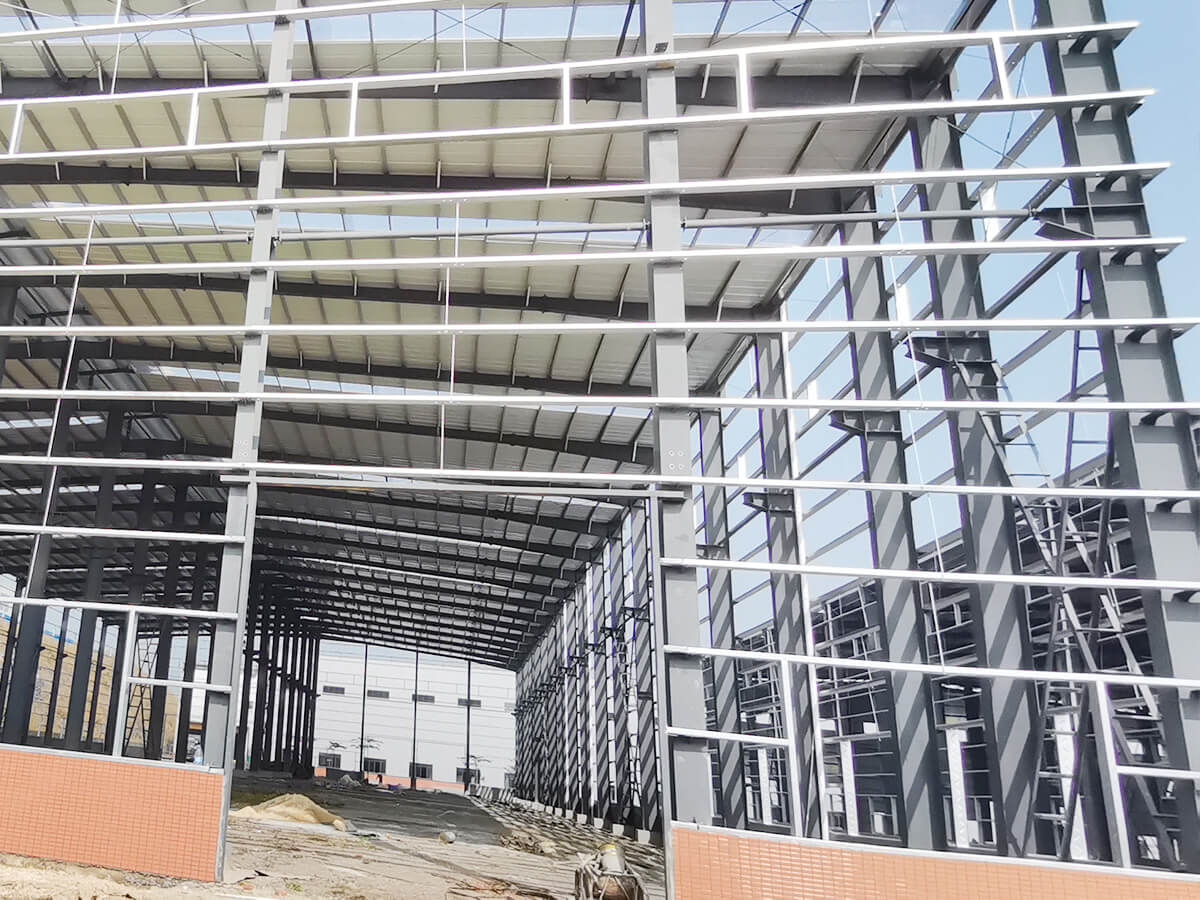

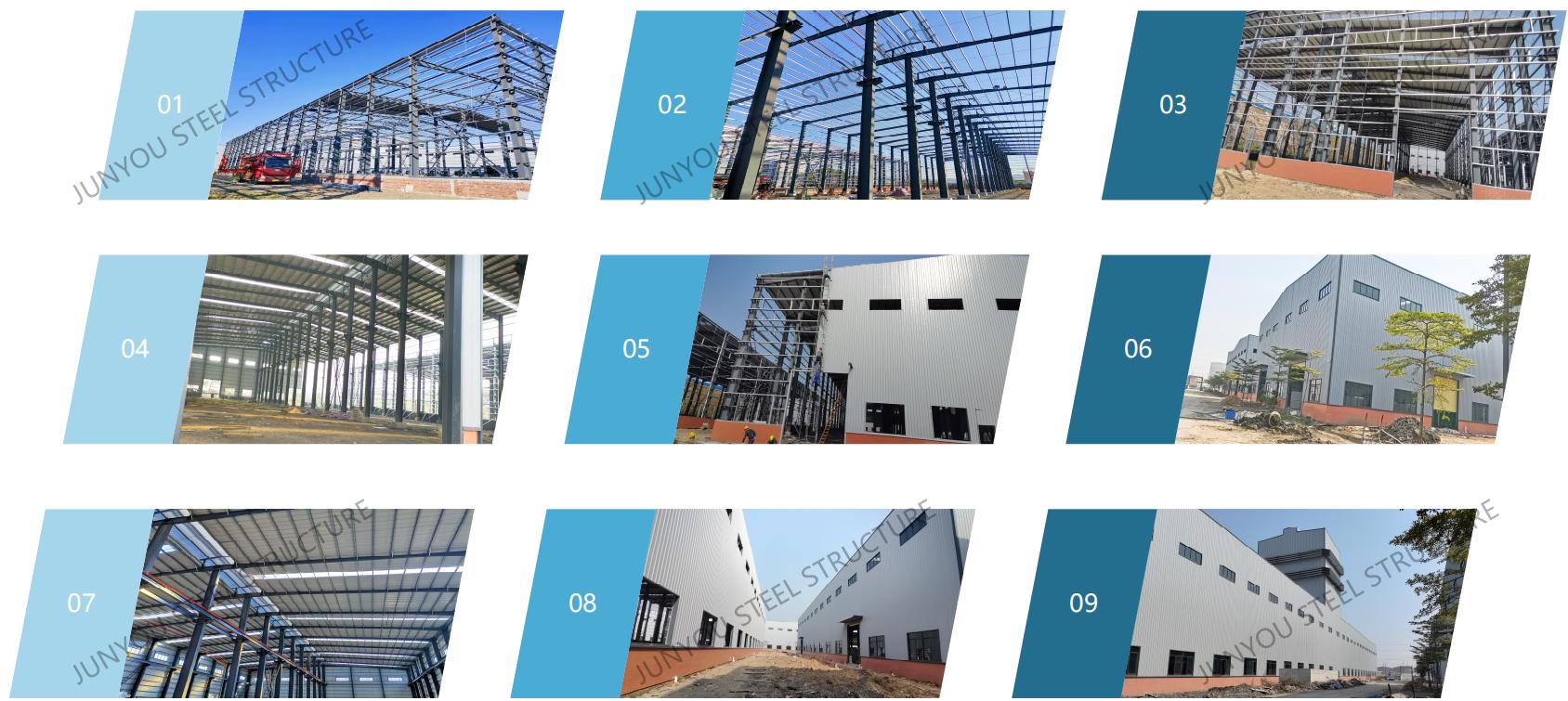

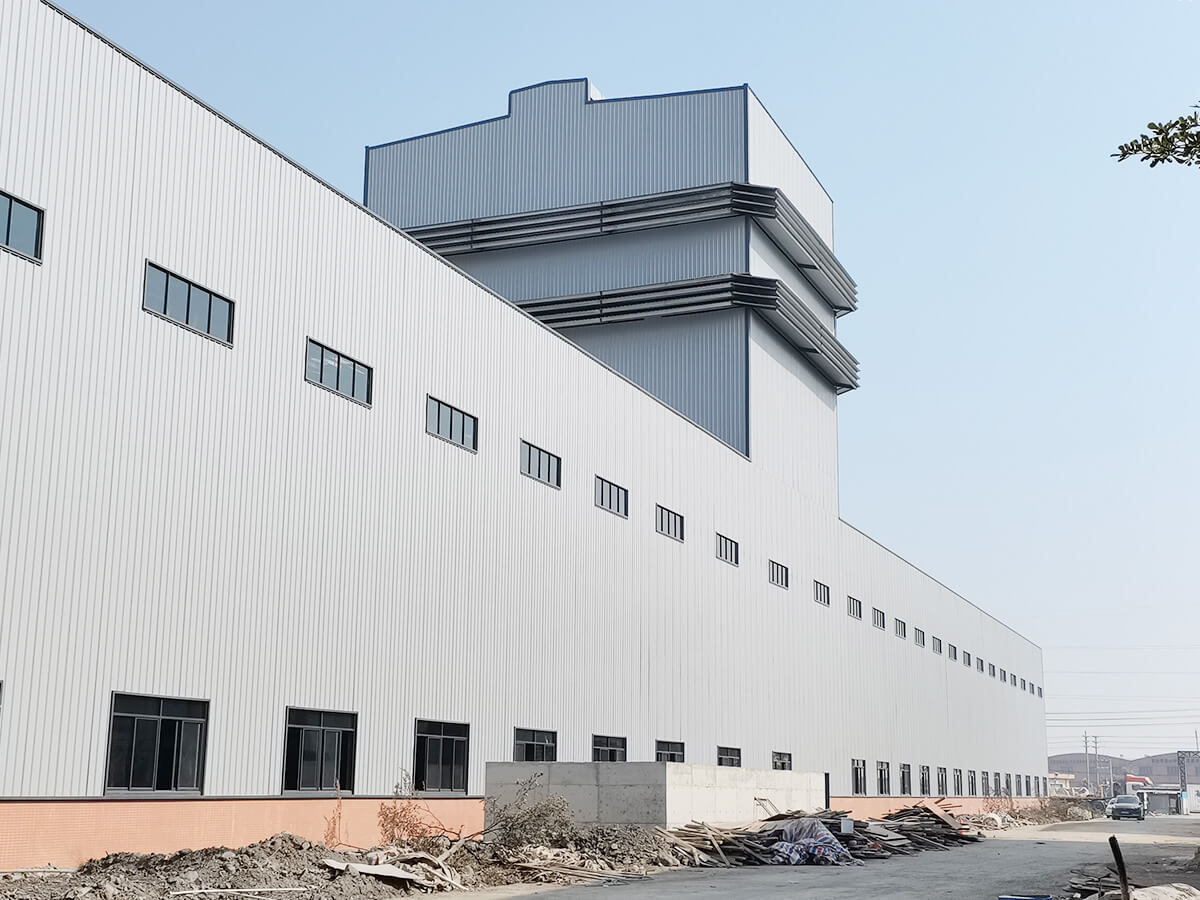

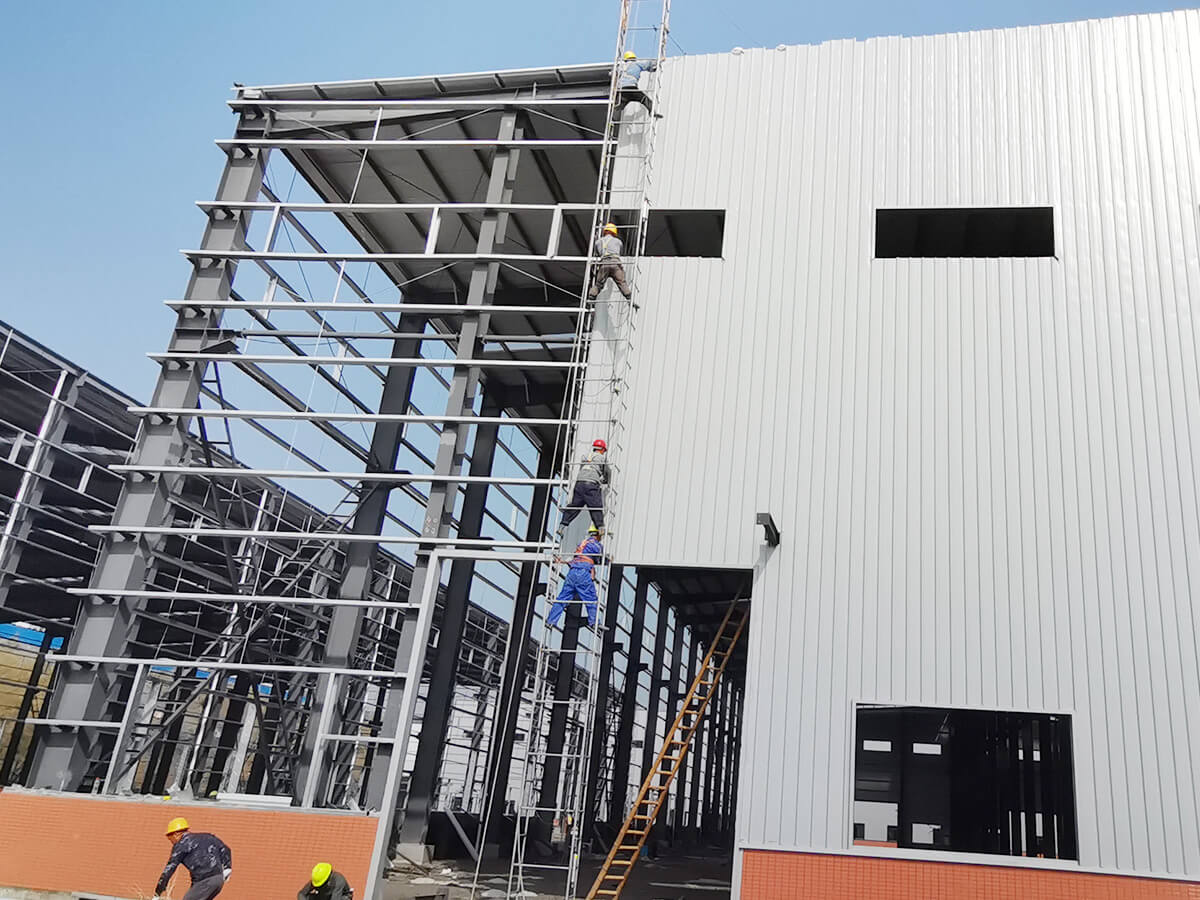

The steel product we mentioned here is a metal steel workshop in size: 103.8x45x14.45m, a total of about 5000 square meters. To have better lighting conditions, we made the design with roof ventilators and roof skylight panels, making the whole workshop bright and ventilated. We would like to share the project pictures and drawings as below:

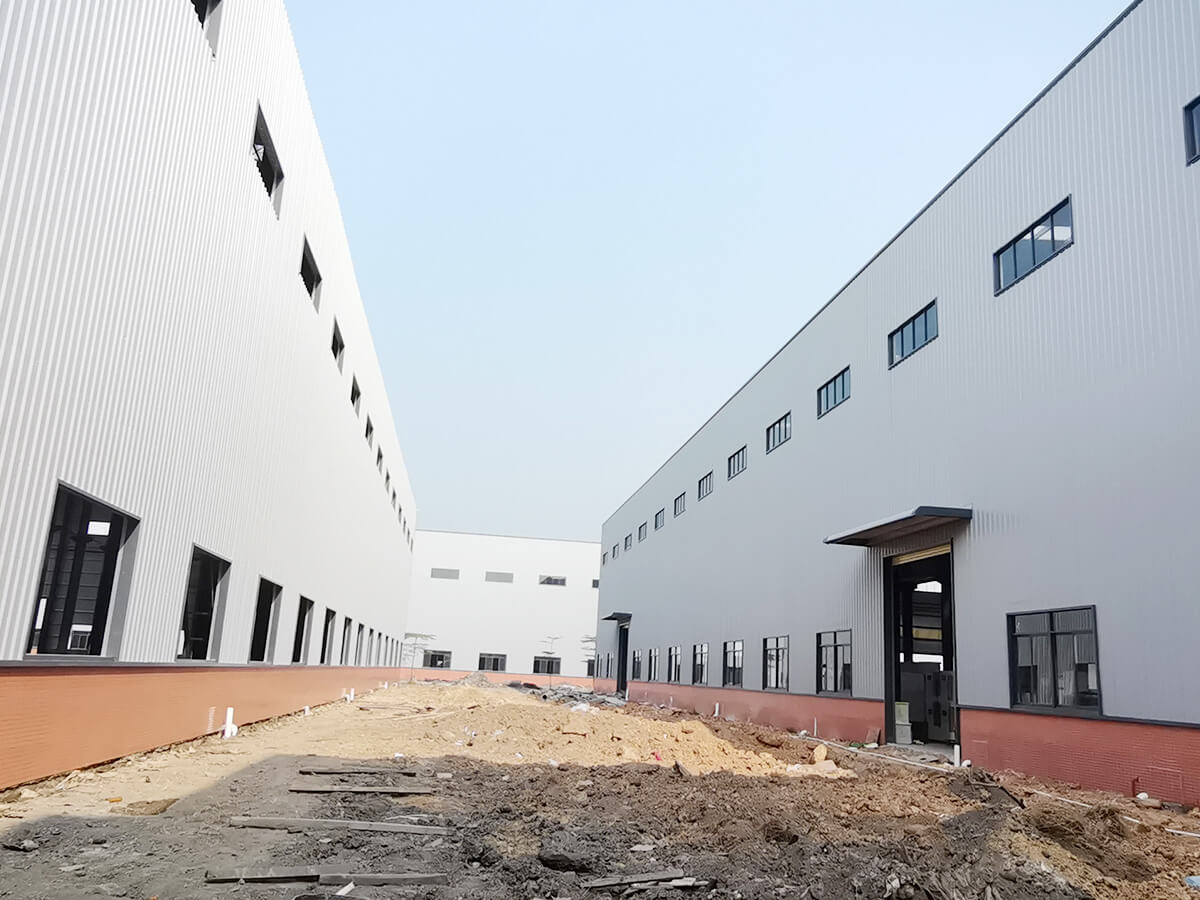

Steel structure workshop features
It has excellent strength and stability, ensuring a reliable and durable working environment.
The construction process was relatively quick and efficient, reducing overall project time.
Steel structures offer great design flexibility and provide excellent fire and corrosion protection.
The use of steel allows for long spans and spacious interiors, maximizing the use of available space.
They are environmentally friendly and sustainable, with the potential for recycling.
The material design of the steel structure workshop:
I . Fastening:

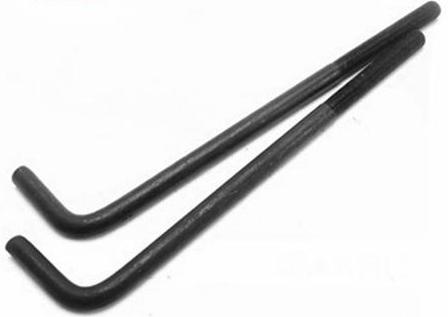

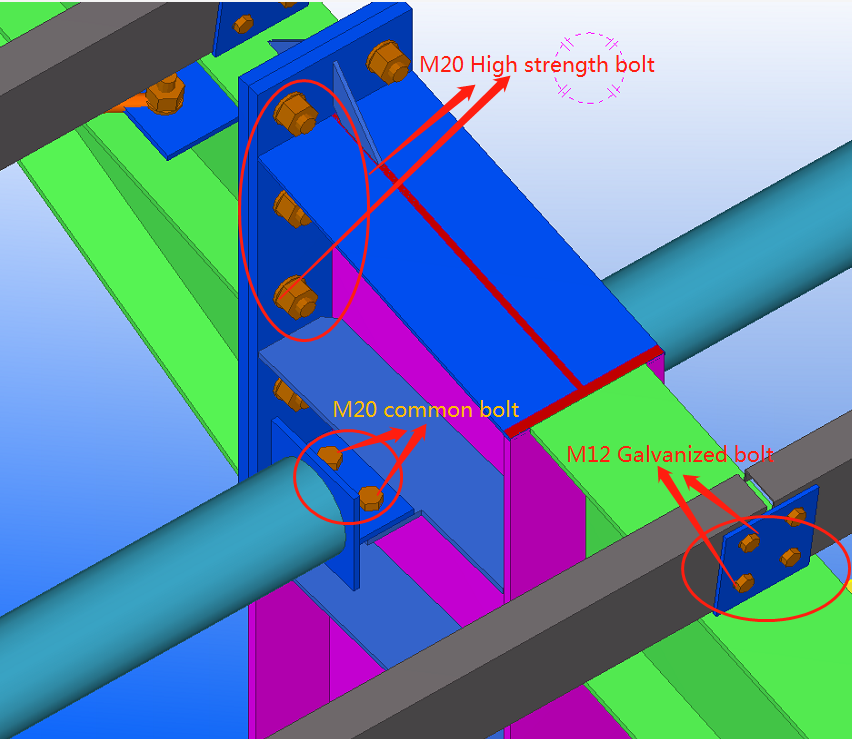

Anchor bolts are usually "L" shaped and made of steel rods ranging from φ24 to φ64mm. The high-strength bolt(M20)is used to connect the beam and Column. The common bolt (M20) is used to connect the tie rod. While the galvanized bolt(M12) is used to connect the wall & roof purlin.

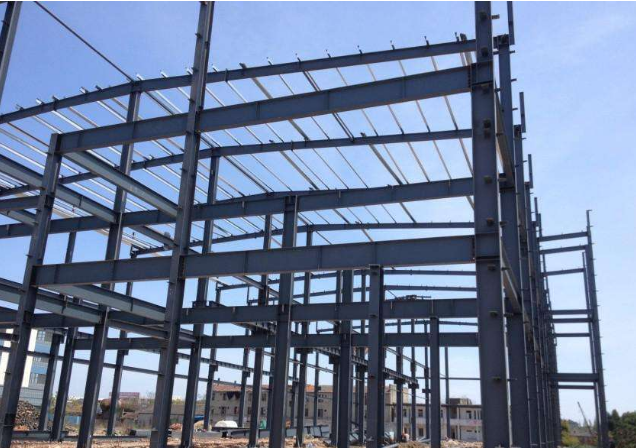

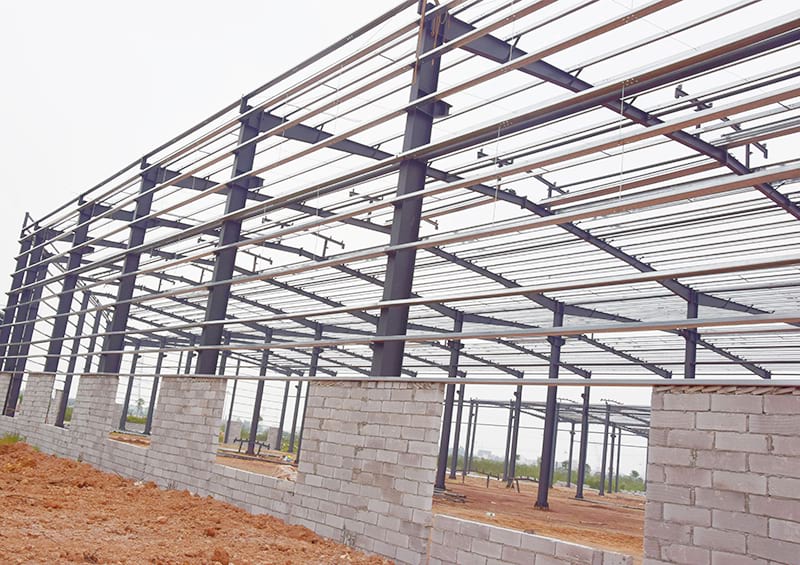

II.Main steel framing:

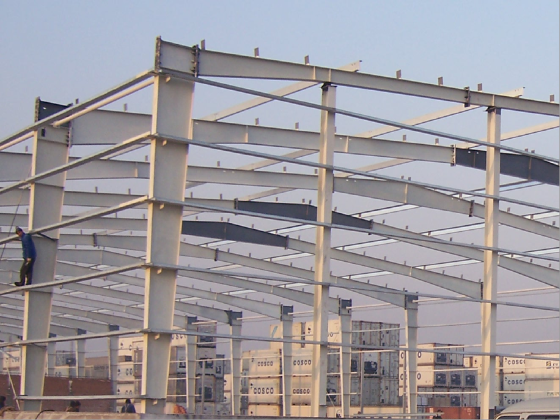

Steel columns and beams, which are the main load-bearing structure of the workshop, are usually made of hot roll H-section steel(equal section) or H-shape steel(unequal cross section) fabricated by 3 steel plates. After assembly and welding, the welded steel columns and beams need to be corrected to prevent deformation of the H-beams caused by welding.

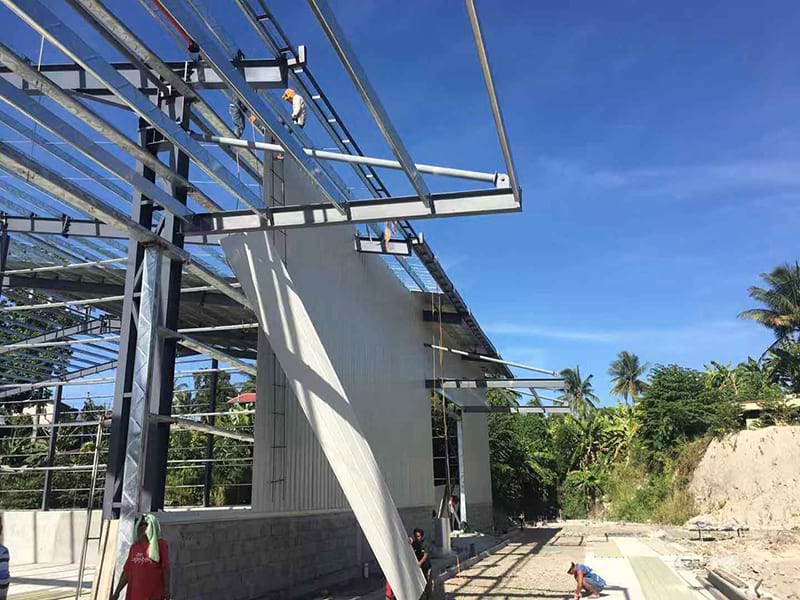

III.Substructure components:

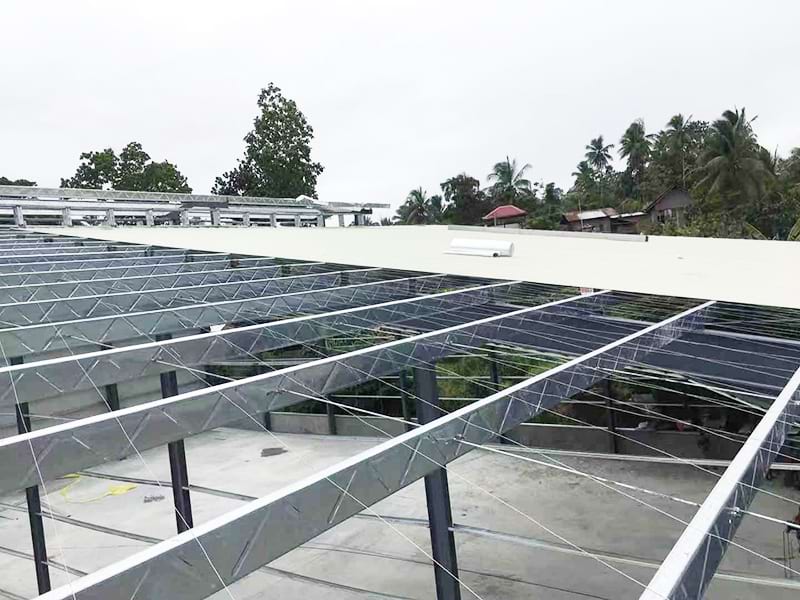

purlins and wall beams are usually made of C or Z steel. The purlin size is determined based on force calculations. Purlin distance should not exceed 1.5 meters, usually, we make it (0.9~1.1 meters). The bracing system consists of roof bracing and column bracing, which are usually made of round steel(M16~M22), and angle steel is for the knee brace(L50*3.5mm), sag rod(M12) is made of round steel connected between purlins to regulate and control the stability of adjacent purlins.
IV.Roof and wall panels:
They are divided into two types: corrugated steel sheets (840mm ~900mm type)and steel sandwich panels. single steel sheet panels are commonly used in buildings that do not require insulation and rely on purlins or wall beams to form roof and wall enclosures. Sandwich panels are mainly used in buildings that require thermal insulation. (insulation layer: polystyrene, polyurethane foam, rock wool, glass wool).

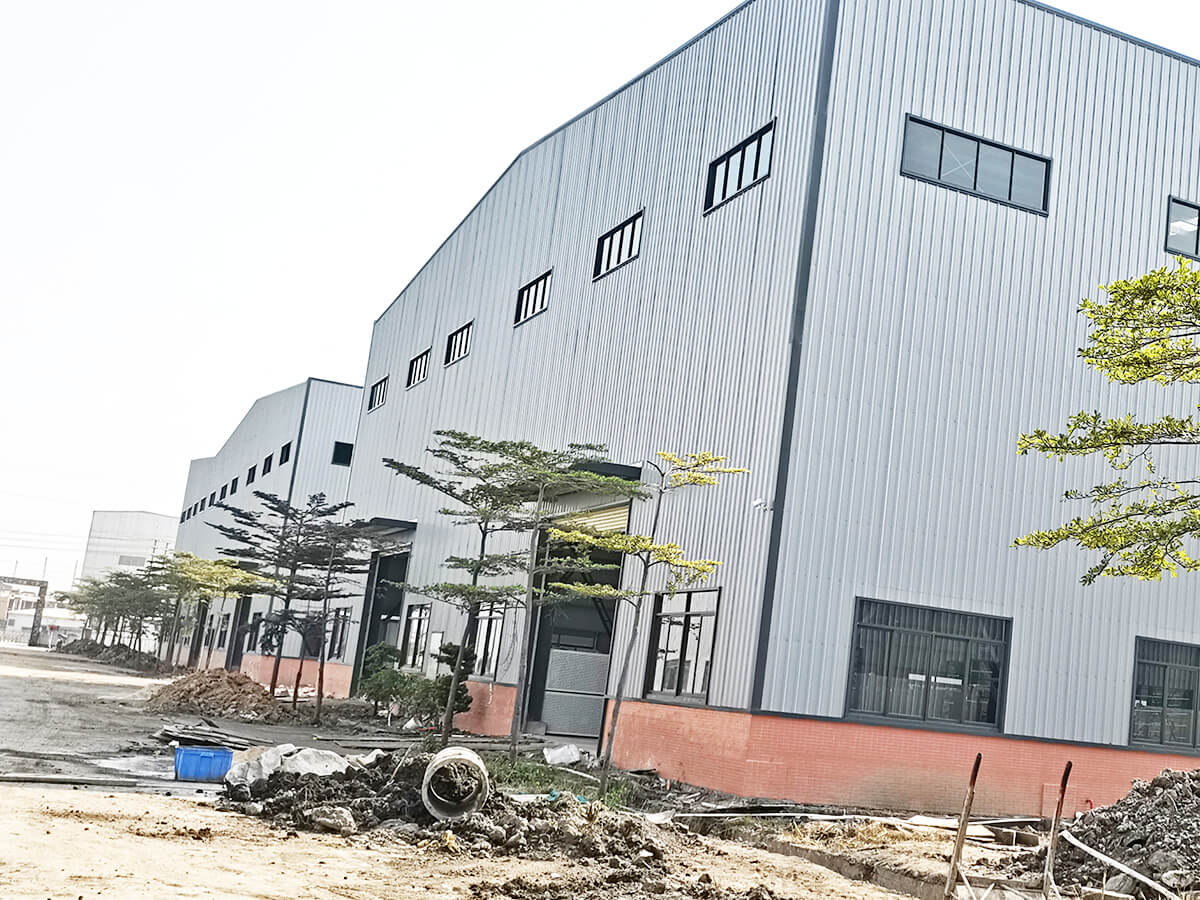

V. Window and door:

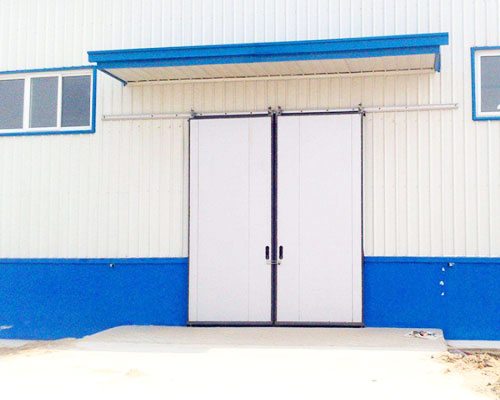

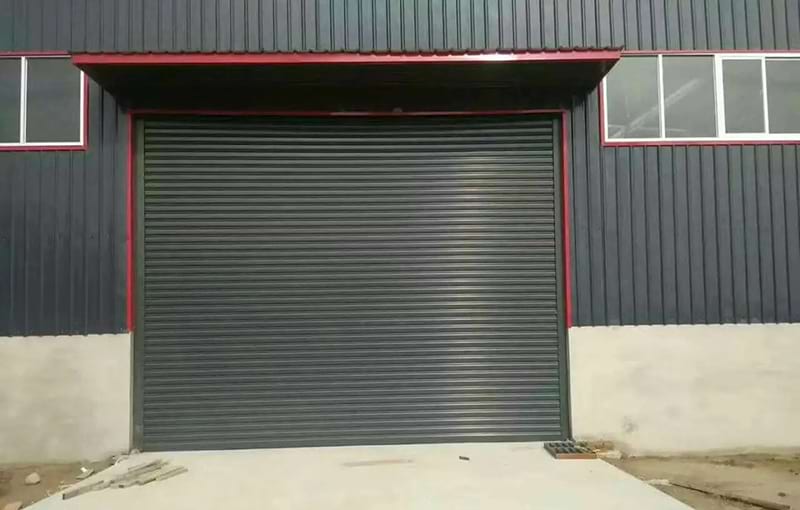

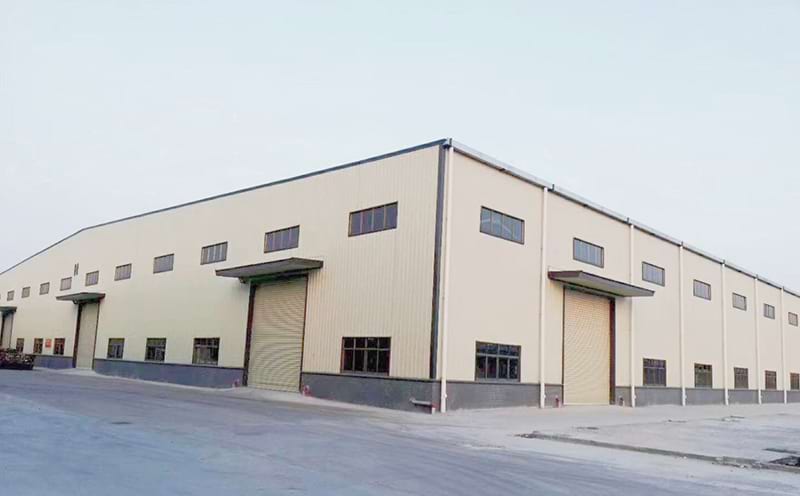

Window type: the fixed window on the wall above, the sliding window in a lower position so that we can operate them easily. Door type: roll-up door, sliding door, small door for people to get entrance.
The detailed material list display
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||

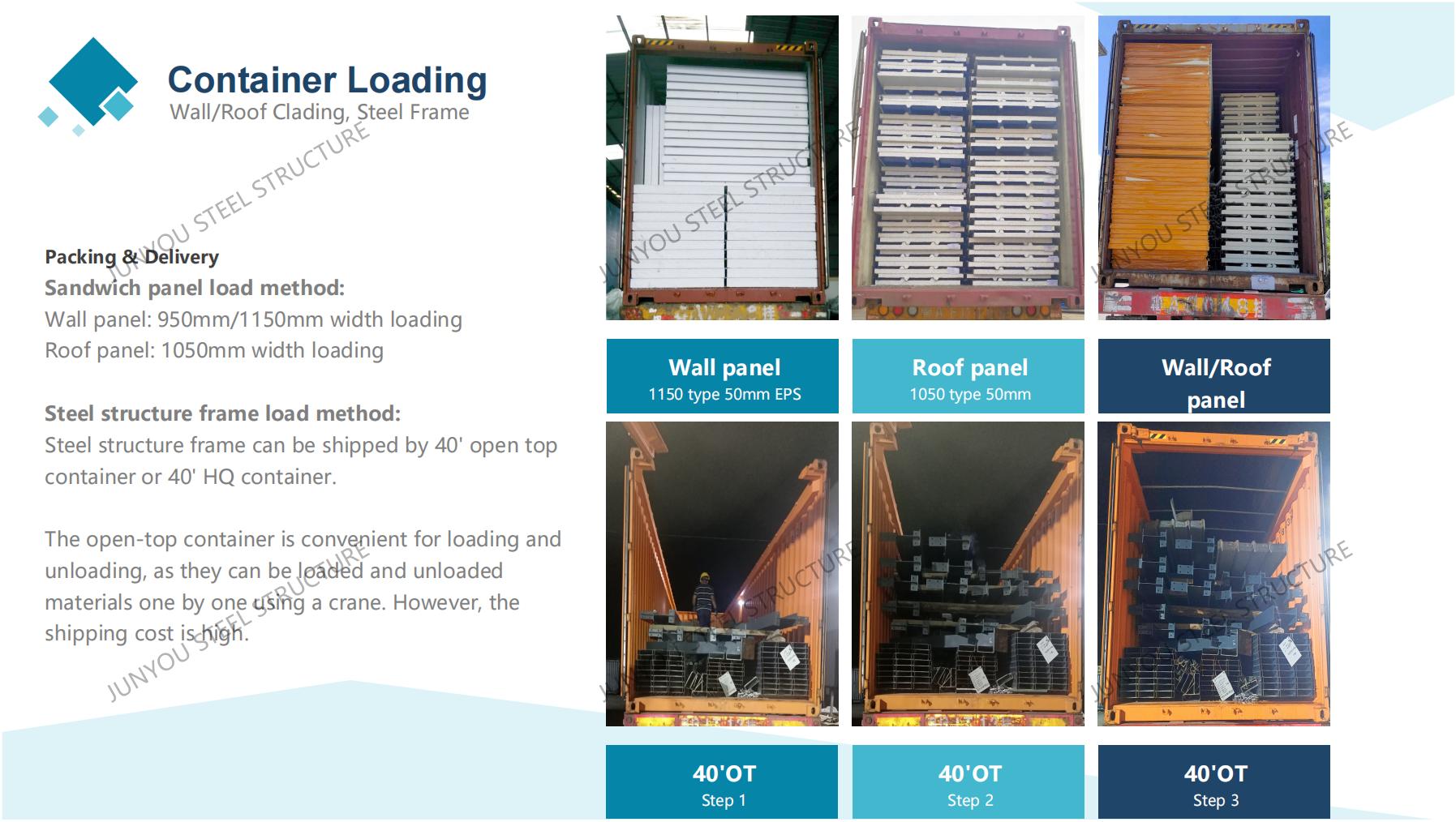

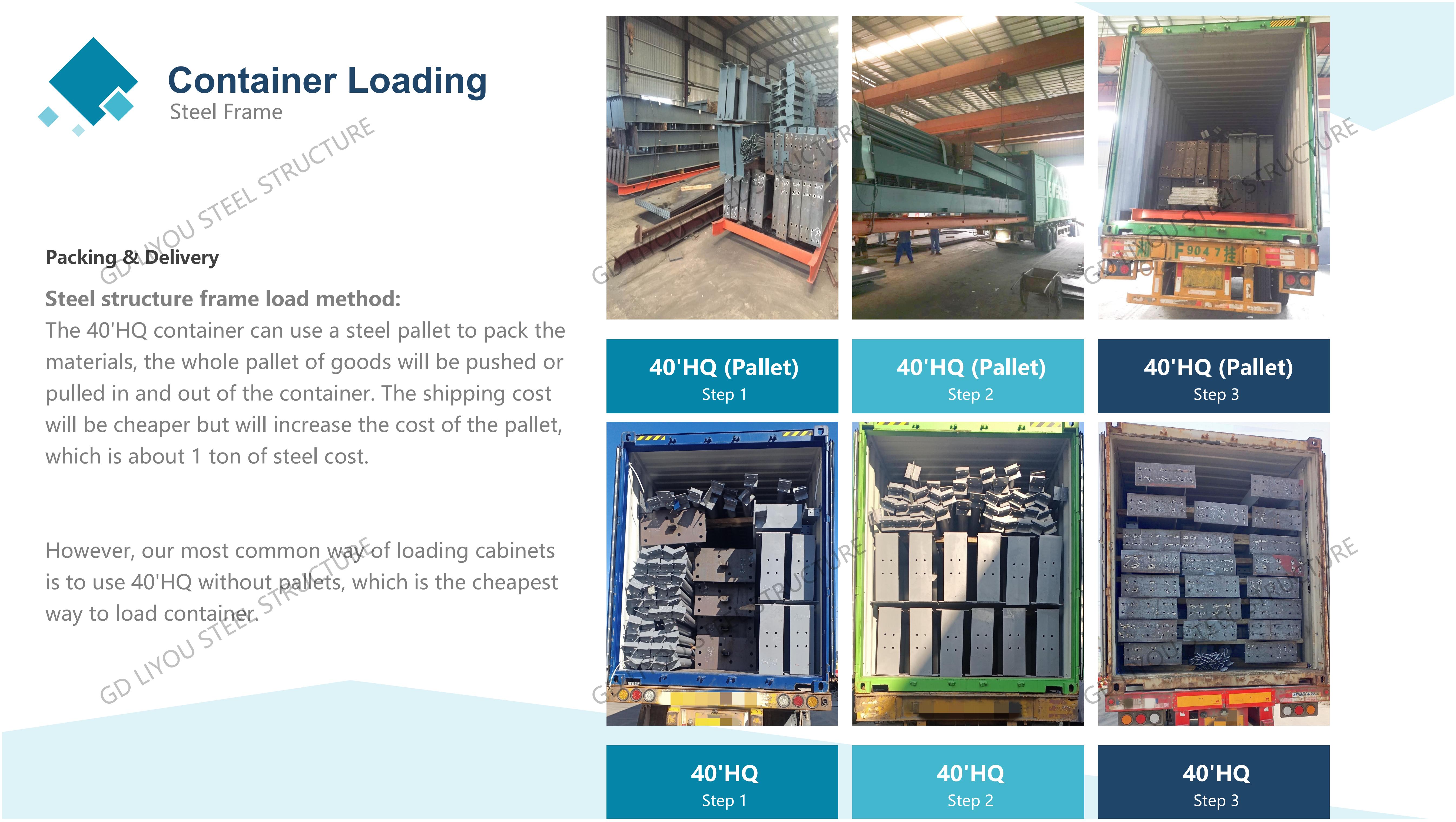

Steel strcuture workshop building container loading method
H-section steel benefits:
1. The H-section steel is lightweight, and it is an economical option for construction.
2. The H-section steel is high-strength because it possesses a greater surface area on the cross-section.
3. The H-section steel is straightforward easier to weld and easier to install.
4. The H-section steel is eco-friendly and highly recyclable and creates minimal raw material waste.
5. H-section steel has Good mechanical properties.
6. H-section steel has good bending resistance, anti-torsion strength, anti-earthquake.
Why Choose Us?
1. Our people
Our engineers are very professional, and most of them have more than 10 years of experience in the architecture field.
Our work staff have steel structure processing excellent skills. Some of them even have overseas installation experience.
Our colleagues in the sales team are all passionate about their work and honest and humble towards our customers. Every inquiry or email will be replied to in time. Every question will be paid high attention.
2. Our service
We offer recommendations for our customers in the pre-sale stage.

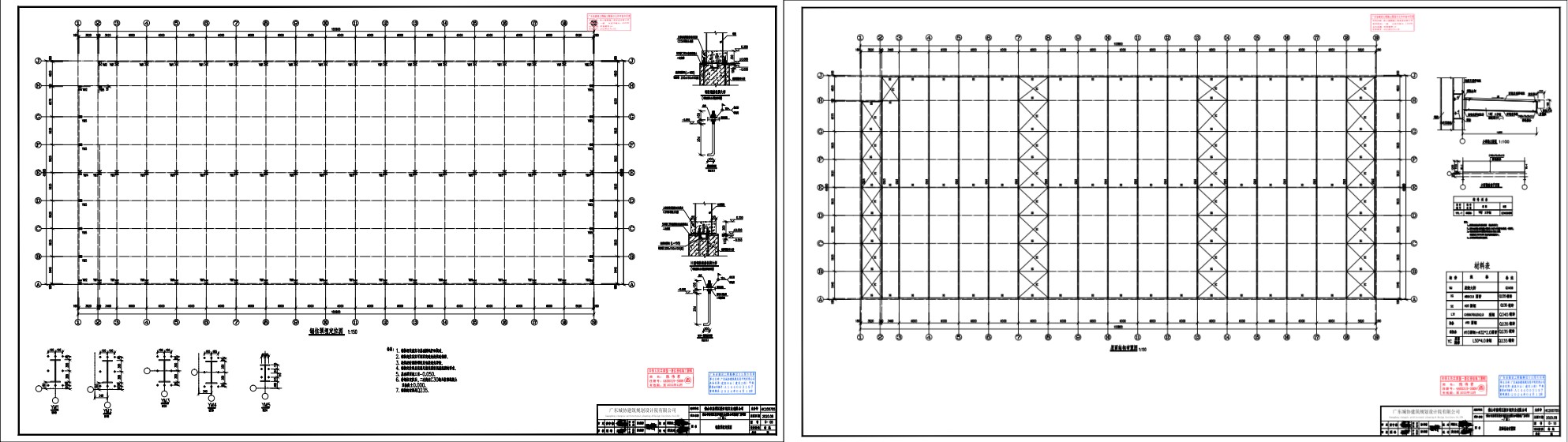

We offer floor plans, elevation plans, and quotations for free.
We offer construction drawings, and calculation sheets to help you get a construction permit after the order is confirmed.
We offer detailed foundation and Installation drawings after delivery.
We offer details packing lists for every container when loaded so it will be easier to check and get the materials. Form A, Form E, and CO certificates are available.
3. Our advanced processing facilities
We possess more than 10 sets of large precise and domestically advanced processing equipment, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, shot blasting machines, etc.
