A steel structure warehouse is a type of building that is constructed using steel as the primary structural material. It is designed to provide a large, open space for storing goods, equipment, or other materials. Steel structure warehouses are known for their durability, strength, and ability to withstand various weather conditions. They are commonly used in industries such as logistics, manufacturing, and storage.
The wide range of applications of steel is based on its excellent properties in terms of strength, durability, constructability and sustainability. Steel is a versatile material that can be easily fabricated and customized to meet specific design requirements. Additionally, steel is fire-resistant and has a high load-bearing capacity, making it an ideal choice for constructing large, open spaces like this warehouse. Custom-designed steel warehouses can be just one floor or with a mezzanine floor, it provides an easy and convenient solution for those who need to construct a warehouse.
How many kg of steel per square meter is reasonable in a steel structure building?
In steel structured buildings, typically, the weight of one square meter of steel structure ranges from 25 to 30 kilograms. The specific value is influenced by the building's geographical location, natural environmental factors like wind and snow, and factors such as the type, specification, and thickness of the steel.
When the customer provides us with specific drawings along with the size of the steel, we are required to verify the weight of the steel for the customer based on this standard. If the customer's design falls below the standard weight of the steel, we must remind the customer whether a review is necessary to ensure the stability and safety of the entire structure.
Steel warehouse project description
This steel structure project is for the automobile repair shop, while an automobile repair shop is also known as a garage or a workshop, where automobiles are repaired by auto mechanics and technicians. Therefore, the indoor space must be wide and without middle columns. Our customer chose white color for the entire steel structure frame, he prefers white color is because he thought white looked neater and brighter. And that is exactly needed for this steel structure building project. In addition to being neater and brighter, this project also requires an important feature, which is fire protection. Because this warehouse stores expensive machines and auto parts, both workers and machines must ensure safety first.

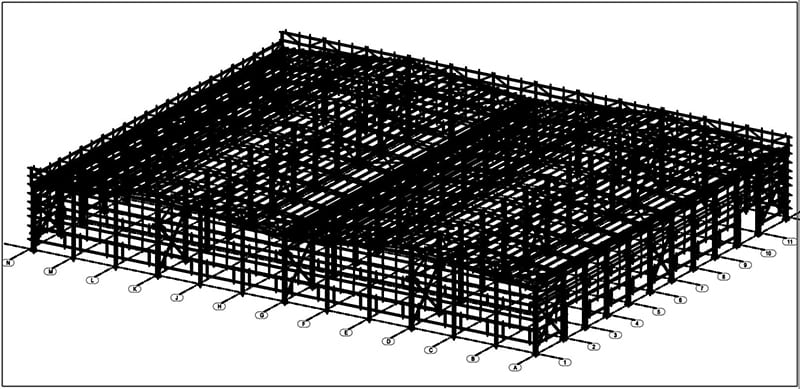

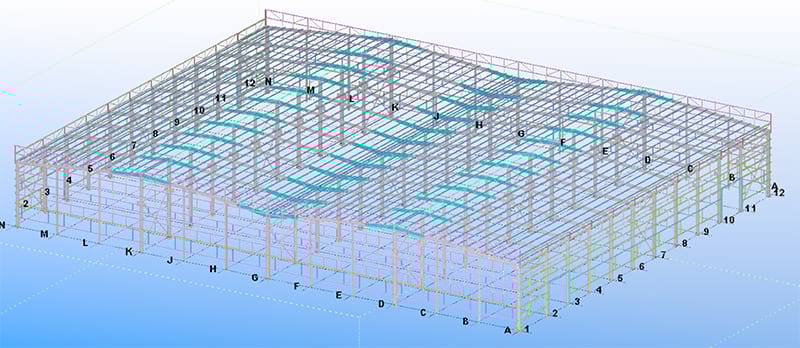

Steel structure warehouse 3D design
The steel warehouse components are as follow:
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel warehouse advantages:
Metal warehouses offer various benefits, including durability, strength, and cost-effectiveness. The steel components used in these buildings are known for their resistance to fire, pests, and adverse weather conditions, ensuring the safety and security of the stored goods. Moreover, using metal components typically results in shorter construction times and lower maintenance costs, making it a practical choice for building a warehouse.
To sum up, all the benefits of its performance:
(1). Fast and flexible assembly: safe, heat insulation, sound insulation, waterproof and fireproof;
(2). High-cost performance: installation is quick and easy, greatly shortening construction time and reducing costs;
(4). Durability: The overall structure is easy to maintain and can be used for more than 50 years.
(5). Perfect design: Perfect design to altogether avoid leakage and water seepage. At the same time, it also complies with the national fire protection rating.
(6). Bearing capacity: it is able to withstand the effects of strong winds and earthquake resistance, and withstand heavy snow loads.
What we can do on the steel structure project?
1. We design buildings of different types and sizes according to customer needs, large or small, with single span or multiple spans, with a maximum span of 40 m, without central columns.
2. We provide low-cost and low-maintenance suggestions: the unit price ranges from US$35/square meter to US$80/square meter according to customer requirements.
3. We prefabricated all the components in our factory, pre-cut, pre-welded, pre-drilled, pre-painted or hot-dip galvanized in the factory to save cost and time.
4. We can use Max to design factors. Wind speed 280KM/H, magnitude 8 earthquake, roof snow load 200kg/m2.
5. We make nice appearance, fireproof and heat-insulating steel structure warehouse.
Why steel warehouse building over traditional concrete warehouse?
Time Factor:
Steel warehouse buildings can be constructed much faster than traditional concrete warehouses. All the steel component is pre-engineered at the factory and then assembled at the construction site.
Cost Factor:
The efficient use of materials in steel construction can result in cost savings, both in terms of the construction process and ongoing maintenance.
Durability Factor:
Steel is a highly durable material that can withstand harsh environmental conditions, heavy loads, and potential impacts. That ensures steel warehouse buildings have a longer lifespan compared to traditional concrete warehouses.
Customization Factor:
Steel warehouse buildings offer a high level of flexibility and customization. That allows for efficient use of space and the ability to maximize storage capacity.
Environmental Factor:
Steel is a green material that is 100% recyclable. Choosing steel warehouse buildings can contribute to sustainability goals and reduce the environmental impact of construction.
Safety Factor:
Steel has excellent fire resistance ability. This can enhance the safety of the stored goods.
Fill out this information form, and get a free quote on your steel warehouse building today!
1) Live load/Dead load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style and quantity of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure, and min wheel pressure;
7) Size: length X width X eave height, roof slope;
8) Or your own idea!
But maybe you are not about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will offer suggestion for you to choose the right style and the best design within your budget.
FAQ
1. What is the wind speed that the steel structure you designed can generally withstand?
If the customer has no special wind speed requirements, we usually quote the wind speed as 100~110 km/h. We can also design some special countries and regions, such as the Bahamas and Mauritius, where the wind speed reaches 250~280km/h, but the cost will be higher.

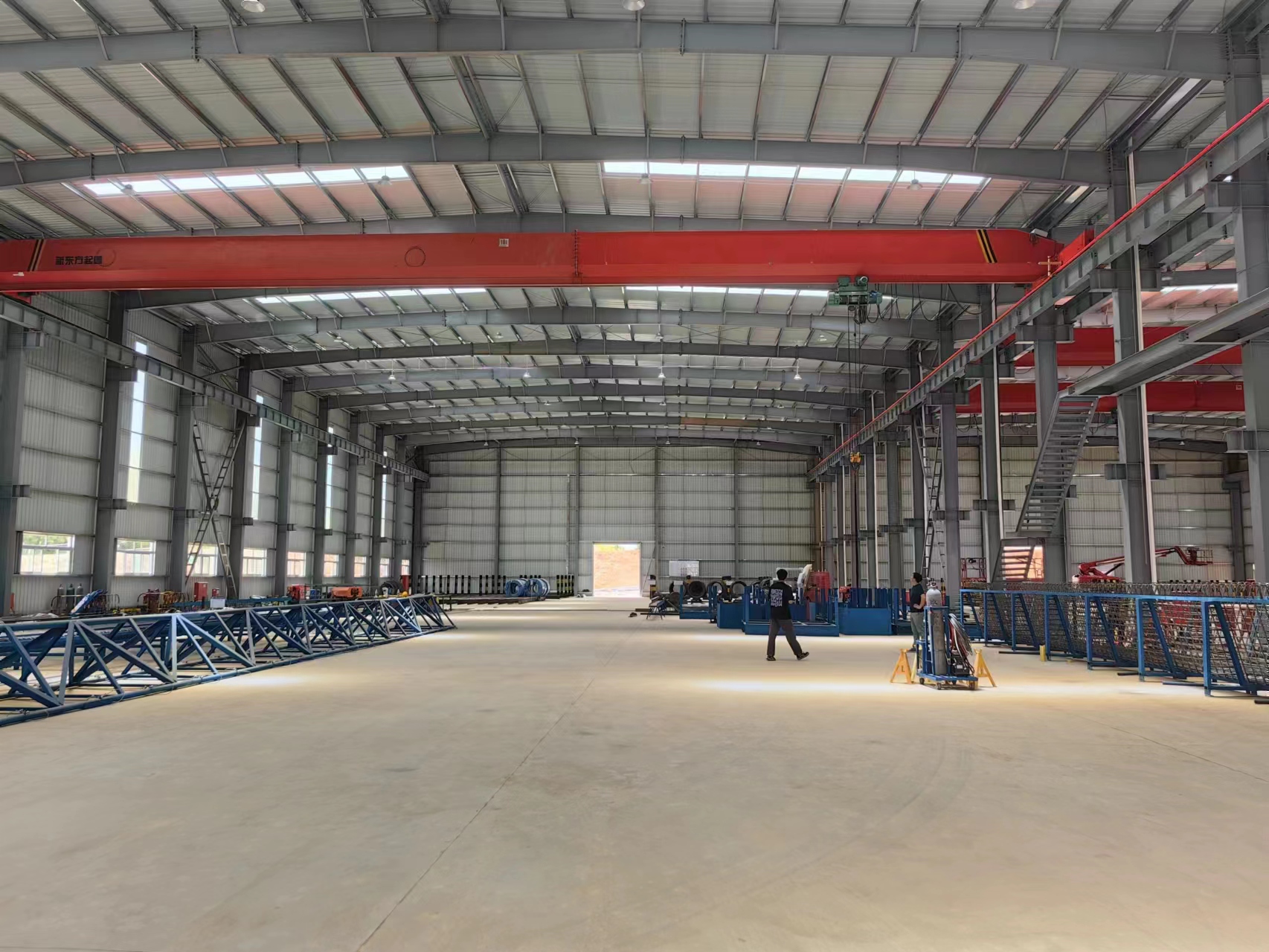

2.My warehouse needs a crane. In addition to the crane beam, can you provide a crane? If the length of the crane is greater than 12m, how can I arrange delivery?
For customers who need cranes, we can not only provide crane beams and corbels to support the crane on the steel structure. We can also help customers purchase motors. Because we have long-term cooperative relationships with crane suppliers. If the length of the crane is greater than 12m, the crane can be separated into two parts and connected with screws on site. For more stability, the connection port can also be welded appropriately.
3.We want to ship the anchor bolt in advance, can you arrange it?
If your container needs to ship nearby, like Foshan/Guangzhou we can deliver the anchor bolt to your container loading place to ship with your other goods. Or if your container is not near us from other provinces, we can also arrange to send it by nation express.
