Production Information
The steel structure warehouse projects we undertake are mainly used in the industry field. There are many types of warehouses in the industry, such as raw material warehouses, semi-finished product warehouses, finished product warehouses, spare parts warehouses, etc.
In addition to the steel warehouses in the industry, there are also the following types of warehouse buildings, such as commercial warehouses for the storage of commercial goods, agricultural warehouses for storing agricultural products, cold storage warehouses specially used for refrigerating and preserving items, dangerous goods warehouses for storing dangerous chemicals and other dangerous goods, etc.
The product we mentioned here is also an industrial warehouse it is a structure that is specifically designed for a variety of industrial activities ranging from manufacturing to storing finished goods.The walls are surrounded by windows. The lower ones close to the ground are aluminum alloy sliding windows that can be opened, and the higher windows are fixed windows. In addition to the air ventilation, the roof is also equipped with translucent tiles.Project pictue display:
Steel warehouse building material component

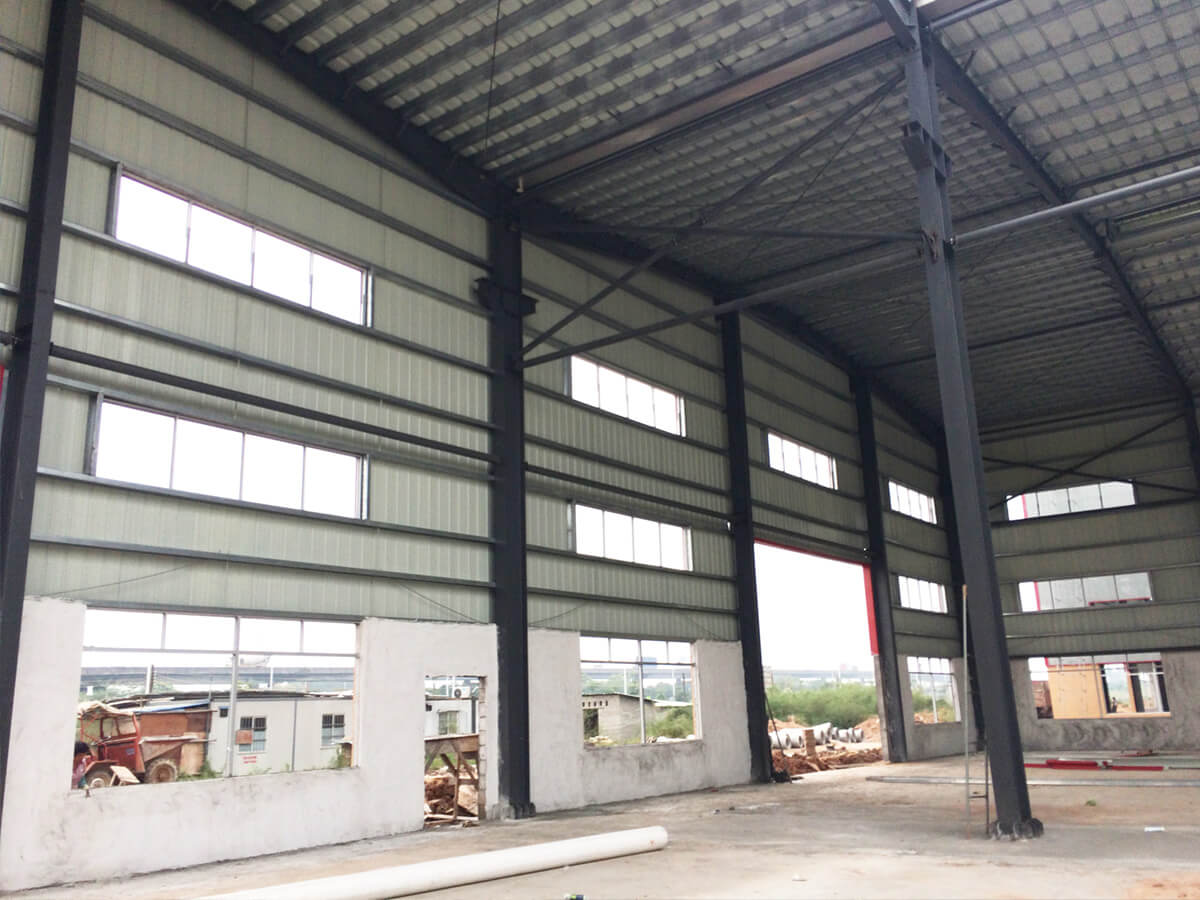

The components of a steel warehouse building typically include steel framing, roof and siding, doors and windows, insulation, flooring, and any additional features or accessories required for the warehouse's specific needs. Custom-designed steel warehouses can be just one floor or with a mezzanine floor, it provides an easy and convenient solution for those who need to construct a warehouse.

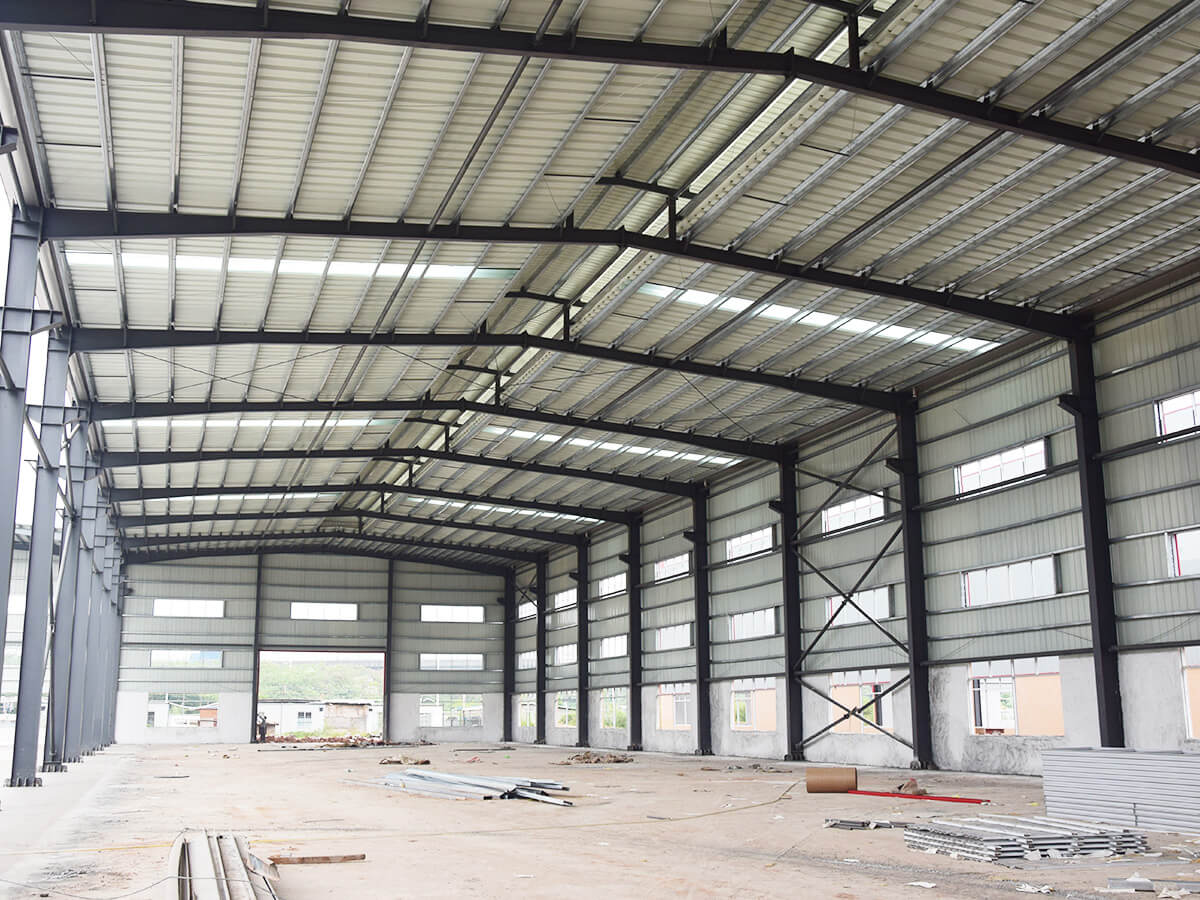

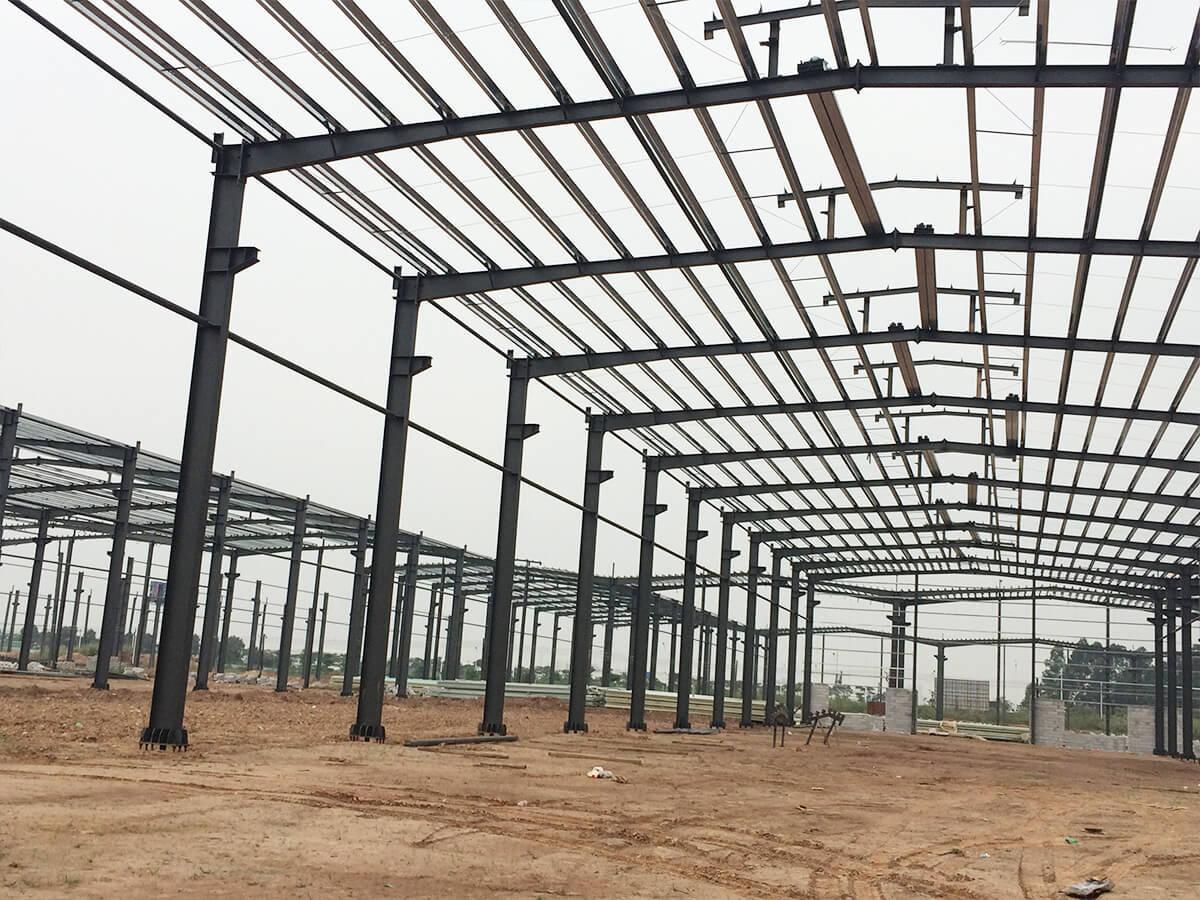

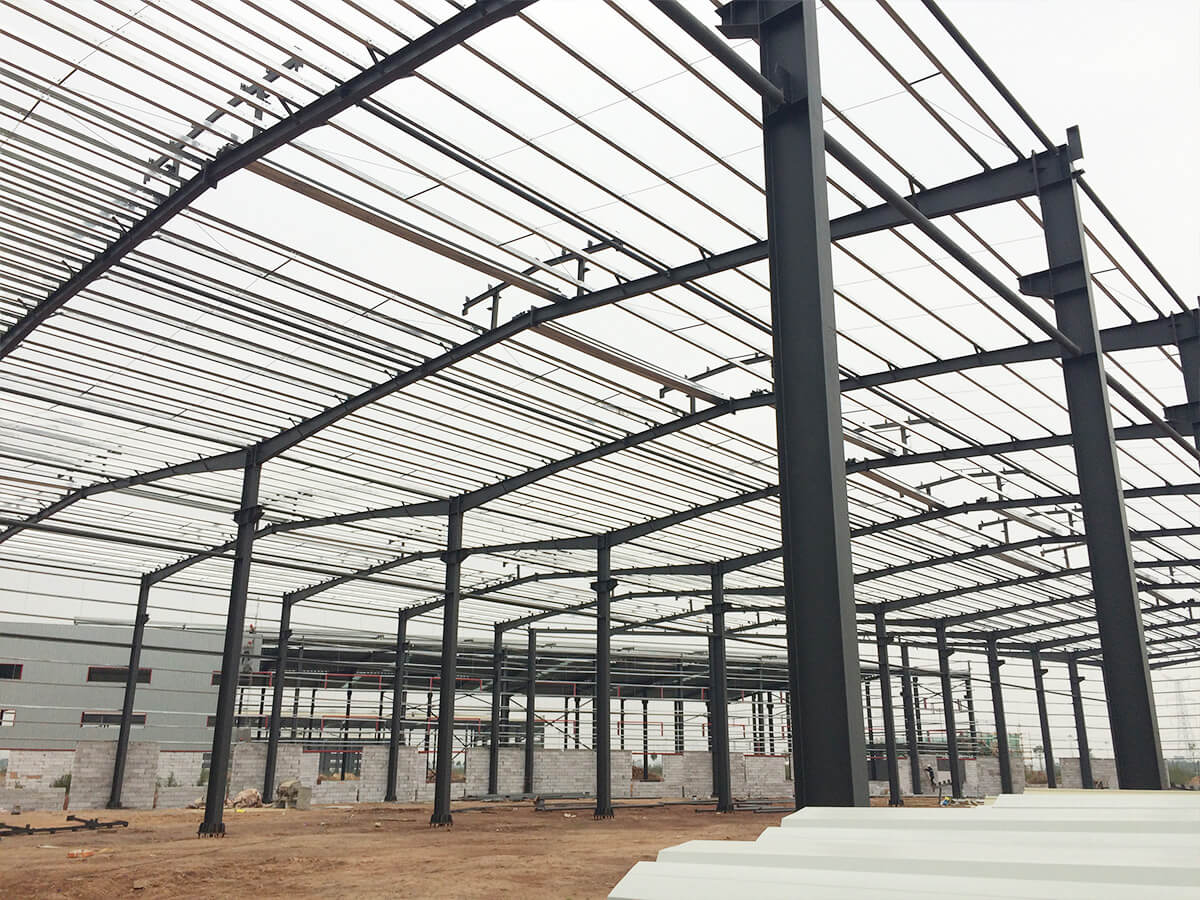

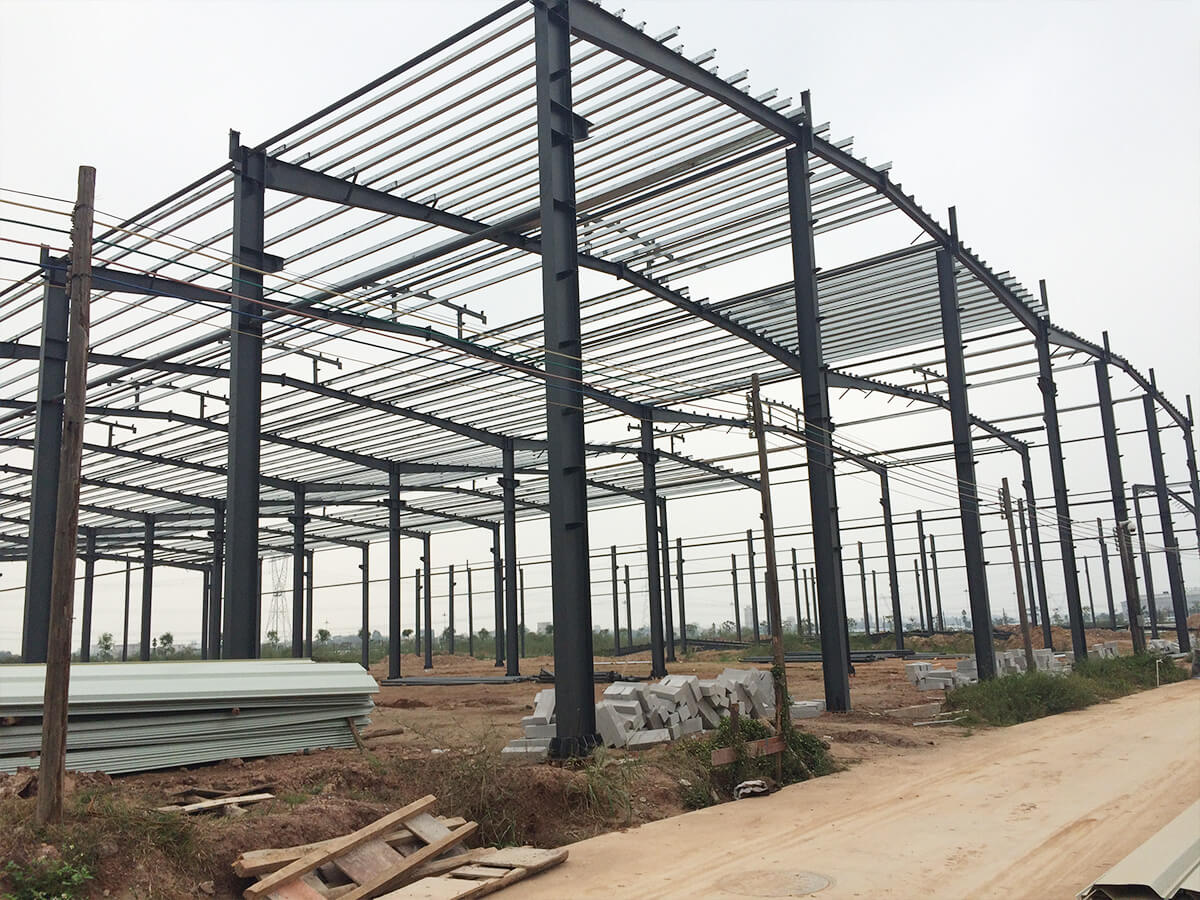

Steel frames made by welded H beam and purlin bracing provide structural support and stability to buildings.
Roofing and siding are typically made from steel sheets or prefabricated insulated sandwich panels, which are durable and weather-resistant.
Doors and windows are installed for access and ventilation, they may not be as elaborate as the doors and windows of the house, but they are fully functional.
Insulation is used to regulate temperature and provide energy efficiency usually using fiberglass or rock wool.
Flooring often includes concrete slabs with floor painting.

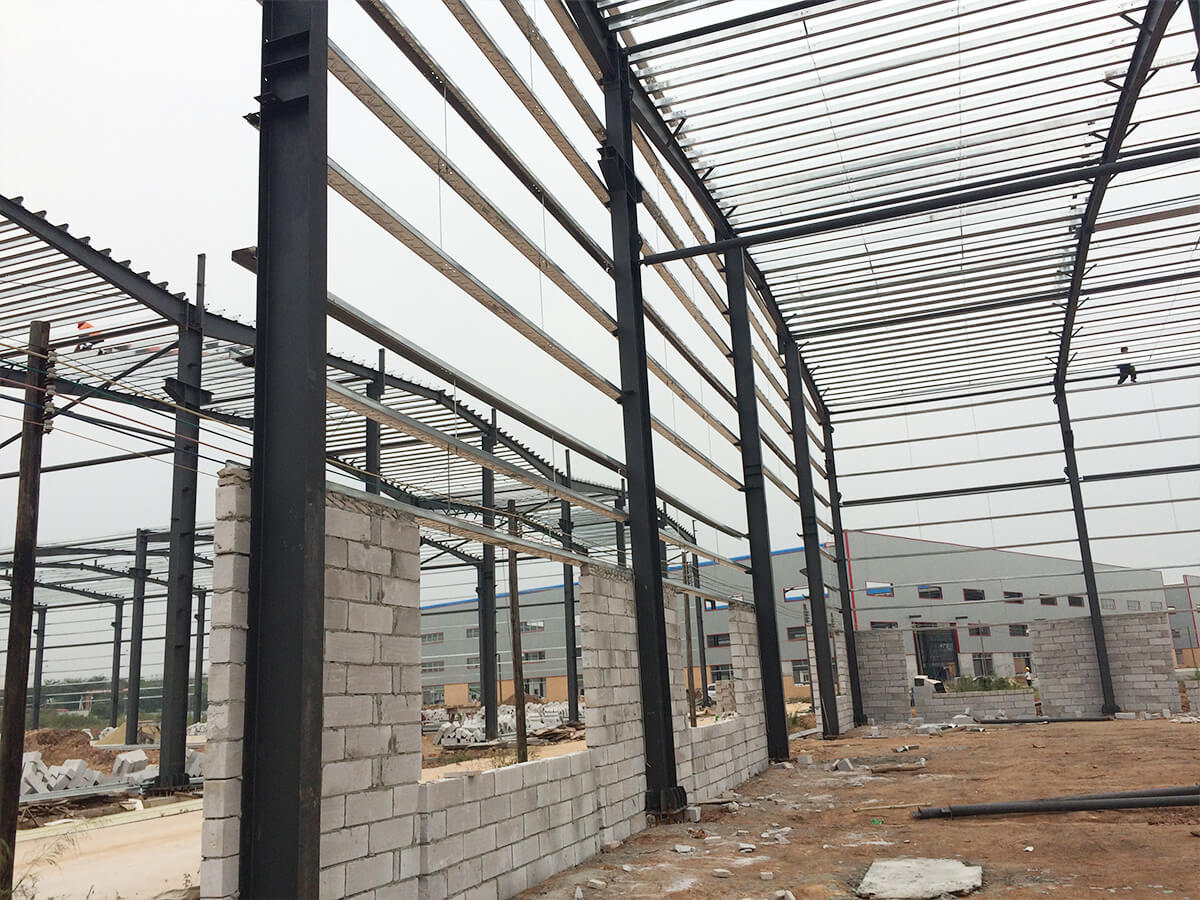

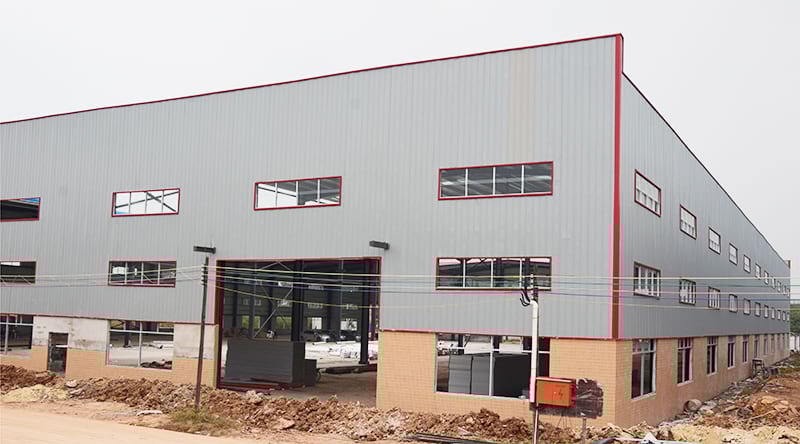

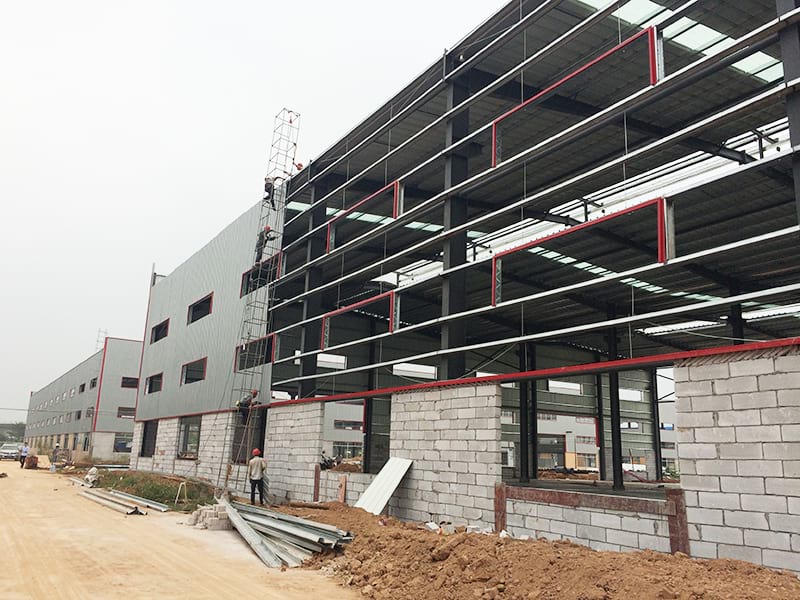

The wall system is a combination of brick walls and single steel sheets, which makes the warehouse stronger and waterproof. The parapet design that covers the sloped roof, makes the warehouse look more nice appearance.

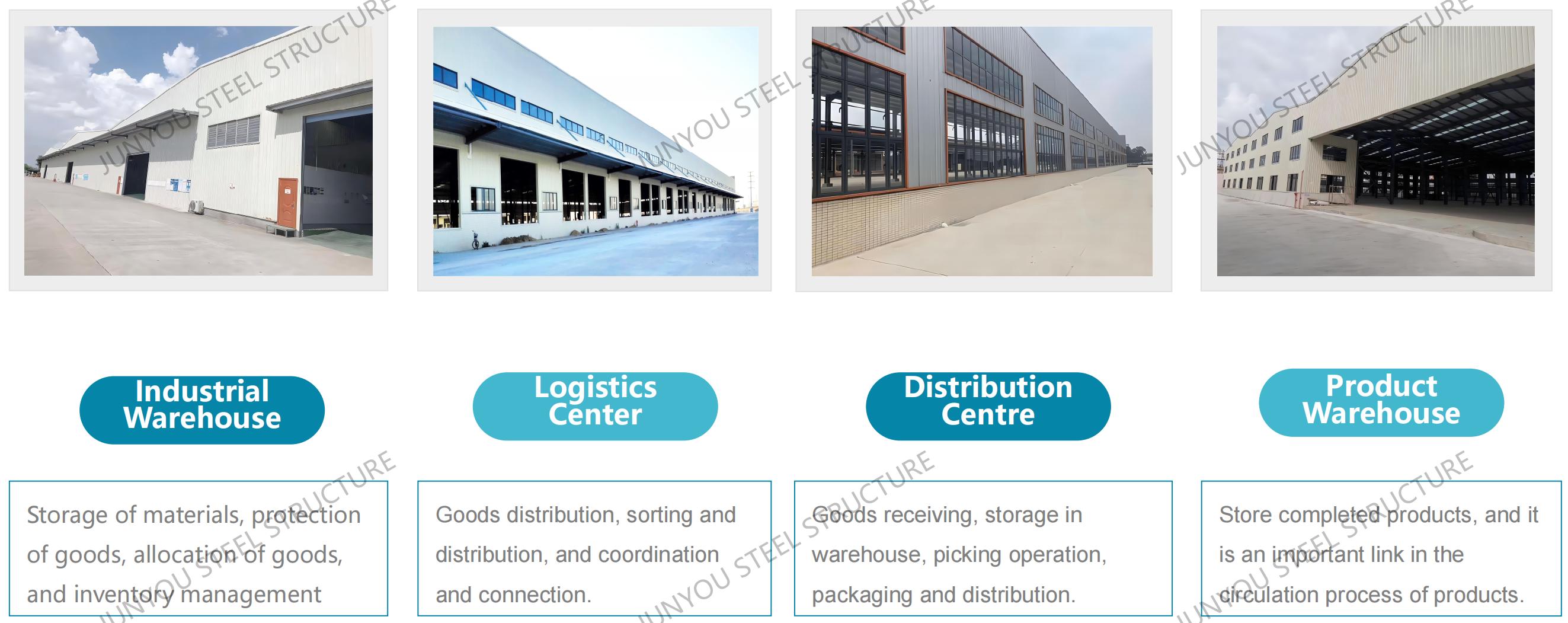

Steel warehouse application
Industrial Warehouse
Logistics Center
Distribution Centre
Raw material Warehouse
Product Warehouse

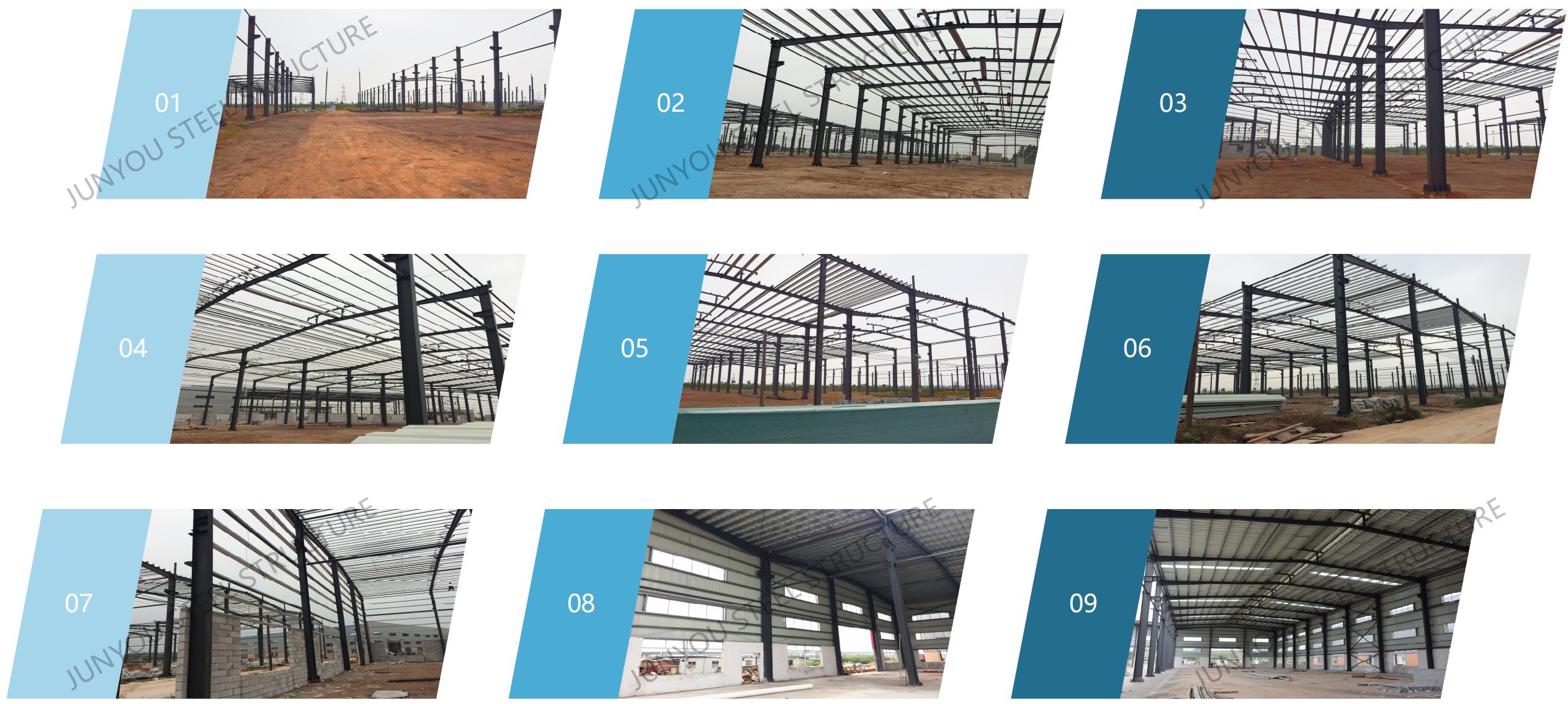

We have built steel structure warehouses with different features and specifications in the domestic market and overseas markets. Steel warehouses are in high demand due to their durability, strength, ability to withstand various weather conditions, and ease of construction. They are commonly used in industries such as logistics, manufacturing and warehousing.
Steel warehouse specific material component:
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158mm | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20mm | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20mm | Q235B | Galvanized |
4. | Brace Rod | ∅32mm | Q235B | Galvanized |
5. | Knee-brace | L50*3.0/3.5/4.0mm | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||

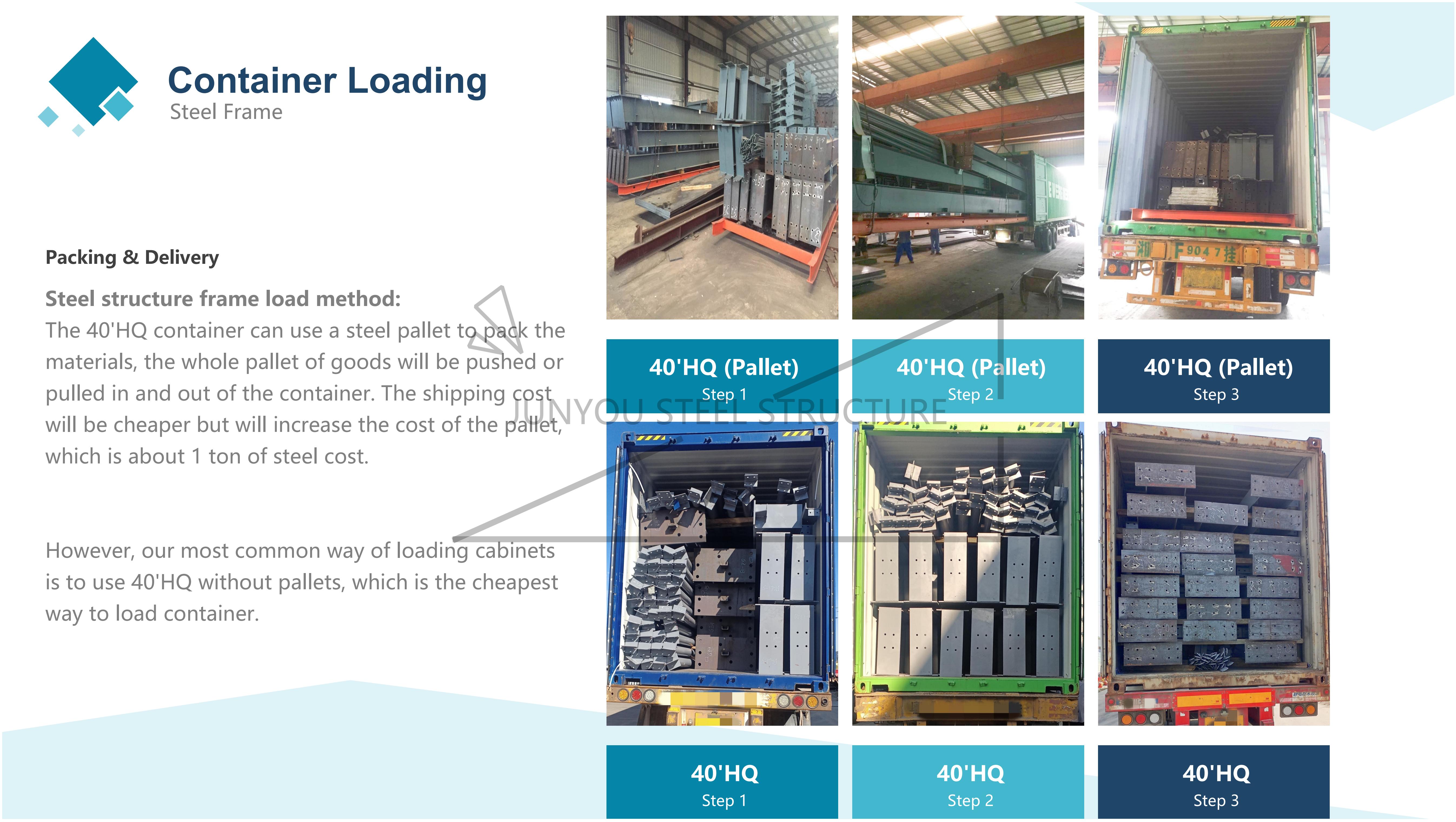

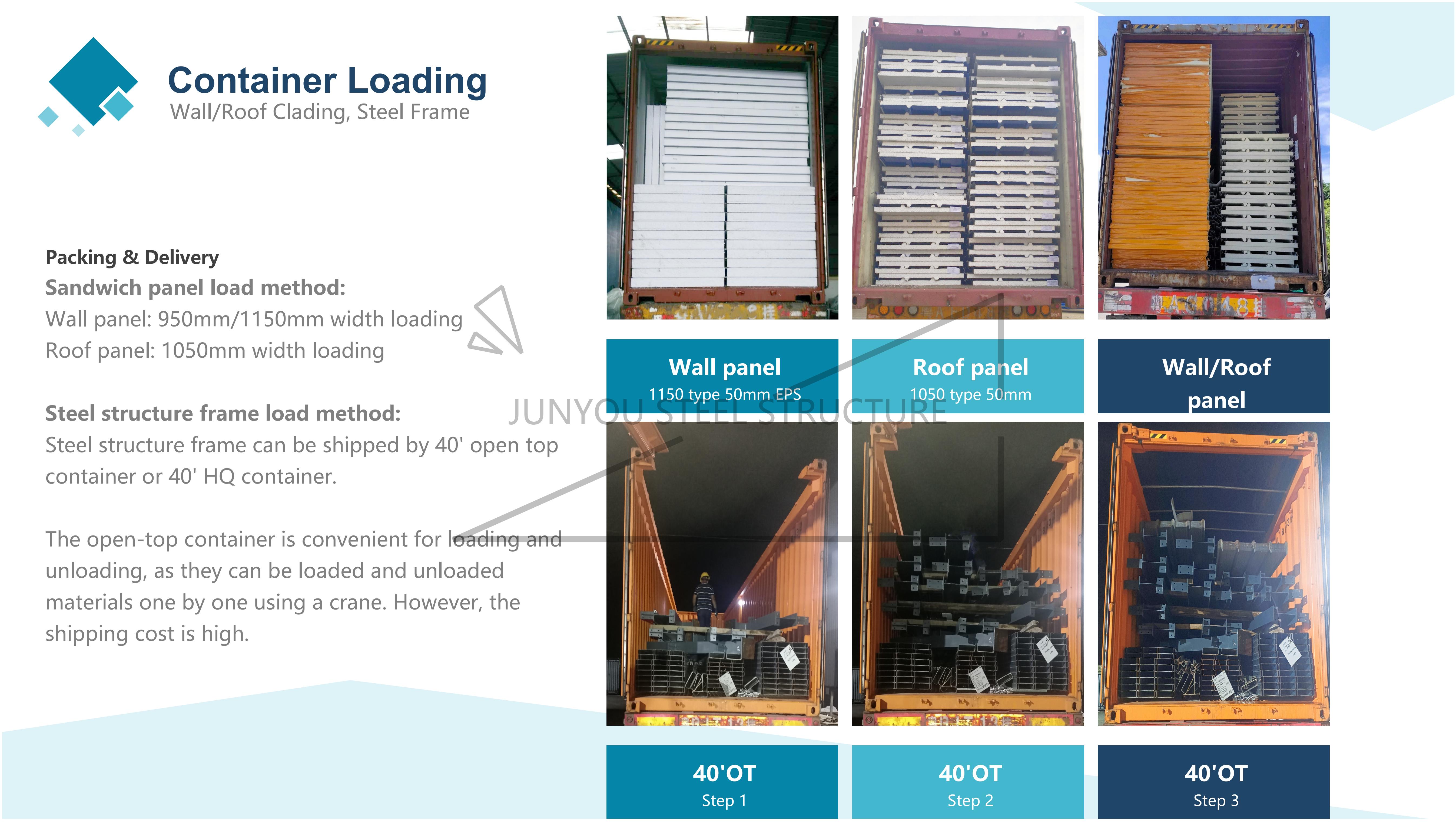

Container loading method
The Advantages of an Industrial Warehouse:
Sturdy construction and durable materials:The steel has superior strength and durability when compared with other building materials.
Save Time and Cost: Steel structure buildings are quick to construct and easy to install: All components are prefabricated, pre-cut, pre-welded, pre-drilled, pre-painted or hot-dip galvanized in the factory to save cost and time.
Convenience of accessibility: With wide entryways and spacious interior design not only makes it easier for staff to move around but also helps to transfer goods in and out of the warehouse.
Environmentally Friendly: Making a steel warehouse can reduce construction waste, save water and protect the environment.
Fireproof and heat-insulating construction:These warehouses are built with sturdy construction and fire-resistant materials, providing extra protection against potential damage from fire.
Why Choose Us?
(1) A building material sample can be offered for testing if needed.
(2) A free drawing(Floor plan and elevation plan) can offer to give you a rough idea.
(3) Advanced production equipment and skillful workers to ensure on-time delivery.
(4)OEM and ODM orders can be accepted.
(5)Factory visiting is always welcome.
After choosing us
(1)We will offer a Proforma Invoice(PI) for you.
(2)We can arrange the shipment if necessary, because we have a close relationship with some shipping company.
(3)We can accept the third party to check the goods before delivery.
(4)We will ensure on-time delivery.
(5)We will give feedback in every stage of production.
(6)We have a skillful load team that loads containers nicely.
(7)We will offer detailed installation drawing in English to guide the on site assembly work.
(8)If necessary, we can send engineers on-site to guide the installation.
