Product Description
Today, warehouses are often made of durable materials such as steel, and metal. This kind of materials provide strength and stability to support the storage of goods and materials, they protect goods from natural disasters as well. Additionally, warehouses may have features like high ceilings, large doors, and shelving systems to optimize storage space. This kind of steel building with long life span and will remain standing for many years to come. You can even add multiple floors to your warehouse for extra storage space.
Warehouses are typically used in commercial and industrial spaces, which means they contain heavy items or heavy machinery that can cause severe structural damage if not handled properly. Steel structure buildings are better equipped to withstand this type of impact damage.

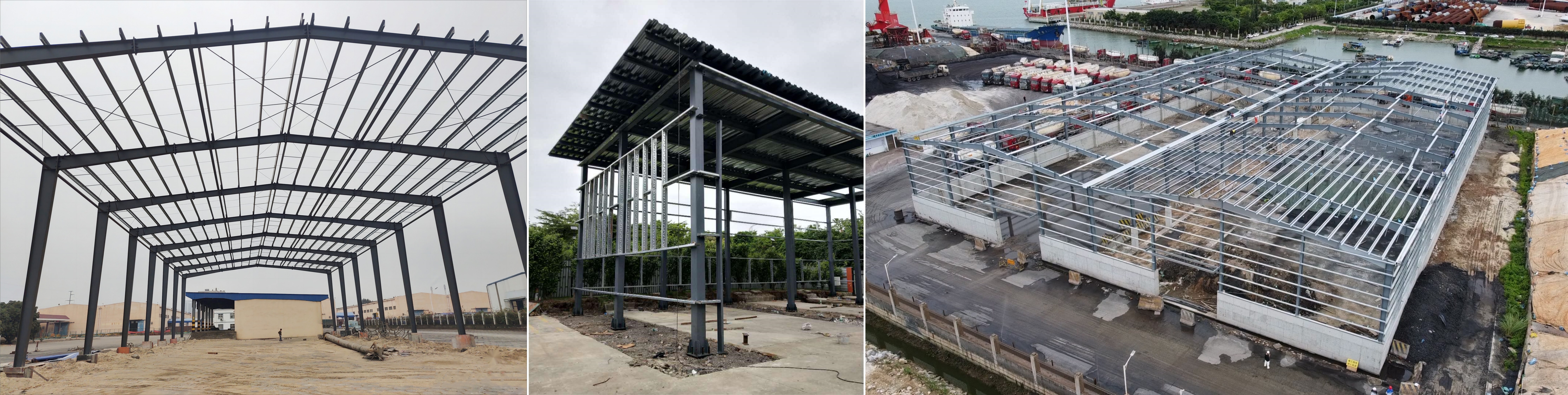

There are four types of steel frame structures that can make steel warehouses: basic building frame structure, portal rigid frame, truss structure, and space frame structure. The two commonly used steel frame structures are the basic building frame structure and the portal rigid frame. These structures provide strength and stability for various construction projects.

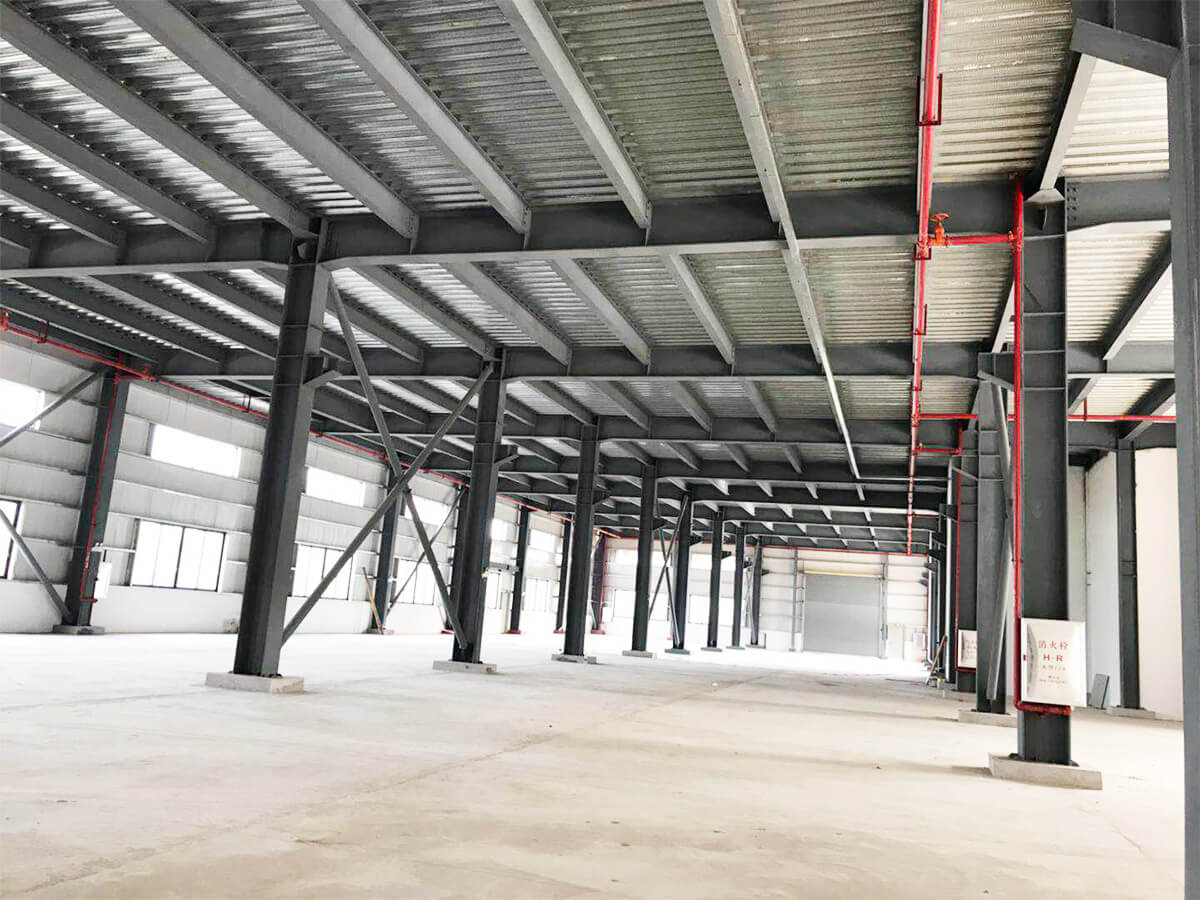

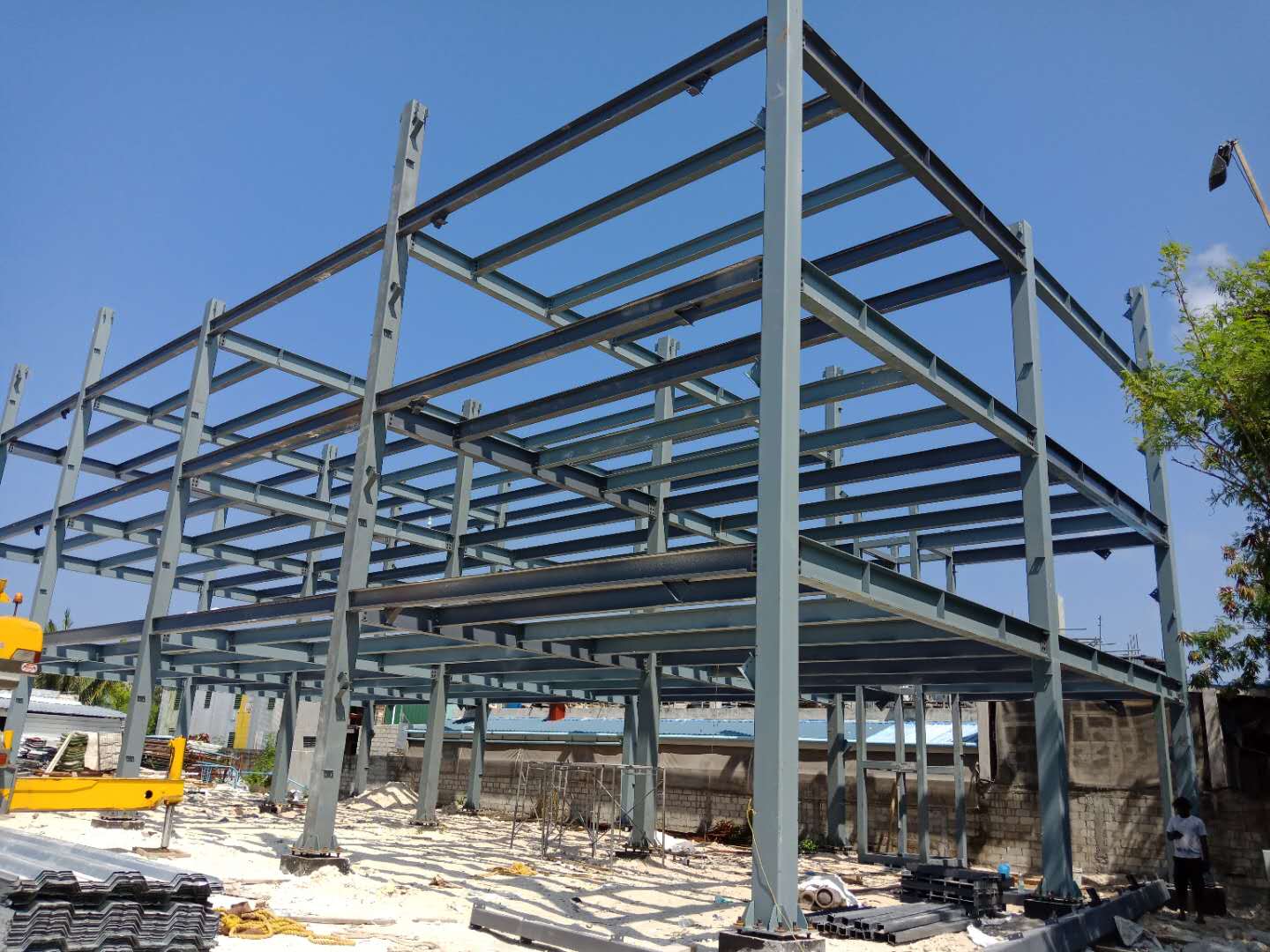

1）Basic building frame:

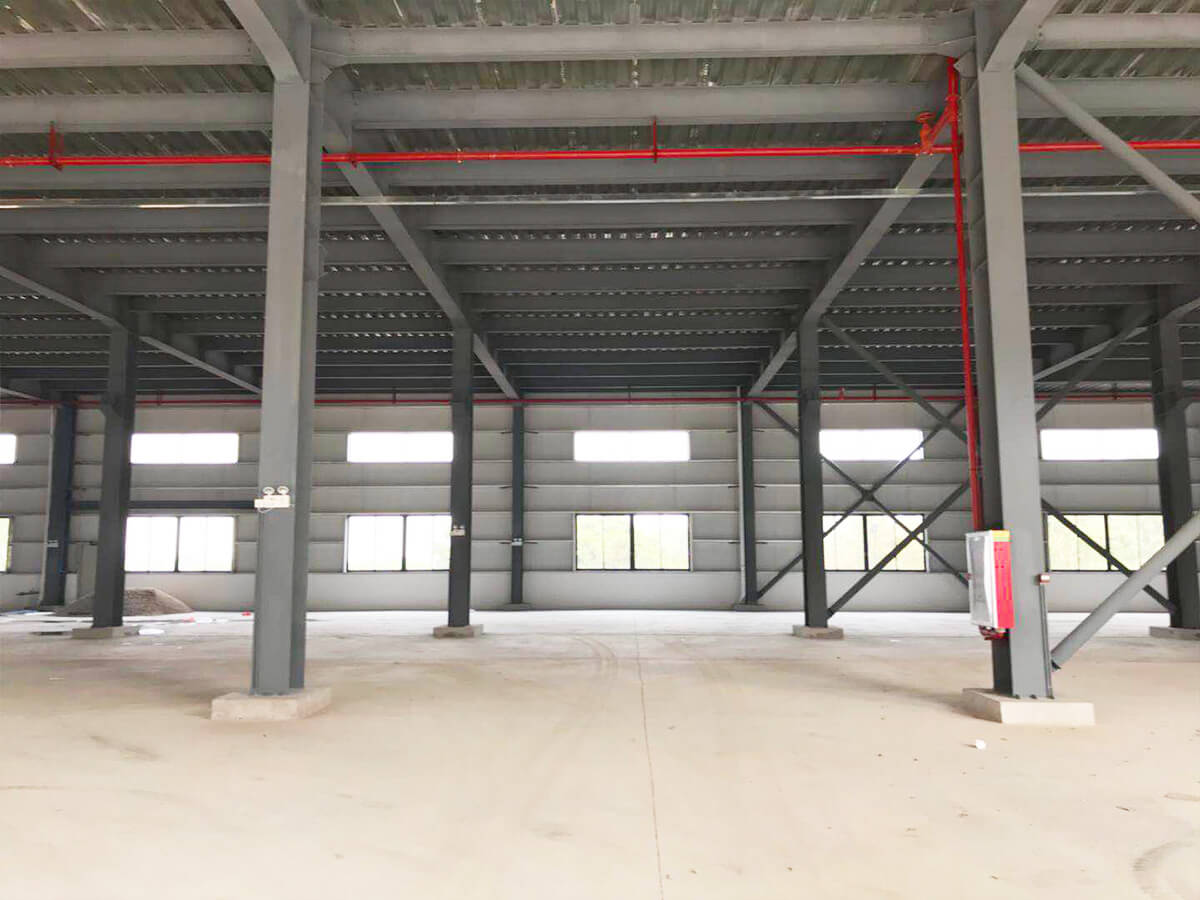

2)Portal rigid frame（clear span, single span,multi-span）

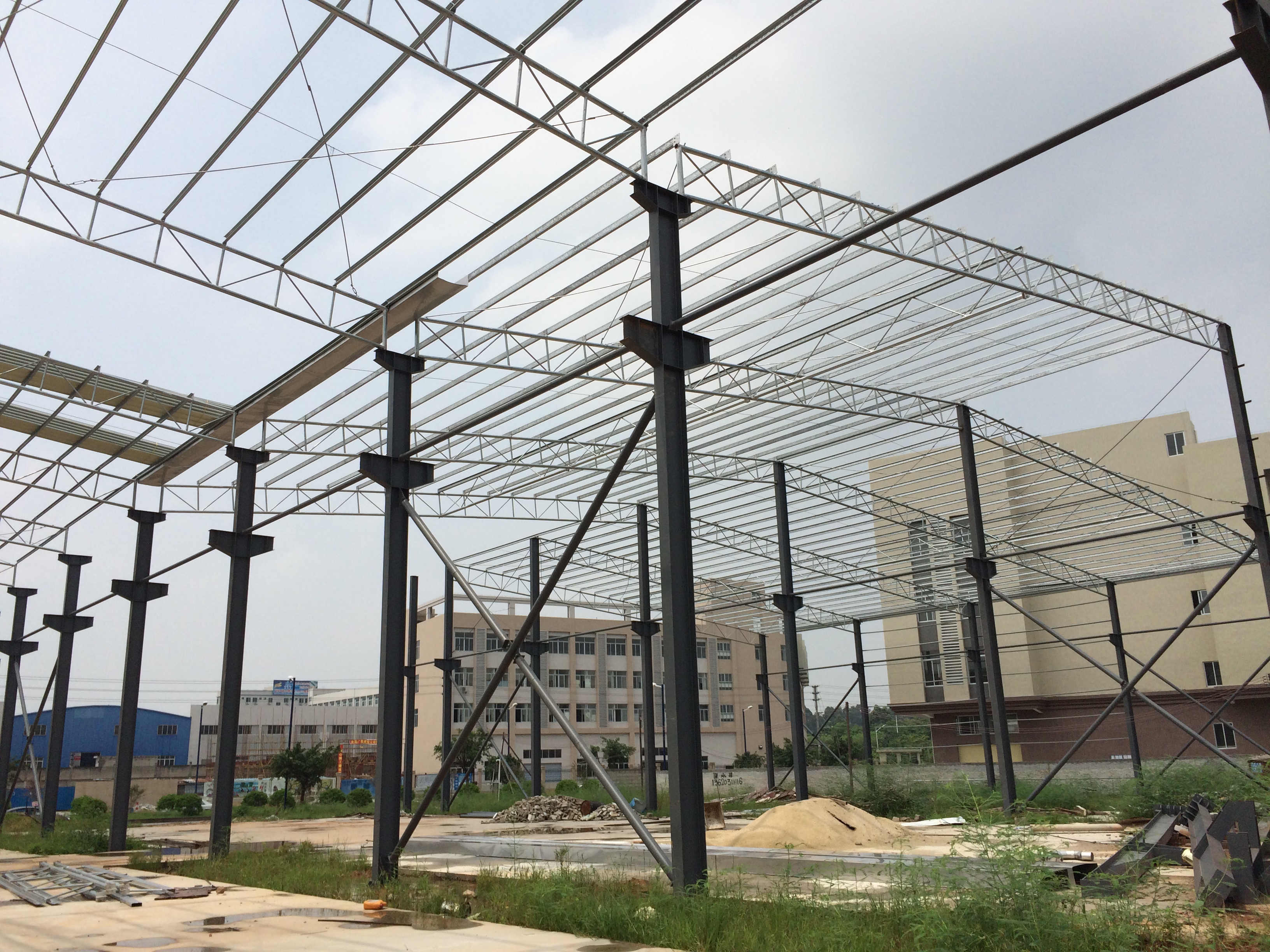

3)Truss structure

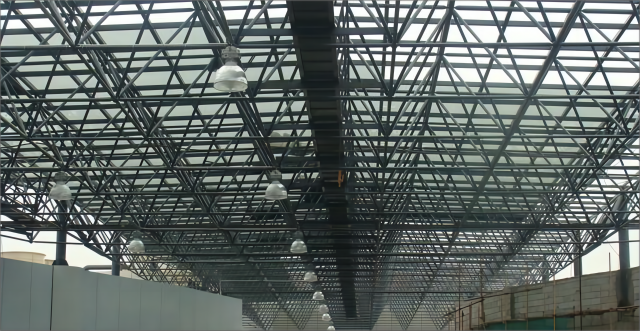

4)Space frame structure

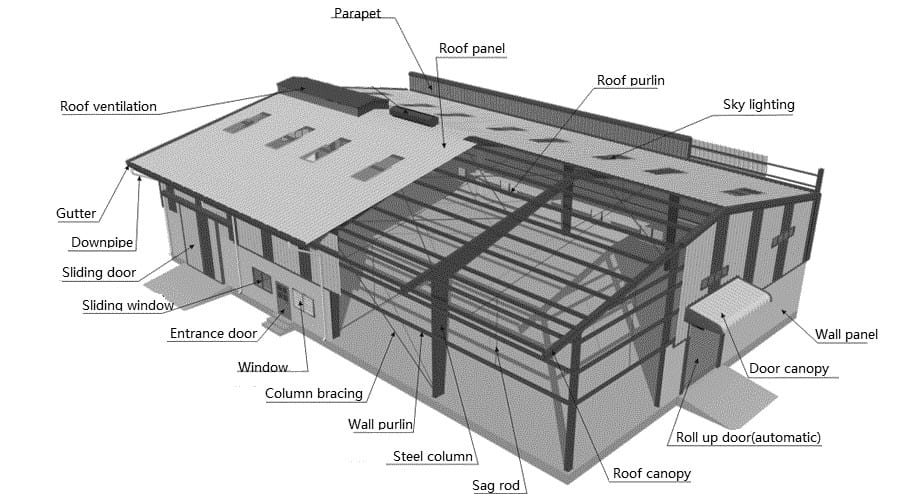

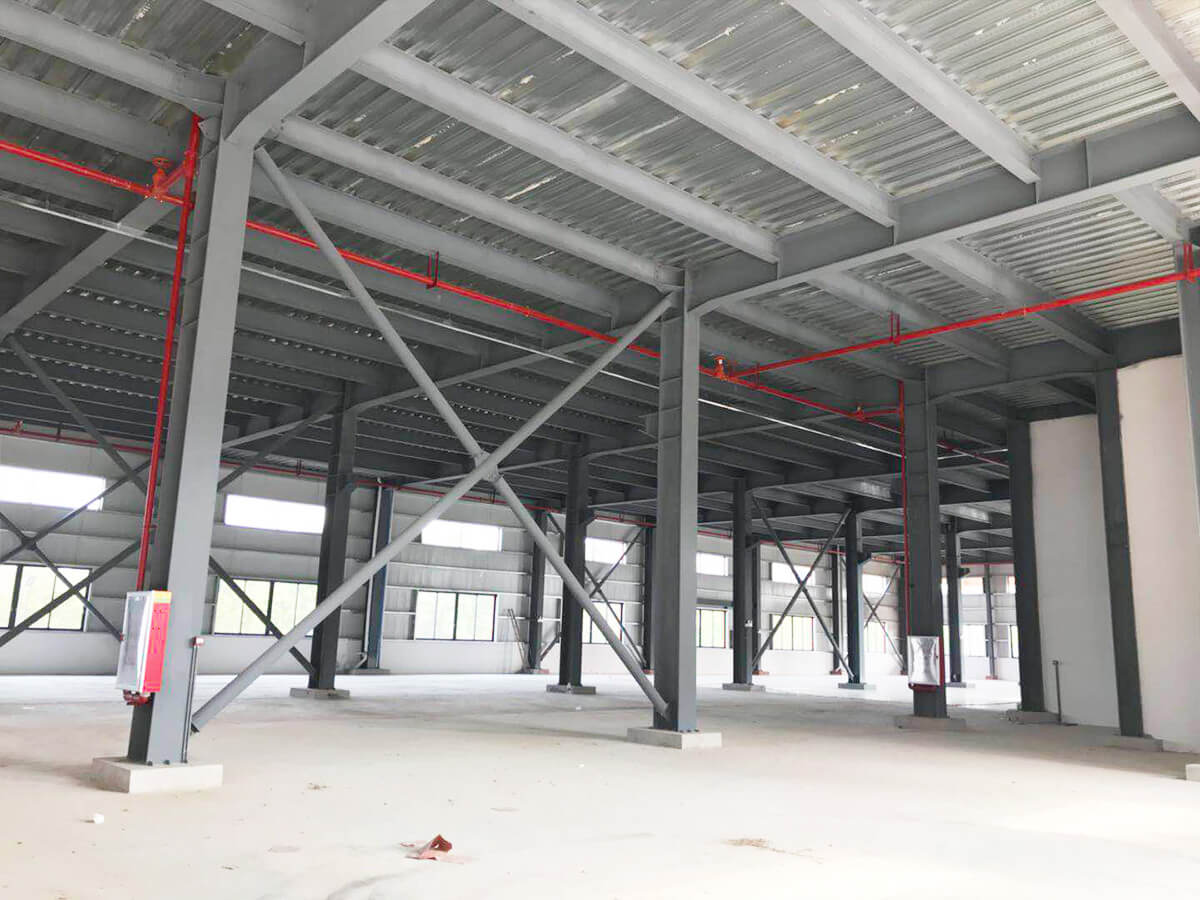

A steel structure warehouse is made up of steel components, including H-section steel columns, I-beams, roof trusses, purlins, vertical rods, tension rods, bracing, as well as sandwich panels or corrugated steel sheet used for wall and roof cladding. Custom-designed steel structure warehouses can be single-story or multi-story, providing a convenient solution for those in need of warehouse construction. Steel warehouses are lightweight and easy to assemble, offering excellent efficiency and strength, while also providing flexibility in the form of customized layouts. For example, mezzanine floors can be configured to meet office requirements above standard storage and goods management spaces.
Steel warehouse components
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||

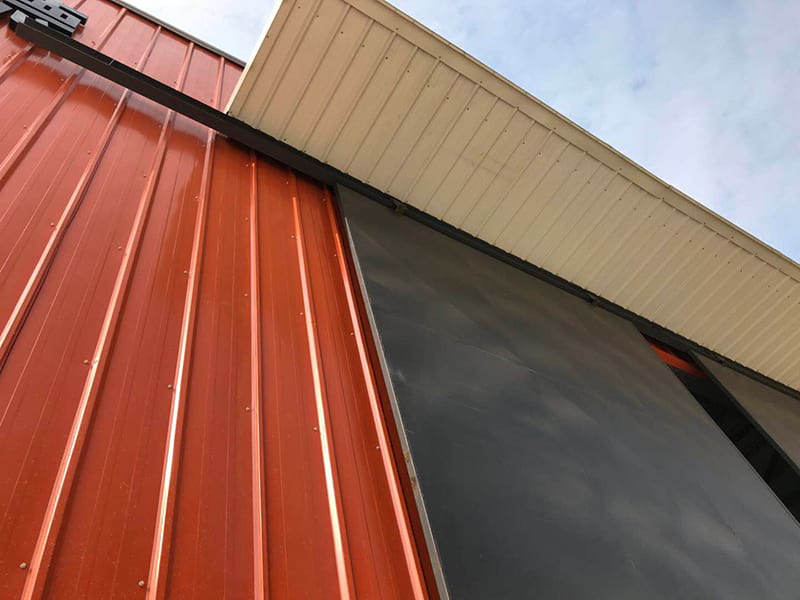

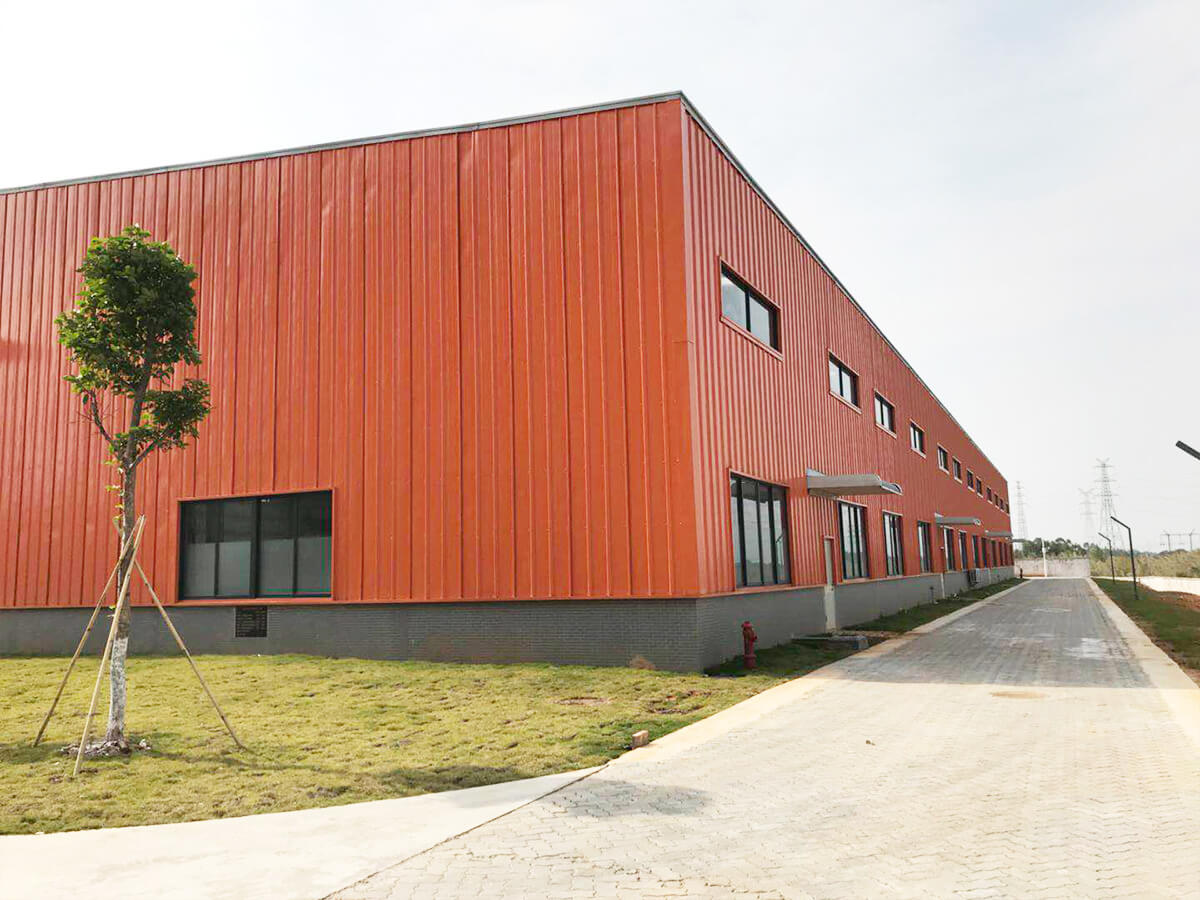

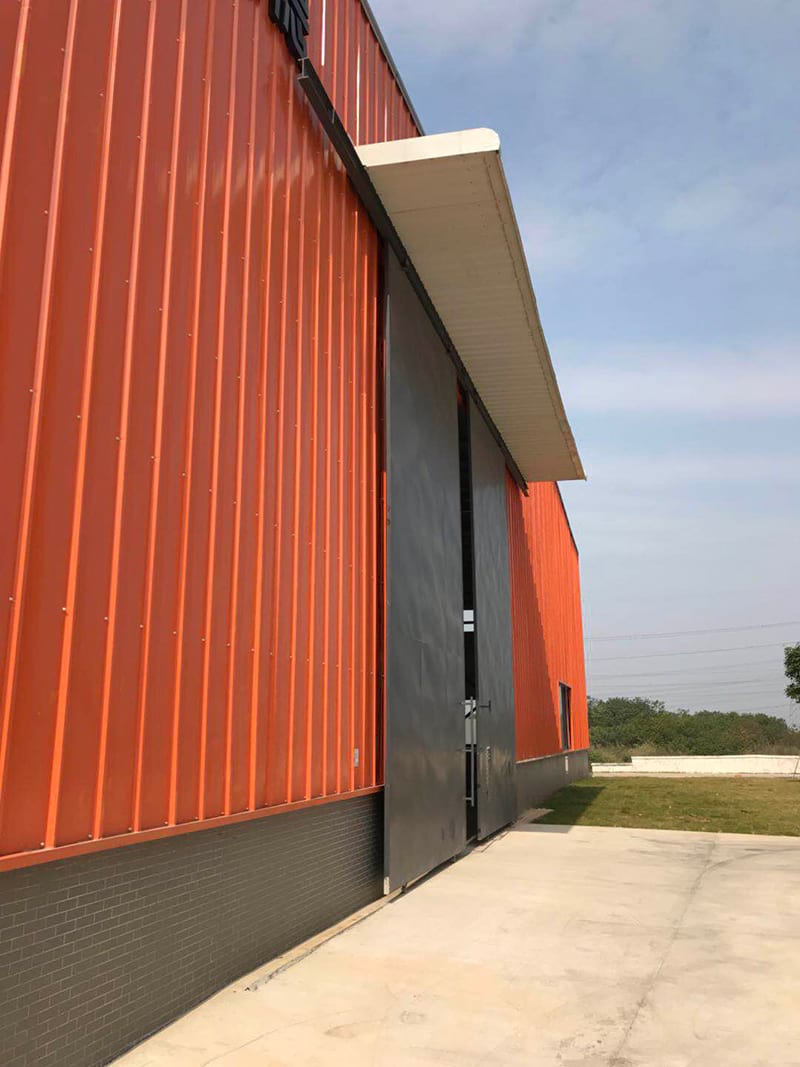

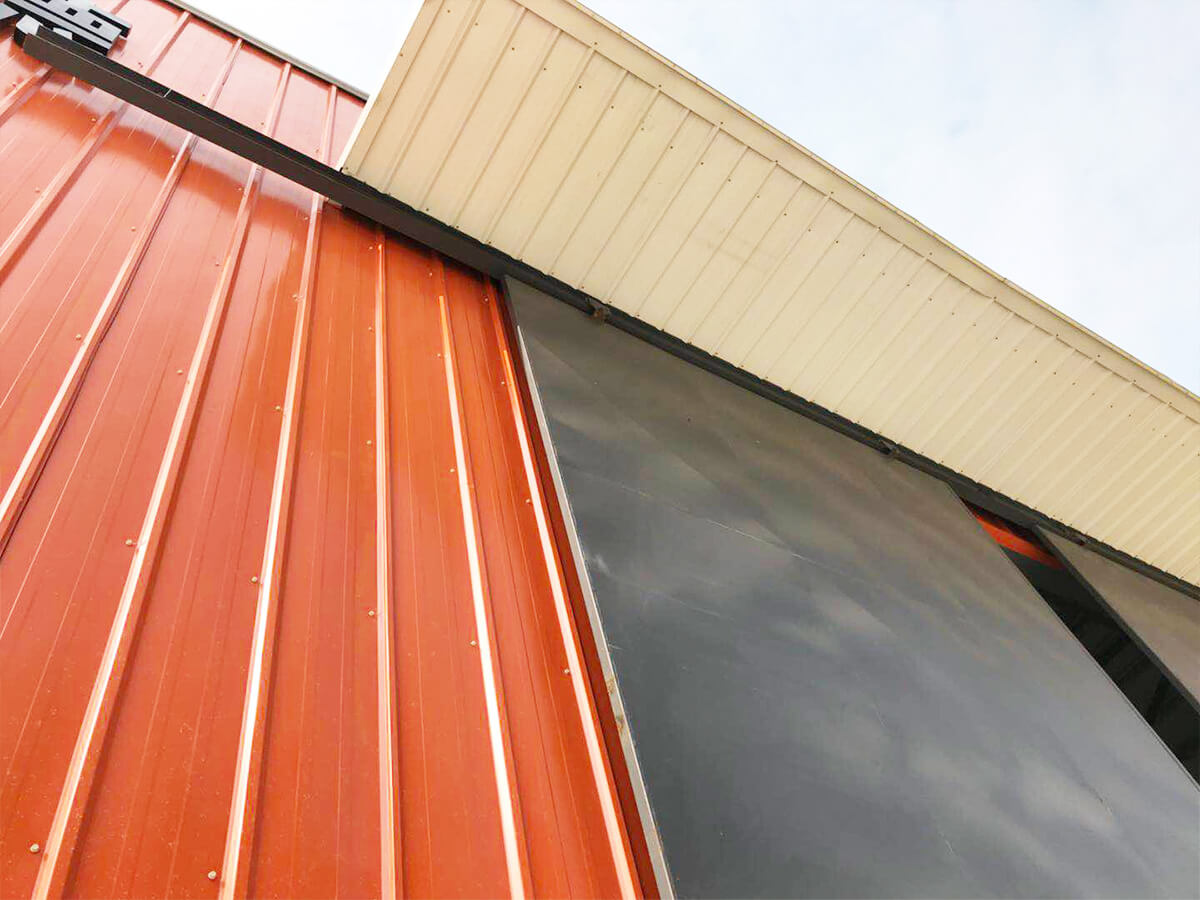

The steel product we mentioned is one-span steel structure warehouse in the industrial zone.This steel structure product is a single-span steel structure warehouse. The customer has strict requirements for the doors and door canopies because this warehouse is mainly used as a storage facility and transit station for transporting goods. Therefore, spacious and easy-to-operate doors can greatly improve the speed of loading and unloading goods. For the customer's requirements, we recommend using two types of doors. One is an electric rolling door, and the other is a sliding door. This combination of two types can effectively avoid difficulties in case of power outage.
The difference between a rolling door and a sliding door for a warehouse:

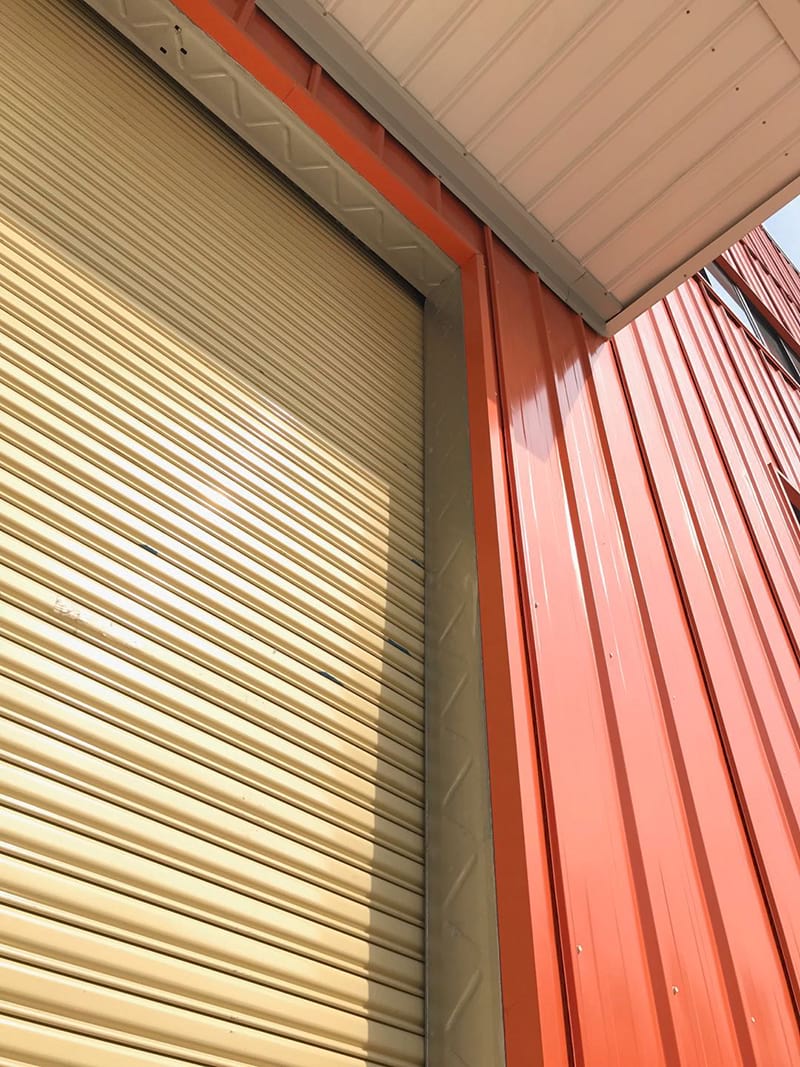

1)An electric rolling gate, is a type of door that rolls up and down along tracks. It is made of metal slats or steel panels that are connected together. This type of door is often used in industrial settings and provides security and ease of operation. It can be operated manually or automatically using an electric motor.
2) A sliding door is a type of door that slides horizontally along tracks. It is usually made of large panels that slide to the side to open and close. Sliding doors are commonly used in warehouses and other large openings where there is a need for wide access. They are known for their durability and ease of use.
Steel warehouse advantages:
Metal warehouses offer various benefits, including durability, strength, and cost-effectiveness. The steel components used in these buildings are known for their resistance to fire, pests, and adverse weather conditions, ensuring the safety and security of the stored goods. Moreover, the use of metal components typically results in shorter construction times and lower maintenance costs, making it a practical choice for building a warehouse.
1. High-strength steel material, the main steel structure frame design life span can last more than 50 years;
2. Steel portal frame structure uses H Beam and I beam to make wind resistance, snow resistance, and earthquake resist design;
3. Hot dip Galvanize and paint the structure frame for options to meet the different needs for anti-rust whether close or not close to the sea.
4. Maximize the use of indoor space, clear span can reach 60m;
5. Roof and wall cladding insulation & single steel sheets are both available to match different kinds of client budgets.
6. Bolt assembly without on-site welding can speed up the installation work. This can save time and labor costs during installation.
7. Customized steel building appearance design to fit a certain local or a specific company brand.
H-section steel benefits:
1. The H-section steel is lightweight, and it is an economical option for construction.
2. The H-section steel is high-strength because it possesses a greater surface area on the cross-section.
3. The H-section steel is straightforward easier to weld and easier to install.
4. The H-section steel is eco-friendly and highly recyclable and creates minimal raw material waste.
5. H-section steel has Good mechanical properties.
6. H-section steel has good bending resistance, anti-torsion strength, anti-earthquake.
Steel structure building/workshop/warehouse/Godown Design information we need:
1. The specifications for the steel building do you need? (Length, width, and height, the height of the building can big affect the cost)
2. What is your steel building used for? (factory, workshop, warehouse, hangar, plant, poultry farm shed, etc.)
3. Thermal conditions of your steel building. (EPS, glass wool, rock wool, PU)
4. The lighting conditions of your steel building. (Ventilation/skylight)
5. The window and door requirements. (roll-up door/sliding door/steel door/ PVC door)
6. The wind-load/ snow load for your steel building. (to design a safe structure that can withstand the weather conditions)
7. Does The steel building have a crane or not? (3/5/10/15 ton)
8. Project location.
9. Surface treatment: Paint or hot dip galvanized.
10. how floors? Any mezzanine? or Other special demand.
