Product Information

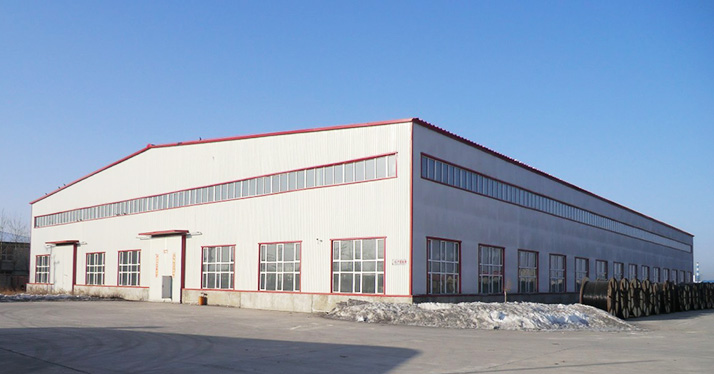

Industrial steel structure warehouses are warehouse buildings that use steel structures as the main load-bearing structures. They are usually composed of H steel beams, columns, trusses, and other steel structure components as the framework, and then matched with wall panels, roof panels, and other enclosure like windows and doors.
The steel structure warehouse is a type of wide open space building structure that is specifically designed and constructed to store goods and materials for agriculture, Industry, and commercial purposes. Custom-designed steel warehouses can be just one floor or with a mezzanine floor, it provides an easy and convenient solution for those who need to construct a warehouse.

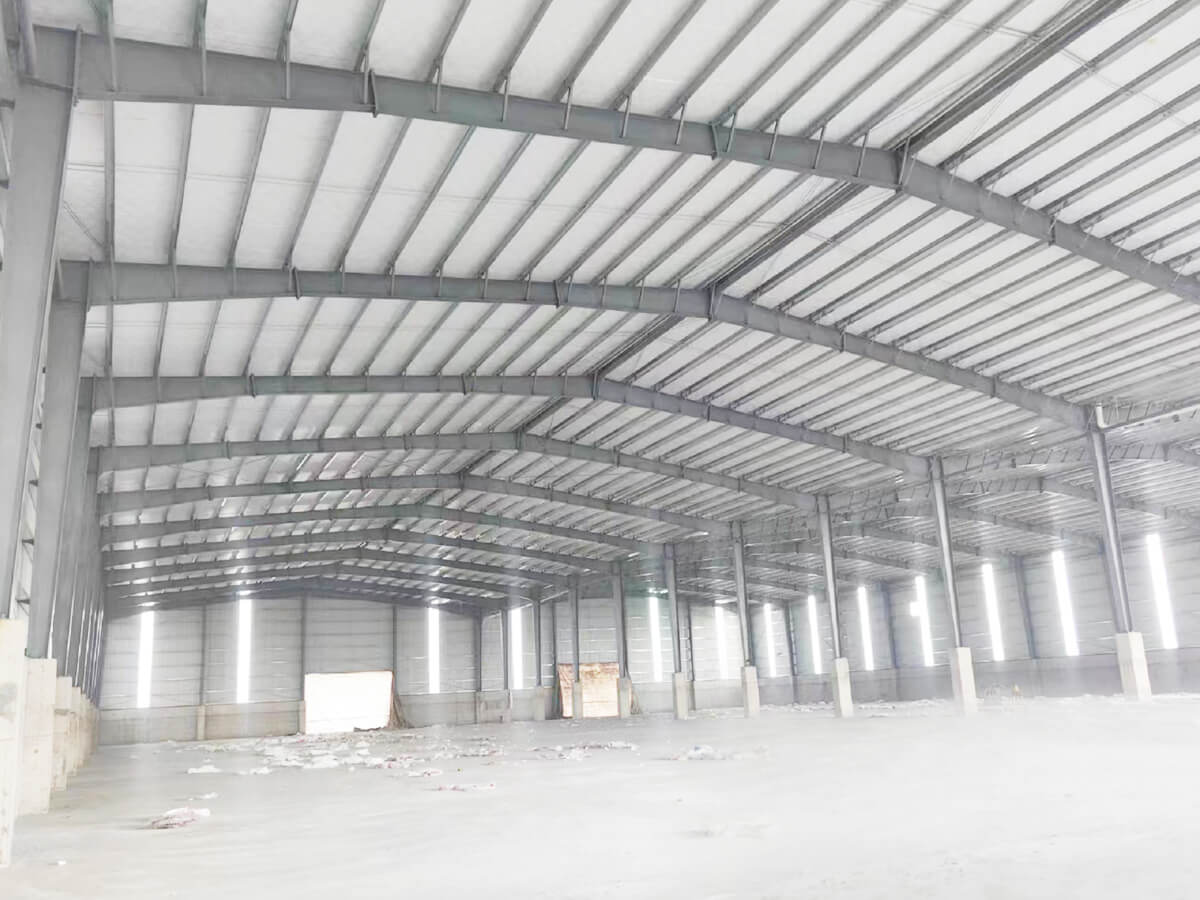

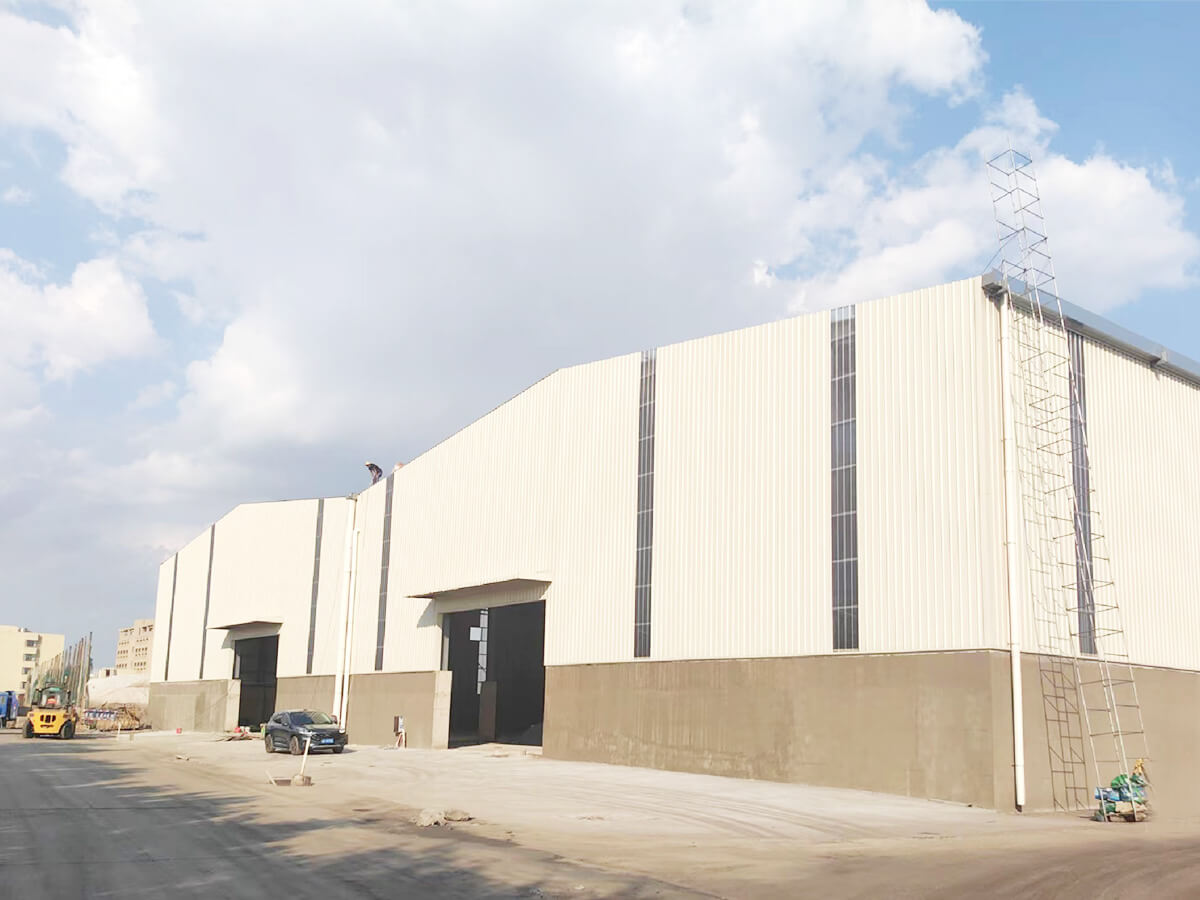

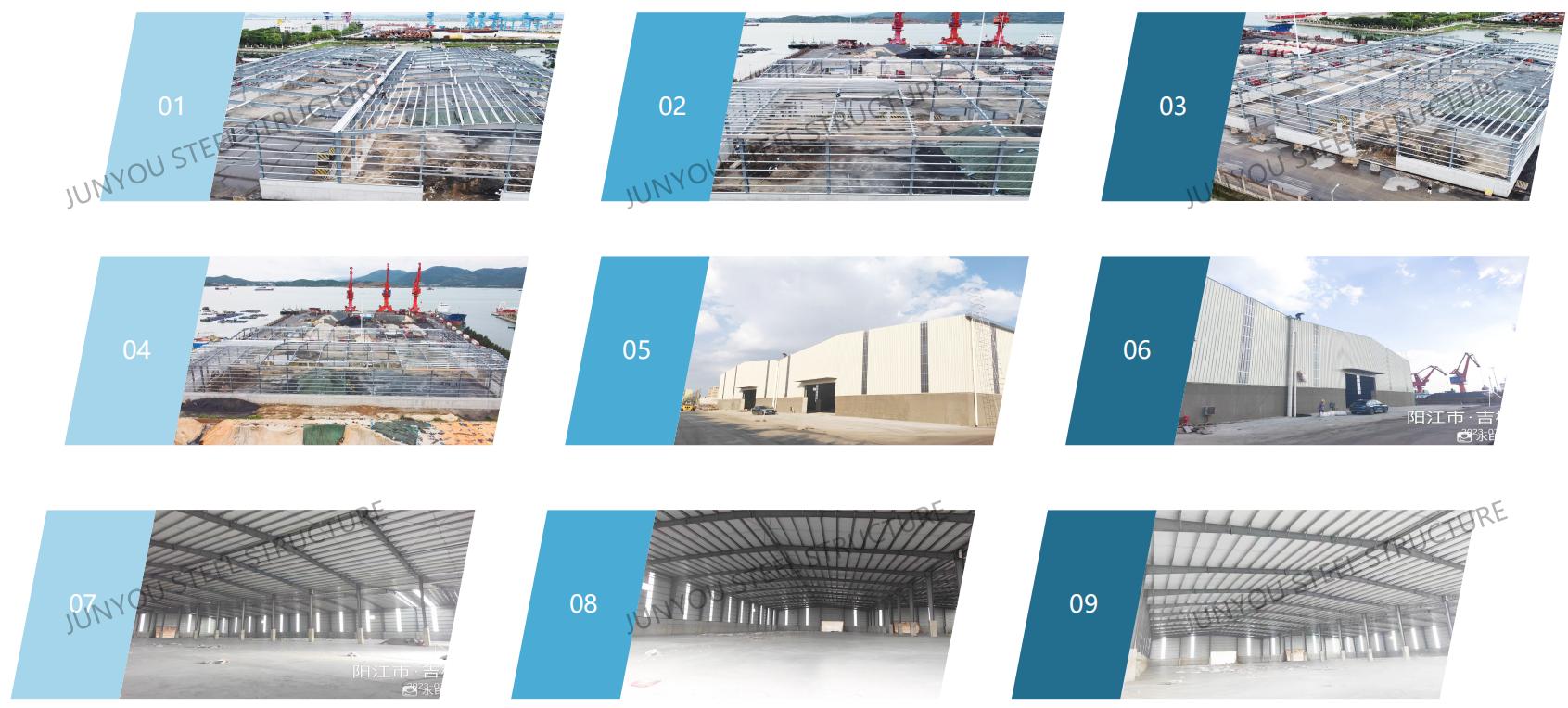

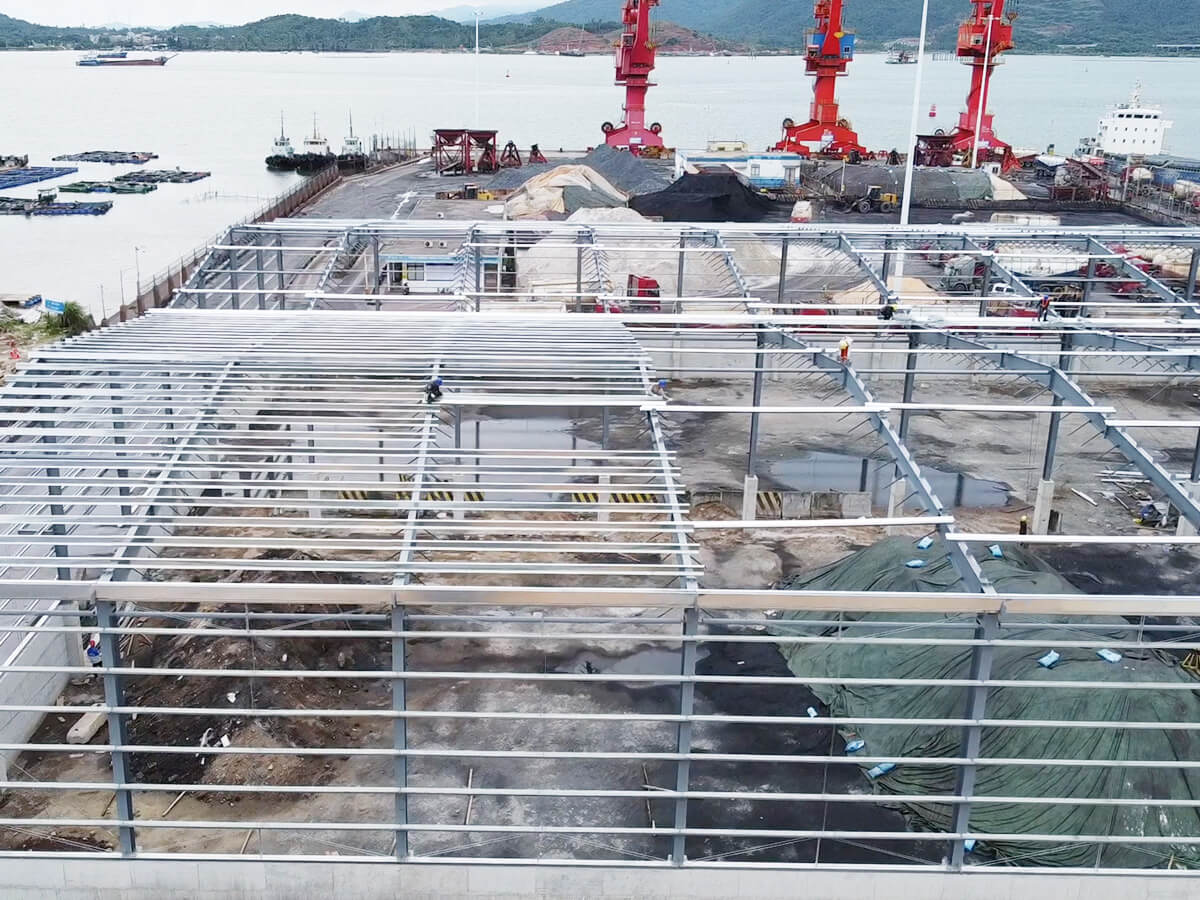

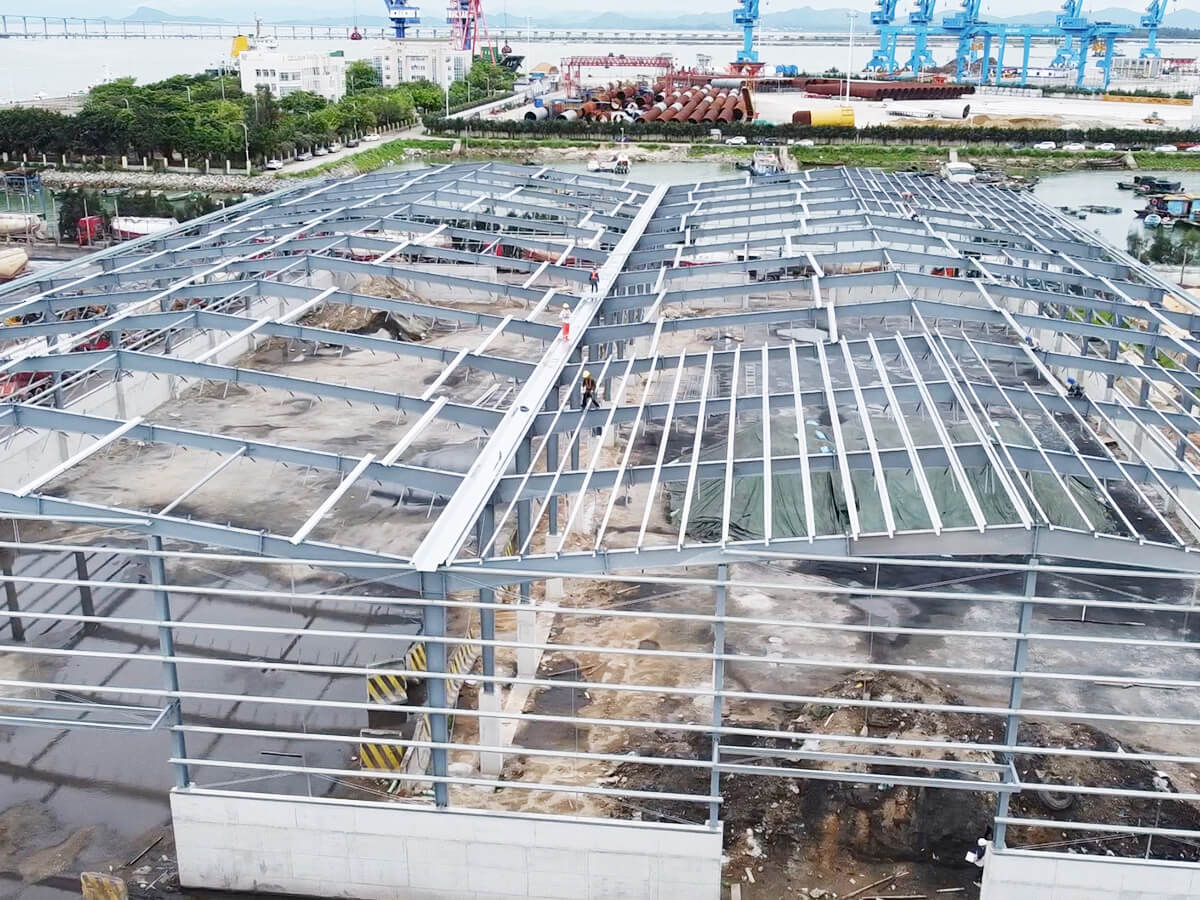

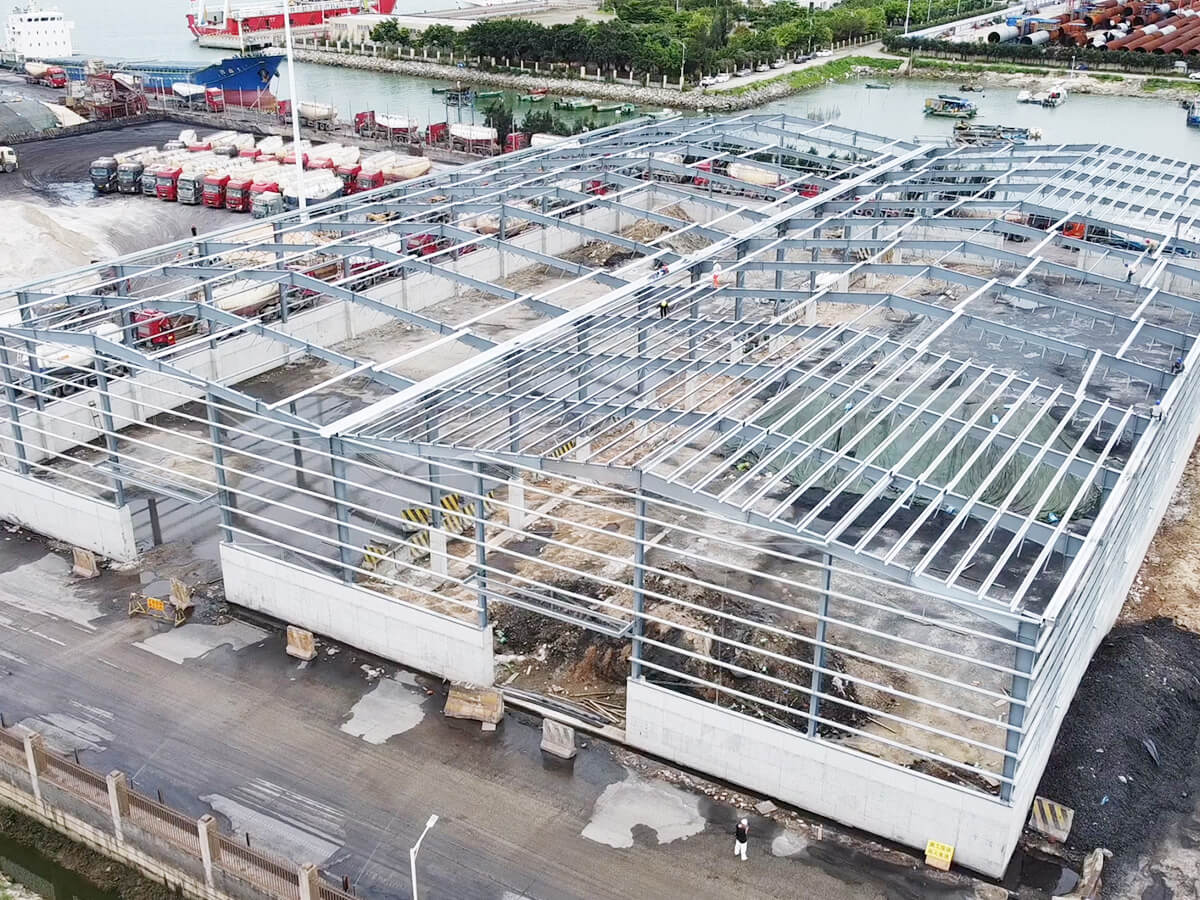

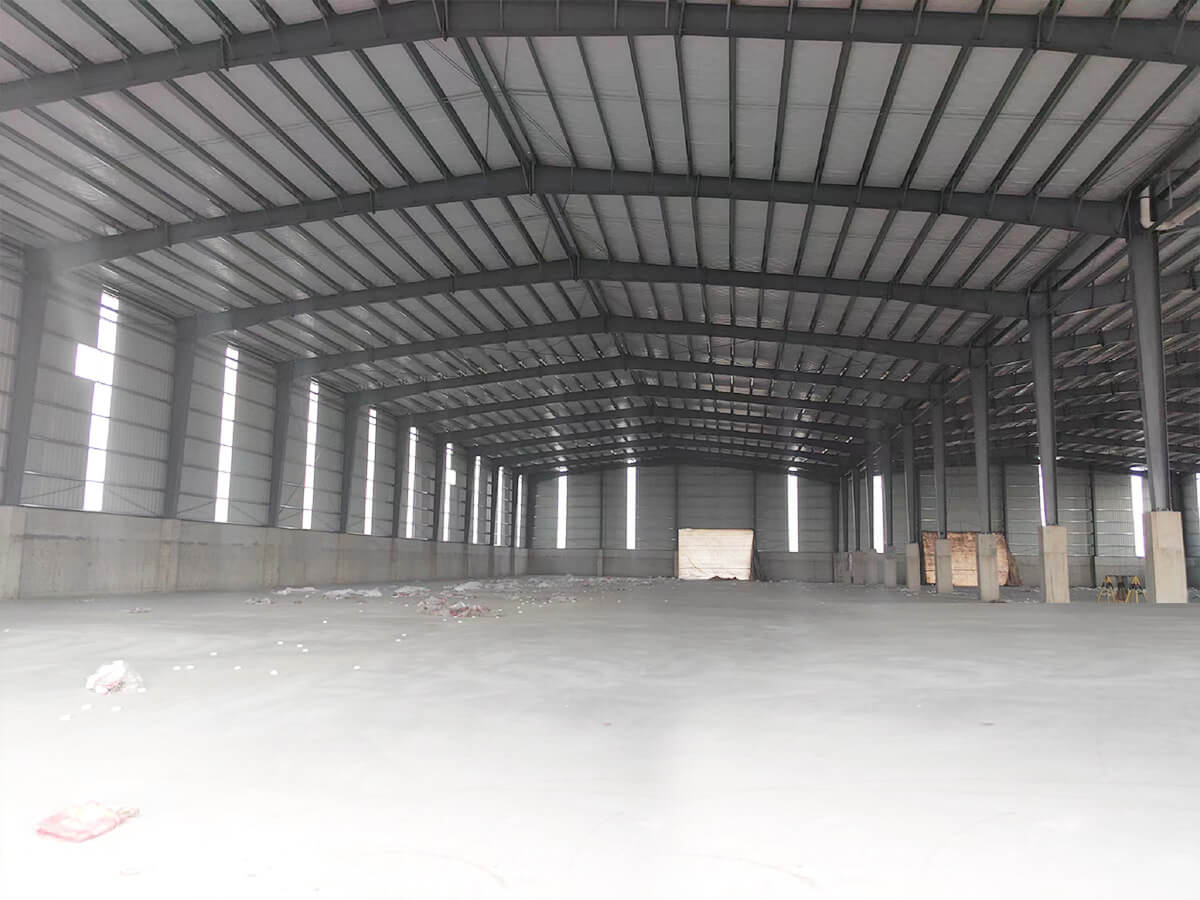

The steel warehouse product we display here is a warehouse for sea food near the dock. Because this project does not require a crane and its main function is to store seafood, our engineers used a double-span design with a row of columns in the middle. This can reduce the size of the columns and beams, thereby reducing the customer's cost. Here below are the steel project pictures display:
Steel warehouse function
The steel components used in these buildings are known for their resistance to fire, pests, and adverse weather conditions, ensuring the safety and security of the stored goods. Warehouse operations cover a series of important areas, for example, receiving goods, Organizing and storing inventory, establishing sorting and packing practices, and distribution processes. According to the owner's resources, the warehouse we design has to be secure, convenient, and as spacious as possible.
Steel warehouse advantages
Strength and Durability: Steel is a highly durable material that can withstand heavy loads and harsh environmental conditions. This strength and durability ensure that steel warehouses can safely store large quantities of goods for extended periods.
A high level of customization:The design and layout of the warehouse can be made to meet specific storage requirements. This flexibility allows for efficient use of space and the ability to adapt the warehouse as storage needs change.
Construction quick and efficient: The pre-engineered steel components used in these warehouses are fabricated in our factory and delivered to the construction site for assembly by bolts. This speeds up the construction process and reduces the client's labor costs.
Rigid Frame warehouse is cost-effective both in terms of construction and long-term operation: Once it’s been built, this new building will give you years of storage space that is both durable and convenient! Additionally, steel building requires minimal maintenance, reducing long-term operating expenses.
Fire and Pest Resistance: Steel is a non-combustible material that does not contribute to the spread of fire. This makes steel warehouses highly fire-resistant, providing a safe environment for stored goods. Steel is also resistant to pests such as termites, rodents, and insects, ensuring the integrity of the warehouse and its contents.
Structural stability: Steel is known for its excellent structural integrity it can withstand any weather conditions, high winds, heavy snow loads, and seismic events. This ensures the safety and security of the stored goods and the long-lasting the warehouse services life span.
Material list display in detailed
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel structure warehouse container loading method:
H beam steel frame production display
If you don’t have specific design drawings, don’t worry, just tell us the following data and we can design a simple floor plan for your reference.
1. | Size: | Length ___ Width___ Height___ |
2. | Storey: | ___Floors (Mezzanine if any) |
3. | Wind load | ___KN/m2 |
4. | Snow load: | ___KN/m2 |
5. | Ventilation: | Yes/No |
6. | Roof panel: | EPS/Glass wool/Rock wool/PU sandwich panel / Corrugated steel sheet |
7. | Wall panel: | EPS/Glass wool/Rock wool/PU sandwich panel / Corrugated steel sheet |
8. | Sky lighting: | Yes/No |
9. | Door/Gate: | Rolling door/ sliding door/steel door ----Size( W__ x H__ x __unit) |
10. | Window: | Fixed/open ----Size( W__ x H__ x __unit) |
11 | Gutter/downpipe: | Yes/No |
12 | Crane: | Yes ___ton / No |
13 | Steel finished: | Painting/Hot-dip galvanized |
