Production Information

This steel warehouse is more comprehensive than the usual one because it will join the existing warehouses, which are identical to these designs (in dimensions).

Therefore, the connection details may be adjusted, and other parts like:

·        Gutters

·        Rain Downpipes

·        Sag rods

·        Sheet claddings

·        Column protectors

·        Facial boards and other items

The client required the entire structure: the structural steel frame, Z-purlins, Cladding (roof sheeting), and all other accessories, apart from the Civil works.

Project location: Mombasa port, Kenya, east Africa

Project specification: 40mx52.5mx6m(H), 2100 m2

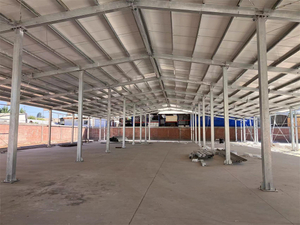

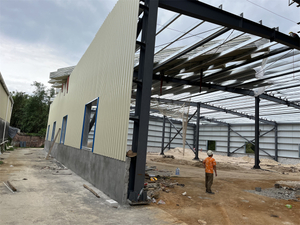

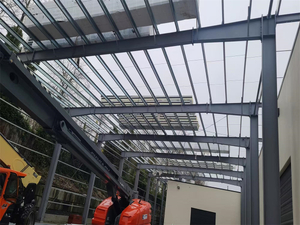

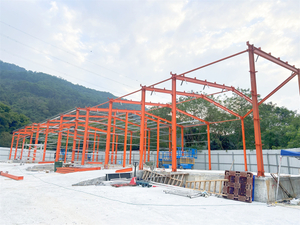

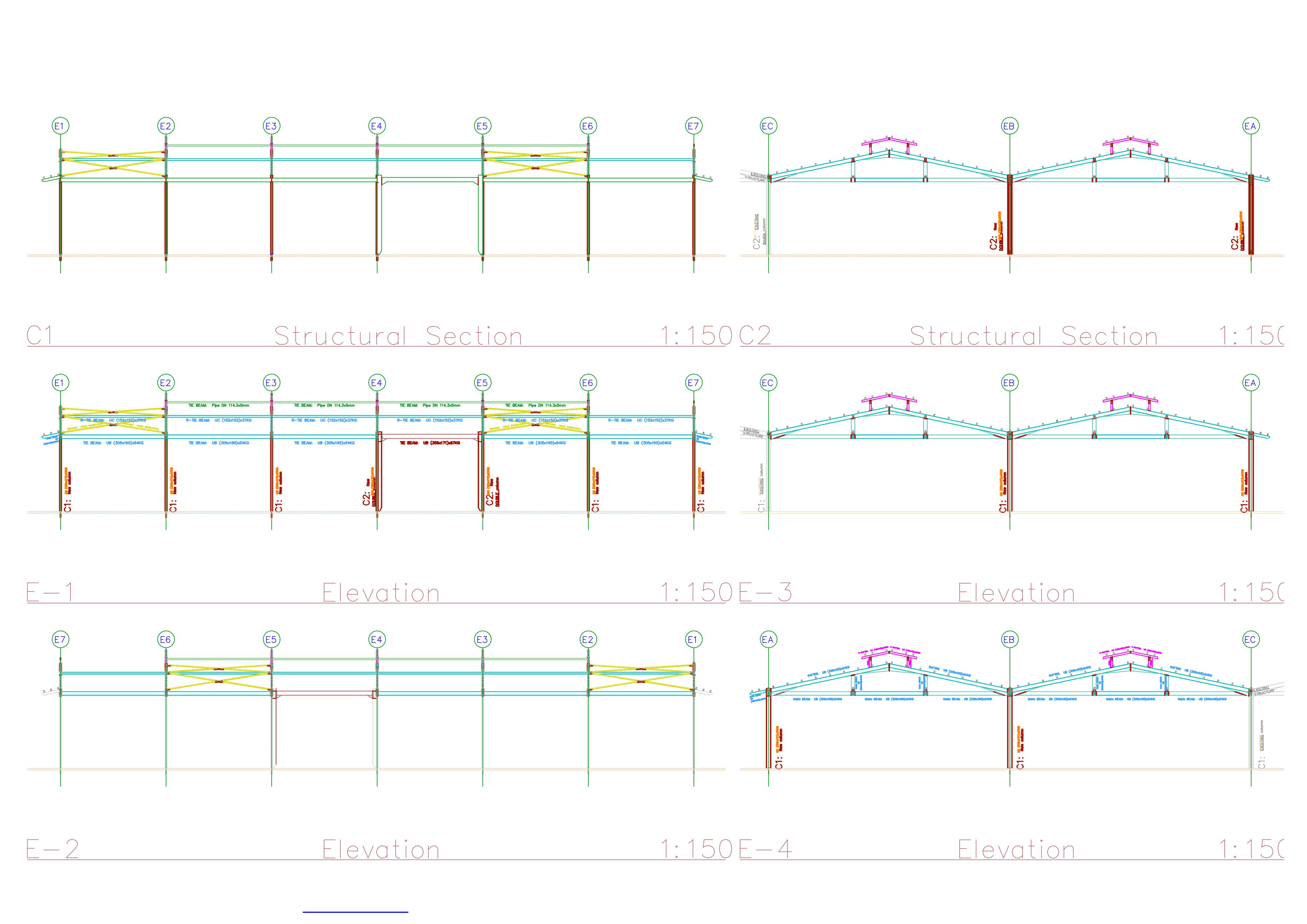

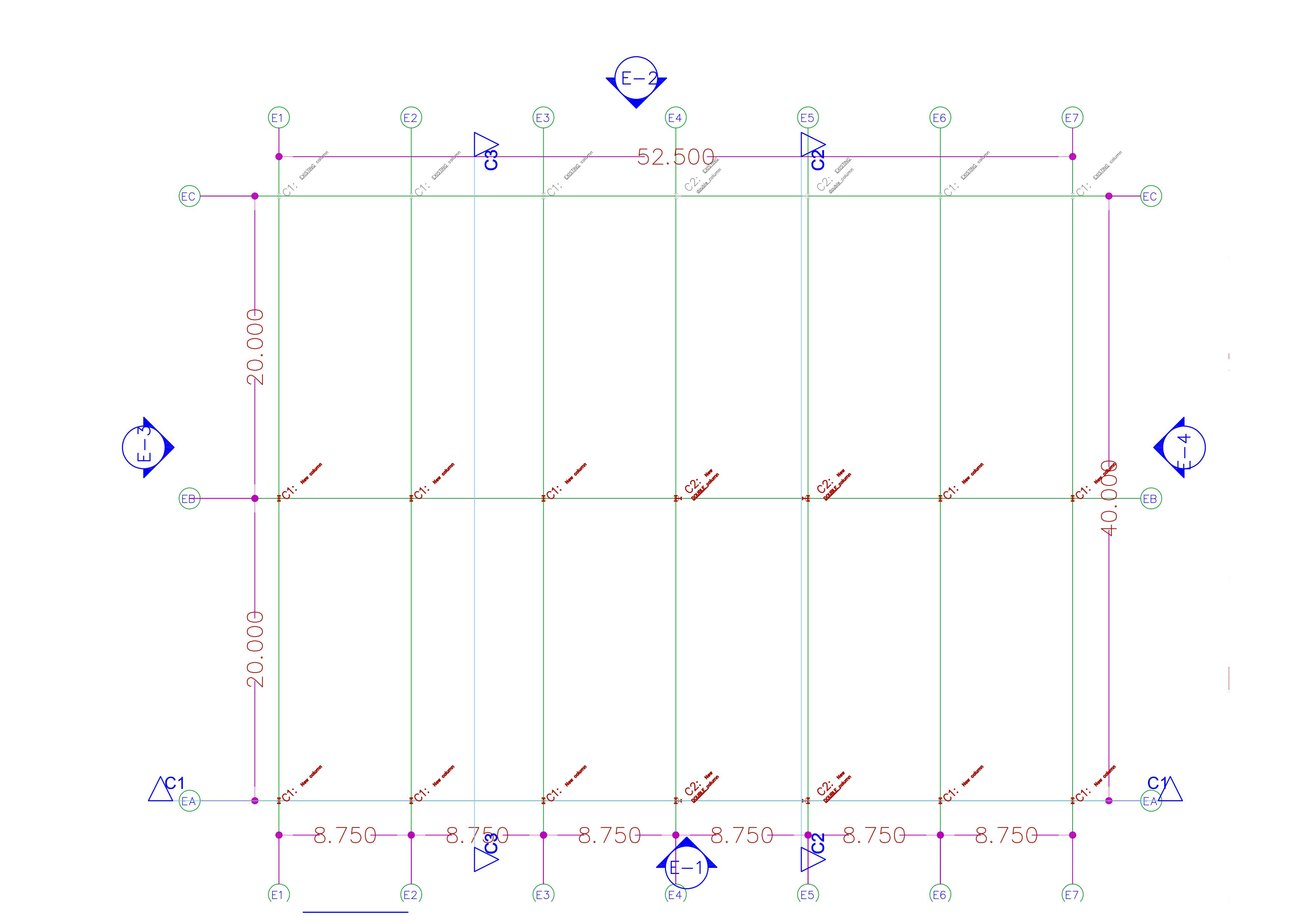

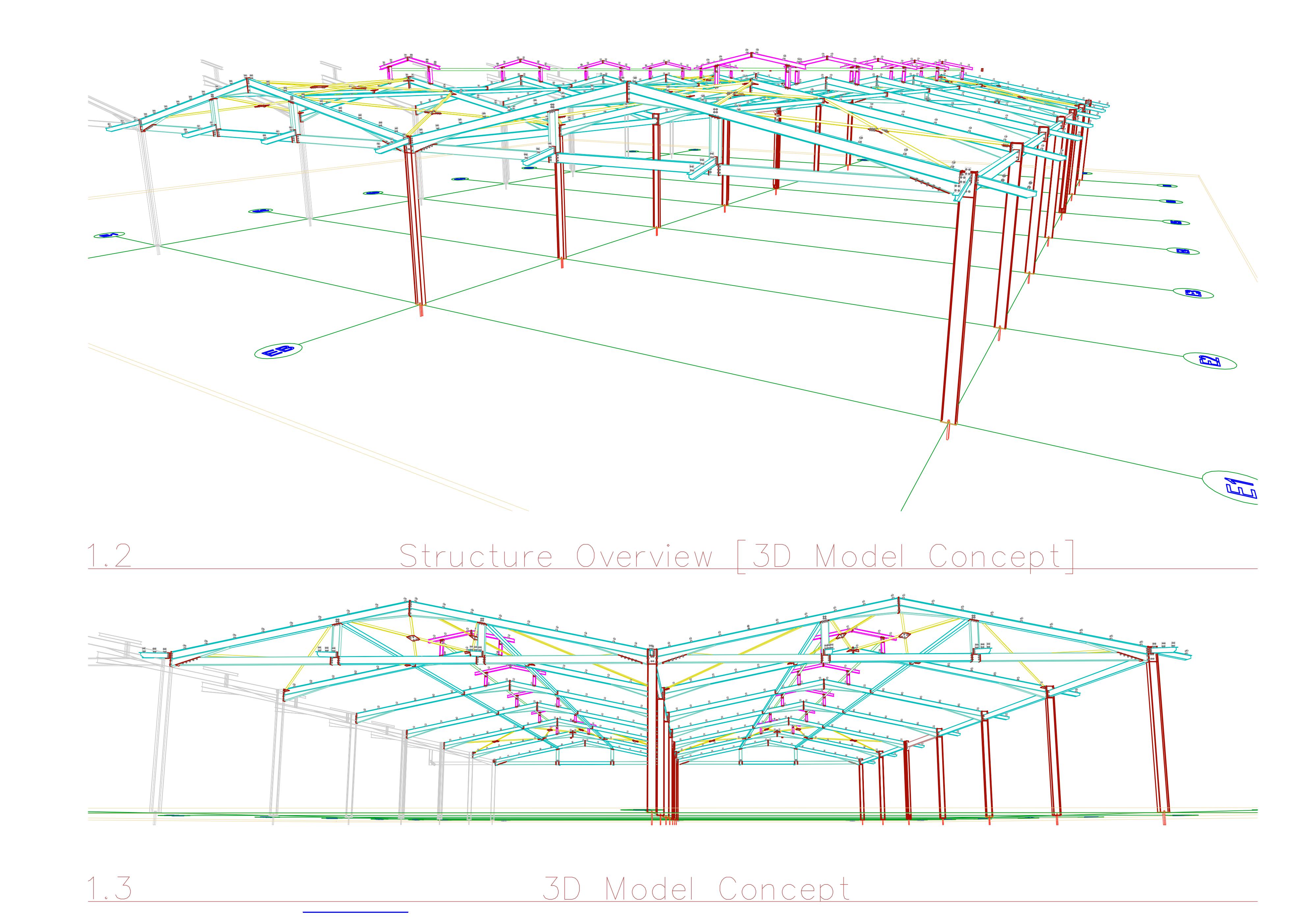

Steel warehouse design drawing

Steel Structure Technical Parameters

1. Loads

Roof dead load: 0.25 kN/m 2

Roof live load: 0.3 kN/m2

Wind speed or wind load: 90~100km/h

Anti-seismic:7 grade

2. Materials (Q235B/Q355B) in mm

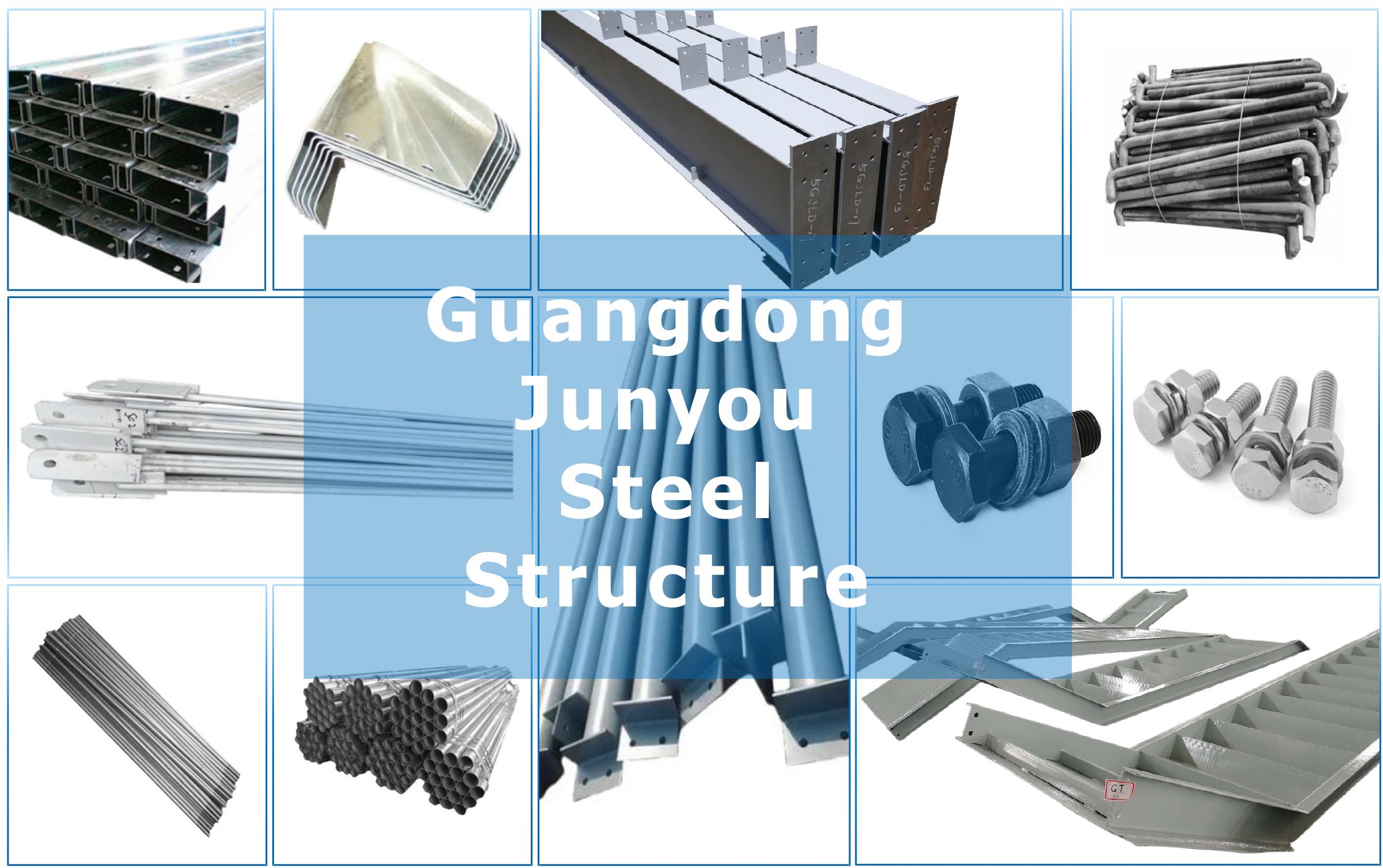

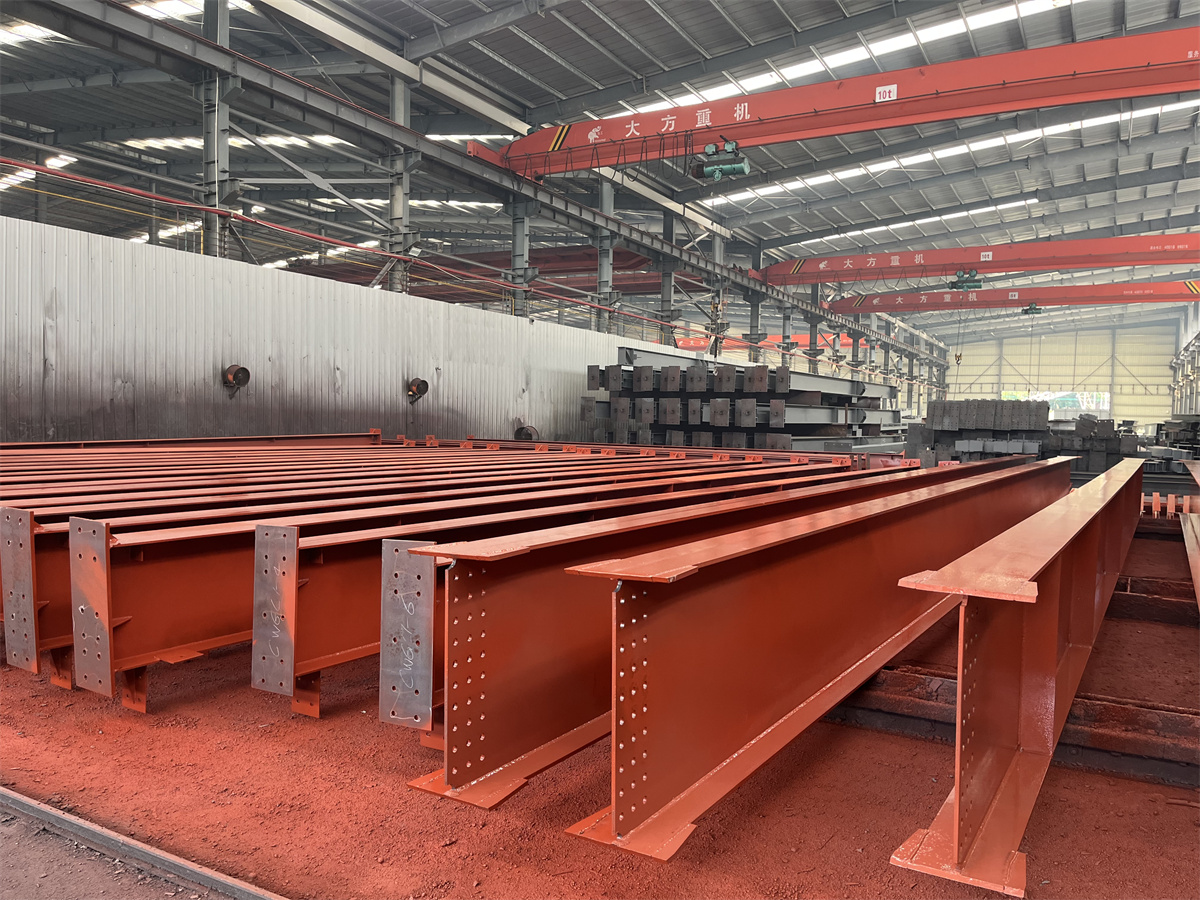

• Steel column: HN400*200*8*13 (8.74 ton)

• Steel beam: HN350*175*7*11 (16.17 ton)

• Canopy beam: HN298*149*5.5*8 (0.39 ton)


• Tie rod:  ∅114X3.0 (2.33 ton)

• Column bracing:  ∅20 steel bar (0.66 ton)

• Horizontal bracing: ∅20 steel bar(0.32 ton)

• Knee-brace: L50X3.0 (0.37 ton)

• Clerestory: [20U-bar (1.63 ton)

• Roof purlin(Galvanized): Z 250*70*20*2.0 (17.04 ton)

• Connecting plate: 6mm～20mm steel plate (6.3ton)

• Roof panel: 0.6mm corrugated steel sheet (2489 sqmt)

• Gutter: 2.0mm galvanized (54m)

• Down pipe: ∅110 PVC with accessories (42m)

• Trimming: 0.5mm steel sheet (188m)

3. Welding

The minimum size of the fillet welding for any that is not defined in the

drawings shall be 6mm with full welding.

4. Fasteners( bolts and nuts) for jointing

High Strength bolts Class 10.9 used to connect the Steel Columns and

pressure type high strength bolts Class 10.9 used to connect the

constructional elements.

• Anchor bolt : M24 ( 84 set)

• High strength bolt: M20 (500 set)

• Common bolt: M20 (180 set)

• Galvanized bolt: M12 (1400 set)

• Turnbuckle: M20 (200 set)

5. Derusting and painting

Shot blasting to 2.5 and Applying Paint with the following

2 layers of primary anti-rust paint 80 microns.

1 coat of alkyd finishes paint 30-40 microns.

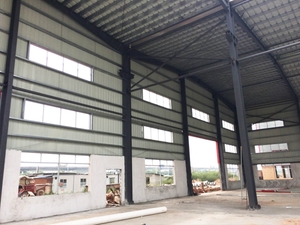

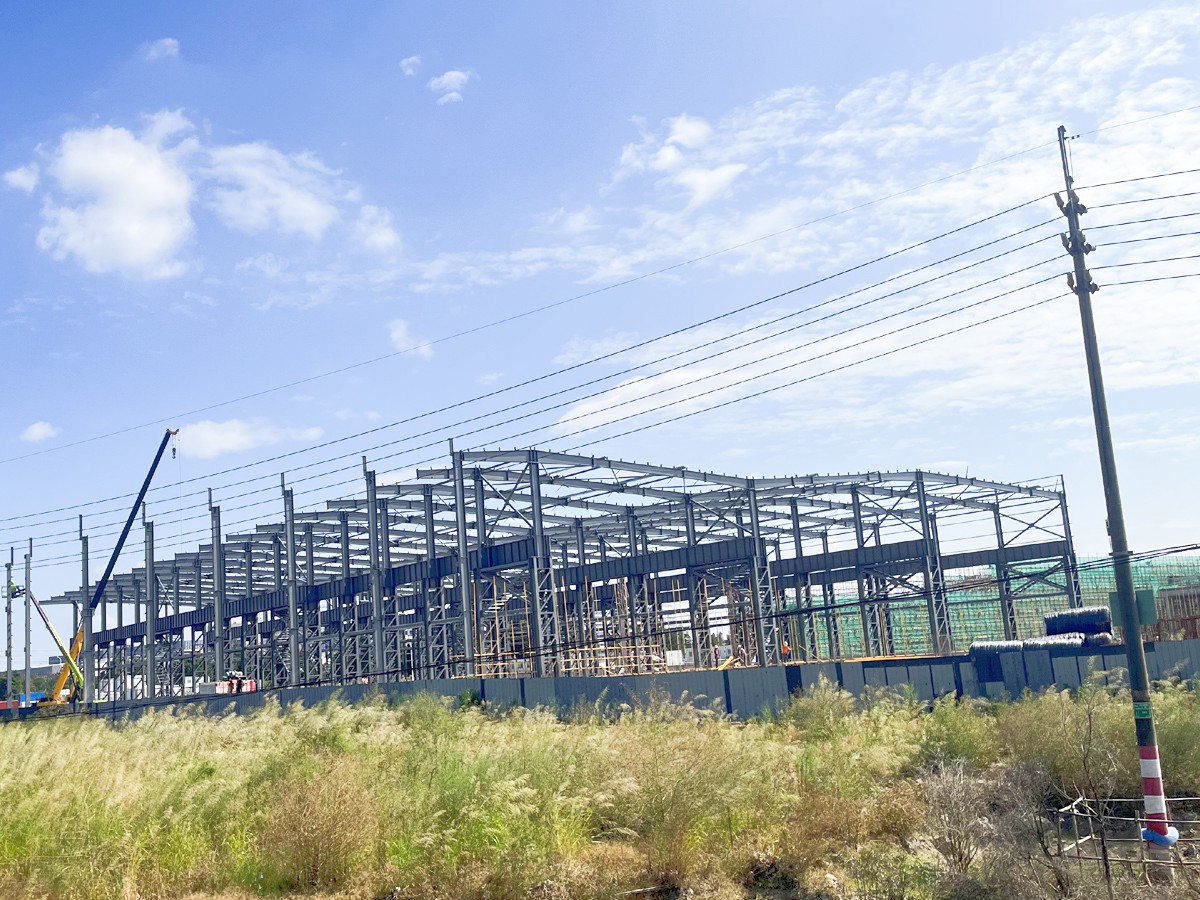

The advantages of steel structure warehouse

• Durable - Strong and weather-resistant.

• Fast Construction - Quick to assemble.

• Cost-Effective - Affordable and low maintenance.

• Lightweight - Easier to transport and build.

• Flexible - Easy to customize and expand.

• Spacious - Large open areas without columns.

• Fire-Resistant - Safe with proper coatings.

• Eco-Friendly - Recyclable materials.

• Low Maintenance - Long-lasting with minimal care.

• Modern Design - Sleek and attractive.

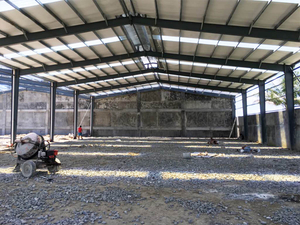

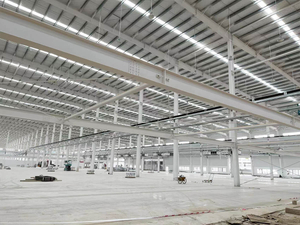

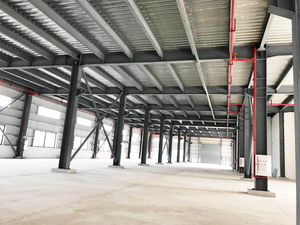

Steel warehouse application

Design function

1. Industrial Storage - Raw materials, machinery, goods.

2. Logistics Centers - Distribution and packaging.

3. Agricultural Use - Storing crops, equipment.

4. Retail/E-commerce - Fulfillment and inventory.

5. Cold Storage - Perishables and pharmaceuticals.

6. Construction Storage - Building materials and tools.

7. Aircraft Hangars - Planes and equipment.

8. Workshops - Production and repairs.

9. Energy Storage - Equipment for energy sectors.

10. Emergency Use - Relief supplies and temporary shelters.
