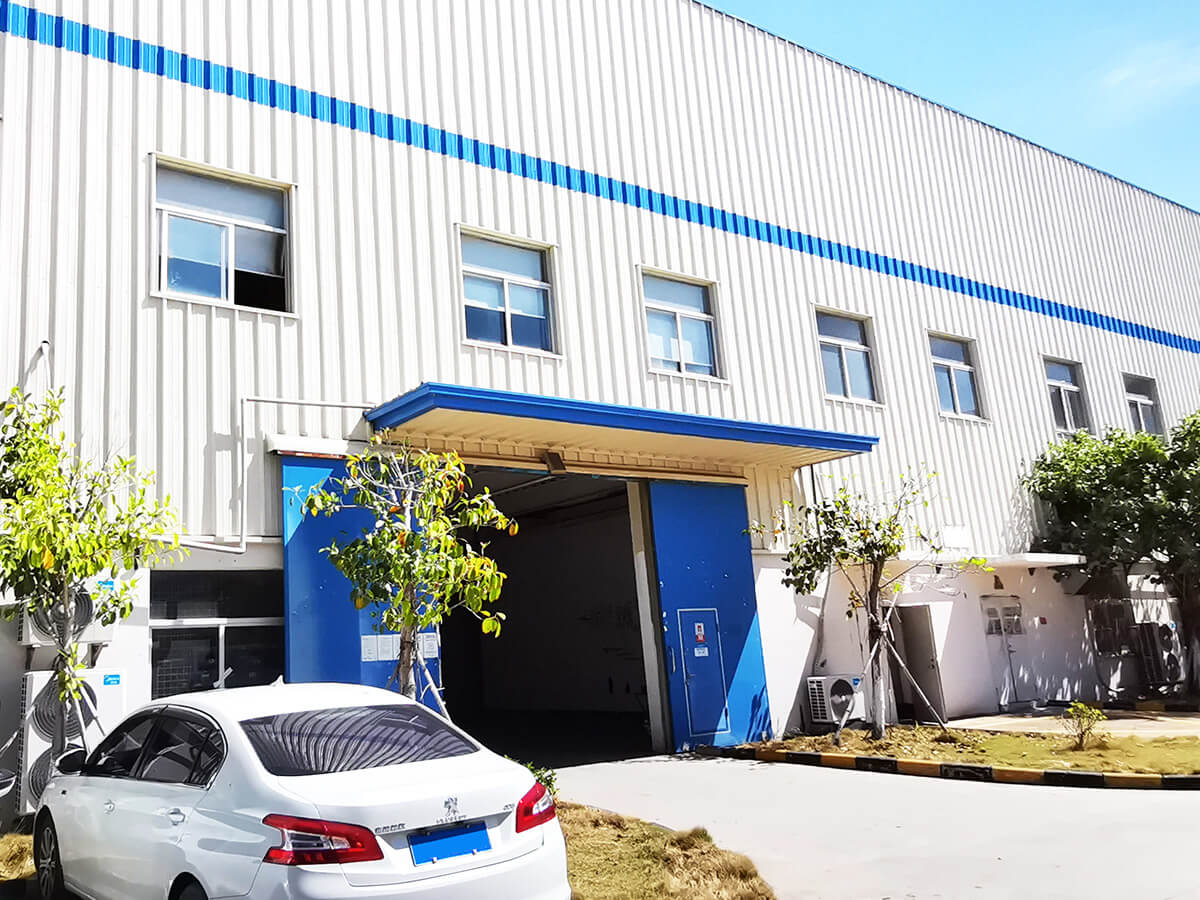

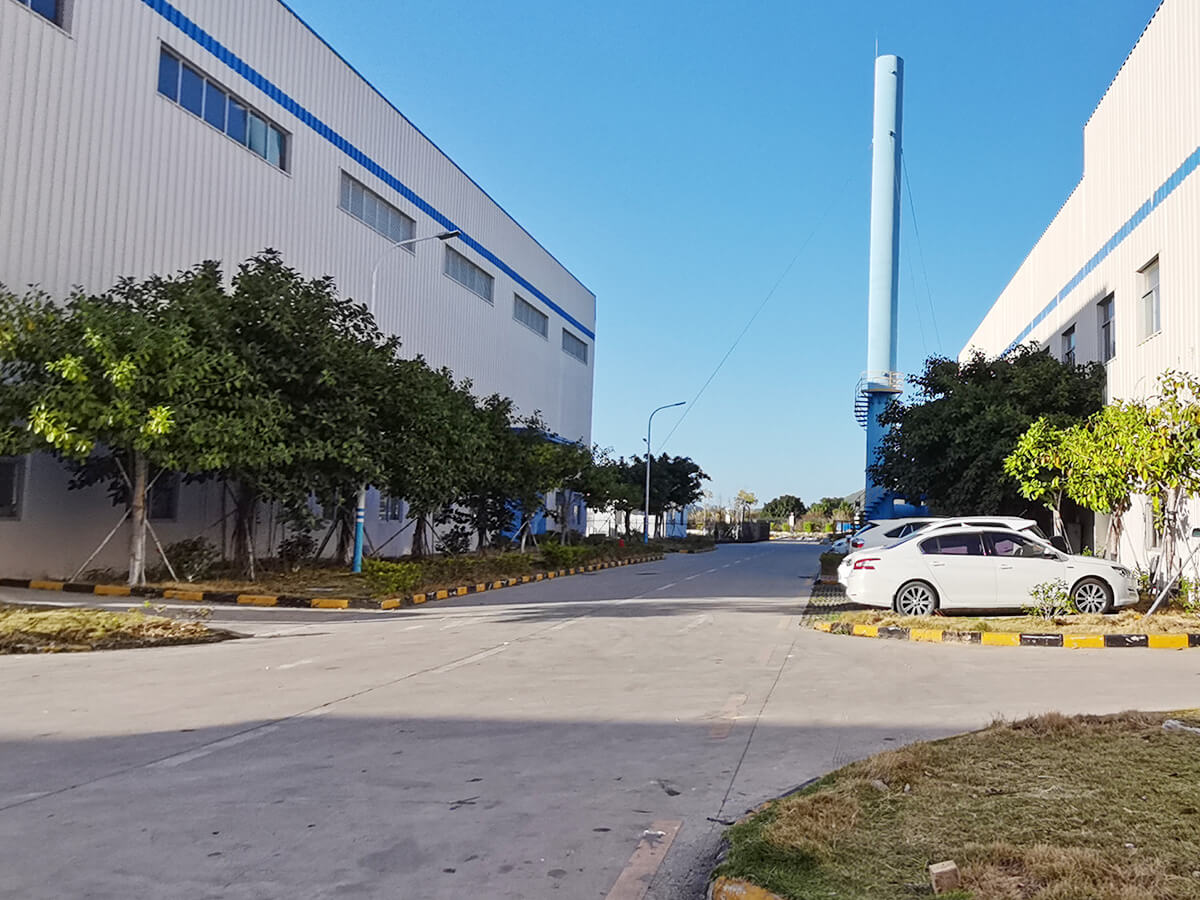

What is steel warehouse construction?
A warehouse is a building for storing goods and materials. A steel warehouse is a warehouse manufactured by steel structure frame with prefabricated siding. Sometimes warehouses are designed to load and unload goods directly from railways, airports, or seaports. It is a type of wide open space building structure that is specifically designed and constructed to store goods and materials for agriculture, Industry, and commercial purposes. It prevents stock wastage and ensures that their stock is protected and safe.Nowadays, many warehouses have sprung up in industrial parks.

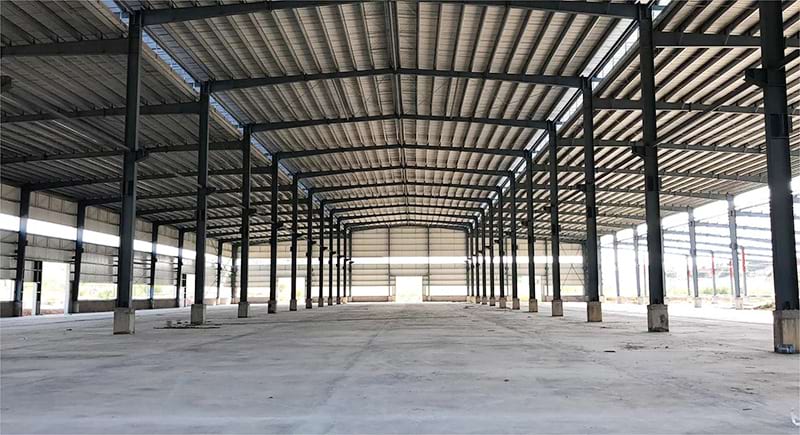

Steel warehouses are made of steel components, including H-section columns, I beams, roof trusses, purlins, sag rods, tie rods, bracing, etc. And sandwich panels or single-layer steel sheets for wall and roof cladding. Custom-designed steel warehouses can be just one floor or with a mezzanine floor, it provides an easy and convenient solution for those who need to construct a warehouse. Lightweight and simple to assemble, steel warehouses offer superior efficiency and strength while offering flexibility in the form of customized layouts. For example, mezzanines can be configured to accommodate office requirements above standard storage and cargo management space.
Steel warehouse function
1)Storage space for goods equipment, or other items.
2) Protect cargo from theft, loss, or damage due to unfavorable weather conditions.
3) Moving cargo,unloaded and received goods by the warehouse, and loaded the goods for shipment.
4) Financing, goods are deposited in a warehouse and used as loan collateral.
5) Prices are stable,they assist in controlling violent price fluctuations,storing or releasing goods whenever at suitable time.
6) Information management,warehouse track and record information about materials and goods being sent into the warehouse and when they are stored and shipped out.
Warehouse operations cover a series of important areas, for example, receiving goods, Organizing and storing inventory, establishing sorting and packing practices, and distribution processes. According to the owner's resources, the warehouse we design has to be secure, convenient, and as spacious as possible.
Steel warehouse components
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Steel warehouse advantages:
Metal warehouses offer various benefits, including durability, strength, and cost-effectiveness. The steel components used in these buildings are known for their resistance to fire, pests, and adverse weather conditions, ensuring the safety and security of the stored goods. Moreover, the use of metal components typically results in shorter construction times and lower maintenance costs, making it a practical choice for building a warehouse.
1. High-strength steel material, the main steel structure frame design life span can last more than 50 years;
2. Steel portal frame structure uses H Beam and I beam to make wind resistance, snow resistance, and earthquake resist design;
3. Hot dip Galvanize and paint the structure frame for options to meet the different needs for anti-rust whether close or not close to the sea.
4. Maximize the use of indoor space, clear span can reach 60m;
5. Roof and wall cladding insulation & single steel sheets are both available to match different kinds of client budgets.
6. Bolt assembly without on-site welding can speed up the installation work. This can save time and labor costs during installation.
7. Customized steel building appearance design to fit a certain local or a specific company brand.
Steel warehouse application

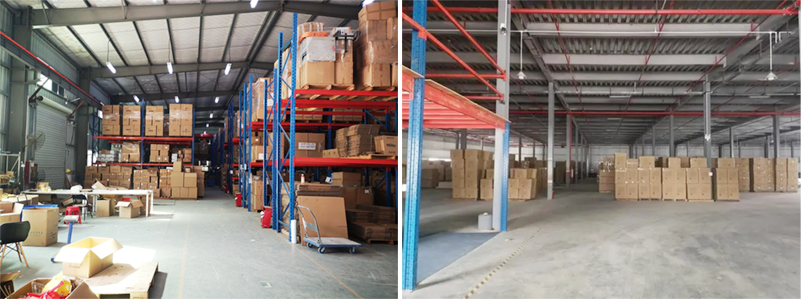

Industrial storage,Logistics distribution center,Manufacturing industry,Building and construction industry,Cold storage, ect.
A good steel structure warehouse requires a safe roof drainage system to prevent water damage and corrosion； protect the goods; avoid roof leakage; maintain a good working environment;reduce maintenance; comply with clients' building codes.
Roof drainage systems usually have two types: hidden gutter/visible gutter.

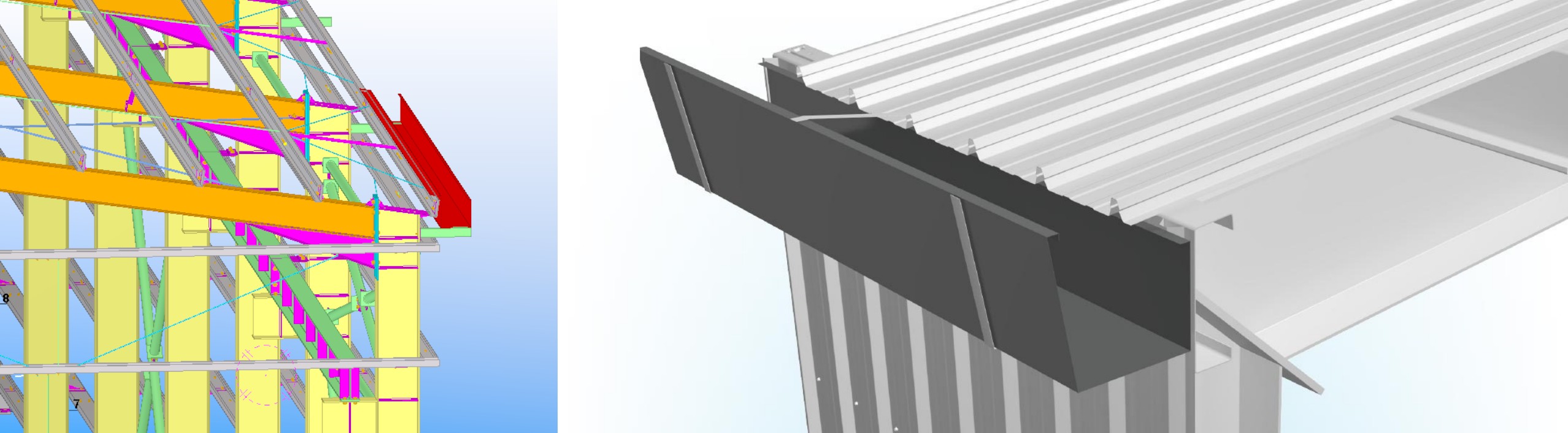

The visible gutter(Outer gutter) is on the outside of the roof, usually at the edge of the eaves or near the roof edge. The main function of the outer gutter is to collect and guide rainwater from the roof to the ground. It is easy to maintain and clean.

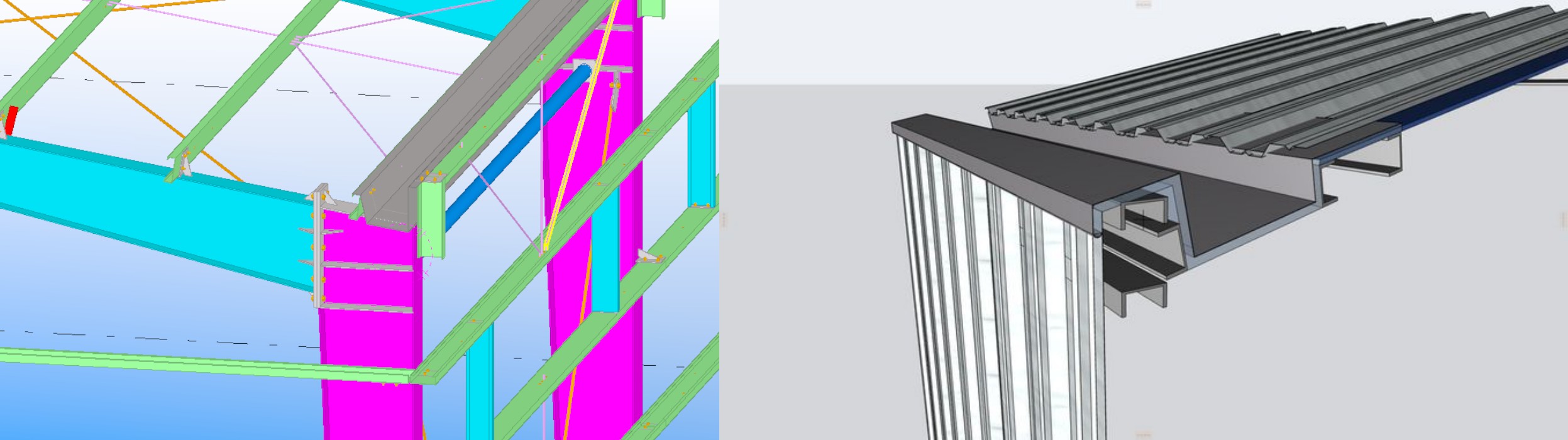

The hidden gutter(Inner gutter) is inside the roof, usually below or inside the roof structure. The inner gutter is also to collect and guide rainwater and is usually connected to the internal drainage system to drain the rainwater into the drainage pipes inside the building. It can make the roof appearance nicer but you must consider waterproofing and drainage reliability.
We usually use a visible gutter in the industrial warehouse /workshop, but for commercial buildings like glass warehouses, we suggest using a hidden gutter.
Design Parameters:
1) Live load/Dead load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style and quantity of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure, and min wheel pressure;
7) Size: length X width X eave height, roof slope;
8) Or your own idea!
But maybe you are not sure about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will offer suggestion for you to choose the right style and the best design within your budget.
Why steel warehouse building over traditional concrete warehouse?
Time Factor:
Steel warehouse buildings can be constructed much faster than traditional concrete warehouses. All the steel component is pre-engineered at the factory and then assembled at the construction site.
Cost Factor:
The efficient use of materials in steel construction can result in cost savings, both in terms of the construction process and ongoing maintenance.
Durability Factor:
Steel is a highly durable material that can withstand harsh environmental conditions, heavy loads, and potential impacts. That ensures steel warehouse buildings have a longer lifespan compared to traditional concrete warehouses.
Customization Factor:
Steel warehouse buildings offer a high level of flexibility and customization. That allows for efficient use of space and the ability to maximize storage capacity.
Environmental Factor:
Steel is a green material that is 100% recyclable. Choosing steel warehouse buildings can contribute to sustainability goals and reduce the environmental impact of construction.
Safety Factor:
Steel has excellent fire resistance ability. This can enhance the safety of the stored goods.
