Product Description

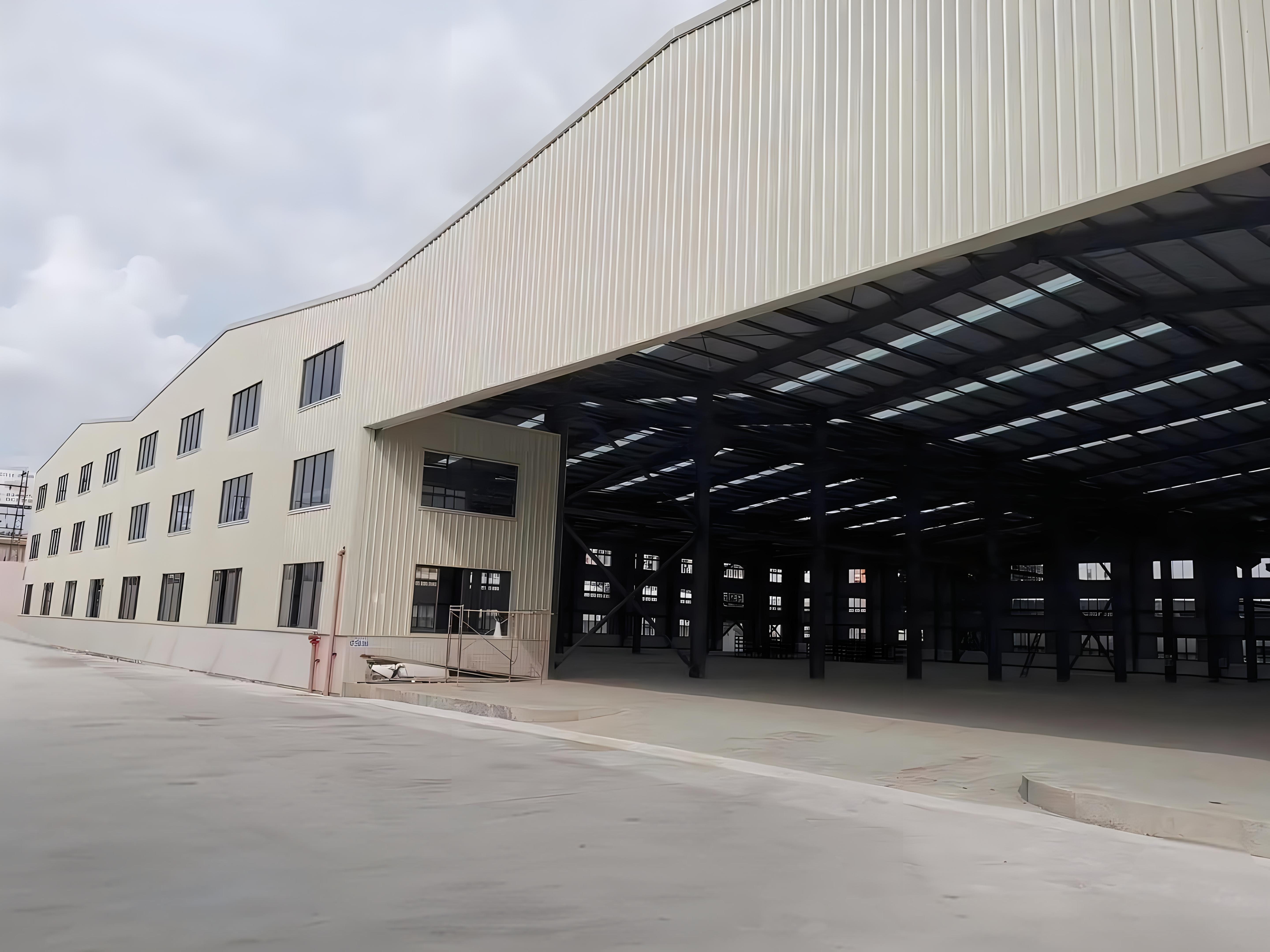

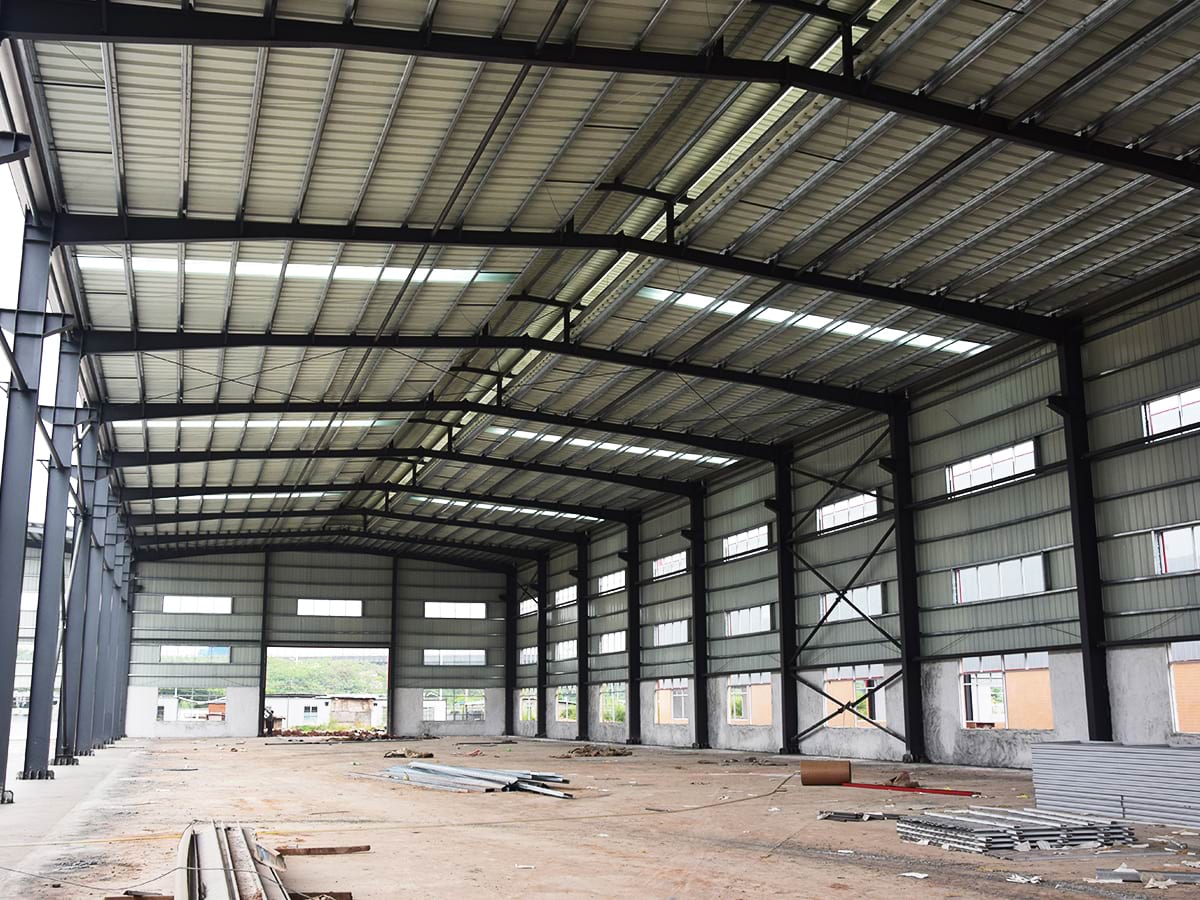

Steel structure warehouse refers to a warehouse in which the main load-bearing components are made of steel. This includes steel columns, steel beams, steel foundations, steel roof trusses, and steel bracing. The warehouse wall can use steel sheet/ steel sandwich panels and concrete block walls.
The steel product we mentioned here is a warehouse, which is an infrastructure project storage warehouse, mainly used to store construction materials, so there is no crane installed in this warehouse. Its main function is to provide a spacious and open area for storing items. The steel structure of this project uses portal steel frames, and the roof is made of EPS steel sandwich panels, which have a heat insulation effect. While the walls are made of single steel sheets. The characteristics of single steel sheets are that they are easy to transport due to their small size, easy to install, and have low costs. Therefore, many warehouses prefer to use single-color tiles for walls and roofs, especially for warehouses with fewer people indoors.
Steel warehouse building wall system:
1)C purlin with steel sheet or sandwich panel(full wall).

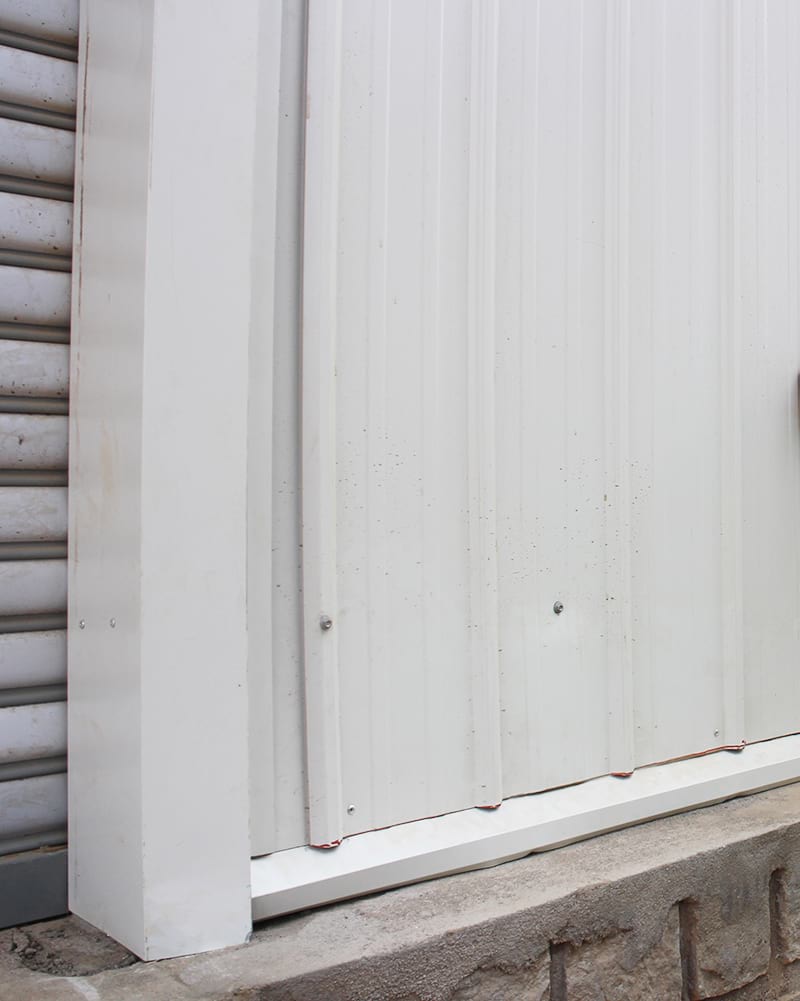

2)C purlin with steel sheet or sandwich panel and brick wall (combine).
3) complete brick/concrete wall (full brick wall）

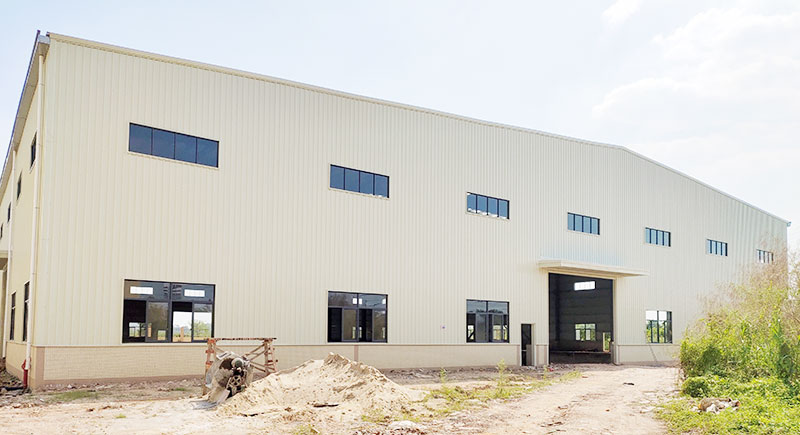

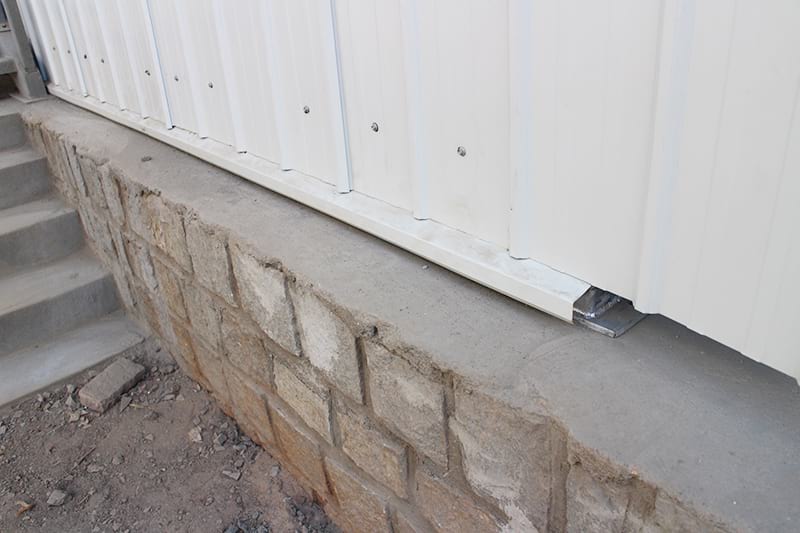

80% of customers would choose the second option because the combination of brick and steel sheet panels can achieve a good waterproof effect. There is no need to worry about the connection between the brick wall and the steel sheet panel leaking water problem. We only need to use wall trimming to easily solve this problem.
Steel structure warehouse building techniques
Steel building techniques include structural design, fabrication, welding, assembly, and installation. That refers to the methods and processes used in the construction of steel buildings. Steel is a durable and robust material that can support large spans and heavy loads, making it suitable for a wide range of construction projects. Steel has strength, versatility, and cost-effectiveness, making it a reliable and long-lasting choice for various applications.

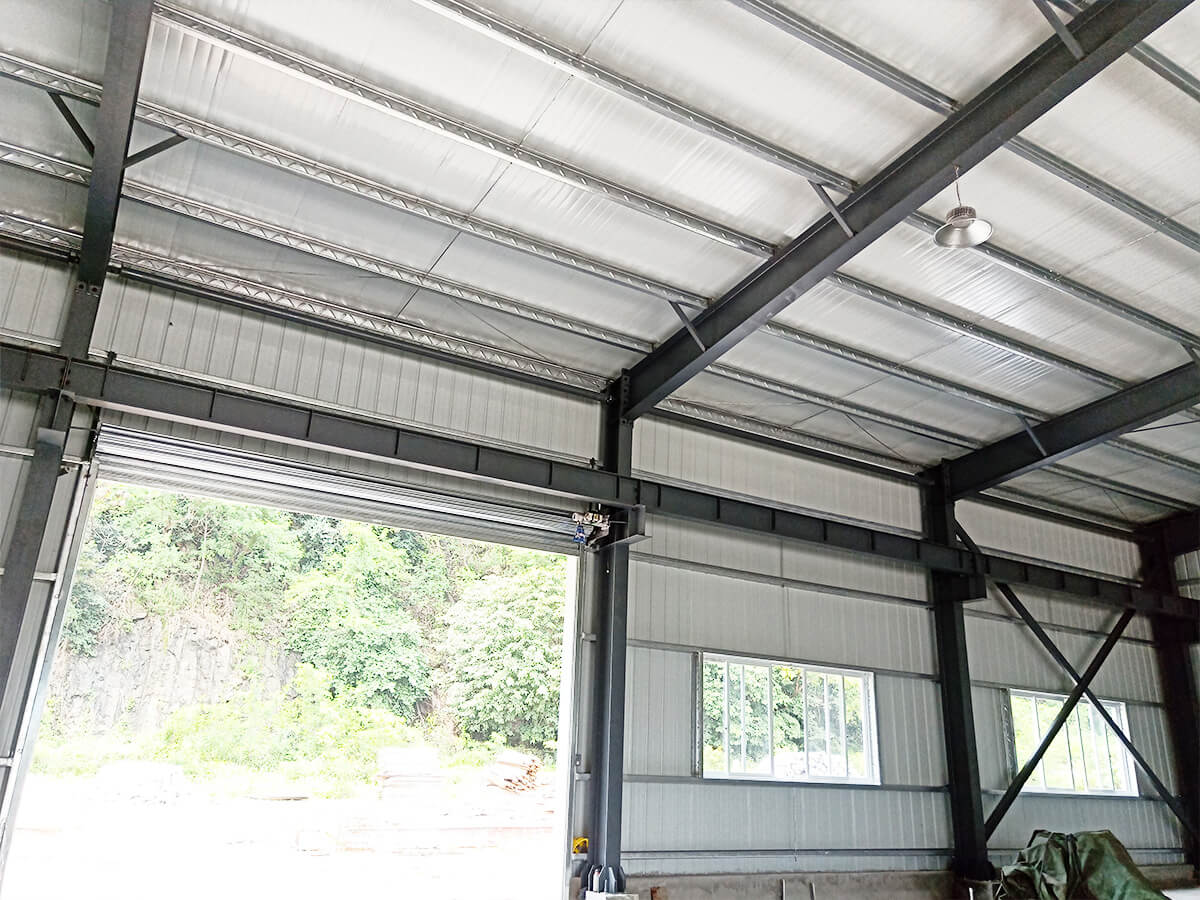

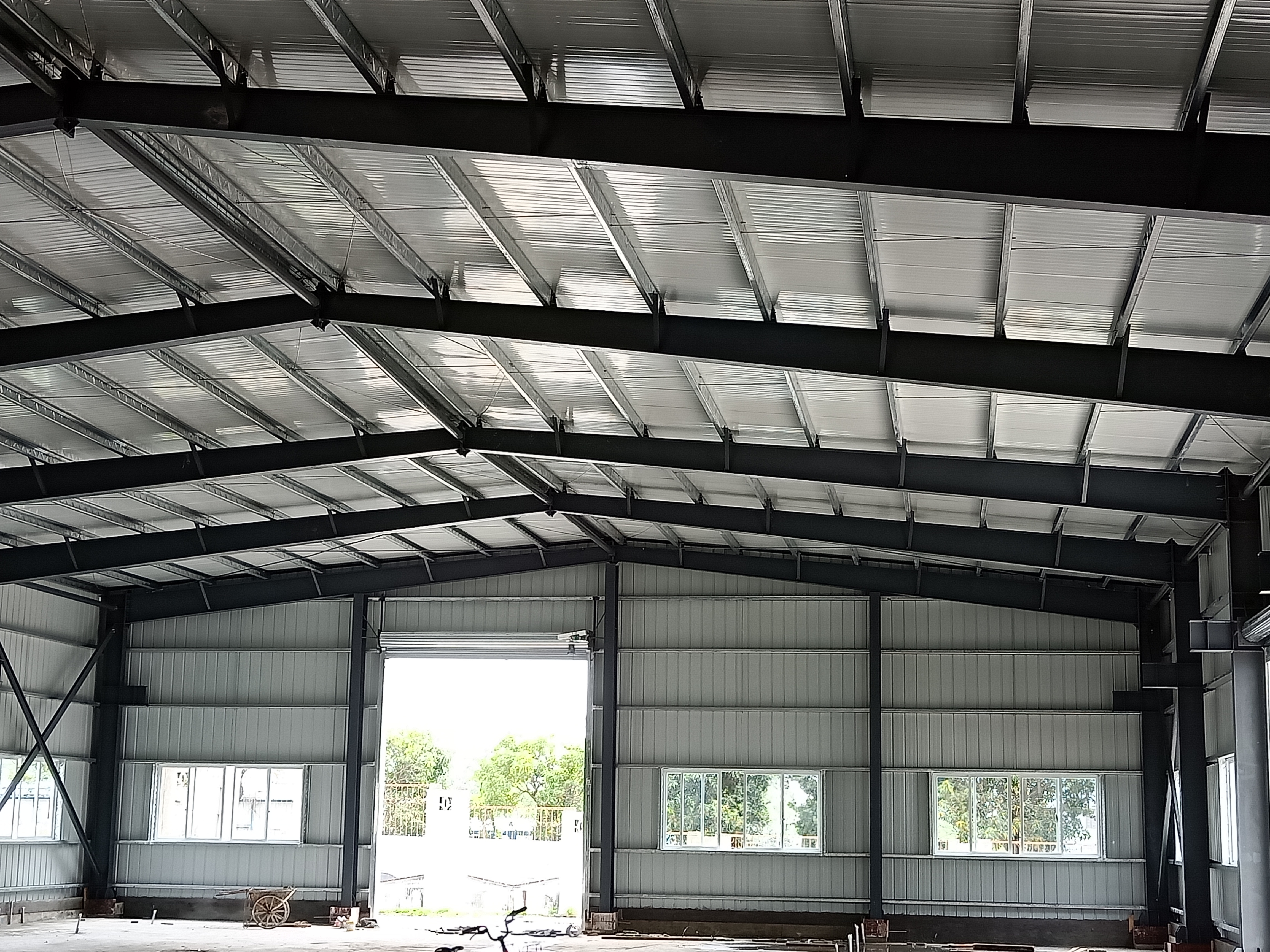

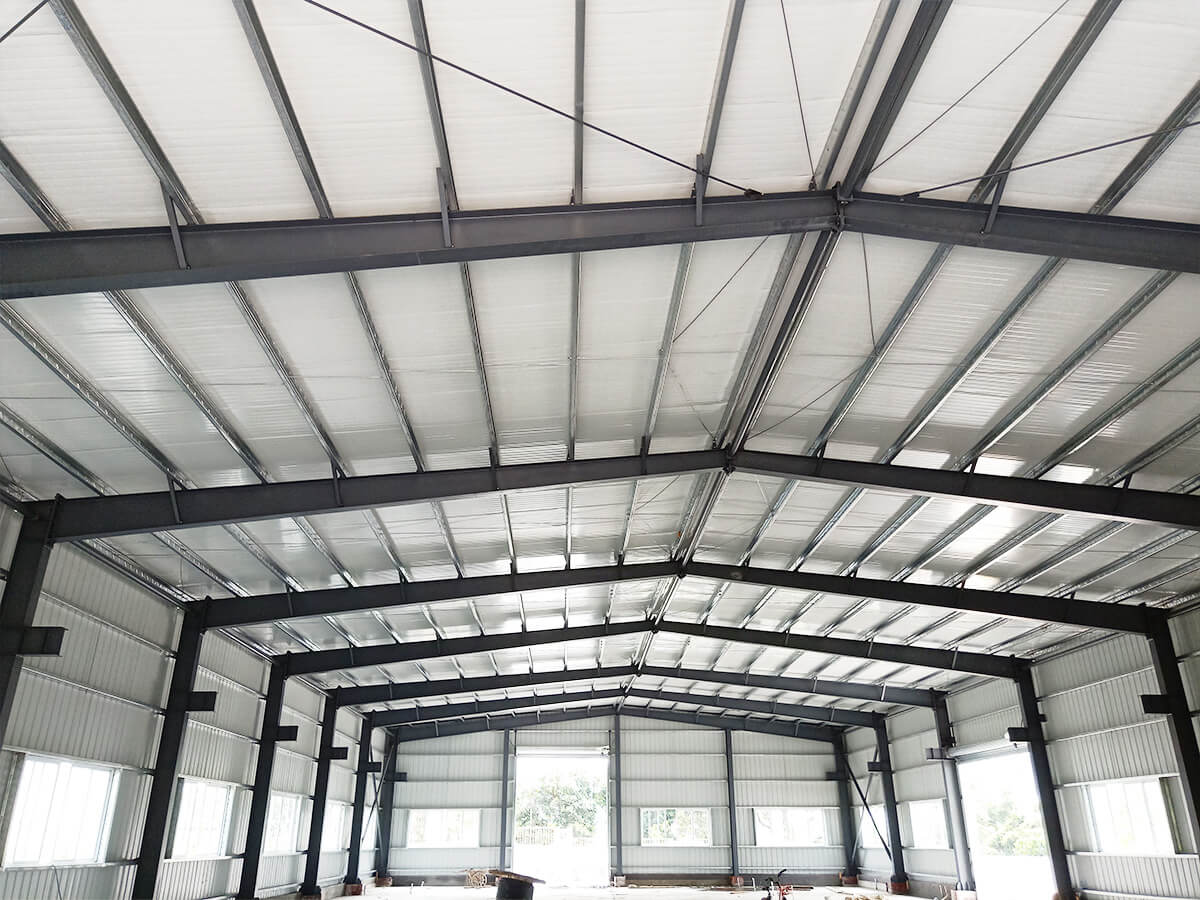

Steel warehouse components
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |

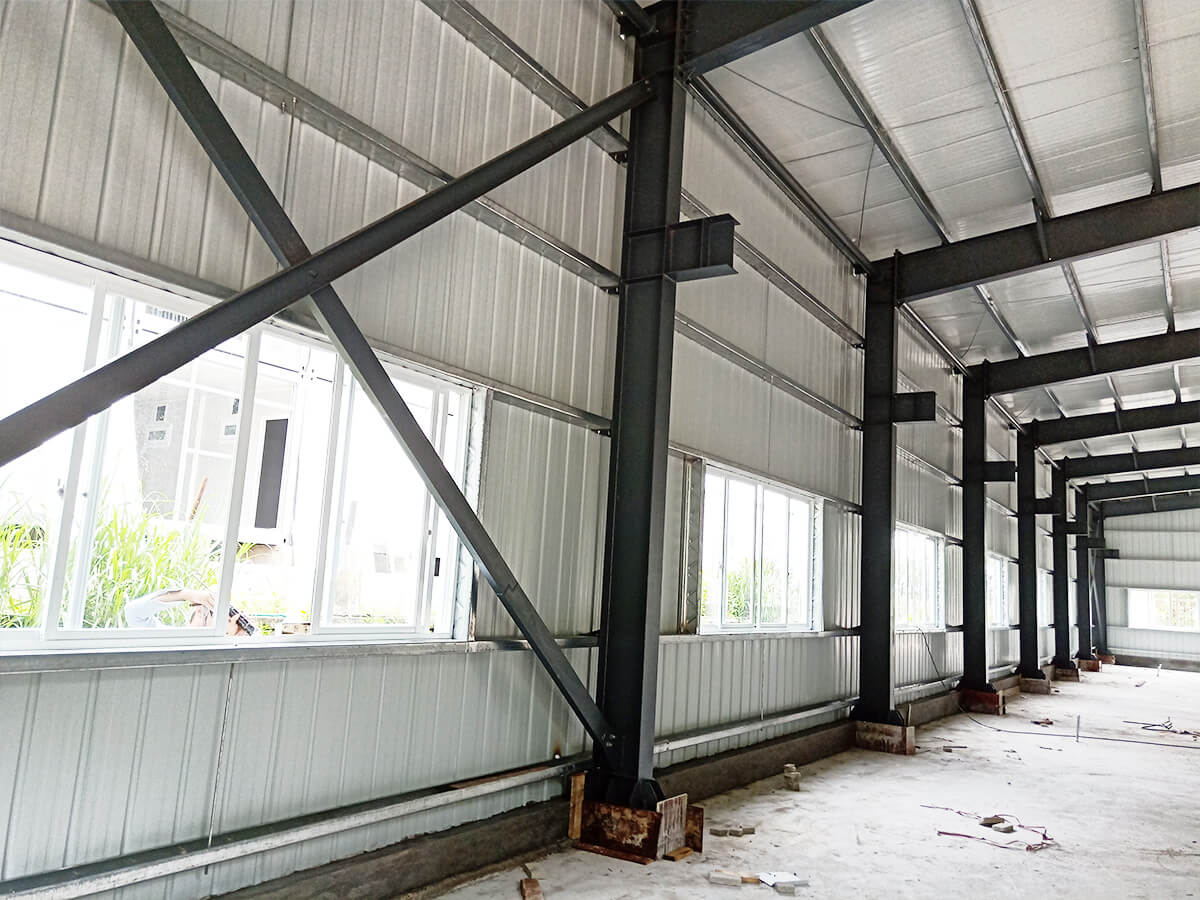

II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||

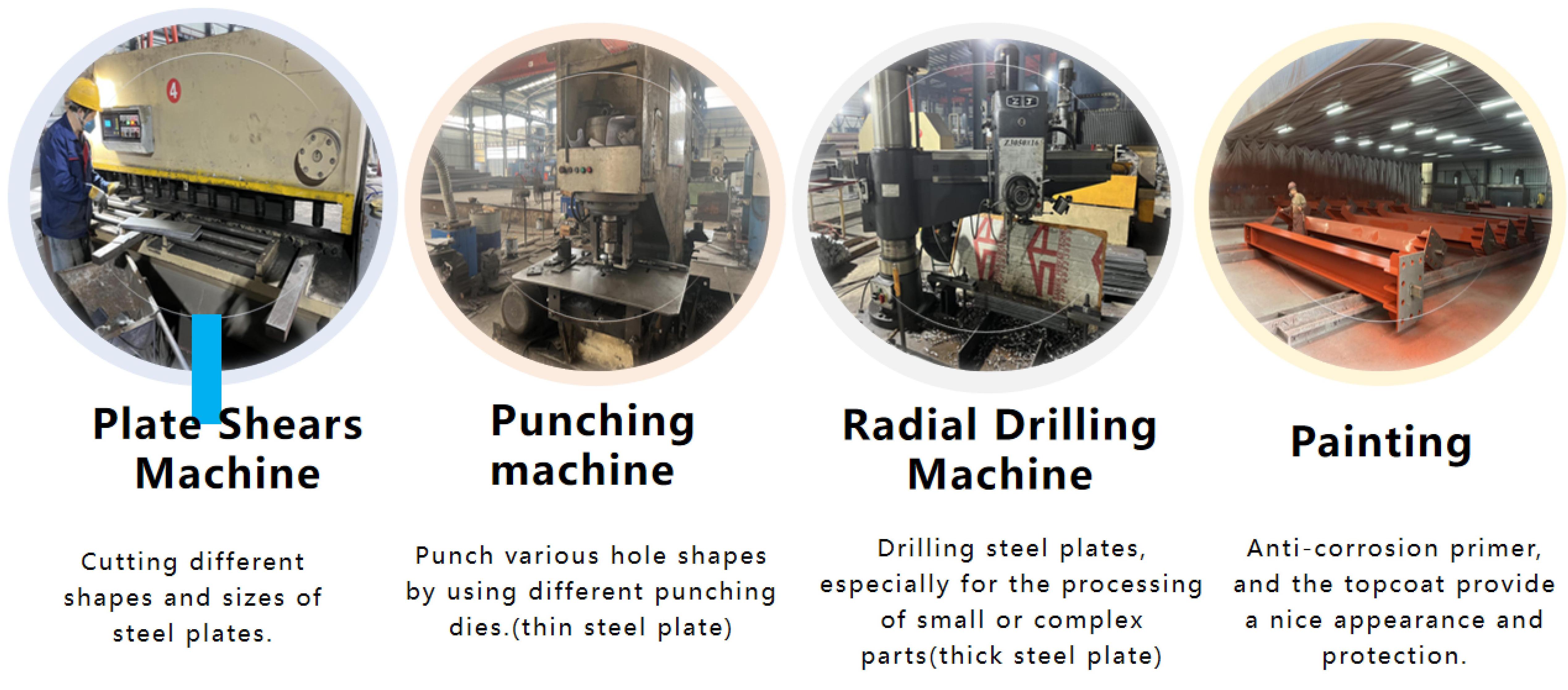

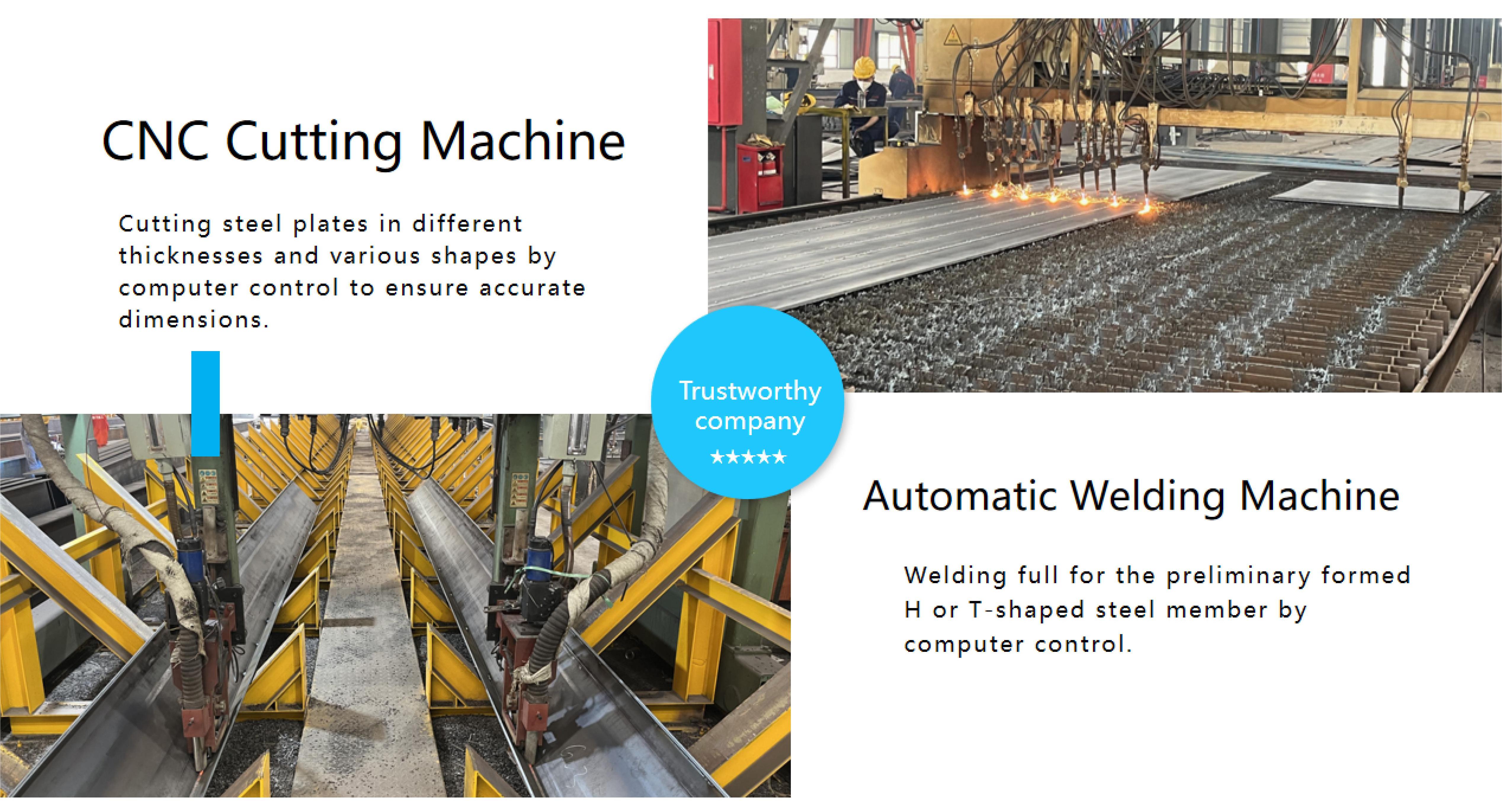

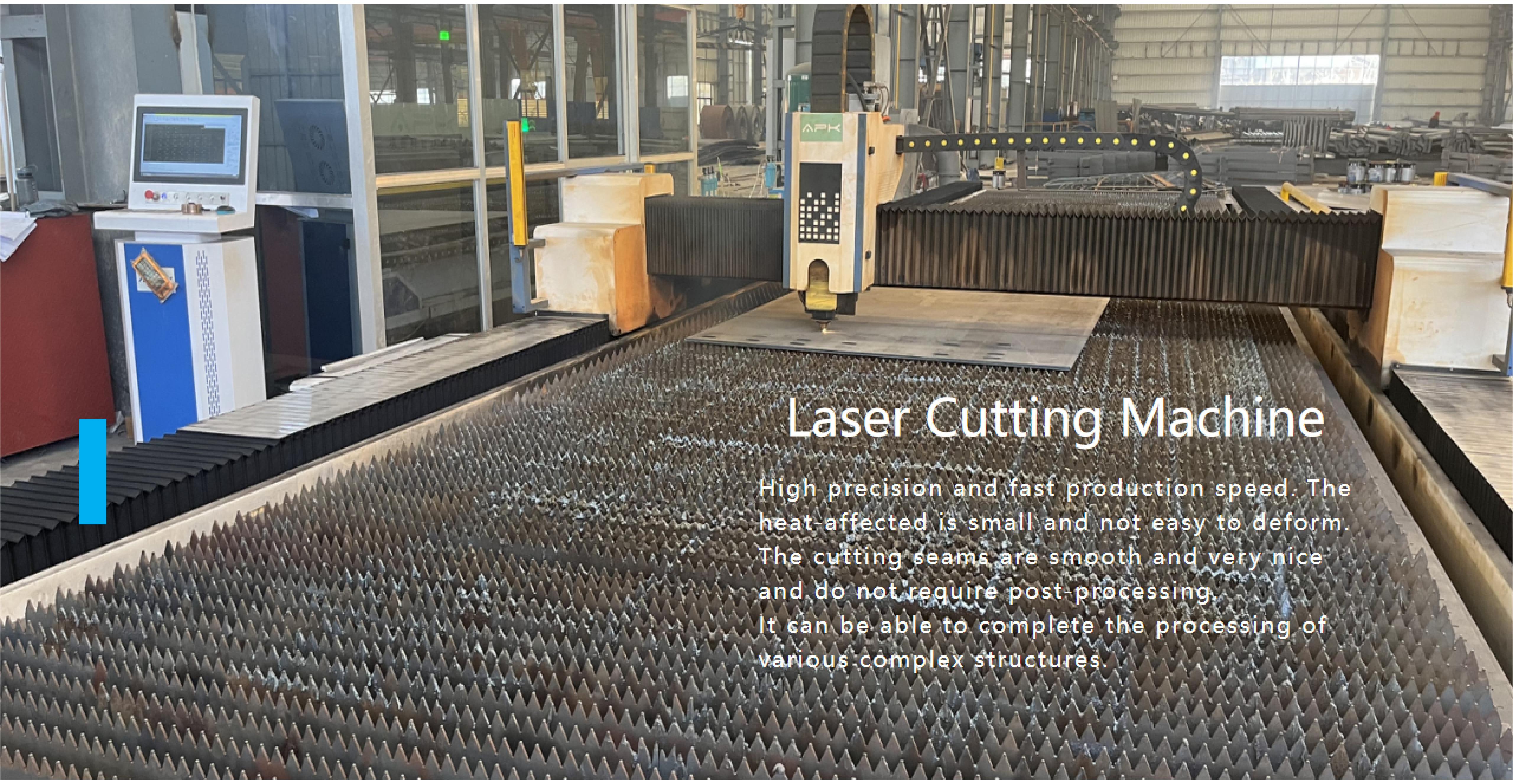

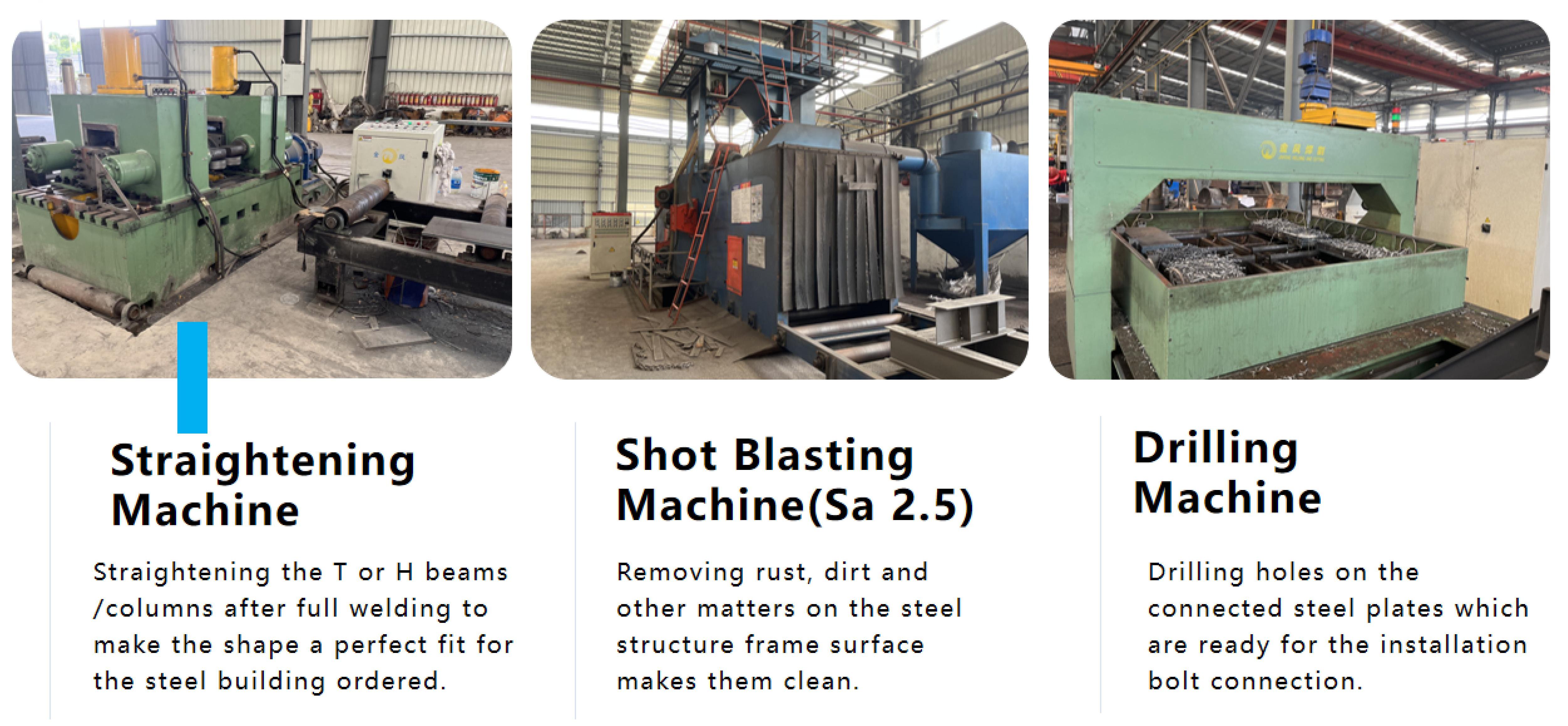

We have advanced steel structure processing equipment to make sure your order is done correctly and finished on time.
The advantages of steel warehouse construction：
1)steel structures can be used for a wide range of purposes, including factories, warehouses, office buildings, gymnasiums, and hangars. They are suitable for both single-story long-span buildings and multi-story or high-rise constructions.
2)the construction process is relatively simple and quick. All components are prefabricated in the factory, and on-site assembly is easy, significantly reducing the construction period.
3)steel structures are durable and require minimal maintenance. They can withstand harsh weather conditions and only need simple upkeep.
4)steel structures offer aesthetic appeal and practicality. The clean lines of steel buildings provide a modern look, and colored wall panels offer a variety of design options. Other materials can also be used for the walls, allowing for greater flexibility.
5)steel construction is cost-effective. The lightweight nature of steel reduces foundation costs, and the fast construction speed allows for quicker completion and production. Overall, the comprehensive economic benefits of steel structures are often better than those of concrete structures.

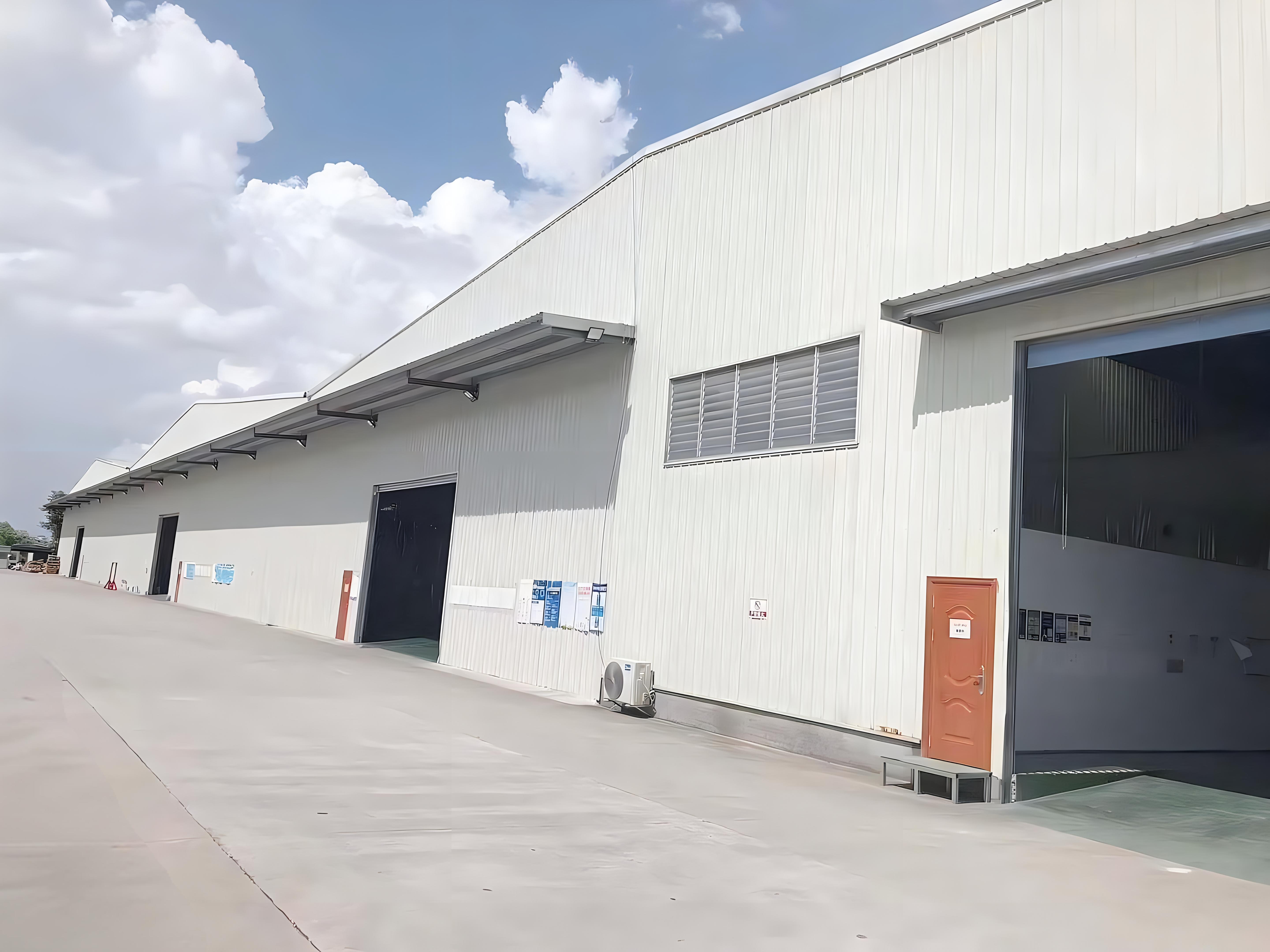

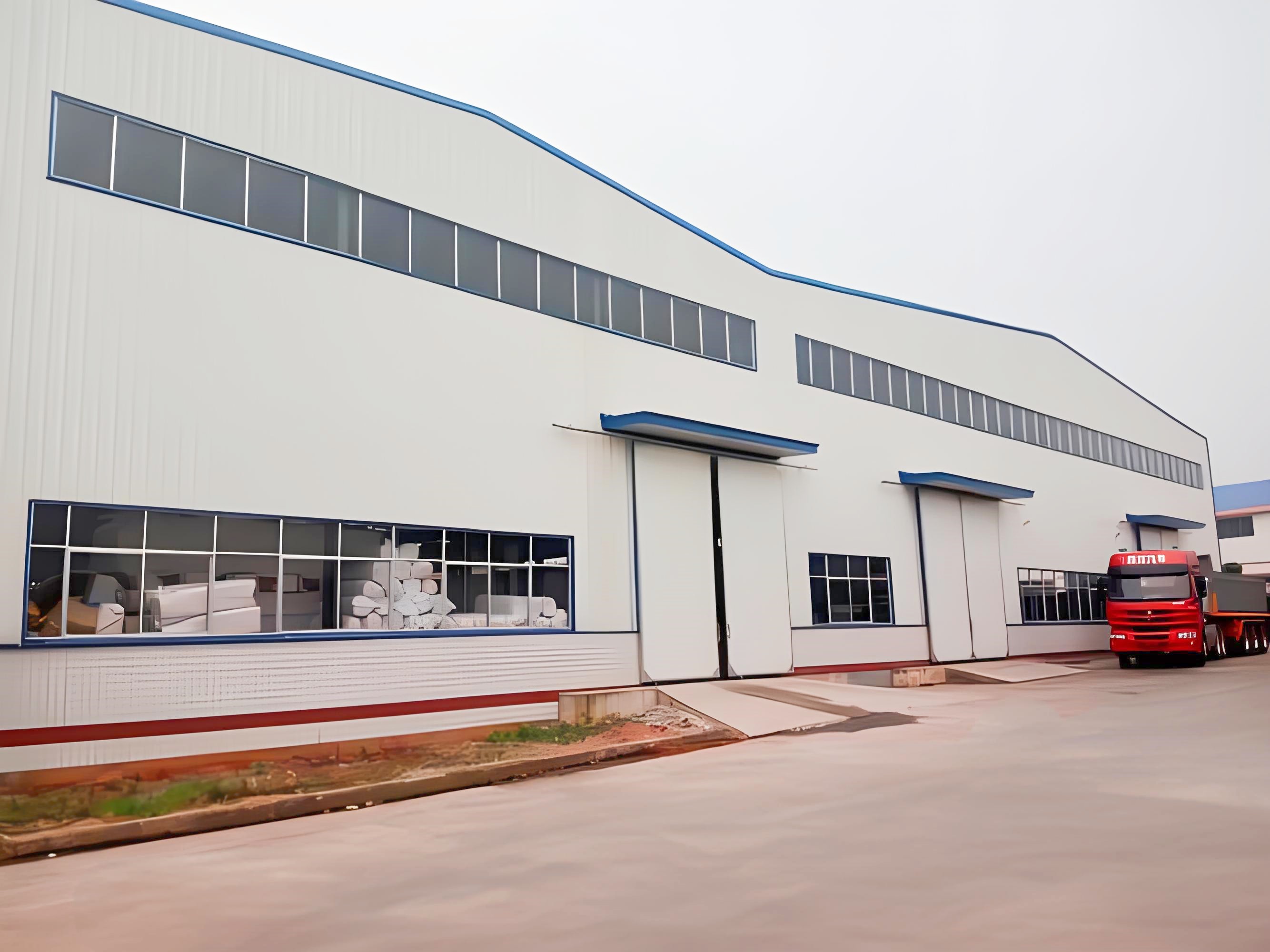

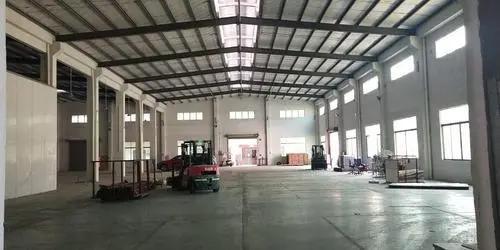

Steel warehouse usage
Storing goods, cold storage, facilitating logistics and distribution, serving as industrial storage, providing protection, Manufacturing supply chain,and adapting to various purposes such as automated storage, construction materials storage, and data centers.
Why steel warehouse building over traditional concrete warehouse?
Time Factor:
Steel warehouse buildings can be constructed much faster than traditional concrete warehouses. All the steel component is pre-engineered at the factory and then assembled at the construction site.
Cost Factor:
The efficient use of materials in steel construction can result in cost savings, both in terms of the construction process and ongoing maintenance.
Durability Factor:
Steel is a highly durable material that can withstand harsh environmental conditions, heavy loads, and potential impacts. That ensures steel warehouse buildings have a longer lifespan compared to traditional concrete warehouses.
Customization Factor:
Steel warehouse buildings offer a high level of flexibility and customization. That allows for efficient use of space and the ability to maximize storage capacity.
Environmental Factor:
Steel is a green material that is 100% recyclable. Choosing steel warehouse buildings can contribute to sustainability goals and reduce the environmental impact of construction.
Safety Factor:
Steel has excellent fire resistance ability. This can enhance the safety of the stored goods.
It is easy to maintain and take care of a steel warehouse, you just need to clean regularly to remove dust and dirt; Inspect the structure for any loose or corroded parts; Maintain the drainage system to avoid water damage; Check and repair the roof for leaks and maintain doors and windows for proper sealing.
