Product Information
Warehouse with steel structure, steel-structured storage building, steel framework warehouse. These are our understandings of the steel structure warehouse from its name. They are usually composed of H-section steel beams, columns, purlins, and other steel structure components as the framework, and then equipped with wall panels, roof panels, and other enclosures like ridge vent, skylight, windows and doors. Sometimes, they install cranes inside.
Generally speaking, steel structure warehouses are buildings that use steel as the main structural material. They offer several advantages such as high strength, durability, and design flexibility. Steel structures can withstand heavy loads and provide excellent resistance to various environmental factors. They are also relatively easy to build and maintain. Additionally, steel warehouses can be customized to meet specific storage needs and requirements.

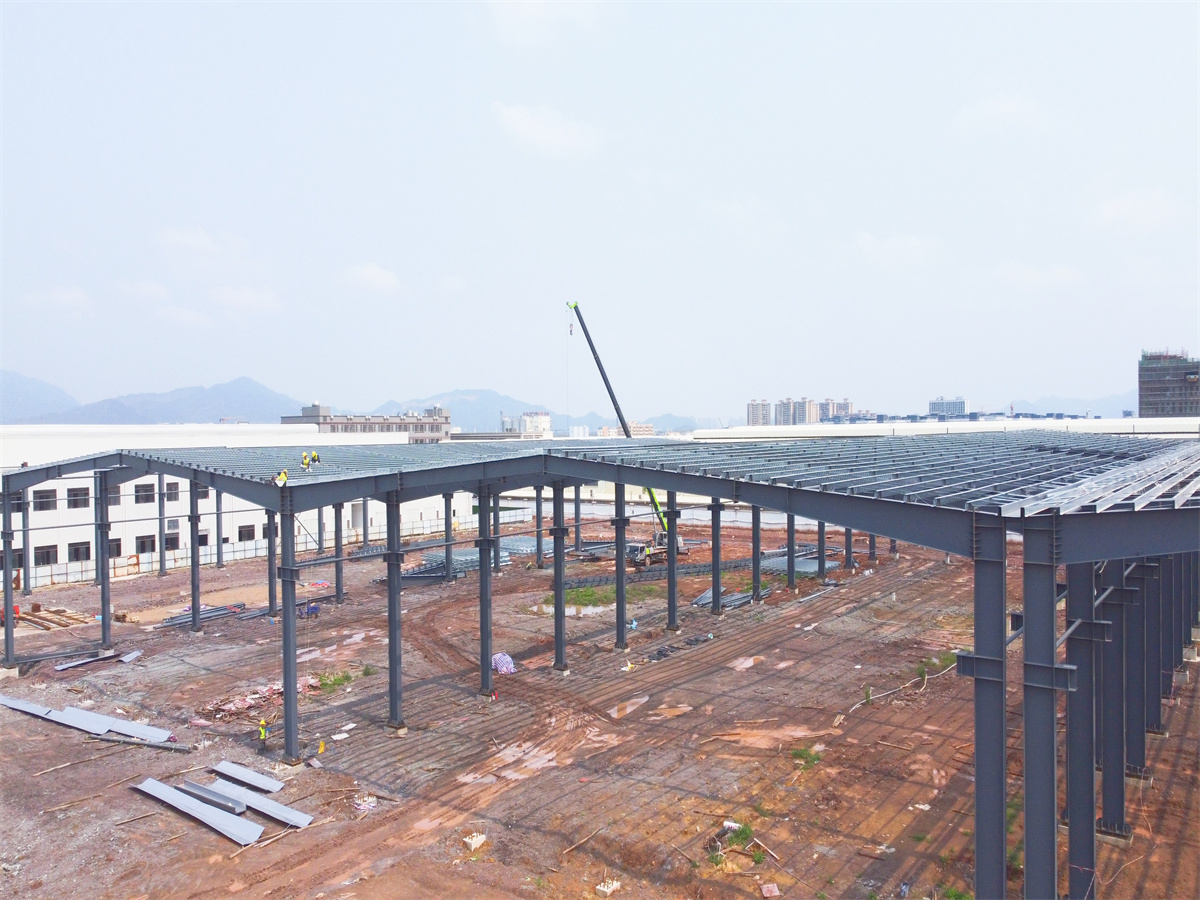

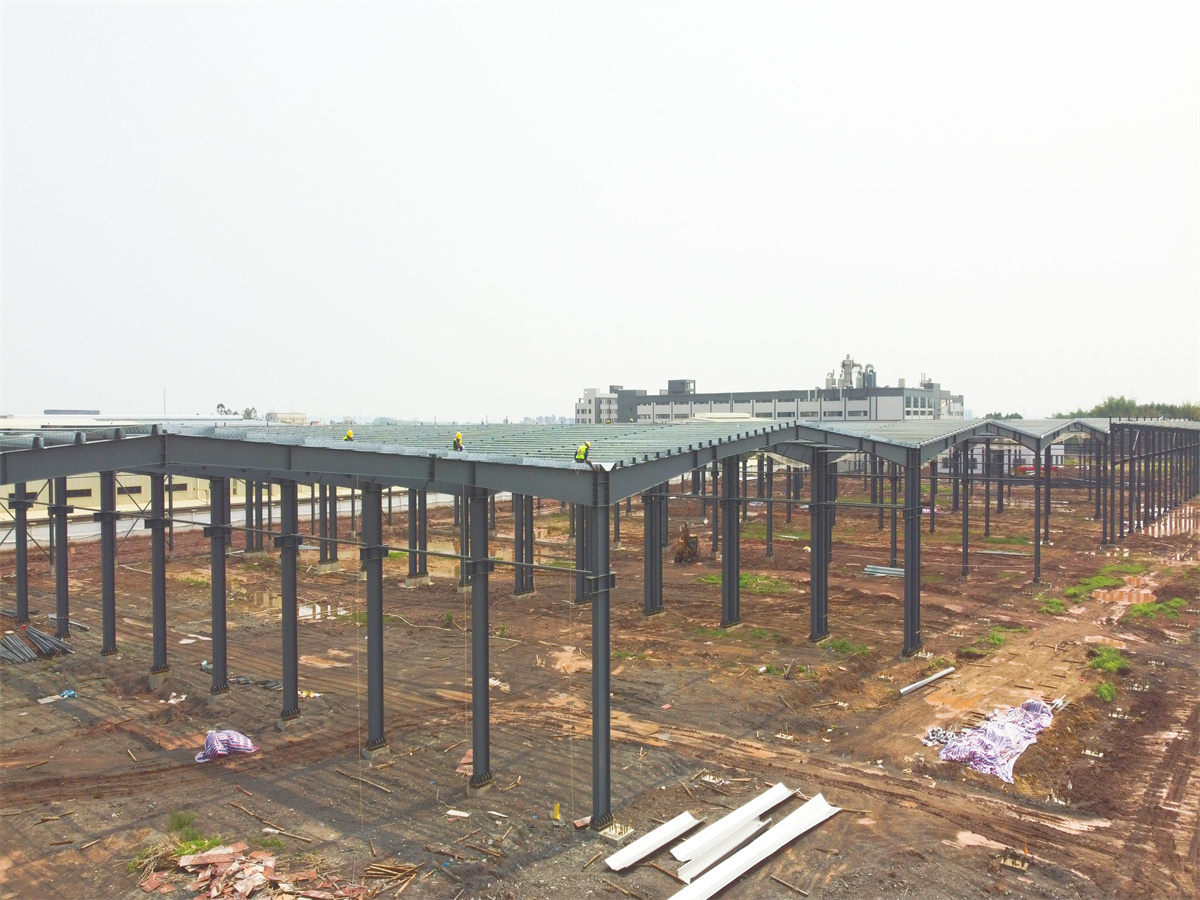

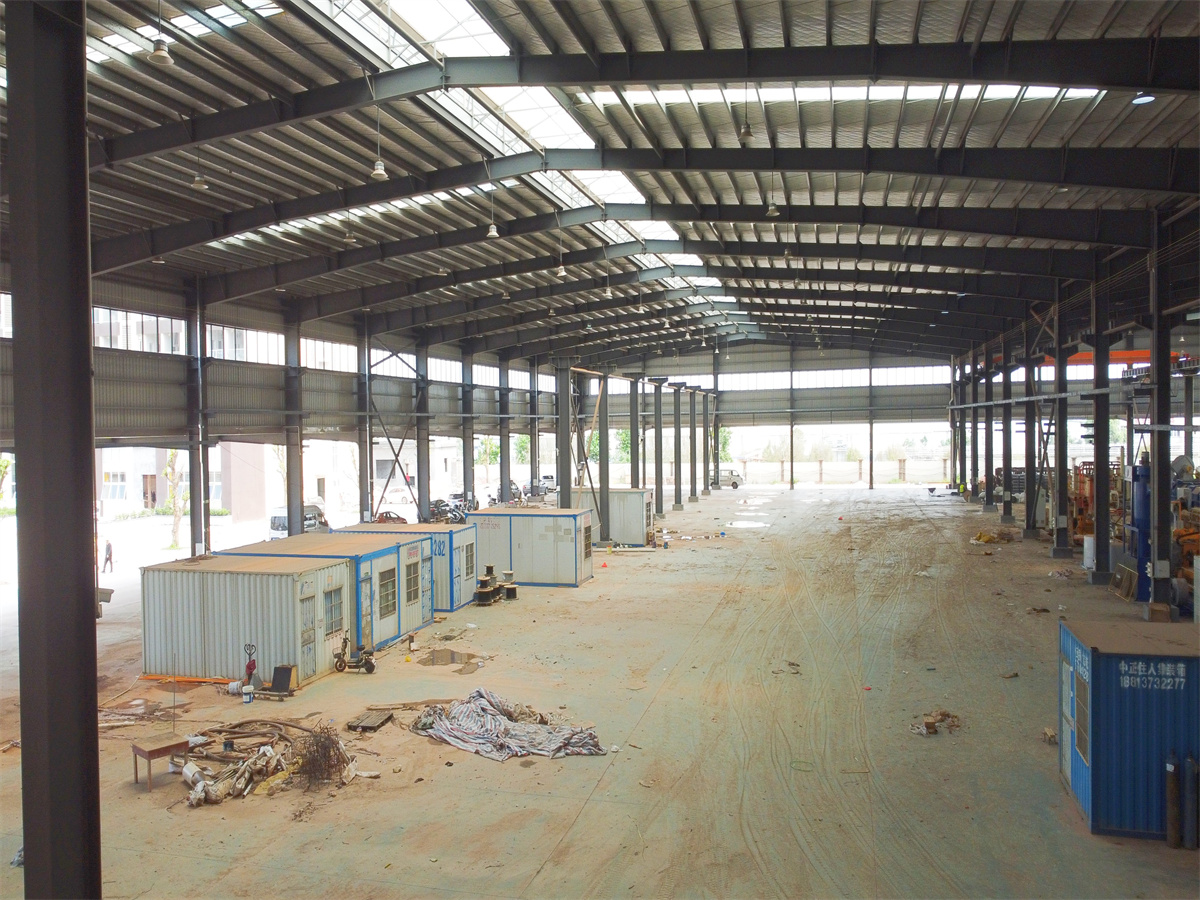

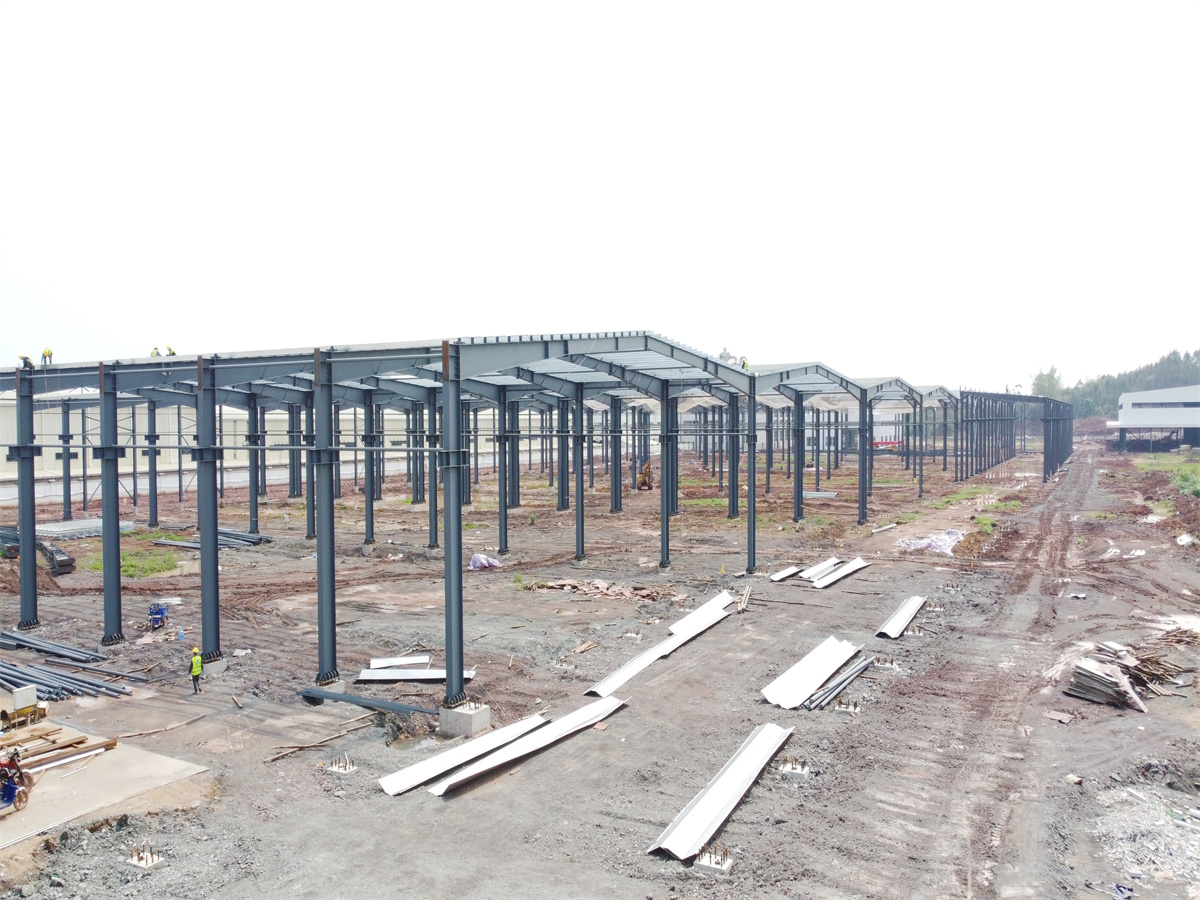

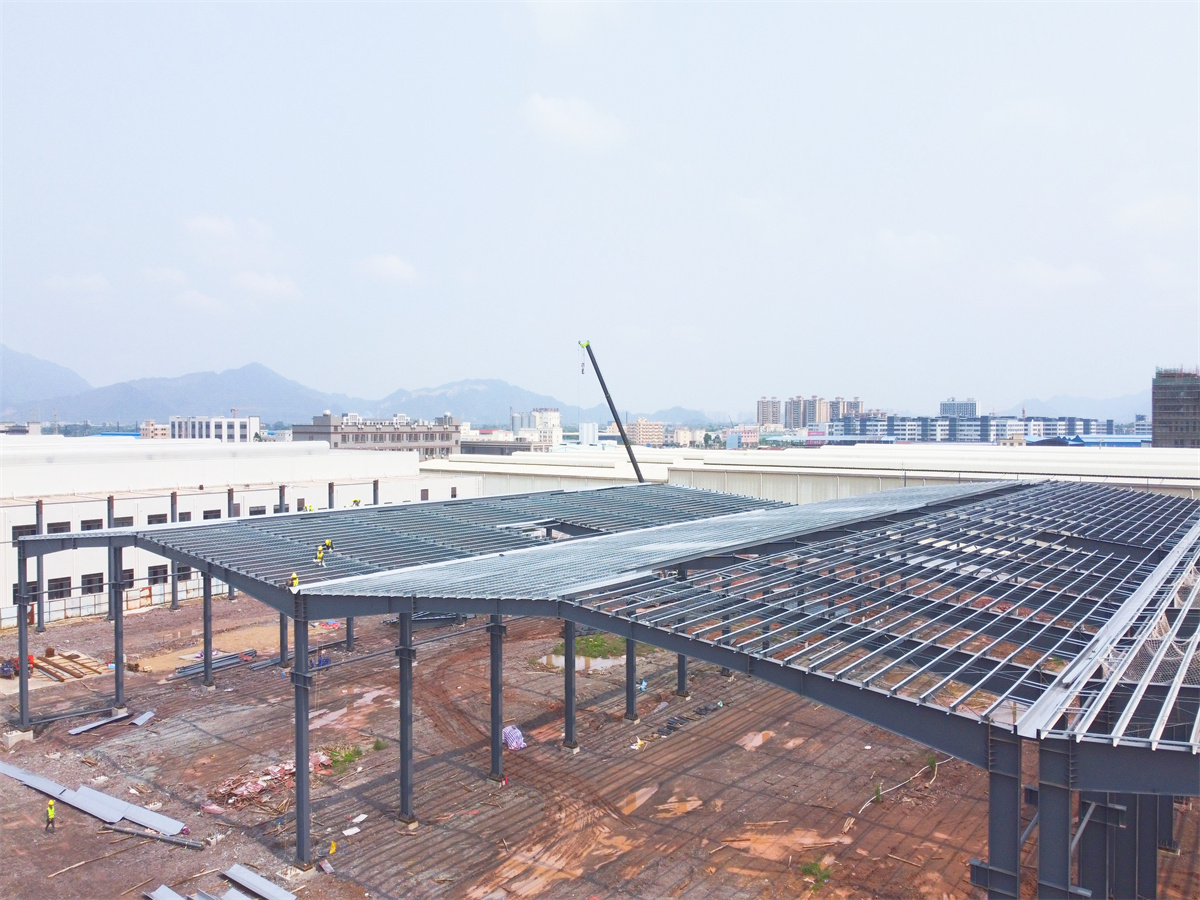

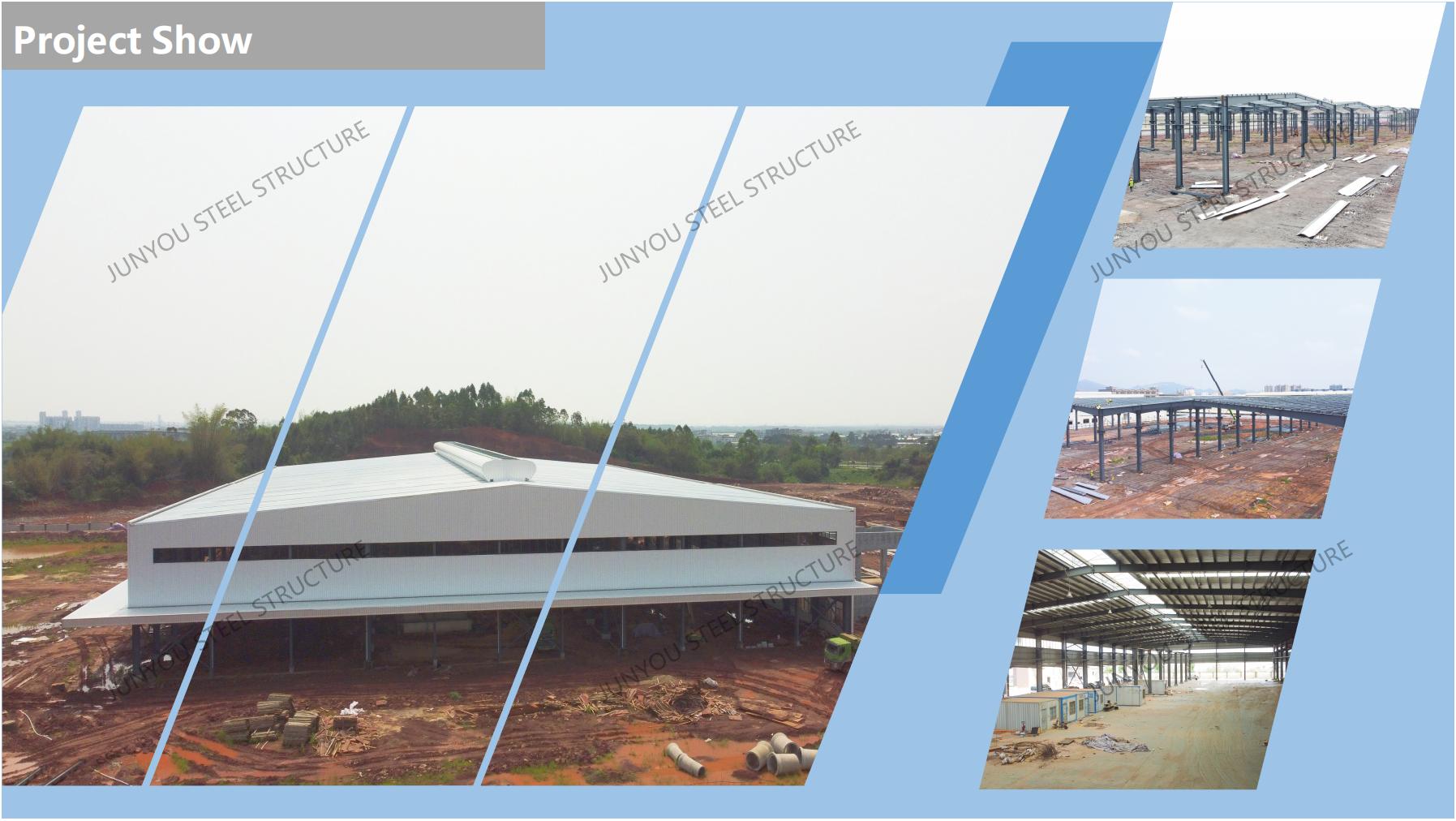

The steel frame metal warehouse building product we introduce here is a logistic steel structure warehouse in the suburbs. It is specifically designed for logistics and storage purposes, that is suitable for storing various goods and materials. All four walls of this warehouse can be opened, making it easier for trucks to load and unload goods and run smoothly. The design of the ridge ventilation can effectively ventilate the air and have a good lighting effect. Here below are the steel project pictures display:

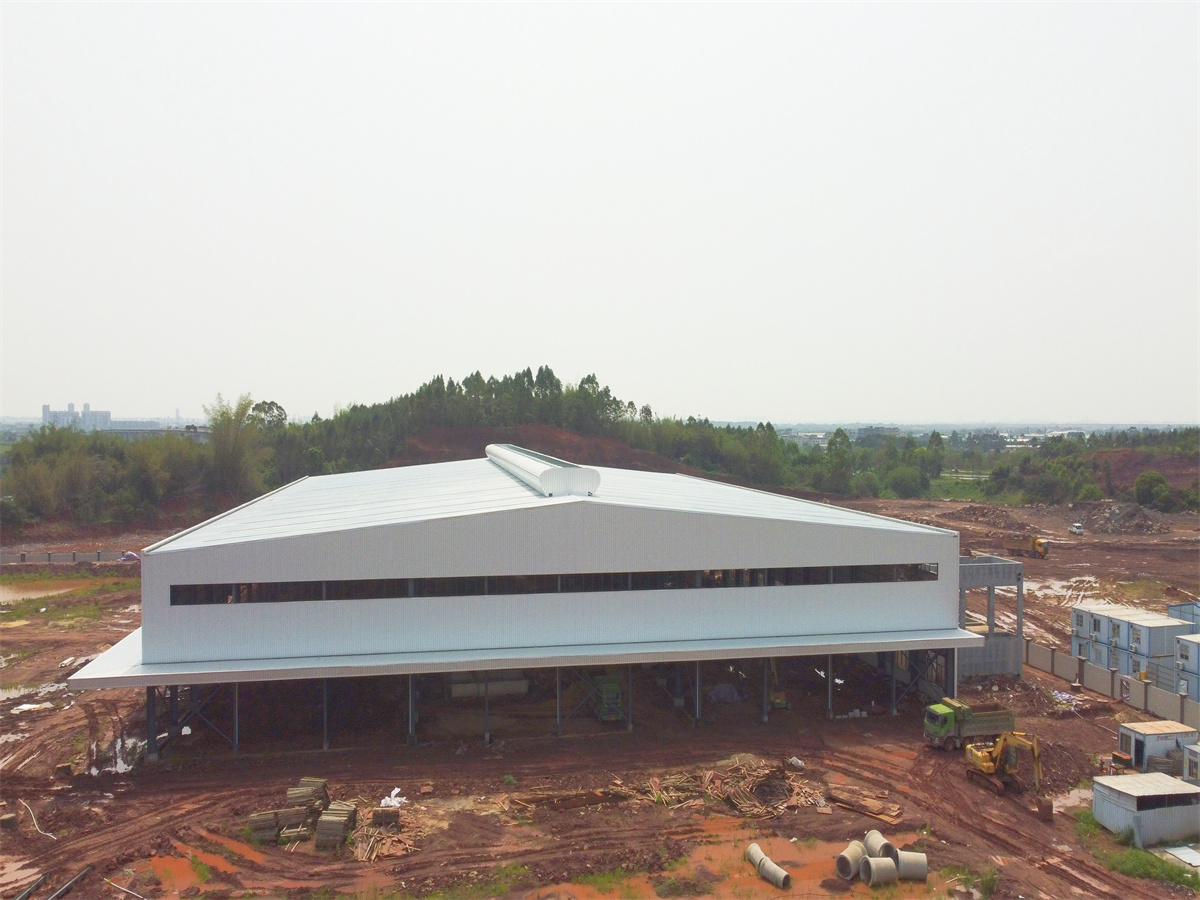

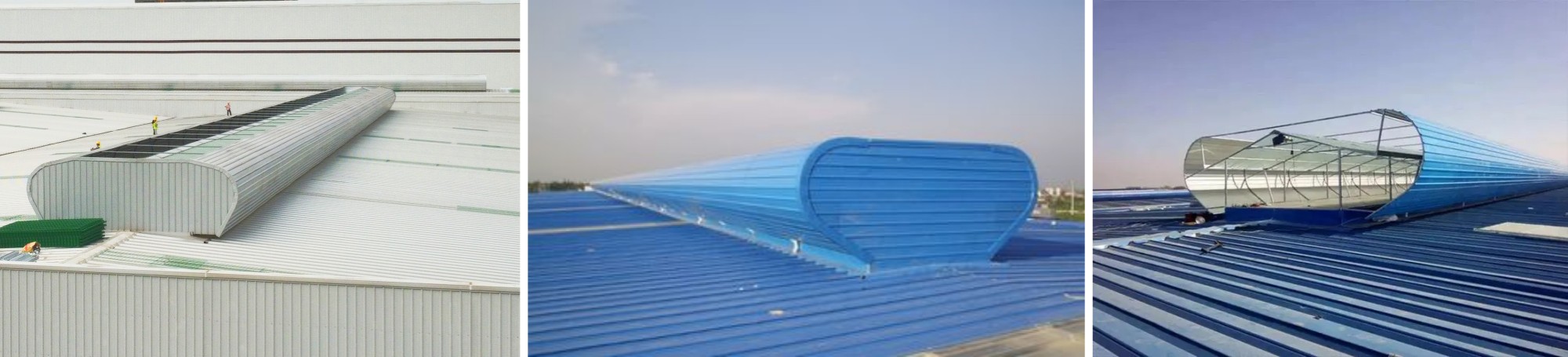

Large span warehouse/storage or workshop requires Ridge vents.
Ridge vents are ventilation devices installed along the ridge of your roof. It helps improve ventilation and reduce heat buildup, thereby increasing energy efficiency and preventing moisture-related problems. The daylighting ridge vent is common to use. It has a daylighting function and can use an FRP daylighting panel with a good daylighting effect.
Steel warehouse material component
I | Main steel frame | |||
1. | Steel structure frame | Welded H steel | Q235B/Q355B | Painting/Hot-dip galvanized |
2. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
II | Bracing Part | |||
1. | Tie Rod | ∅89/114/158 | Q235B | Painting/Hot-dip galvanized |
2. | Flexible Bracing | ∅16/18/20 | Q235B | Painting/Hot-dip galvanized |
3. | Sag rod | ∅20 | Q235B | Galvanized |
4. | Brace Rod | ∅32 | Q235B | Galvanized |
5. | Knee-brace | L50 | Q235B | Painting/Hot-dip galvanized |
III | Roof & Wall Part | |||
1. | Roof /Wall panel | Steel sheet | 0.326~0.7mm corrugated steel sheet | |
Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulated | |||
2. | Roof/Wall trimming | Ridge roof panel | 0.4~0.5 mm steel sheet | |
Flashing | 0.4~0.5 mm steel sheet | |||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||
IV | Window & Door part | |||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
2. | Door | Rolling/sliding door | Automatic and manual method | |
V | Accessories | |||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
3. | Downpipe | PVC 110/160 | ||
4. | Roof Ventilator | ∅600 (Galvanized) | ||
Simple features of steel structure warehouse
Strong and durable
Large span capabilities
Quick and easy construction
Good load-bearing capacity
Resistant to various environments
Cost-effective
Flexible design
Easy maintenance
Steel structure warehouses have the following advantages:
High strength and durability: Can withstand heavy loads and have a long service life.
Fast construction: Can be built quickly, reducing construction time and costs.
Flexible design: Can be easily customized to meet different needs.
Good seismic performance: Can provide better safety in earthquake-prone areas.
Easy maintenance: Simple to maintain and repair.
Environmentally friendly: Recyclable and sustainable.

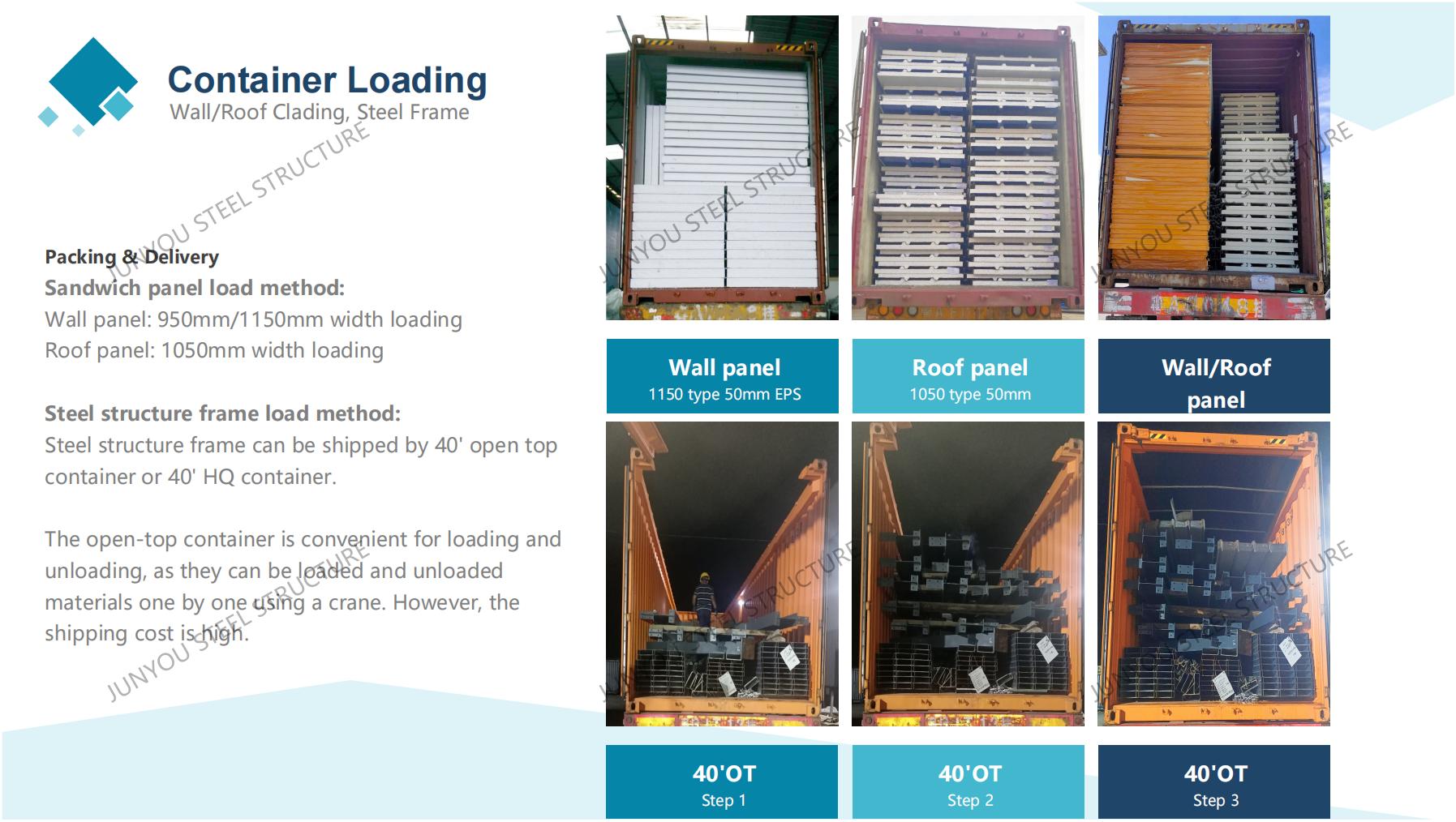

Steel structure warehouse container loading method:
The process of steel structure warehouse building installation:
1. foundation preparation(concrete footing, concrete ring beam)

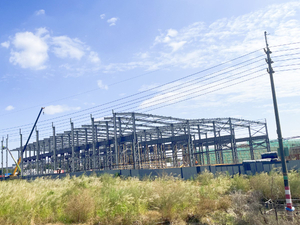

2. Erection of the steel frame(steel column,steel beam, purlin, tie rod, bracing)
3. Attaching panels (Roof/wall panel fixed on the steel frame add an insulated layer if necessary）
4. Door and window installation(roll up door / men door/ sliding window/ fixed window on the upper wall）
5. Plumbing(gutter and down pipe), electricity.

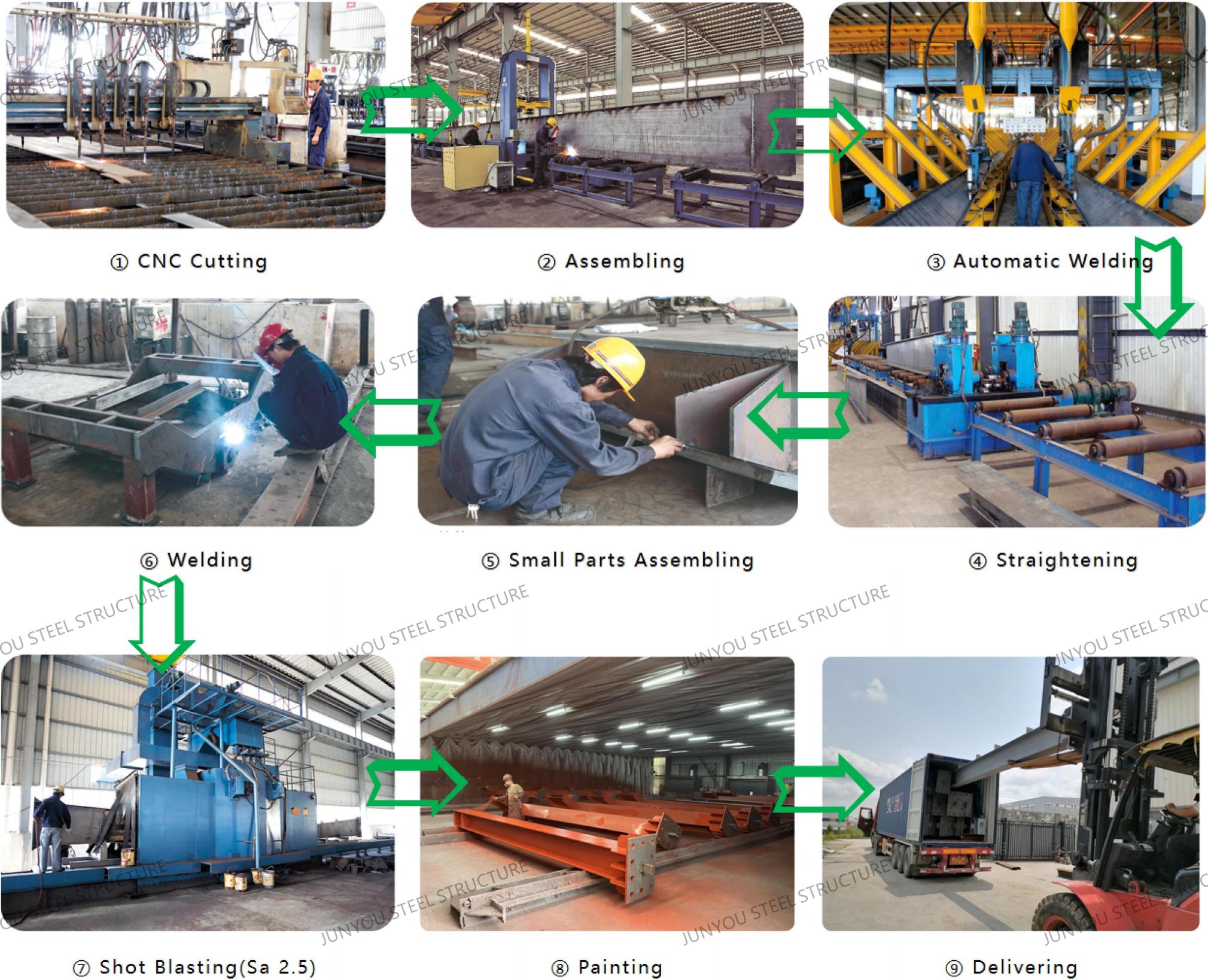

Steel structural processing workshop H section steel production
If you don’t have specific design drawings, don’t worry, just tell us the following data and we can design a simple floor plan for your reference.
1. | Size: | Length ___ Width___ Height___ |
2. | Storey: | ___Floors (Mezzanine if any) |
3. | Wind load | ___KN/m2 |
4. | Snow load: | ___KN/m2 |
5. | Ventilation: | Yes/No |
6. | Roof panel: | EPS/Glass wool/Rock wool/PU sandwich panel / Corrugated steel sheet |
7. | Wall panel: | EPS/Glass wool/Rock wool/PU sandwich panel / Corrugated steel sheet |
8. | Sky lighting: | Yes/No |
9. | Door/Gate: | Rolling door/ sliding door/steel door ----Size( W__ x H__ x __unit) |
10. | Window: | Fixed/open ----Size( W__ x H__ x __unit) |
11 | Gutter/downpipe: | Yes/No |
12 | Crane: | Yes ___ton / No |
13 | Steel finished: | Painting/Hot-dip galvanized |
